Add a Simple PushPin with Bing Maps in a Windows Phone 7

Code

<phone:PhoneApplicationPage
x:Class="WindowsPhoneApplication2.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d" FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True"
xmlns:my="clr-namespace:Microsoft.Phone.Controls.Maps;assembly=Microsoft.Phone.Controls.Maps"
d:DesignHeight="768" d:DesignWidth="480">
<phone:PhoneApplicationPage.Resources>
<ControlTemplate x:Key="pinMyLoc" TargetType="my:Pushpin">
<Grid Height="26" Width="26" Margin="-13,-13,0,0" RenderTransformOrigin="0.5,0.5">
<Grid.RenderTransform>
<CompositeTransform Rotation="-45"/>
</Grid.RenderTransform>
<Rectangle Fill="Red" HorizontalAlignment="Center"
Margin="0" Stroke="White" VerticalAlignment="Center"
Height="26" Width="26"/>
<Ellipse HorizontalAlignment="Center" Height="16" Margin="0"
VerticalAlignment="Center" Fill="Yellow"
Width="16"/>
</Grid>
</ControlTemplate>
</phone:PhoneApplicationPage.Resources>
<!--LayoutRoot is the root grid where all page content is placed-->
<Grid x:Name="LayoutRoot" Background="Transparent">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!--TitlePanel contains the name of the application and page title-->
<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="ApplicationTitle" Text="Tom Application" Style="{StaticResource PhoneTextNormalStyle
"Foreground="#FFFF50FF" />
<TextBlock x:Name="PageTitle" Text="Bing Map" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style
"OpacityMask="#FFFA0000" Foreground="#FF2ADE78" />
</StackPanel>
<!--ContentPanel - place additional content here-->
<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<my:Map Height="498" CredentialsProvider="ApXjYPChA-MW0fszWs_DjwbGzJsJU2V7-Ov1zhqwZl39_1Bm--hj9I56Qr9UuLAa"
HorizontalAlignment="Left" Margin="0,6,0,0" Name="map1" VerticalAlignment="Top" Width="468">
<my:MapItemsControl x:Name="mapControl" />
</my:Map>
<Button Content="Location" Height="72" HorizontalAlignment="Left" Margin="121,510,0,0" Name="button1" VerticalAlignment="Top"
Width="206" Click="button1_Click" Foreground="White" Background="#FFB81B1B"></Button></Grid>
</Grid>
</phone:PhoneApplicationPage>

Step 6 : Write the code of the Location button.

Code

private void button1_Click(object sender, RoutedEventArgs e)
{
if (man == null)
{
man = new GeoCoordinateWatcher(GeoPositionAccuracy.High);
man.StatusChanged += loc_StatusChanged;
}
if (man.Status == GeoPositionStatus.Disabled)
{
man.StatusChanged -= loc_StatusChanged;
MessageBox.Show("Location service install in your phone");
return;
}
man.Start();
}

Step 7 : Write the code of the allocated pushpin location.

Code

void loc_StatusChanged(object sender, GeoPositionStatusChangedEventArgs e)
{
if (e.Status == GeoPositionStatus.Ready)
{
Pushpin pin = new Pushpin();
pin.Template = this.Resources["pinMyLoc"] as ControlTemplate;
pin.Location = man.Position.Location;
mapControl.Items.Add(pin);
map1.SetView(man.Position.Location, 15.0);
man.Stop();
}
}

Step 8 : Write the final code of the pushpin allocation of the maninpage.aspx.cs page.

Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using System.Device.Location;
using Microsoft.Phone.Controls.Maps;
namespace TomApplication
{
public partial class MainPage : PhoneApplicationPage
{
// Constructor
public MainPage()
{
InitializeComponent();
map1.ZoomBarVisibility = System.Windows.Visibility.Visible;
map1.LogoVisibility = Visibility.Collapsed;
map1.CopyrightVisibility = Visibility.Collapsed;
map1.Mode = new AerialMode();
}
private GeoCoordinateWatcher man = null;
private void button1_Click(object sender, RoutedEventArgs e)
{
if (man == null)
{
man = new GeoCoordinateWatcher(GeoPositionAccuracy.High);
man.StatusChanged += loc_StatusChanged;
}
if (man.Status == GeoPositionStatus.Disabled)
{
man.StatusChanged -= loc_StatusChanged;
MessageBox.Show("Location service install in your phone");
return;
}

man.Start();
}
void loc_StatusChanged(object sender, GeoPositionStatusChangedEventArgs e)
{
if (e.Status == GeoPositionStatus.Ready)
{
Pushpin pin = new Pushpin();
pin.Template = this.Resources["pinMyLoc"] as ControlTemplate;
pin.Location = man.Position.Location;
mapControl.Items.Add(pin);
map1.SetView(man.Position.Location, 15.0);
man.Stop();
}
}
}
}

Step 9 : Press Crtl + F5 to run application.

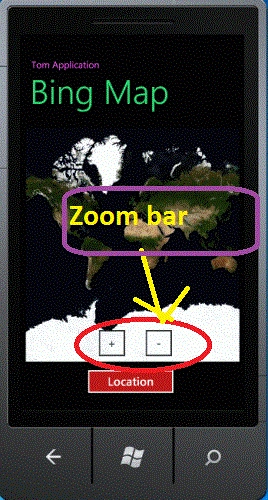

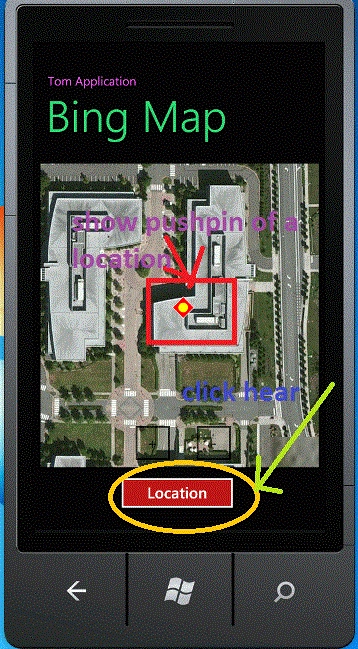

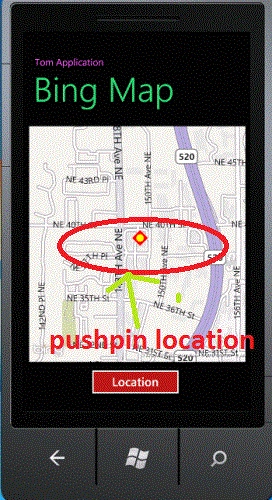

Output
