In today's discussion, we will discuss Aggregation and Composition in detail using C#. So, let's get started. Let me go ahead and create simple console App for demo purpose.

namespace CSharpStuffs
{
public class Patient
{
public string PatientName { get; set; }
public string AdmissionDate { get; set; }
public string ReleaseDate { get; set; }
public DoctorInfo DoctorInfo { get; set; }
public LifeInsurance Insurance { get; set; }
}
}

namespace CSharpStuffs
{
public class LifeInsurance
{
public string PolicyName;
public string CompanyName;
}
}

Once, the class gets created, It's time to feed the value via constructor. Hence, the following is the final code for the same.

namespace CSharpStuffs
{
public class Patient
{
public string PatientName { get; set; }
public string AdmissionDate { get; set; }
public string ReleaseDate { get; set; }
public DoctorInfo DoctorInfo { get; set; }
public LifeInsurance Insurance { get; set; }
public Patient(string patientName,string admissionDate,string releaseDate,string doctorName,string doctorSpeciality, string workingAt)
{
PatientName = patientName;
AdmissionDate = admissionDate;
ReleaseDate = releaseDate;
//Composition comes into picture now
//It also means when we construct Patient, we also constructed DoctorInfo
//Hence, scope of Doctorinfo is dependent on Patient
DoctorInfo = new DoctorInfo
{
DoctorName = doctorName,
DoctorSpeciality = doctorSpeciality,
WorkingAt = workingAt
};
}
//Overrideenn ToString() for convience
public override string ToString()
{
string result = PatientName + " " +
AdmissionDate + " " +
ReleaseDate + " ";
//Filling Other objects
if (DoctorInfo != null)
{
result += DoctorInfo.DoctorName + " "
+ DoctorInfo.DoctorSpeciality + " "
+ DoctorInfo.WorkingAt;
}
if (Insurance != null)
{
result += " "+ Insurance.PolicyName + " "
+ Insurance.CompanyName;
}
return result;
}
}
}

You will also notice that here, I have used Composition concept. Composition is tied with actual object which is patient here and hence DoctorInfo also got constructed.

Now, main program looks like the following:

using System;
namespace CSharpStuffs
{
class Program
{
static void Main(string[] args)
{
Patient patient = new Patient("Tim","12-08-2015","20-08-2015","Cook","Physician","Fortis");
Console.WriteLine(patient.ToString());
Console.ReadLine();
}
}
}

And, when I run the program, it will produce the following output.

run

However, I can modify the main program to add more info to this via aggregation as shown below.

using System;
namespace CSharpStuffs
{
class Program
{
static void Main(string[] args)
{
Patient patient = new Patient("Tim","12-08-2015","20-08-2015","Cook","Physician","Fortis");
Console.WriteLine(patient.ToString());
//Now, we can add insurance by aggregation
patient.Insurance = new LifeInsurance
{
CompanyName = "HDFC",
PolicyName = "LIFE-AXA"
};
Console.WriteLine(patient.ToString());
Console.ReadLine();
}
}
}

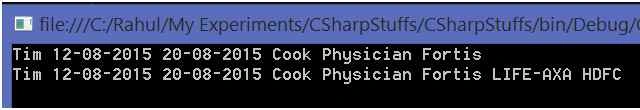

With the above change in place, it will display the following info.

display

Therefore, in a nutshell, Aggregation is the stuff which can be added at later point of time to the object, but composition gets constructed with object creation itself.

Thanks!
