ASP.NET Core - Entity Framework Call Store Procedure

In web development, especially databases, a connection with the Microsoft SQL server adds a lot of advantages in terms of business logic development at the database level. Stored procedures are one of the key advantages that the Microsoft SQL server provides. For boosting the query performance, the complex query should be written at the database level through stored procedures. Microsoft .NET Core supports calling of raw query and store procedure through entity framework.

In today's article, I will demonstrate a stored procedure call by using entity framework.

ASP.NET Core - Entity Framework Call Store Procedure

Prerequisites

Following are some prerequisites before you proceed any further in this tutorial:

Understanding of ASP.NET Core framework.
Upgrade Windows Power Shell to the latest version.
Understanding of Stored Procedures.
Knowledge about entity framework
Knowledge about Bootstrap.
Knowledge about C# programming.
Knowledge about C# LINQ.

You can download the complete source code for this tutorial or you can follow the step by step discussion below. The sample code is developed in Microsoft Visual Studio 2017 Professional & SQL Server 2014. I have taken the data sample from AdventureWorks for SQL server 2014.

Let's begin now.

Step 1

First, create your existing SQL server database named "db_core_sp_call" which will be utilized in ASP.NET Core web application by executing the following SQL script; i.e.:

USE [db_core_sp_call]
GO
/****** Object: StoredProcedure [dbo].[GetProductByPriceGreaterThan1000] Script Date: 10/9/2018 2:47:29 PM ******/
DROP PROCEDURE [dbo].[GetProductByPriceGreaterThan1000]
GO
/****** Object: StoredProcedure [dbo].[GetProductByID] Script Date: 10/9/2018 2:47:29 PM ******/
DROP PROCEDURE [dbo].[GetProductByID]
GO
/****** Object: Table [dbo].[tbl_vendor] Script Date: 10/9/2018 2:47:29 PM ******/
DROP TABLE [dbo].[tbl_vendor]
GO
/****** Object: Table [dbo].[tbl_product] Script Date: 10/9/2018 2:47:29 PM ******/
DROP TABLE [dbo].[tbl_product]
GO
/****** Object: Table [dbo].[tbl_department] Script Date: 10/9/2018 2:47:29 PM ******/
DROP TABLE [dbo].[tbl_department]
GO
/****** Object: Table [dbo].[tbl_department] Script Date: 10/9/2018 2:47:29 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[tbl_department](
[DepartmentId] [int] IDENTITY(1,1) NOT NULL,
[Name] [nvarchar](max) NOT NULL,
[GroupName] [nvarchar](max) NOT NULL,
CONSTRAINT [PK_tbl_department] PRIMARY KEY CLUSTERED
(
[DepartmentId] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO
/****** Object: Table [dbo].[tbl_product] Script Date: 10/9/2018 2:47:29 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[tbl_product](
[ProductID] [int] IDENTITY(1,1) NOT NULL,
[Name] [nvarchar](max) NOT NULL,
[ProductNumber] [nvarchar](max) NOT NULL,
[Color] [nvarchar](max) NOT NULL,
[Quantity] [int] NOT NULL,
[Price] [money] NOT NULL,
CONSTRAINT [PK_tbl_product] PRIMARY KEY CLUSTERED
(
[ProductID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO
/****** Object: Table [dbo].[tbl_vendor] Script Date: 10/9/2018 2:47:29 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[tbl_vendor](
[VendorId] [int] IDENTITY(1,1) NOT NULL,
[Name] [nvarchar](max) NOT NULL,
CONSTRAINT [PK_tbl_vendor] PRIMARY KEY CLUSTERED
(
[VendorId] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO
SET IDENTITY_INSERT [dbo].[tbl_department] ON
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (1, N'Engineering', N'Research and Development')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (2, N'Tool Design', N'Research and Development')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (3, N'Sales', N'Sales and Marketing')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (4, N'Marketing', N'Sales and Marketing')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (5, N'Purchasing', N'Inventory Management')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (6, N'Research and Development', N'Research and Development')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (7, N'Production', N'Manufacturing')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (8, N'Production Control', N'Manufacturing')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (9, N'Human Resources', N'Executive General and Administration')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (10, N'Finance', N'Executive General and Administration')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (11, N'Information Services', N'Executive General and Administration')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (12, N'Document Control', N'Quality Assurance')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (13, N'Quality Assurance', N'Quality Assurance')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (14, N'Facilities and Maintenance', N'Executive General and Administration')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (15, N'Shipping and Receiving', N'Inventory Management')
INSERT [dbo].[tbl_department] ([DepartmentId], [Name], [GroupName]) VALUES (16, N'Executive', N'Executive General and Administration')
SET IDENTITY_INSERT [dbo].[tbl_department] OFF
SET IDENTITY_INSERT [dbo].[tbl_product] ON
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (680, N'HL Road Frame - Black, 58', N'FR-R92B-58', N'Black', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (706, N'HL Road Frame - Red, 58', N'FR-R92R-58', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (707, N'Sport-100 Helmet, Red', N'HL-U509-R', N'Red', 4, 35.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (708, N'Sport-100 Helmet, Black', N'HL-U509', N'Black', 4, 35.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (709, N'Mountain Bike Socks, M', N'SO-B909-M', N'White', 4, 10.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (710, N'Mountain Bike Socks, L', N'SO-B909-L', N'White', 4, 10.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (711, N'Sport-100 Helmet, Blue', N'HL-U509-B', N'Blue', 4, 35.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (712, N'AWC Logo Cap', N'CA-1098', N'Multi', 4, 9.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (713, N'Long-Sleeve Logo Jersey, S', N'LJ-0192-S', N'Multi', 4, 50.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (714, N'Long-Sleeve Logo Jersey, M', N'LJ-0192-M', N'Multi', 4, 50.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (715, N'Long-Sleeve Logo Jersey, L', N'LJ-0192-L', N'Multi', 4, 50.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (716, N'Long-Sleeve Logo Jersey, XL', N'LJ-0192-X', N'Multi', 4, 50.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (717, N'HL Road Frame - Red, 62', N'FR-R92R-62', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (718, N'HL Road Frame - Red, 44', N'FR-R92R-44', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (719, N'HL Road Frame - Red, 48', N'FR-R92R-48', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (720, N'HL Road Frame - Red, 52', N'FR-R92R-52', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (721, N'HL Road Frame - Red, 56', N'FR-R92R-56', N'Red', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (722, N'LL Road Frame - Black, 58', N'FR-R38B-58', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (723, N'LL Road Frame - Black, 60', N'FR-R38B-60', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (724, N'LL Road Frame - Black, 62', N'FR-R38B-62', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (725, N'LL Road Frame - Red, 44', N'FR-R38R-44', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (726, N'LL Road Frame - Red, 48', N'FR-R38R-48', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (727, N'LL Road Frame - Red, 52', N'FR-R38R-52', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (728, N'LL Road Frame - Red, 58', N'FR-R38R-58', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (729, N'LL Road Frame - Red, 60', N'FR-R38R-60', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (730, N'LL Road Frame - Red, 62', N'FR-R38R-62', N'Red', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (731, N'ML Road Frame - Red, 44', N'FR-R72R-44', N'Red', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (732, N'ML Road Frame - Red, 48', N'FR-R72R-48', N'Red', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (733, N'ML Road Frame - Red, 52', N'FR-R72R-52', N'Red', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (734, N'ML Road Frame - Red, 58', N'FR-R72R-58', N'Red', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (735, N'ML Road Frame - Red, 60', N'FR-R72R-60', N'Red', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (736, N'LL Road Frame - Black, 44', N'FR-R38B-44', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (737, N'LL Road Frame - Black, 48', N'FR-R38B-48', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (738, N'LL Road Frame - Black, 52', N'FR-R38B-52', N'Black', 500, 338.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (739, N'HL Mountain Frame - Silver, 42', N'FR-M94S-42', N'Silver', 500, 1365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (740, N'HL Mountain Frame - Silver, 44', N'FR-M94S-44', N'Silver', 500, 1365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (741, N'HL Mountain Frame - Silver, 48', N'FR-M94S-52', N'Silver', 500, 1365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (742, N'HL Mountain Frame - Silver, 46', N'FR-M94S-46', N'Silver', 500, 1365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (743, N'HL Mountain Frame - Black, 42', N'FR-M94B-42', N'Black', 500, 1350.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (744, N'HL Mountain Frame - Black, 44', N'FR-M94B-44', N'Black', 500, 1350.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (745, N'HL Mountain Frame - Black, 48', N'FR-M94B-48', N'Black', 500, 1350.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (746, N'HL Mountain Frame - Black, 46', N'FR-M94B-46', N'Black', 500, 1350.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (747, N'HL Mountain Frame - Black, 38', N'FR-M94B-38', N'Black', 500, 1350.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (748, N'HL Mountain Frame - Silver, 38', N'FR-M94S-38', N'Silver', 500, 1365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (749, N'Road-150 Red, 62', N'BK-R93R-62', N'Red', 100, 3579.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (750, N'Road-150 Red, 44', N'BK-R93R-44', N'Red', 100, 3579.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (751, N'Road-150 Red, 48', N'BK-R93R-48', N'Red', 100, 3579.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (752, N'Road-150 Red, 52', N'BK-R93R-52', N'Red', 100, 3579.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (753, N'Road-150 Red, 56', N'BK-R93R-56', N'Red', 100, 3579.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (754, N'Road-450 Red, 58', N'BK-R68R-58', N'Red', 100, 1458.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (755, N'Road-450 Red, 60', N'BK-R68R-60', N'Red', 100, 1458.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (756, N'Road-450 Red, 44', N'BK-R68R-44', N'Red', 100, 1458.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (757, N'Road-450 Red, 48', N'BK-R68R-48', N'Red', 100, 1458.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (758, N'Road-450 Red, 52', N'BK-R68R-52', N'Red', 100, 1458.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (759, N'Road-650 Red, 58', N'BK-R50R-58', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (760, N'Road-650 Red, 60', N'BK-R50R-60', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (761, N'Road-650 Red, 62', N'BK-R50R-62', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (762, N'Road-650 Red, 44', N'BK-R50R-44', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (763, N'Road-650 Red, 48', N'BK-R50R-48', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (764, N'Road-650 Red, 52', N'BK-R50R-52', N'Red', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (765, N'Road-650 Black, 58', N'BK-R50B-58', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (766, N'Road-650 Black, 60', N'BK-R50B-60', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (767, N'Road-650 Black, 62', N'BK-R50B-62', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (768, N'Road-650 Black, 44', N'BK-R50B-44', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (769, N'Road-650 Black, 48', N'BK-R50B-48', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (770, N'Road-650 Black, 52', N'BK-R50B-52', N'Black', 100, 783.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (771, N'Mountain-100 Silver, 38', N'BK-M82S-38', N'Silver', 100, 3400.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (772, N'Mountain-100 Silver, 42', N'BK-M82S-42', N'Silver', 100, 3400.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (773, N'Mountain-100 Silver, 44', N'BK-M82S-44', N'Silver', 100, 3400.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (774, N'Mountain-100 Silver, 48', N'BK-M82S-48', N'Silver', 100, 3400.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (775, N'Mountain-100 Black, 38', N'BK-M82B-38', N'Black', 100, 3375.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (776, N'Mountain-100 Black, 42', N'BK-M82B-42', N'Black', 100, 3375.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (777, N'Mountain-100 Black, 44', N'BK-M82B-44', N'Black', 100, 3375.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (778, N'Mountain-100 Black, 48', N'BK-M82B-48', N'Black', 100, 3375.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (779, N'Mountain-200 Silver, 38', N'BK-M68S-38', N'Silver', 100, 2320.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (780, N'Mountain-200 Silver, 42', N'BK-M68S-42', N'Silver', 100, 2320.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (781, N'Mountain-200 Silver, 46', N'BK-M68S-46', N'Silver', 100, 2320.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (782, N'Mountain-200 Black, 38', N'BK-M68B-38', N'Black', 100, 2295.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (783, N'Mountain-200 Black, 42', N'BK-M68B-42', N'Black', 100, 2295.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (784, N'Mountain-200 Black, 46', N'BK-M68B-46', N'Black', 100, 2295.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (785, N'Mountain-300 Black, 38', N'BK-M47B-38', N'Black', 100, 1080.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (786, N'Mountain-300 Black, 40', N'BK-M47B-40', N'Black', 100, 1080.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (787, N'Mountain-300 Black, 44', N'BK-M47B-44', N'Black', 100, 1080.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (788, N'Mountain-300 Black, 48', N'BK-M47B-48', N'Black', 100, 1080.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (789, N'Road-250 Red, 44', N'BK-R89R-44', N'Red', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (790, N'Road-250 Red, 48', N'BK-R89R-48', N'Red', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (791, N'Road-250 Red, 52', N'BK-R89R-52', N'Red', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (792, N'Road-250 Red, 58', N'BK-R89R-58', N'Red', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (793, N'Road-250 Black, 44', N'BK-R89B-44', N'Black', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (794, N'Road-250 Black, 48', N'BK-R89B-48', N'Black', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (795, N'Road-250 Black, 52', N'BK-R89B-52', N'Black', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (796, N'Road-250 Black, 58', N'BK-R89B-58', N'Black', 100, 2444.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (797, N'Road-550-W Yellow, 38', N'BK-R64Y-38', N'Yellow', 100, 1121.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (798, N'Road-550-W Yellow, 40', N'BK-R64Y-40', N'Yellow', 100, 1121.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (799, N'Road-550-W Yellow, 42', N'BK-R64Y-42', N'Yellow', 100, 1121.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (800, N'Road-550-W Yellow, 44', N'BK-R64Y-44', N'Yellow', 100, 1121.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (801, N'Road-550-W Yellow, 48', N'BK-R64Y-48', N'Yellow', 100, 1121.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (814, N'ML Mountain Frame - Black, 38', N'FR-M63B-38', N'Black', 500, 349.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (815, N'LL Mountain Front Wheel', N'FW-M423', N'Black', 500, 61.0000)
GO
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (816, N'ML Mountain Front Wheel', N'FW-M762', N'Black', 500, 210.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (817, N'HL Mountain Front Wheel', N'FW-M928', N'Black', 500, 301.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (818, N'LL Road Front Wheel', N'FW-R623', N'Black', 500, 86.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (819, N'ML Road Front Wheel', N'FW-R762', N'Black', 500, 249.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (820, N'HL Road Front Wheel', N'FW-R820', N'Black', 500, 331.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (821, N'Touring Front Wheel', N'FW-T905', N'Black', 500, 219.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (822, N'ML Road Frame-W - Yellow, 38', N'FR-R72Y-38', N'Yellow', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (823, N'LL Mountain Rear Wheel', N'RW-M423', N'Black', 500, 88.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (824, N'ML Mountain Rear Wheel', N'RW-M762', N'Black', 500, 237.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (825, N'HL Mountain Rear Wheel', N'RW-M928', N'Black', 500, 328.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (826, N'LL Road Rear Wheel', N'RW-R623', N'Black', 500, 113.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (827, N'ML Road Rear Wheel', N'RW-R762', N'Black', 500, 276.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (828, N'HL Road Rear Wheel', N'RW-R820', N'Black', 500, 358.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (829, N'Touring Rear Wheel', N'RW-T905', N'Black', 500, 246.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (830, N'ML Mountain Frame - Black, 40', N'FR-M63B-40', N'Black', 500, 349.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (831, N'ML Mountain Frame - Black, 44', N'FR-M63B-44', N'Black', 500, 349.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (832, N'ML Mountain Frame - Black, 48', N'FR-M63B-48', N'Black', 500, 349.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (833, N'ML Road Frame-W - Yellow, 40', N'FR-R72Y-40', N'Yellow', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (834, N'ML Road Frame-W - Yellow, 42', N'FR-R72Y-42', N'Yellow', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (835, N'ML Road Frame-W - Yellow, 44', N'FR-R72Y-44', N'Yellow', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (836, N'ML Road Frame-W - Yellow, 48', N'FR-R72Y-48', N'Yellow', 500, 595.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (837, N'HL Road Frame - Black, 62', N'FR-R92B-62', N'Black', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (838, N'HL Road Frame - Black, 44', N'FR-R92B-44', N'Black', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (839, N'HL Road Frame - Black, 48', N'FR-R92B-48', N'Black', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (840, N'HL Road Frame - Black, 52', N'FR-R92B-52', N'Black', 500, 1432.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (841, N'Men''s Sports Shorts, S', N'SH-M897-S', N'Black', 4, 60.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (842, N'Touring-Panniers, Large', N'PA-T100', N'Grey', 4, 125.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (849, N'Men''s Sports Shorts, M', N'SH-M897-M', N'Black', 4, 60.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (850, N'Men''s Sports Shorts, L', N'SH-M897-L', N'Black', 4, 60.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (851, N'Men''s Sports Shorts, XL', N'SH-M897-X', N'Black', 4, 60.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (852, N'Women''s Tights, S', N'TG-W091-S', N'Black', 4, 75.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (853, N'Women''s Tights, M', N'TG-W091-M', N'Black', 4, 75.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (854, N'Women''s Tights, L', N'TG-W091-L', N'Black', 4, 75.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (855, N'Men''s Bib-Shorts, S', N'SB-M891-S', N'Multi', 4, 90.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (856, N'Men''s Bib-Shorts, M', N'SB-M891-M', N'Multi', 4, 90.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (857, N'Men''s Bib-Shorts, L', N'SB-M891-L', N'Multi', 4, 90.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (858, N'Half-Finger Gloves, S', N'GL-H102-S', N'Black', 4, 25.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (859, N'Half-Finger Gloves, M', N'GL-H102-M', N'Black', 4, 25.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (860, N'Half-Finger Gloves, L', N'GL-H102-L', N'Black', 4, 25.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (861, N'Full-Finger Gloves, S', N'GL-F110-S', N'Black', 4, 38.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (862, N'Full-Finger Gloves, M', N'GL-F110-M', N'Black', 4, 38.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (863, N'Full-Finger Gloves, L', N'GL-F110-L', N'Black', 4, 38.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (864, N'Classic Vest, S', N'VE-C304-S', N'Blue', 4, 64.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (865, N'Classic Vest, M', N'VE-C304-M', N'Blue', 4, 64.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (866, N'Classic Vest, L', N'VE-C304-L', N'Blue', 4, 64.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (867, N'Women''s Mountain Shorts, S', N'SH-W890-S', N'Black', 4, 70.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (868, N'Women''s Mountain Shorts, M', N'SH-W890-M', N'Black', 4, 70.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (869, N'Women''s Mountain Shorts, L', N'SH-W890-L', N'Black', 4, 70.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (874, N'Racing Socks, M', N'SO-R809-M', N'White', 4, 9.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (875, N'Racing Socks, L', N'SO-R809-L', N'White', 4, 9.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (880, N'Hydration Pack - 70 oz.', N'HY-1023-70', N'Silver', 4, 55.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (881, N'Short-Sleeve Classic Jersey, S', N'SJ-0194-S', N'Yellow', 4, 54.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (882, N'Short-Sleeve Classic Jersey, M', N'SJ-0194-M', N'Yellow', 4, 54.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (883, N'Short-Sleeve Classic Jersey, L', N'SJ-0194-L', N'Yellow', 4, 54.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (884, N'Short-Sleeve Classic Jersey, XL', N'SJ-0194-X', N'Yellow', 4, 54.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (885, N'HL Touring Frame - Yellow, 60', N'FR-T98Y-60', N'Yellow', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (886, N'LL Touring Frame - Yellow, 62', N'FR-T67Y-62', N'Yellow', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (887, N'HL Touring Frame - Yellow, 46', N'FR-T98Y-46', N'Yellow', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (888, N'HL Touring Frame - Yellow, 50', N'FR-T98Y-50', N'Yellow', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (889, N'HL Touring Frame - Yellow, 54', N'FR-T98Y-54', N'Yellow', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (890, N'HL Touring Frame - Blue, 46', N'FR-T98U-46', N'Blue', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (891, N'HL Touring Frame - Blue, 50', N'FR-T98U-50', N'Blue', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (892, N'HL Touring Frame - Blue, 54', N'FR-T98U-54', N'Blue', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (893, N'HL Touring Frame - Blue, 60', N'FR-T98U-60', N'Blue', 500, 1004.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (894, N'Rear Derailleur', N'RD-2308', N'Silver', 500, 122.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (895, N'LL Touring Frame - Blue, 50', N'FR-T67U-50', N'Blue', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (896, N'LL Touring Frame - Blue, 54', N'FR-T67U-54', N'Blue', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (897, N'LL Touring Frame - Blue, 58', N'FR-T67U-58', N'Blue', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (898, N'LL Touring Frame - Blue, 62', N'FR-T67U-62', N'Blue', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (899, N'LL Touring Frame - Yellow, 44', N'FR-T67Y-44', N'Yellow', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (900, N'LL Touring Frame - Yellow, 50', N'FR-T67Y-50', N'Yellow', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (901, N'LL Touring Frame - Yellow, 54', N'FR-T67Y-54', N'Yellow', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (902, N'LL Touring Frame - Yellow, 58', N'FR-T67Y-58', N'Yellow', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (903, N'LL Touring Frame - Blue, 44', N'FR-T67U-44', N'Blue', 500, 334.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (904, N'ML Mountain Frame-W - Silver, 40', N'FR-M63S-40', N'Silver', 500, 365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (905, N'ML Mountain Frame-W - Silver, 42', N'FR-M63S-42', N'Silver', 500, 365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (906, N'ML Mountain Frame-W - Silver, 46', N'FR-M63S-46', N'Silver', 500, 365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (907, N'Rear Brakes', N'RB-9231', N'Silver', 500, 107.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (917, N'LL Mountain Frame - Silver, 42', N'FR-M21S-42', N'Silver', 500, 265.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (918, N'LL Mountain Frame - Silver, 44', N'FR-M21S-44', N'Silver', 500, 265.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (919, N'LL Mountain Frame - Silver, 48', N'FR-M21S-48', N'Silver', 500, 265.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (920, N'LL Mountain Frame - Silver, 52', N'FR-M21S-52', N'Silver', 500, 265.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (924, N'LL Mountain Frame - Black, 42', N'FR-M21B-42', N'Black', 500, 250.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (925, N'LL Mountain Frame - Black, 44', N'FR-M21B-44', N'Black', 500, 250.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (926, N'LL Mountain Frame - Black, 48', N'FR-M21B-48', N'Black', 500, 250.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (927, N'LL Mountain Frame - Black, 52', N'FR-M21B-52', N'Black', 500, 250.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (935, N'LL Mountain Pedal', N'PD-M282', N'Silver/Black', 500, 41.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (936, N'ML Mountain Pedal', N'PD-M340', N'Silver/Black', 500, 63.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (937, N'HL Mountain Pedal', N'PD-M562', N'Silver/Black', 500, 81.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (938, N'LL Road Pedal', N'PD-R347', N'Silver/Black', 500, 41.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (939, N'ML Road Pedal', N'PD-R563', N'Silver/Black', 500, 63.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (940, N'HL Road Pedal', N'PD-R853', N'Silver/Black', 500, 81.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (941, N'Touring Pedal', N'PD-T852', N'Silver/Black', 500, 81.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (942, N'ML Mountain Frame-W - Silver, 38', N'FR-M63S-38', N'Silver', 500, 365.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (943, N'LL Mountain Frame - Black, 40', N'FR-M21B-40', N'Black', 500, 250.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (944, N'LL Mountain Frame - Silver, 40', N'FR-M21S-40', N'Silver', 500, 265.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (945, N'Front Derailleur', N'FD-2342', N'Silver', 500, 92.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (948, N'Front Brakes', N'FB-9873', N'Silver', 500, 107.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (949, N'LL Crankset', N'CS-4759', N'Black', 500, 176.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (950, N'ML Crankset', N'CS-6583', N'Black', 500, 257.0000)
GO
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (951, N'HL Crankset', N'CS-9183', N'Black', 500, 405.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (952, N'Chain', N'CH-0234', N'Silver', 500, 21.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (953, N'Touring-2000 Blue, 60', N'BK-T44U-60', N'Blue', 100, 1215.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (954, N'Touring-1000 Yellow, 46', N'BK-T79Y-46', N'Yellow', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (955, N'Touring-1000 Yellow, 50', N'BK-T79Y-50', N'Yellow', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (956, N'Touring-1000 Yellow, 54', N'BK-T79Y-54', N'Yellow', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (957, N'Touring-1000 Yellow, 60', N'BK-T79Y-60', N'Yellow', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (958, N'Touring-3000 Blue, 54', N'BK-T18U-54', N'Blue', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (959, N'Touring-3000 Blue, 58', N'BK-T18U-58', N'Blue', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (960, N'Touring-3000 Blue, 62', N'BK-T18U-62', N'Blue', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (961, N'Touring-3000 Yellow, 44', N'BK-T18Y-44', N'Yellow', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (962, N'Touring-3000 Yellow, 50', N'BK-T18Y-50', N'Yellow', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (963, N'Touring-3000 Yellow, 54', N'BK-T18Y-54', N'Yellow', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (964, N'Touring-3000 Yellow, 58', N'BK-T18Y-58', N'Yellow', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (965, N'Touring-3000 Yellow, 62', N'BK-T18Y-62', N'Yellow', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (966, N'Touring-1000 Blue, 46', N'BK-T79U-46', N'Blue', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (967, N'Touring-1000 Blue, 50', N'BK-T79U-50', N'Blue', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (968, N'Touring-1000 Blue, 54', N'BK-T79U-54', N'Blue', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (969, N'Touring-1000 Blue, 60', N'BK-T79U-60', N'Blue', 100, 2385.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (970, N'Touring-2000 Blue, 46', N'BK-T44U-46', N'Blue', 100, 1215.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (971, N'Touring-2000 Blue, 50', N'BK-T44U-50', N'Blue', 100, 1215.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (972, N'Touring-2000 Blue, 54', N'BK-T44U-54', N'Blue', 100, 1215.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (973, N'Road-350-W Yellow, 40', N'BK-R79Y-40', N'Yellow', 100, 1701.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (974, N'Road-350-W Yellow, 42', N'BK-R79Y-42', N'Yellow', 100, 1701.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (975, N'Road-350-W Yellow, 44', N'BK-R79Y-44', N'Yellow', 100, 1701.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (976, N'Road-350-W Yellow, 48', N'BK-R79Y-48', N'Yellow', 100, 1701.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (977, N'Road-750 Black, 58', N'BK-R19B-58', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (978, N'Touring-3000 Blue, 44', N'BK-T18U-44', N'Blue', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (979, N'Touring-3000 Blue, 50', N'BK-T18U-50', N'Blue', 100, 743.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (980, N'Mountain-400-W Silver, 38', N'BK-M38S-38', N'Silver', 100, 770.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (981, N'Mountain-400-W Silver, 40', N'BK-M38S-40', N'Silver', 100, 770.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (982, N'Mountain-400-W Silver, 42', N'BK-M38S-42', N'Silver', 100, 770.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (983, N'Mountain-400-W Silver, 46', N'BK-M38S-46', N'Silver', 100, 770.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (984, N'Mountain-500 Silver, 40', N'BK-M18S-40', N'Silver', 100, 565.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (985, N'Mountain-500 Silver, 42', N'BK-M18S-42', N'Silver', 100, 565.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (986, N'Mountain-500 Silver, 44', N'BK-M18S-44', N'Silver', 100, 565.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (987, N'Mountain-500 Silver, 48', N'BK-M18S-48', N'Silver', 100, 565.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (988, N'Mountain-500 Silver, 52', N'BK-M18S-52', N'Silver', 100, 565.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (989, N'Mountain-500 Black, 40', N'BK-M18B-40', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (990, N'Mountain-500 Black, 42', N'BK-M18B-42', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (991, N'Mountain-500 Black, 44', N'BK-M18B-44', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (992, N'Mountain-500 Black, 48', N'BK-M18B-48', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (993, N'Mountain-500 Black, 52', N'BK-M18B-52', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (997, N'Road-750 Black, 44', N'BK-R19B-44', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (998, N'Road-750 Black, 48', N'BK-R19B-48', N'Black', 100, 540.0000)
INSERT [dbo].[tbl_product] ([ProductID], [Name], [ProductNumber], [Color], [Quantity], [Price]) VALUES (999, N'Road-750 Black, 52', N'BK-R19B-52', N'Black', 100, 540.0000)
SET IDENTITY_INSERT [dbo].[tbl_product] OFF
SET IDENTITY_INSERT [dbo].[tbl_vendor] ON
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1492, N'Australia Bike Retailer')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1494, N'Allenson Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1496, N'Advanced Bicycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1498, N'Trikes, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1500, N'Morgan Bike Accessories')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1502, N'Cycling Master')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1504, N'Chicago Rent-All')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1506, N'Greenwood Athletic Company')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1508, N'Compete Enterprises, Inc')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1510, N'International')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1512, N'Light Speed')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1514, N'Training Systems')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1516, N'Gardner Touring Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1518, N'International Trek Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1520, N'G & K Bicycle Corp.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1522, N'First National Sport Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1524, N'Recreation Place')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1526, N'International Bicycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1528, N'Image Makers Bike Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1530, N'Comfort Road Bicycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1532, N'Knopfler Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1534, N'Ready Rentals')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1536, N'Cruger Bike Company')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1538, N'Vista Road Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1540, N'Bergeron Off-Roads')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1542, N'Hill''s Bicycle Service')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1544, N'Circuit Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1546, N'Green Lake Bike Company')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1548, N'Consumer Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1550, N'Merit Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1552, N'Sports House')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1554, N'WestAmerica Bicycle Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1556, N'West Junction Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1558, N'Marsh')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1560, N'Capital Road Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1562, N'Norstan Bike Hut')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1564, N'Illinois Trek & Clothing')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1566, N'Burnett Road Warriors')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1568, N'Custom Frames, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1570, N'First Rate Bicycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1572, N'National Bike Association')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1574, N'Jeff''s Sporting Goods')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1576, N'Superior Bicycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1578, N'Vision Cycles, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1580, N'Litware, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1582, N'Inner City Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1584, N'Trey Research')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1586, N'Mitchell Sports')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1588, N'Signature Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1590, N'SUPERSALES INC.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1592, N'Lindell')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1594, N'Fitness Association')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1596, N'A. Datum Corporation')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1598, N'Continental Pro Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1600, N'Federal Sport')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1602, N'Beaumont Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1604, N'Bike Satellite Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1606, N'Northwind Traders')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1608, N'Sport Playground')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1610, N'Hybrid Bicycle Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1612, N'Midwest Sport, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1614, N'Reliance Fitness, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1616, N'Aurora Bike Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1618, N'Metro Sport Equipment')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1620, N'Lakewood Bicycle')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1622, N'Speed Corporation')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1624, N'Competition Bike Training Systems')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1626, N'Hill Bicycle Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1628, N'Bicycle Specialists')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1630, N'Indiana Bicycle Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1632, N'Sport Fan Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1634, N'GMA Ski & Bike')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1636, N'Integrated Sport Products')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1638, N'Inline Accessories')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1640, N'Legend Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1642, N'Electronic Bike Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1644, N'International Sport Assoc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1646, N'Electronic Bike Repair & Supplies')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1648, N'Wide World Importers')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1650, N'American Bicycles and Wheels')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1652, N'Victory Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1654, N'American Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1656, N'Mountain Works')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1658, N'Crowley Sport')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1660, N'Magic Cycles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1662, N'Northern Bike Travel')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1664, N'Anderson''s Custom Bikes')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1666, N'Leaf River Terrain')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1668, N'Touring Equipment Center')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1670, N'Holiday Skate & Cycle')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1672, N'Expert Bike Co')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1674, N'Varsity Sport Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1676, N'Team Athletic Co.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1678, N'Proseware, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1680, N'Jackson Authority')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1682, N'Premier Sport, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1684, N'Professional Athletic Consultants')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1686, N'Pro Sport Industries')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1688, N'Wood Fitness')
GO
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1690, N'Bloomington Multisport')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1692, N'Carlson Specialties')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1694, N'Compete, Inc.')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1696, N'Chicago City Saddles')
INSERT [dbo].[tbl_vendor] ([VendorId], [Name]) VALUES (1698, N'Business Equipment Center')
SET IDENTITY_INSERT [dbo].[tbl_vendor] OFF
/****** Object: StoredProcedure [dbo].[GetProductByID] Script Date: 10/9/2018 2:47:29 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[GetProductByID]
@product_ID INTEGER
AS
BEGIN
SELECT tbl_product.ProductID,
tbl_product.Name,
tbl_product.ProductNumber,
tbl_product.Price,
tbl_product.Quantity,
tbl_product.Color
FROM tbl_product
WHERE tbl_product.ProductID = @product_ID
END
GO
/****** Object: StoredProcedure [dbo].[GetProductByPriceGreaterThan1000] Script Date: 10/9/2018 2:47:29 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[GetProductByPriceGreaterThan1000]
AS
BEGIN
SELECT tbl_product.ProductID,
tbl_product.Name,
tbl_product.Price
FROM tbl_product
WHERE tbl_product.Price >= 1000
END
GO

In the above script, I have created three simple tables; i.e., department, product, and vendor, with existing data. I have also created two store procedures; i.e., "GetProductByID" store procedure will return product details of the provided product ID, and "GetProductPriceGreaterThan1000" store procedure will return the list of products whose prices are greater than equal to 1000.

Step 2

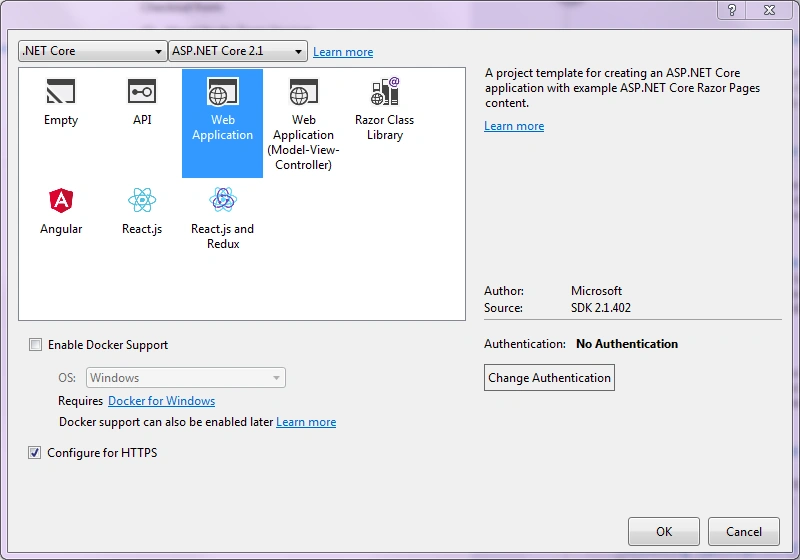

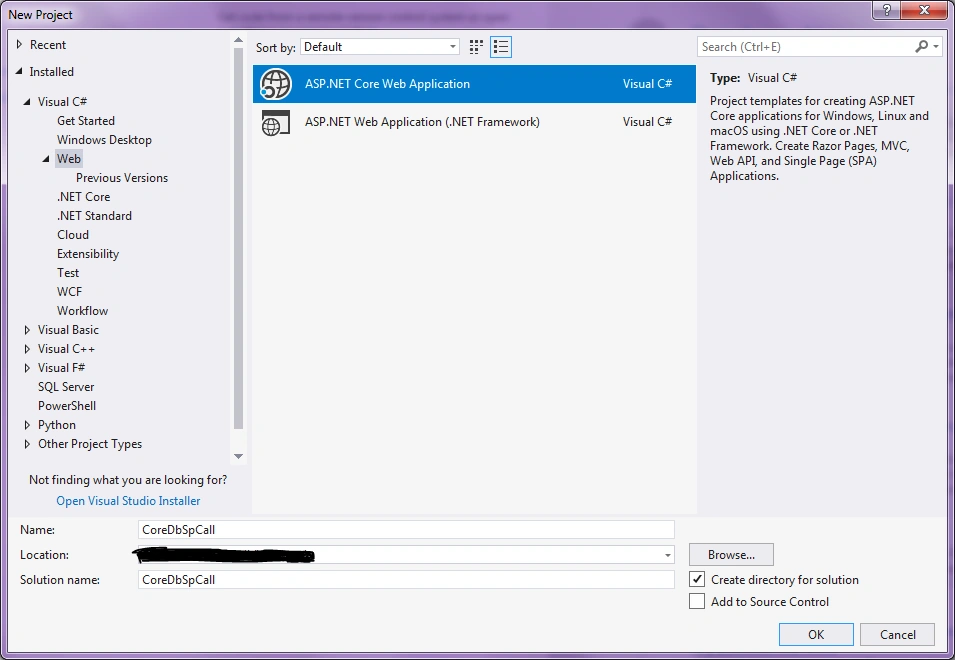

Now, create a new .NET Core web application project and name it "CoreDbSpCall" as shown below:

ASP.NET Core - Entity Framework Call Store Procedure

Step 3

Build the solution and ensure that the build is successful then restart Visual Studio.

Step 4

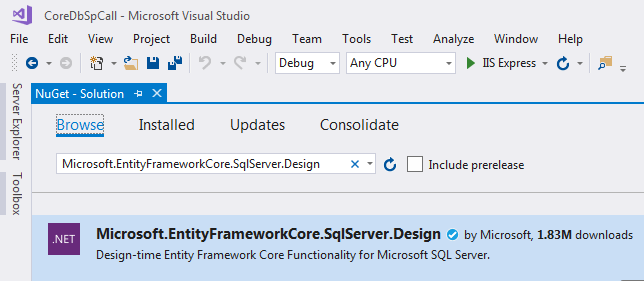

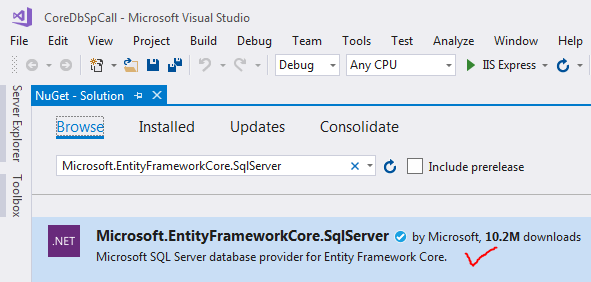

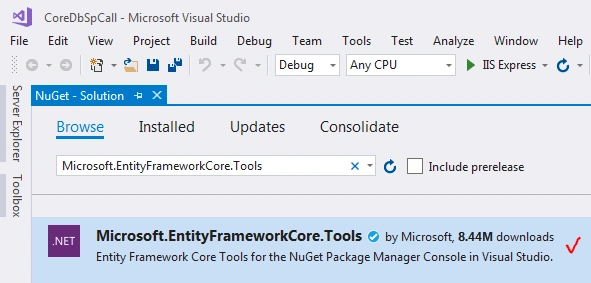

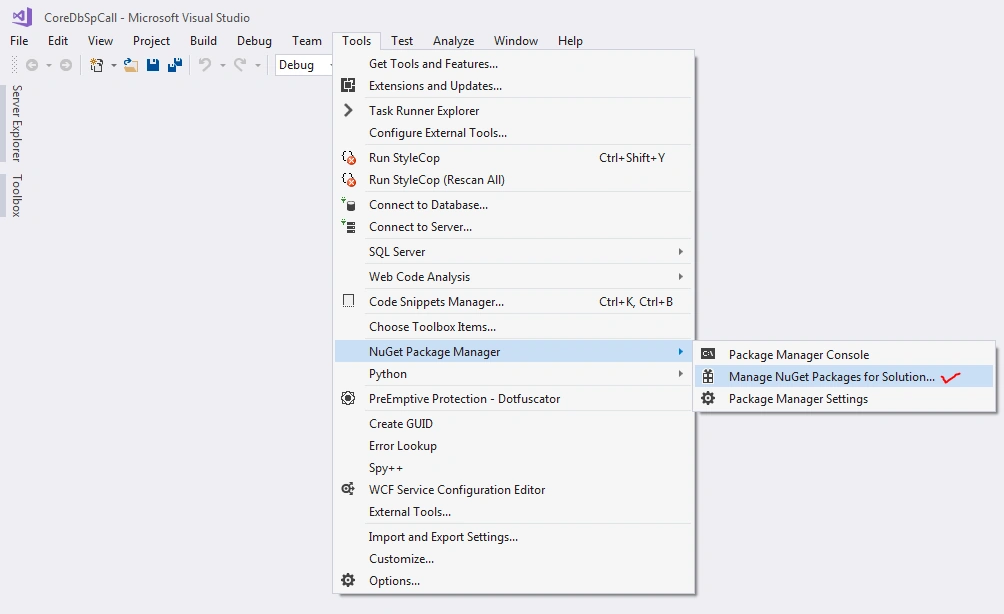

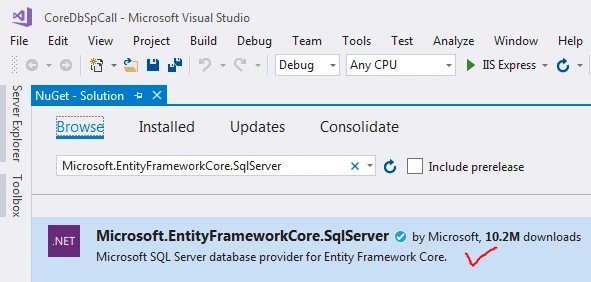

Now, in order for my SQL server database to communicate with this core web application, I need to install the following library packages via "Tools->NuGet Package Manager->Manage NuGet Packages for Solution" as shown below in the following mention order:

Microsoft.EntityFrameworkCore.SqlServer
Microsoft.EntityFrameworkCore.Tools
Microsoft.EntityFrameworkCore.SqlServer.Design

Step 5

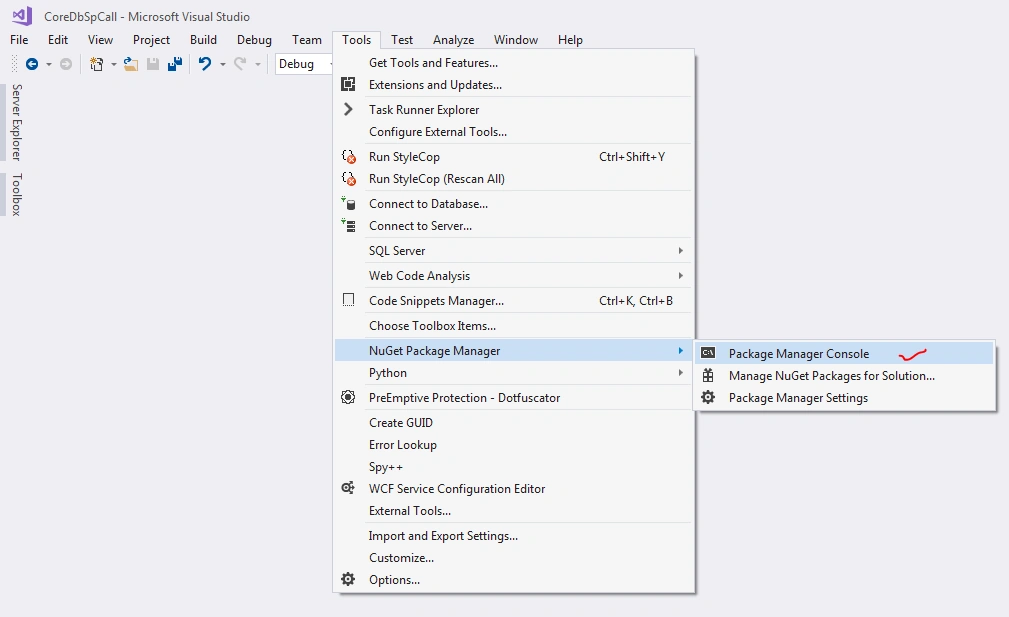

Click "Tools->NuGet Package Manager->Package Manager Console" as shown below i.e.

Step 6

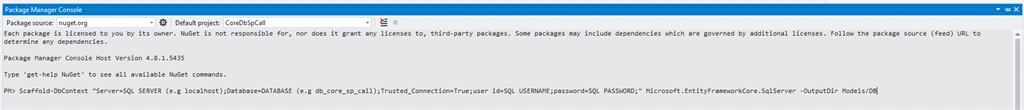

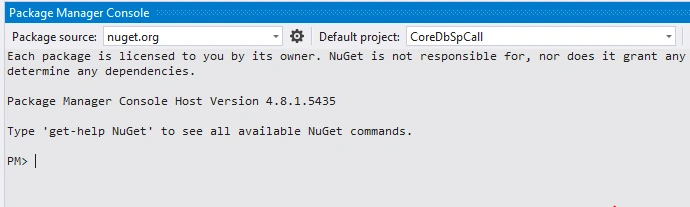

Type the following command inside the console as shown below. Do not forget to update your SQL server connection string configuration in this command i.e.

Scaffold-DbContext "Server=SQL SERVER (e.g localhost);Database=DATABASE (e.g db_core_sp_call);Trusted_Connection=True;user id=SQL USERNAME;password=SQL PASSWORD;" Microsoft.EntityFrameworkCore.SqlServer -OutputDir Models/DB

ASP.NET Core - Entity Framework Call Store Procedure

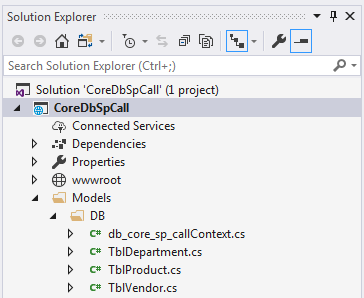

The above command will create the following folders and files:

ASP.NET Core - Entity Framework Call Store Procedure

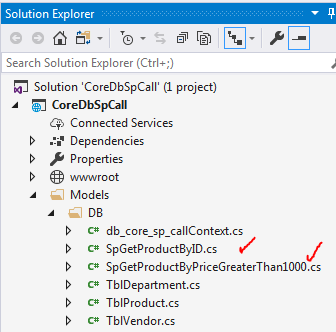

In .NET Core in order to import the database context and related tables objects we need to execute the above command and then in the inside of the created .cs database context file, we need to write appropriate business logic methods to access SQL database tables, stored procedures or queries in order to access the data. The scaffold command creates all our table's class objects; i.e. "TblDepartment.cs", "TblProduct.cs" and "TblVendor.cs". Here, understand that the returning objects of my created store procedures also require target entity framework objects which are not automatically created by the above scaffold command. So, I need to create them myself. The rule of thumb to remember here is to create object class for each stored procedure in order to easily maintain the data access. Shown below are the additional objects which I have created for my data access through stored procedures:

Model\DB\SpGetProductByID.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDbSpCall.Models.DB
{
public class SpGetProductByID
{
public int ProductId { get; set; }
public string Name { get; set; }
public string ProductNumber { get; set; }
public decimal Price { get; set; }
public int Quantity { get; set; }
public string Color { get; set; }
}
}

Model\DB\SpGetProductByPriceGreaterThan1000.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDbSpCall.Models.DB
{
public class SpGetProductByPriceGreaterThan1000
{
public int ProductId { get; set; }
public string Name { get; set; }
public decimal Price { get; set; }
}
}

Step 7

Now, create "Models\ProductViewModel.cs" file and replace the following code in this file:

//-----------------------------------------------------------------------
// <copyright file="ProductViewModel.cs" company="None">
// Copyright (c) Allow to distribute this code and utilize this code for personal or commercial purpose.
// </copyright>
// <author>Asma Khalid</author>
//-----------------------------------------------------------------------
namespace CoreDbSpCall.Models
{
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using CoreDbSpCall.Models;
using CoreDbSpCall.Models.DB;
/// <summary>
/// Product view model class.
/// </summary>
public class ProductViewModel
{
#region Properties
/// <summary>
/// Gets or sets product ID property.
/// </summary>
[Required]
[Display(Name = "Product ID")]
public int ProductID { get; set; }
/// <summary>
/// Gets or sets to products list whose price is greater than equal to 1000 property.
/// </summary>
[Display(Name = "Products with Price >= 1000")]
public List<SpGetProductByPriceGreaterThan1000> ProductsGreaterThan1000 { get; set; }
/// <summary>
/// Gets or sets to product detail by product Id property.
/// </summary>
[Display(Name = "Product Detail")]
public SpGetProductByID ProductDetail { get; set; }
#endregion
}
}

The above class is a simple view model object class which I have created to interact with the user and to display data on the web application.

Step 8

Now, open "Models\DB\db_core_sp_callContext.cs"file and replace the following code in it:

using System;
using System.Collections.Generic;
using System.Data.SqlClient;
using System.Threading.Tasks;
using Microsoft.EntityFrameworkCore;
using Microsoft.EntityFrameworkCore.Metadata;
namespace CoreDbSpCall.Models.DB
{
public partial class db_core_sp_callContext : DbContext
{
public db_core_sp_callContext()
{
}
public db_core_sp_callContext(DbContextOptions<db_core_sp_callContext> options)
: base(options)
{
}
public virtual DbSet<TblDepartment> TblDepartment { get; set; }
public virtual DbSet<TblProduct> TblProduct { get; set; }
public virtual DbSet<TblVendor> TblVendor { get; set; }
////protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
////{
//// if (!optionsBuilder.IsConfigured)
//// {
//// optionsBuilder.UseSqlServer("Server=SQL SERVER;Database=DATABASE;Trusted_Connection=True;user id=SQL USERNAME;password=SQL PASSWORD;");
//// }
////}
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
modelBuilder.Entity<TblDepartment>(entity =>
{
entity.HasKey(e => e.DepartmentId);
entity.ToTable("tbl_department");
entity.Property(e => e.GroupName).IsRequired();
entity.Property(e => e.Name).IsRequired();
});
modelBuilder.Entity<TblProduct>(entity =>
{
entity.HasKey(e => e.ProductId);
entity.ToTable("tbl_product");
entity.Property(e => e.ProductId).HasColumnName("ProductID");
entity.Property(e => e.Color).IsRequired();
entity.Property(e => e.Name).IsRequired();
entity.Property(e => e.Price).HasColumnType("money");
entity.Property(e => e.ProductNumber).IsRequired();
});
modelBuilder.Entity<TblVendor>(entity =>
{
entity.HasKey(e => e.VendorId);
entity.ToTable("tbl_vendor");
entity.Property(e => e.Name).IsRequired();
});
// [Asma Khalid]: Regster store procedure custom object.
modelBuilder.Query<SpGetProductByPriceGreaterThan1000>();
modelBuilder.Query<SpGetProductByID>();
}
#region Get products whose price is greater than equal to 1000 store procedure method.
/// <summary>
/// Get products whose price is greater than equal to 1000 store procedure method.
/// </summary>
/// <returns>Returns - List of products whose price is greater than equal to 1000</returns>
public async Task<List<SpGetProductByPriceGreaterThan1000>> GetProductByPriceGreaterThan1000Async()
{
// Initialization.
List<SpGetProductByPriceGreaterThan1000> lst = new List<SpGetProductByPriceGreaterThan1000>();
try
{
// Processing.
string sqlQuery = "EXEC [dbo].[GetProductByPriceGreaterThan1000] ";
lst = await this.Query<SpGetProductByPriceGreaterThan1000>().FromSql(sqlQuery).ToListAsync();
}
catch (Exception ex)
{
throw ex;
}
// Info.
return lst;
}
#endregion
#region Get product by ID store procedure method.
/// <summary>
/// Get product by ID store procedure method.
/// </summary>
/// <param name="productId">Product ID value parameter</param>
/// <returns>Returns - List of product by ID</returns>
public async Task<List<SpGetProductByID>> GetProductByIDAsync(int productId)
{
// Initialization.
List<SpGetProductByID> lst = new List<SpGetProductByID>();
try
{
// Settings.
SqlParameter usernameParam = new SqlParameter("@product_ID", productId.ToString() ?? (object)DBNull.Value);
// Processing.
string sqlQuery = "EXEC [dbo].[GetProductByID] " +
"@product_ID";
lst = await this.Query<SpGetProductByID>().FromSql(sqlQuery, usernameParam).ToListAsync();
}
catch (Exception ex)
{
throw ex;
}
// Info.
return lst;
}
#endregion
}
}

The changes included in the above code are either removal or commented out code of/for "OnConfiguring(...)" method, registration of new objects to access returning data from store procedure and creation of methods that will call database store procedures; i.e. "GetProductByIDAsync(...)" and "GetProductByPriceGreaterThan1000Async(...)". All other code is auto-generated by the scaffold command. In order to access data from stored procedures, I need to register my store procedures access objects with the following lines of code in "OnModelCreating(...)" method as shown below:

// [Asma Khalid]: Register store procedure custom object.
modelBuilder.Query<SpGetProductByPriceGreaterThan1000>();
modelBuilder.Query<SpGetProductByID>();

Step 9

In order to access the SQL server database, I need to store my database connection string in "appsettings.json" file which is the recommended way. So, open "appsettings.json" file and replace the following code in it:

{
"ConnectionStrings": {
"db_core_ef_first": "Server=SQL SERVER;Database=DATABASE;Trusted_Connection=True;user id=SQL USERNAME;password=SQL PASSWORD;"
},
"Logging": {
"IncludeScopes": false,
"LogLevel": {
"Default": "Warning"
}
}
}

Do not forget to update your SQL server configurations in the above connection string.

Step 10

Now, I need to register my database context as .NET Microservices with the .net core framework in order to access my database within my application. To do so, open the "Startup.cs" file and add the following line of code at the end of "ConfigureServices(...)" method i.e.

// [Asma Khalid]: Register SQL database configuration context as services.
services.AddDbContext<db_core_sp_callContext>(options => options.UseSqlServer(Configuration.GetConnectionString("db_core_sp_call")));

Step 11

Do a little cleanup of your folder hierarchy:

Except "Pages\_ViewImports.cshtml" file, "Pages\_ViewStart.cshtml" file, "Pages\Error.cshtml" file and Shared folder, remove all other files inside "Pages" folder.

Step 12

Open, "Pages\Shared\_Layout.cshtml" file and replace the following code in it:

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>@ViewBag.Title</title>
<environment include="Development">
<link rel="stylesheet" href="~/lib/bootstrap/dist/css/bootstrap.css" />
<link rel="stylesheet" href="~/css/site.css" />
</environment>
<environment exclude="Development">
<link rel="stylesheet" href="https://ajax.aspnetcdn.com/ajax/bootstrap/3.3.7/css/bootstrap.min.css"
asp-fallback-href="~/lib/bootstrap/dist/css/bootstrap.min.css"
asp-fallback-test-class="sr-only" asp-fallback-test-property="position" asp-fallback-test-value="absolute" />
<link rel="stylesheet" href="~/css/site.min.css" asp-append-version="true" />
</environment>
</head>
<body>
<nav class="navbar navbar-inverse navbar-fixed-top">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
</div>
<div class="navbar-collapse collapse">
<ul class="nav navbar-nav">
<li></li>
</ul>
</div>
</div>
</nav>
<div class="container body-content">
@RenderBody()
<hr />
<footer>
<center>
</center>
</footer>
</div>
<environment include="Development">
<script src="~/lib/jquery/dist/jquery.js"></script>
<script src="~/lib/bootstrap/dist/js/bootstrap.js"></script>
<script src="~/js/site.js" asp-append-version="true"></script>
</environment>
<environment exclude="Development">
<script src="https://ajax.aspnetcdn.com/ajax/jquery/jquery-3.3.1.min.js"
asp-fallback-src="~/lib/jquery/dist/jquery.min.js"
asp-fallback-test="window.jQuery"
crossorigin="anonymous"
integrity="sha384-tsQFqpEReu7ZLhBV2VZlAu7zcOV+rXbYlF2cqB8txI/8aZajjp4Bqd+V6D5IgvKT">
</script>
<script src="https://ajax.aspnetcdn.com/ajax/bootstrap/3.3.7/bootstrap.min.js"
asp-fallback-src="~/lib/bootstrap/dist/js/bootstrap.min.js"
asp-fallback-test="window.jQuery && window.jQuery.fn && window.jQuery.fn.modal"
crossorigin="anonymous"
integrity="sha384-Tc5IQib027qvyjSMfHjOMaLkfuWVxZxUPnCJA7l2mCWNIpG9mGCD8wGNIcPD7Txa">
</script>
<script src="~/js/site.min.js" asp-append-version="true"></script>
</environment>
@RenderSection("Scripts", required: false)
</body>
</html>

In the above code, I have created a basic layout page for my web application.

Step 13

Now, create "Pages\Index.cshtml" file with model and replace the following code in it:

@page
@model IndexModel
@{
ViewBag.Title = "ASP.NET Core - Entity Framework Call Store Procedure";
}
<div class="row">
<div class="col-md-offset-2 col-md-12">
<h2>ASP.NET Core - Entity Framework Call Store Procedure</h2>
</div>
</div>
<hr />
<div class="row">
<div class="col-md-8">
<section>
<form method="post" role="form" class="form-horizontal">
@Html.AntiForgeryToken()
<h4>Get Product Detail.</h4>
<hr />
@Html.ValidationSummary(true, "", new { @class = "text-danger" })
<div class="form-group">
@Html.LabelFor(m => m.ProductVM.ProductID, new { @class = "col-md-4 control-label" })
<div class="col-md-4">
@Html.TextBoxFor(m => m.ProductVM.ProductID, new { @class = "form-control" })
@Html.ValidationMessageFor(m => m.ProductVM.ProductID, "", new { @class = "text-danger" })
</div>
</div>
<div class="form-group">
<div class="col-md-offset-4 col-md-10">
<button asp-page-handler="Detail" class="btn btn-default">Get Product Detail</button>
</div>
</div>
</form>
</section>
</div>
</div>
<hr />
@if (Model.ProductVM != null &&
Model.ProductVM.ProductID > 0)
{
<div class="row">
<div class="col-md-offset-4 col-md-8">
<h3>Product Details </h3>
</div>
</div>
<hr />
<div class="row">
<div class="col-md-offset-1 col-md-8">
<section>
<table class="table table-bordered table-striped">
<tbody>
<tr>
<th style="text-align: left;">Product ID</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.ProductId</td>
<th style="text-align: left;">Product Number</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.ProductNumber</td>
</tr>
<tr>
<th style="text-align: left;">Product Name</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.Name</td>
<th style="text-align: left;">Price</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.Price.ToString("#,##0")</td>
</tr>
<tr>
<th style="text-align: left;">Quantity</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.Quantity</td>
<th style="text-align: left;">Color</th>
<td style="text-align: center;">@Model.ProductVM.ProductDetail.Color</td>
</tr>
</tbody>
</table>
</section>
</div>
</div>
<hr />
}
<div class="row">
<div class="col-md-offset-4 col-md-8">
<h3>List of Products </h3>
</div>
</div>
<hr />
@if (Model.ProductVM != null &&
Model.ProductVM.ProductsGreaterThan1000 != null &&
Model.ProductVM.ProductsGreaterThan1000.Count > 0)
{
<div class="row">
<div class="col-md-offset-1 col-md-8">
<section>
<table class="table table-bordered table-striped">
<thead>
<tr>
<th style="text-align: center;">Sr.</th>
<th style="text-align: center;">Product ID</th>
<th style="text-align: center;">Product Name</th>
<th style="text-align: center;">Price</th>
</tr>
</thead>
<tbody>
@for (int i = 0; i < Model.ProductVM.ProductsGreaterThan1000.Count; i++)
{
<tr>
<td style="text-align: center;">@(i + 1)</td>
<td style="text-align: center;">@Model.ProductVM.ProductsGreaterThan1000[i].ProductId</td>
<td style="text-align: center;">@Model.ProductVM.ProductsGreaterThan1000[i].Name</td>
<td style="text-align: center;">@Model.ProductVM.ProductsGreaterThan1000[i].Price.ToString("#,##0") </td>
</tr>
}
</tbody>
</table>
</section>
</div>
</div>
}

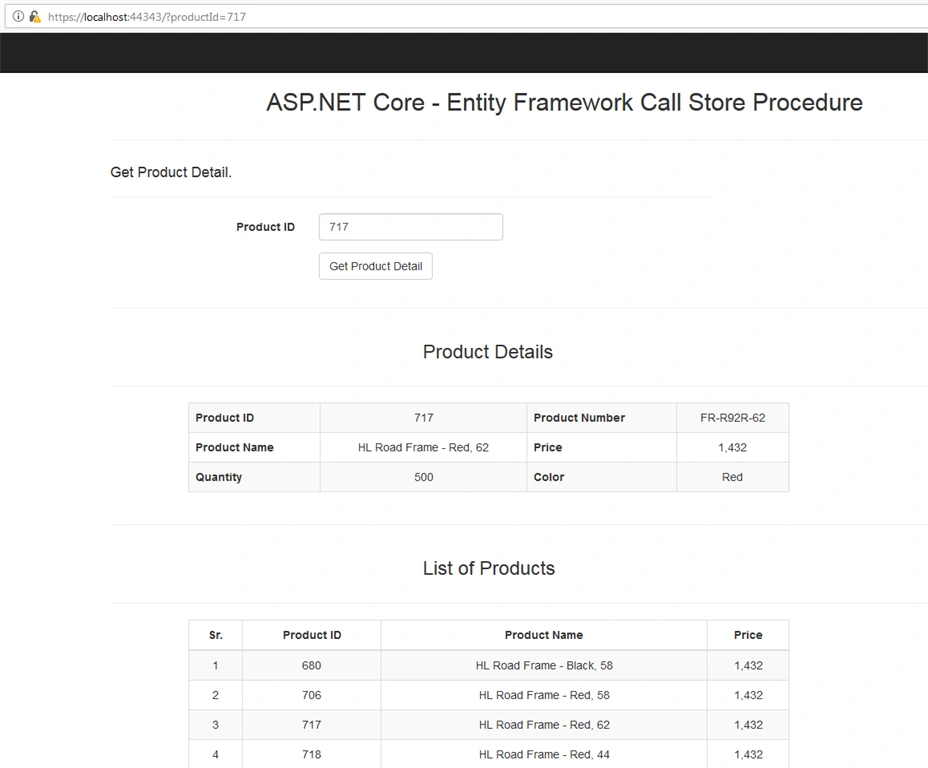

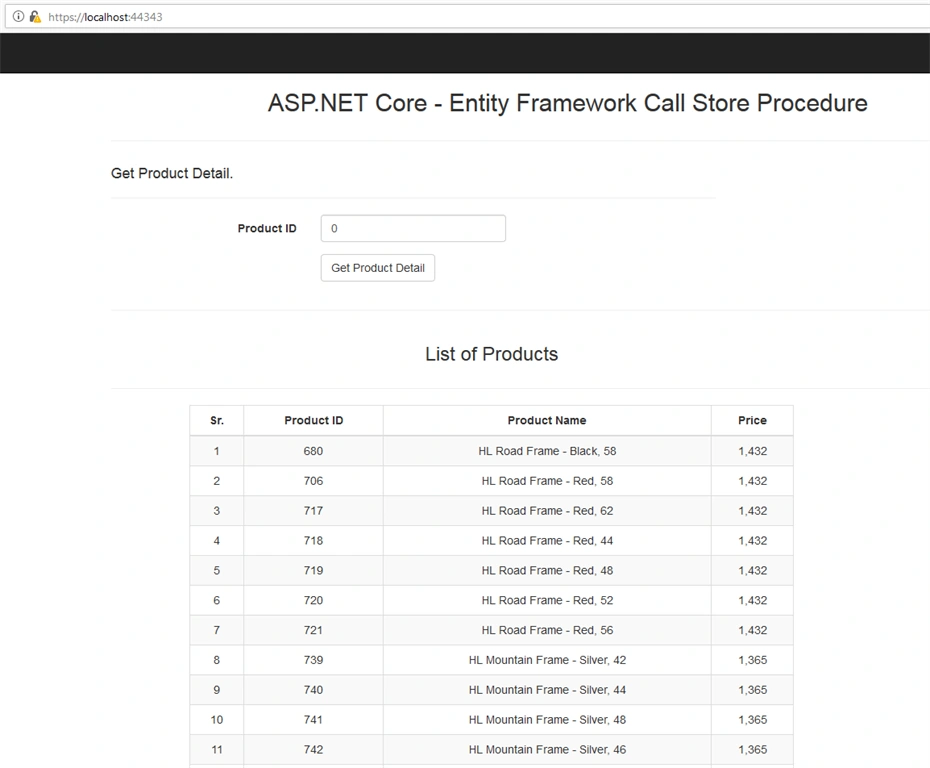

In the above code, I have created a simple page that will display product list, product details for provided product ID and a form to input product ID.

Step 14

Open, "Pages\Index.cshtml.cs" file and replace the following code in it:

//-----------------------------------------------------------------------
// <copyright file="Index.cshtml.cs" company="None">
// Copyright (c) Allow to distribute this code and utilize this code for personal or commercial purpose.
// </copyright>
// <author>Asma Khalid</author>
//-----------------------------------------------------------------------
namespace CoreDbSpCall.Pages
{
using System;
using System.Collections.Generic;
using System.Linq;
using System.Security.Claims;
using System.Threading.Tasks;
using CoreDbSpCall.Models;
using CoreDbSpCall.Models.DB;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.RazorPages;
using Microsoft.EntityFrameworkCore;
/// <summary>
/// Index page model class.
/// </summary>
public class IndexModel : PageModel
{
#region Private Properties.
/// <summary>
/// Database Manager property.
/// </summary>
private readonly db_core_sp_callContext databaseManager;
#endregion
#region Default Constructor method.
/// <summary>
/// Initializes a new instance of the <see cref="IndexModel"/> class.
/// </summary>
/// <param name="databaseManagerContext">Database manager context parameter</param>
public IndexModel(db_core_sp_callContext databaseManagerContext)
{
try
{
// Settings.
this.databaseManager = databaseManagerContext;
}
catch (Exception ex)
{
// Info
Console.Write(ex);
}
}
#endregion
#region Public Properties
/// <summary>
/// Gets or sets department model property.
/// </summary>
[BindProperty]
public ProductViewModel ProductVM { get; set; }
#endregion
#region On Get method.
/// <summary>
/// GET: /Index/productId
/// </summary>
/// <param name="productId">Product ID parameter</param>
/// <returns> Returns - index page</returns>
public async Task OnGet(int productId = 0)
{
// Initialization.
this.ProductVM = new ProductViewModel();
this.ProductVM.ProductID = productId;
this.ProductVM.ProductDetail = new SpGetProductByID();
this.ProductVM.ProductsGreaterThan1000 = new List<SpGetProductByPriceGreaterThan1000>();
try
{
// Verification.
if (this.ProductVM.ProductID > 0)
{
// Settings.
var details = await this.databaseManager.GetProductByIDAsync(this.ProductVM.ProductID);
this.ProductVM.ProductDetail = details.First();
}
// Settings.
this.ProductVM.ProductsGreaterThan1000 = await this.databaseManager.GetProductByPriceGreaterThan1000Async();
}
catch (Exception ex)
{
// Info
Console.Write(ex);
}
}
#endregion
#region On Post Detail method.
/// <summary>
/// POST: /Index/Detail
/// </summary>
/// <returns>Returns - Appropriate page </returns>
public IActionResult OnPostDetail()
{
try
{
// Verification.
if (ModelState.IsValid)
{
// Settings.
string path = "/Index";
// Info.
return this.RedirectToPage(path, new { productId = this.ProductVM.ProductID });
}
}
catch (Exception ex)
{
// Info
Console.Write(ex);
}
// Info.
return this.Page();
}
#endregion
}
}

The above piece of code contains database context access property, view model binding property, an overload constructor, OnGet(...) method with passing parameter to display product details of specific product ID and OnPostDetail(...) method which will post the provided product ID to the index page in order to display specific product details.

Step 15

Execute the project and you will be able to see the following:

Conclusion

In this article, you learned to call stored procedures with custom returning objects by using entity framework. You also learned to scaffold existing database context into your web application via NuGet Package Console command. You also learned to register your custom returning data access objects for stored procedures in the database context file and you also learned about the registration of database context .net microservices with the .net core framework in order to connect your web application with the SQL server database.

32 Comments

Join the conversation! Your thoughts help the community grow.

Vishal Kadam4y ago
Great learning experience!! I am using EF Core 3.0.0 version and getting error at this.Query<SpGetProductByPriceGreaterThan1000>().FromSql(sqlQuery).ToListAsync();
- Asma Khalid4y ago
  For .NET Core version above 2 use following source code to resolve this issue i.e. upgrade source code. https://bit.ly/3pGaOFt
Dave4y ago
Whew! That's a ton of work. The learning curve for EF is daunting. Is there a bootcamp for this stuff?
swati Sri4y ago
Thanks for the great example. I get ModelBuilder doesnt contain a defination 'Query' error for both stored procedure call modelBuilder.Query<SpGetProductByPriceGreaterThan1000>(); modelBuilder.Query<SpGetProductByID>();
- Asma Khalid4y ago
  Are you using .NET Core 6?
Hamid Khan6y ago
Good example and good explanation......................
Michael Mañon Artidor6y ago
Severity Code Description Project File Line Suppression StateError CS0619 'RelationalQueryableExtensions.FromSql<TEntity>(IQueryable<TEntity>, RawSqlString, params object[])' is obsolete: 'For returning objects from SQL queries using plain strings, use FromSqlRaw instead. For returning objects from SQL queries using interpolated string syntax to create parameters, use FromSqlInterpolated instead. Call either new method directly on the DbSet at the root of the query.' PruebaConexion C:\Users\Michael\Desktop\PruebaConexion\PruebaConexion\Controllers\HomeController.cs 38 Active
- Asma Khalid6y ago
  Have you executed the provided code?
Michael Mañon Artidor6y ago
Estoy usando el core 3.1 y en un codigo me dice obsoleto lst = await this.Query<SpGetProductByPriceGreaterThan1000>().FromSql(sqlQuery).ToListAsync();
Heràclides Morales6y ago
Thanks the example is very good, I would like to know if this example can use SP that joins other tables, or if there is another example with these characteristics.Thanks a lot.
- Asma Khalid6y ago
  Yes! this example can be use as a model for that too. The only change will be in your SP and its input/output endpoints.
sadik gok6y ago
Thank you so much Asma.The information you provided was very productive for me. I organized the project according to my own code.
- Asma Khalid6y ago
  Glad to be of help!
Vishal Prajapati6y ago
Good Explanation but I've one query, what if I'm updating the context using scaffold command again? all the sp related code will go away from context, correct me if I'm wrong.
- Asma Khalid6y ago
  I have not try that scenario. Will experiment and then let you know.
umar faraz6y ago
Good thank you so much Asma. can you share n-tire with Razor pages ?
- Asma Khalid6y ago
  Thank you, you can easily incorporate n-tier architecture following the same pattern proposed here, now what you need is to create your business layer, security layer, UI layer and data access layer. Look into this sample. It might be helpful.
Sukhwant Kaur6y ago
Asma, You are awesome !! Thank you so much for writing this article. It helped me!!
- Asma Khalid6y ago
  Glad to be of any help.
anji vangala7y ago
Datetime values are not working with this method.i am getting(Conversion failed when converting date and/or time from character string) this error.
- anji vangala7y ago
  Sql Server -- (2019-07-18 10:55:17.873 - datetime), Asp.Net -- dd-MM-yyy hh:mm:ss . I didn't find anything which can custom mapping
- Asma Khalid7y ago
  What date/time format you are using in string?
Dharmendra .7y ago
Thanks for this explain very well...but I am going to create the same things but it's showing an error in DBcontext page and procedure not showing ...
- Asma Khalid7y ago
  Can you elaborate the error also have you created method to call your store procedure and register you store procedure complex data object with model builder?
Heràclides Morales7y ago
Tengo unicamente un error @model IndexModel no existe ?
- Asma Khalid7y ago
  Kindly post your issue in English I do not understand your query
Heràclides Morales7y ago
Muchas Gracias el ejemplo es muy bueno
Manohar Thakur7y ago
Can you please tell how to add aspnet users table in this scenario.Also how to create table without a primary key in Entity Framework Core
- Asma Khalid7y ago
  The default scaffold command adds your entire SQL db to Entity framework core to add additional table add -Tables mytable-1, mytable-2 to above scaffold command you need to specify your additional tables here. Here is the reference link for scaffold command https://bit.ly/2VUy2I6
- Asma Khalid7y ago
  PK depends on construction of your table in SQL.
Mark Basler7y ago
But this is a good tutorial though!
Mark Basler7y ago
You should probably move all the drop statements to the bottom of the sql script as it would throw an error if you follow the steps to create the db and run the script.
