Automation of Test Case Management by Using REST API Integration

Introduction

Effective test case management makes much sense in the field of software testing. Test management is very time-consuming when done manually, and even more so when large test suites are at play. Automating the test management using REST APIs could smoothly integrate with your test suite for better productivity and accuracy.

In this article, I'll explain, through REST APIs using tools like Postman or directly in Java, how to automate test case creation and updates in a Test Management System.

Tools You Will Need.

Postman: A tool for testing APIs.
Java: For automating API requests within test frameworks.
JSON: The format commonly used in API requests/responses.

Step 1. Setting up the REST API.

First, determine the API endpoint provided by your Test Management System. Below is an example of an API that handles test cases.

API Endpoint

GET: /api/testcases/{id} – Retrieve details of a test case.
POST: /api/testcases – Create a new test case.
PUT: /api/testcases/{id} – Update an existing test case.

Step 2. Example API Requests.

Creating a Test Case (POST Request)

You can use Postman to make a POST request to the API. Below is an example request payload to create a new test case.

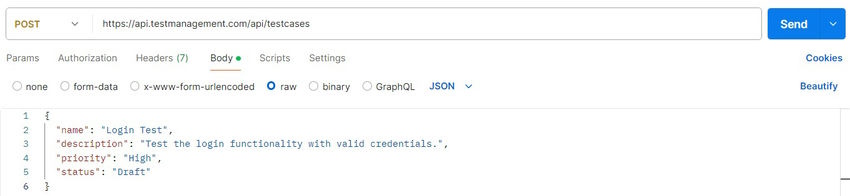

POST Request

Using Postman, you would.

Select the POST method.
Provide the API URL, e.g., https://api.testmanagement.com/api/testcases.
Add the JSON payload to the body.
Hit Send.

This will create a new test case in your system.

Step 3. Automating API Integration Using Java.

If you're working in a Java-based test framework like JUnit or TestNG, you can automate the process by sending API requests using the HttpClient. Here's a simple example.

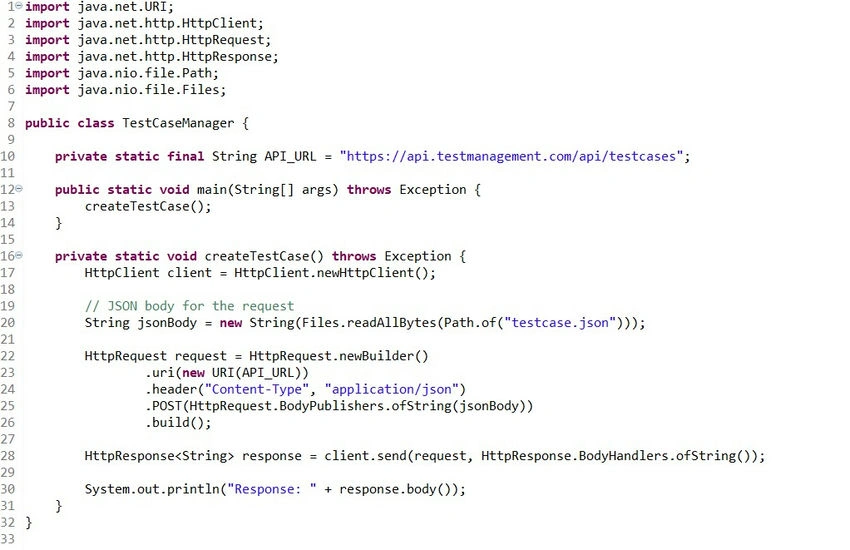

Java Code to Create a Test Case

Test Case

In the above Java code.

We use HttpClient to send a POST request.
The test case details are stored in a testcase.json file, which is read and sent as the request body.
The API response is printed out to the console.

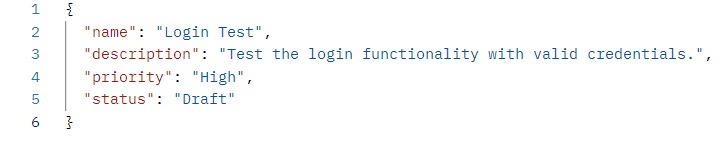

Example JSON Payload (testcase.json).

JSON Payload

Step 4. Visualizing API Results.

Once the API call is successful, you should be able to view the newly created test case in your Test Management System.

Here is an example of how your created test case might look.

Test Case in the Management Tool

Replace with an actual screenshot from the system.

The test case would have attributes like.

Test Case Name: Login Test
Description: Test the login functionality.
Priority: High
Status: Draft

Step 5. Updating a Test Case (PUT Request).

In case you need to update the test case, here’s an example using the same API with a PUT request.

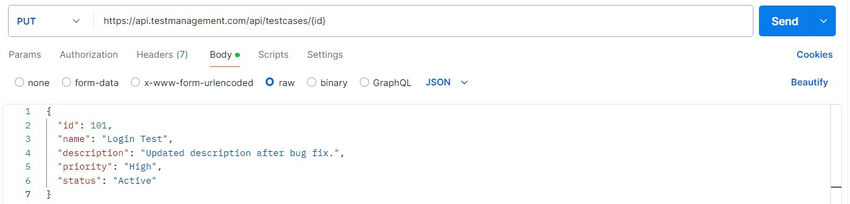

PUT Request

In Java, this would require just changing the request method to PUT and specifying the test case ID in the URL.

Conclusion

You can save so much time and achieve consistency at all levels in your test suite by automating the test case management process through REST APIs. Be it the creation or update of test cases; this method will ensure that your test management actions are smooth. Since these are highly essential for organizations looking to scale testing efforts, integrating API automation into the workflow becomes key to a boost in productivity.
