Introduction

In the previous article, we explored Azure Resource Manager (ARM) and learned how every Azure resource is deployed and managed through Microsoft's centralized management layer.

Now it's time to understand one of the most fundamental services in Microsoft Azure—Azure Virtual Networks (VNets).

Just as every physical data center requires switches, routers, VLANs, IP addressing, and firewalls to enable communication between servers, Azure provides virtual networks to perform the same role in the cloud.

Whether you're deploying a single virtual machine, an Azure Kubernetes Service (AKS) cluster, an App Gateway, Azure Firewall, or an enterprise-scale landing zone, almost every Azure infrastructure deployment begins with designing a virtual network.

A poorly designed network can lead to security vulnerabilities, scalability issues, IP address conflicts, and operational complexity. On the other hand, a well-designed virtual network provides a secure, scalable, and highly available foundation for cloud workloads.

In this article, we'll explore Azure Virtual Networks in detail, understanding their architecture, components, connectivity options, and best practices used by enterprise organizations.

What is an Azure Virtual Network?

An Azure Virtual Network (VNet) is a logically isolated network in Microsoft Azure that enables Azure resources to securely communicate with each other, the internet, and on-premises networks.

Think of a virtual network as the cloud equivalent of your organization's physical network.

It provides:

Without a virtual network, most Azure Infrastructure as a Service (IaaS) resources, such as virtual machines, cannot communicate securely.

Why Do We Need Virtual Networks?

Imagine deploying ten virtual machines into Azure.

Without a network:

Azure Virtual Networks provide the communication layer between resources.

Azure Networking Architecture

A typical Azure networking architecture looks like this:

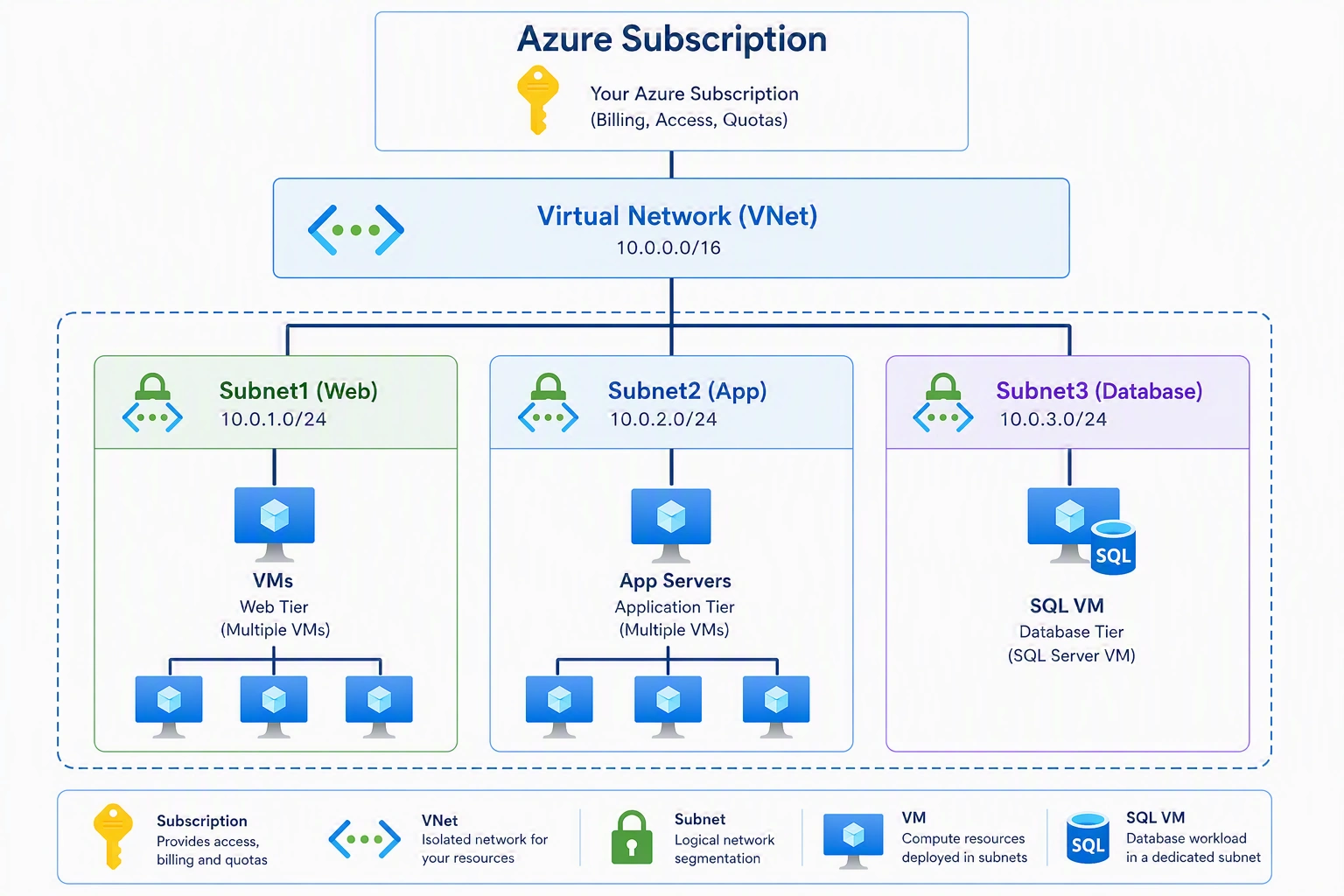

Designer (23)

The VNet acts as the parent network, while subnets divide the network into smaller logical segments.

Address Space

When creating a VNet, one of the first decisions is selecting an IP address range, known as the "address space."

Example:

10.0.0.0/16

This defines the private IP range available for resources inside the virtual network.

Common private address ranges include:

CIDRAddress Range
10.0.0.0/8Large enterprise networks
172.16.0.0/12Medium-sized environments
192.168.0.0/16Small networks and home labs

Azure recommends using private IP ranges defined in RFC 1918.

Understanding CIDR Notation

Azure uses CIDR (Classless Inter-Domain Routing) notation to define network sizes.

CIDRTotal IP Addresses
/24256
/23512
/221,024
/212,048
/204,096
/1665,536

Larger environments should plan IP addressing carefully to avoid future overlaps.

Subnets

Subnets divide a virtual network into smaller logical sections.

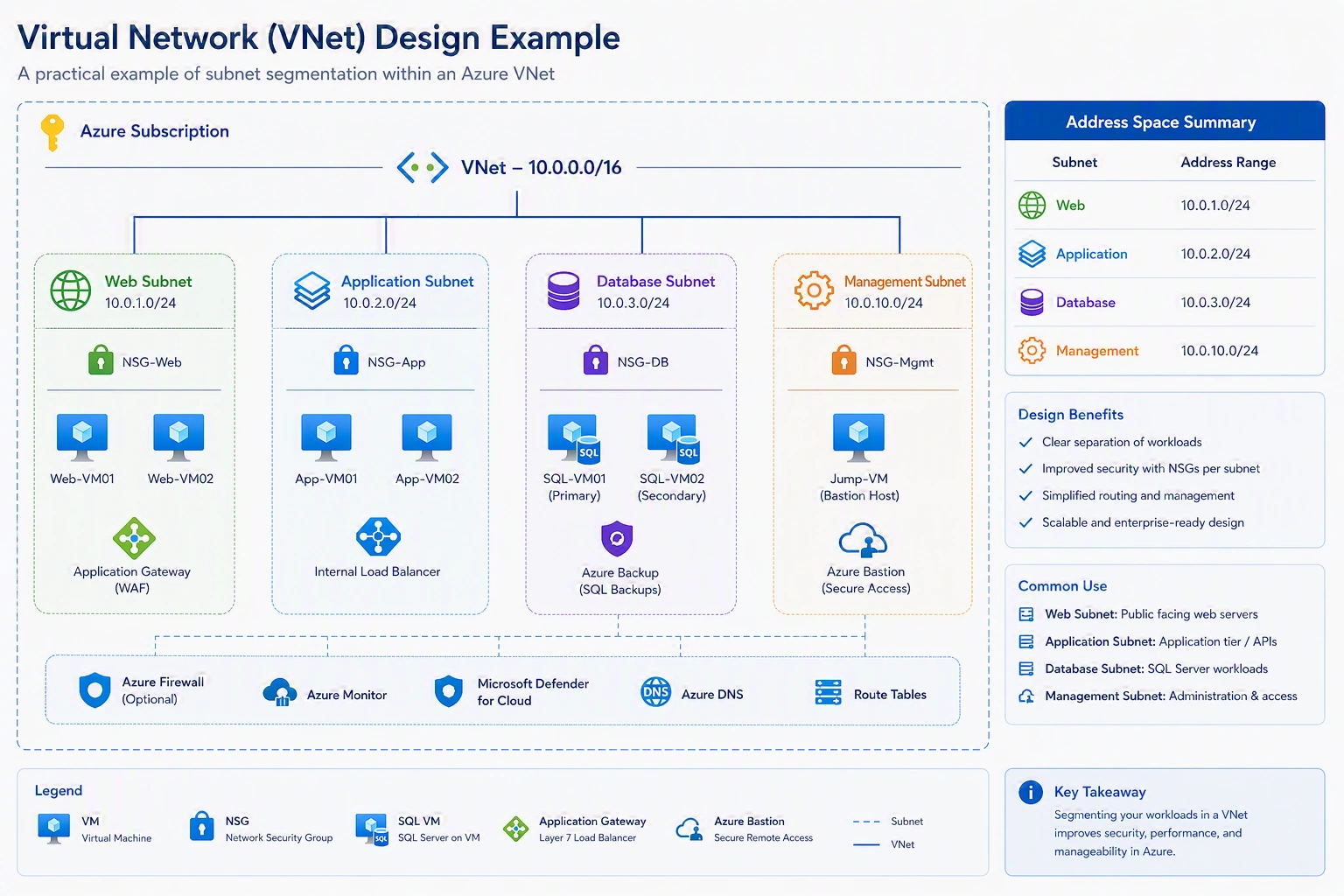

Designer (24)

Each subnet isolates workloads while allowing controlled communication.

Why Use Subnets?

Subnets improve:

Instead of placing every server in one network, workloads are separated according to their function.

Azure Reserved IP Addresses

Azure reserves the first four IP addresses and the last IP address in every subnet.

Example

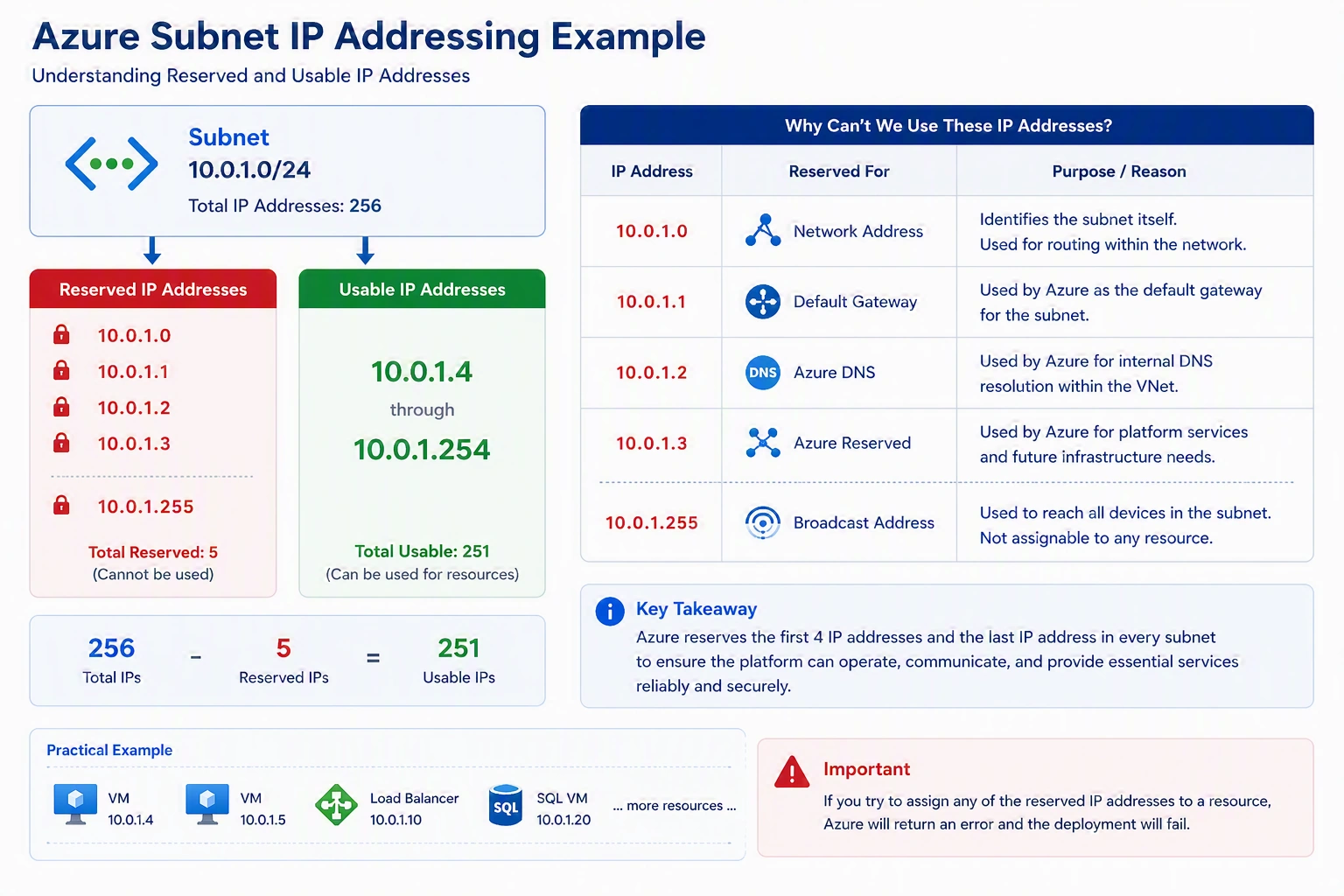

Designer (25)

This is important when calculating subnet capacity.

Private IP vs Public IP

Azure resources may have:

Private IP

Used for communication inside Azure.

Example:

10.0.1.10

Only accessible within connected networks.

Public IP

Provides internet connectivity.

Example:

20.x.x.x

Allows users to access applications from the internet.

Dynamic vs Static Private IP

Azure supports two private IP allocation methods.

Dynamic

Azure automatically assigns an available IP address.

Static

The administrator specifies the IP address.

Static addresses are commonly used for:

Network Security Groups (NSGs)

An NSG acts as a virtual firewall.

It controls inbound and outbound traffic using rules.

Example:

PrioritySourceDestinationPortAction
100InternetWeb Server443Allow
110InternetWeb Server80Allow
200InternetAny3389Deny

NSGs can be associated with:

Application Security Groups (ASGs)

Instead of creating rules based on IP addresses, Azure allows grouping virtual machines logically.

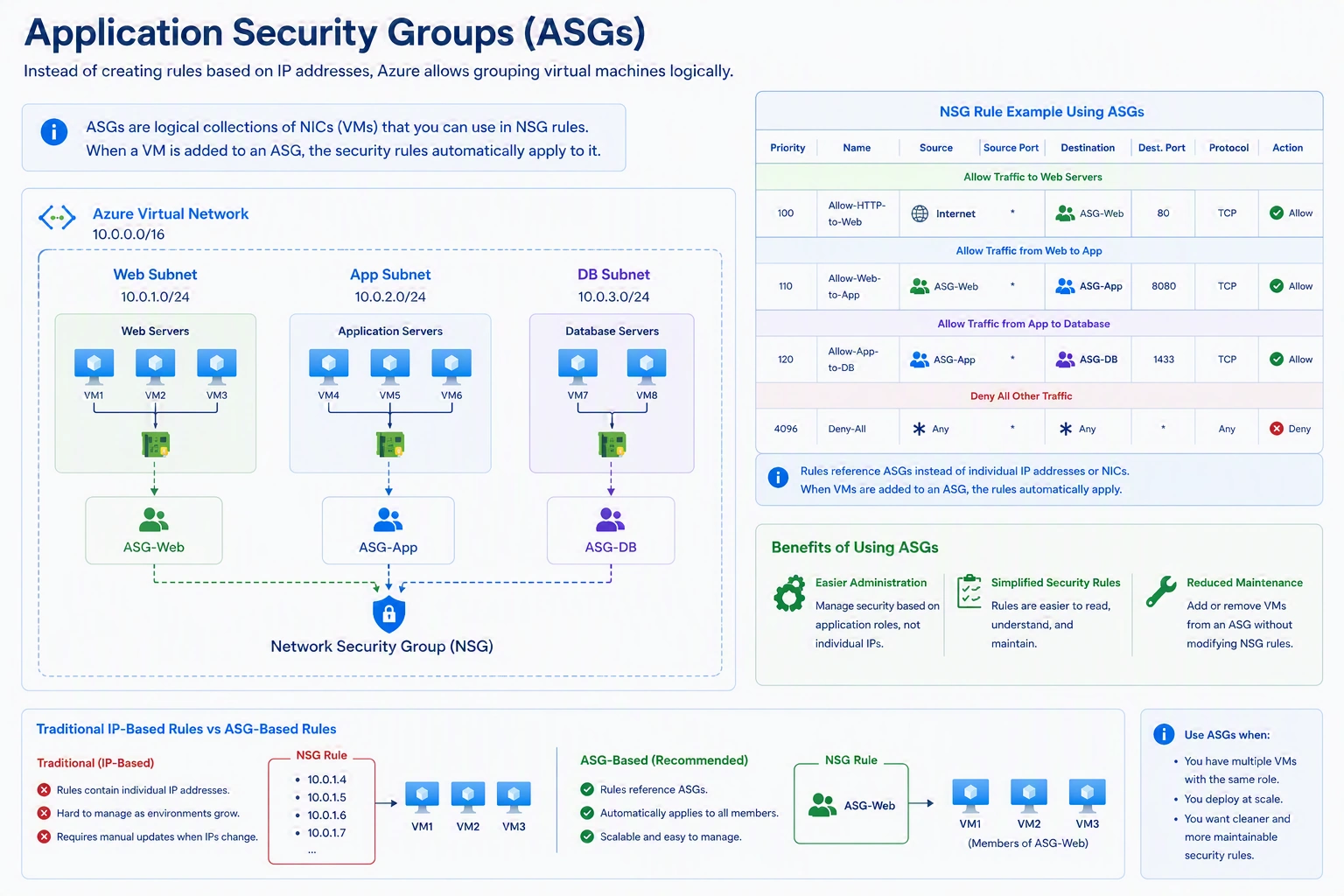

Designer (26)

Benefits:

Azure DNS

Every VNet includes Azure-provided DNS by default.

Options include:

Custom DNS is commonly used in enterprise hybrid environments.

Internet Connectivity

Resources inside a virtual network can communicate with the internet in several ways:

Each option serves different networking requirements.

Hybrid Connectivity

Many organizations connect Azure with on-premises data centers.

Azure supports:

Site-to-Site VPN

Encrypted IPsec tunnel between Azure and on-premises.

Suitable for:

Point-to-Site VPN

Secure connection for individual users.

Common for remote workers.

ExpressRoute

Dedicated private connection to Microsoft Azure.

Benefits:

Preferred for enterprise production workloads.

VNet Peering

Virtual networks can communicate directly using VNet peering.

Benefits:

Peering can be:

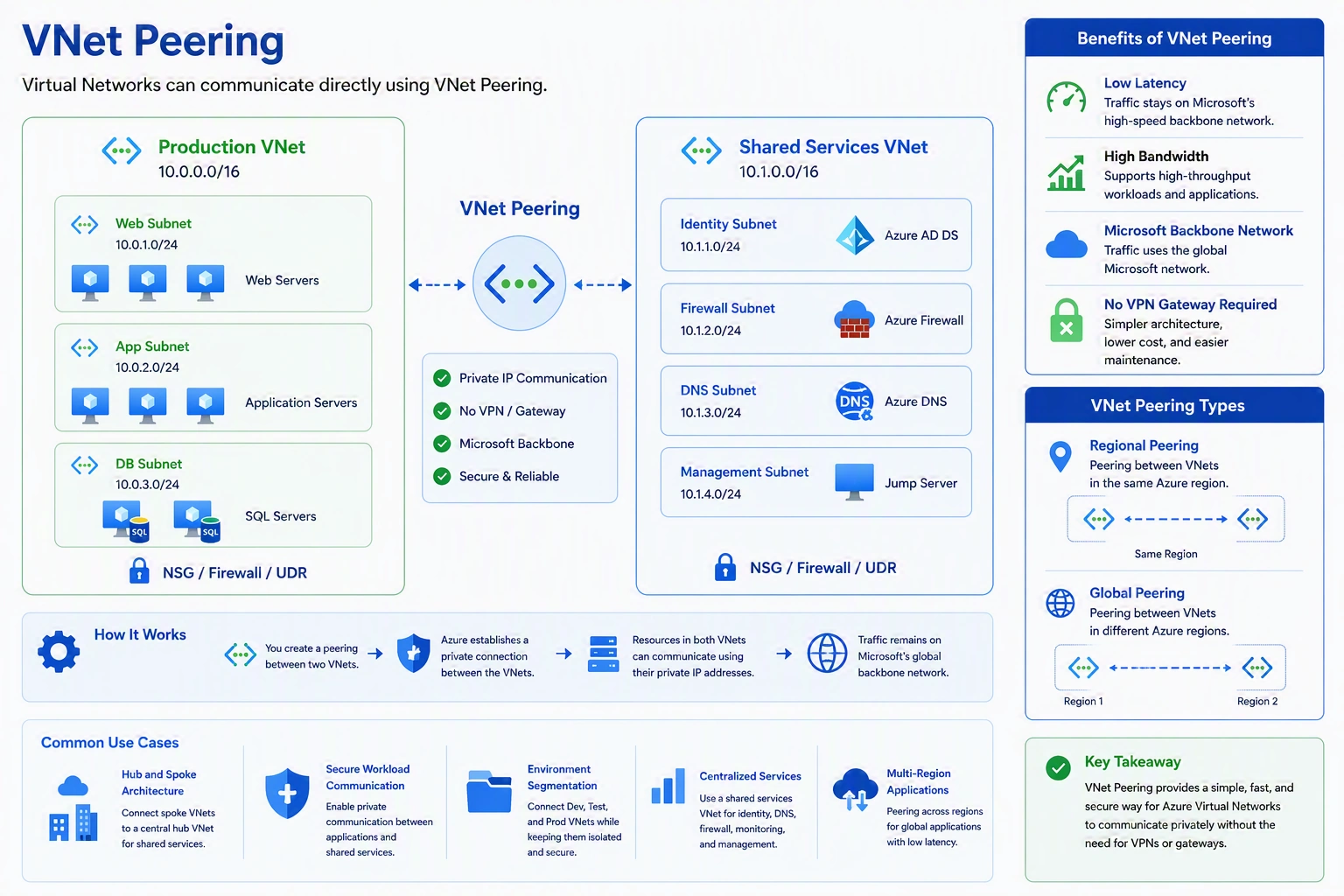

Designer (27)

User Defined Routes (UDRs)

Azure automatically creates system routes.

Administrators can override these using user-defined routes.

UDRs are commonly used with:

Service Endpoints

Service Endpoints allow Azure services to be accessed securely over the Microsoft backbone network.

Traffic never leaves Microsoft's network.

Private Endpoints

Private Endpoints provide private IP access to Azure PaaS services.

Benefits:

Private Endpoints are now Microsoft's recommended approach for securing PaaS resources.

Azure Bastion

Azure Bastion enables secure RDP and SSH access through the Azure Portal.

Benefits:

Azure Bastion is recommended for production environments.

Azure NAT Gateway

When multiple virtual machines require outbound internet connectivity, Azure NAT Gateway provides the following:

It eliminates the need to assign individual public IPs to each VM.

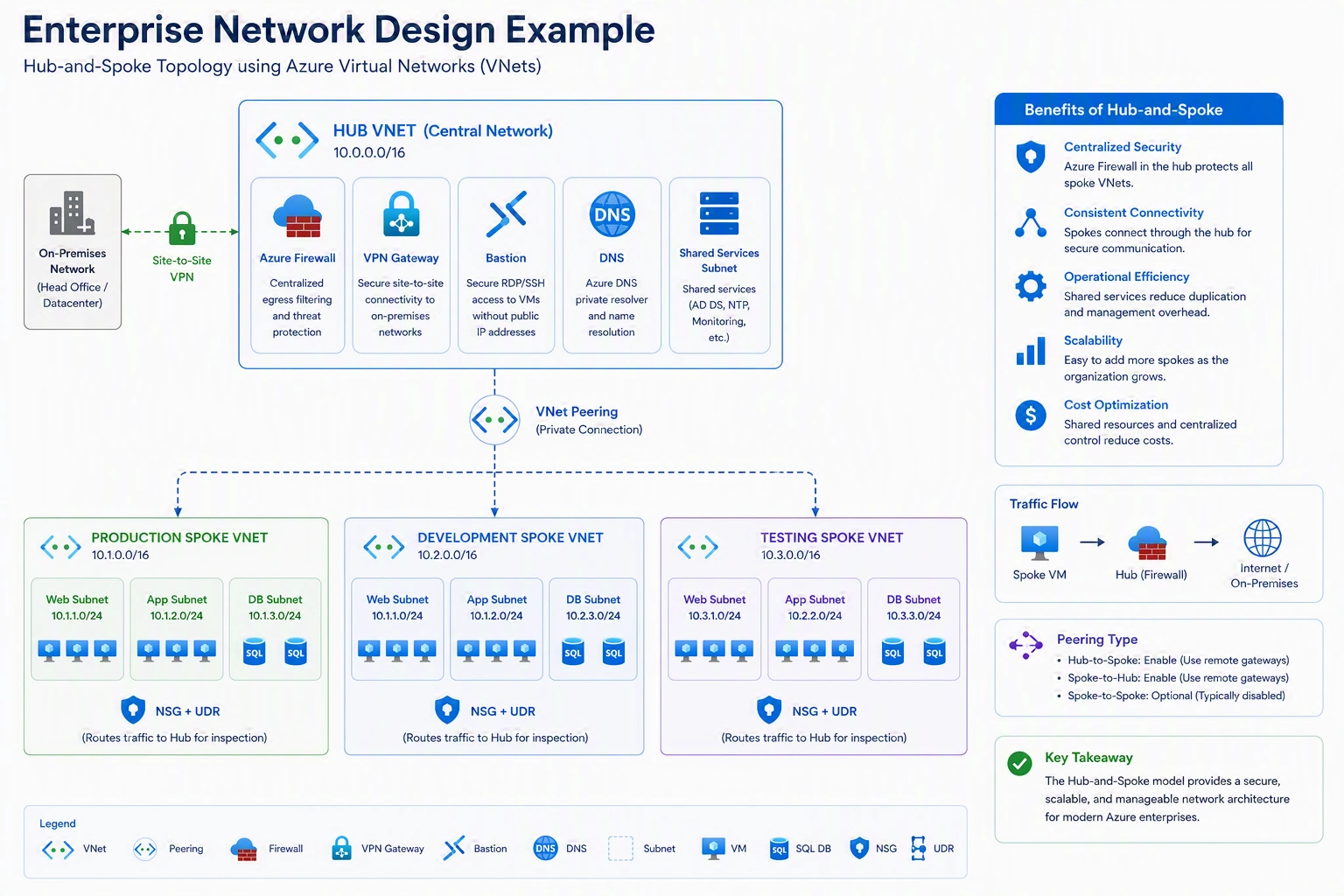

Designer (28)

This hub-and-spoke architecture is one of the most common enterprise networking models in Azure.

Best Practices

Microsoft recommends the following networking practices:

Common Mistakes

Avoid these common networking mistakes:

Summary

Azure Virtual Networks provide the networking foundation for almost every Azure infrastructure deployment. They enable secure communication between resources, support hybrid connectivity, and allow organizations to build scalable, enterprise-grade network architectures in the cloud.

A well-designed VNet includes carefully planned address spaces, properly segmented subnets, effective use of network security groups, secure connectivity through VPN or ExpressRoute, and modern security features such as Azure Bastion and private endpoints.

As Azure environments continue to grow, network design becomes increasingly important. Investing time in planning IP addressing, segmentation, routing, and security from the beginning will reduce operational complexity and improve the long-term scalability and resilience of your cloud infrastructure.

Key Takeaways
