Azure Managed Disks Explained: Choosing the Right Disk for Performance, Reliability, and Cost

Storage is one of the most critical components of any virtual machine. Even the fastest CPU and largest amount of memory cannot compensate for poor disk performance. Applications such as SQL Server, SAP, enterprise ERP systems, web applications, Active Directory, and file servers all rely heavily on storage performance.

Microsoft Azure offers several managed disk options designed for different workloads—from low-cost archive storage to ultra-high-performance disks capable of delivering hundreds of thousands of IOPS.

Choosing the wrong disk type can lead to poor application performance, increased latency, unnecessary costs, or overprovisioned infrastructure. In this article, we'll explore Azure Managed Disks in detail, compare all available disk types, understand their use cases, and learn how to select the right disk for your workloads.

Azure Managed Disk?

An Azure Managed Disk is a block-level storage volume managed entirely by Microsoft Azure. It is used as the storage backend for Azure Virtual Machines and eliminates the complexity of managing storage accounts manually.

Before Managed Disks were introduced, administrators had to create and manage Azure Storage Accounts, monitor capacity limits, and distribute virtual hard disks (VHDs) across multiple storage accounts. Managed Disks simplify this process by automatically handling storage provisioning, scaling, availability, encryption, and maintenance.

With Managed Disks, Azure manages:

This allows administrators to focus on applications rather than storage management.

Types of Azure Managed Disks

Azure currently offers five primary managed disk types:

Each disk type is optimized for different workloads and price points.

Understanding Disk Performance Metrics

Before selecting a disk type, it's important to understand the key performance metrics.

IOPS (Input/Output Operations Per Second)

IOPS measures the number of read and write operations a disk can perform every second.

Higher IOPS means:

Throughput

Throughput measures the amount of data transferred every second.

Usually measured in:

High throughput benefits:

Latency

Latency measures the delay between requesting data and receiving it.

Lower latency means:

Standard HDD

Standard HDD is Azure's lowest-cost managed disk offering.

These disks use traditional magnetic storage and are designed for workloads that do not require high performance.

Best Use Cases

Advantages

Limitations

Standard SSD

Standard SSD provides significantly better performance than Standard HDD while maintaining a reasonable cost.

These disks use solid-state technology, resulting in lower latency and improved responsiveness.

Best Use Cases

Advantages

Limitations

Premium SSD

Premium SSD is the most commonly used managed disk for enterprise production workloads.

These disks provide consistent low latency and predictable performance.

Best Use Cases

Advantages

Limitations

Premium SSD v2

Premium SSD v2 is Microsoft's next-generation premium storage offering.

Unlike Premium SSD, performance is no longer tied to disk capacity. Administrators can independently configure:

This provides much greater flexibility and can significantly reduce costs for workloads that require high performance without large storage capacity.

Key Features

Best Use Cases

Ultra Disk

Ultra Disk is Azure's highest-performance managed disk offering.

It is specifically designed for mission-critical workloads requiring extremely high IOPS, ultra-low latency, and maximum throughput.

Ultra Disk allows administrators to change performance settings without detaching the disk from the virtual machine.

Best Use Cases

Advantages

Limitations

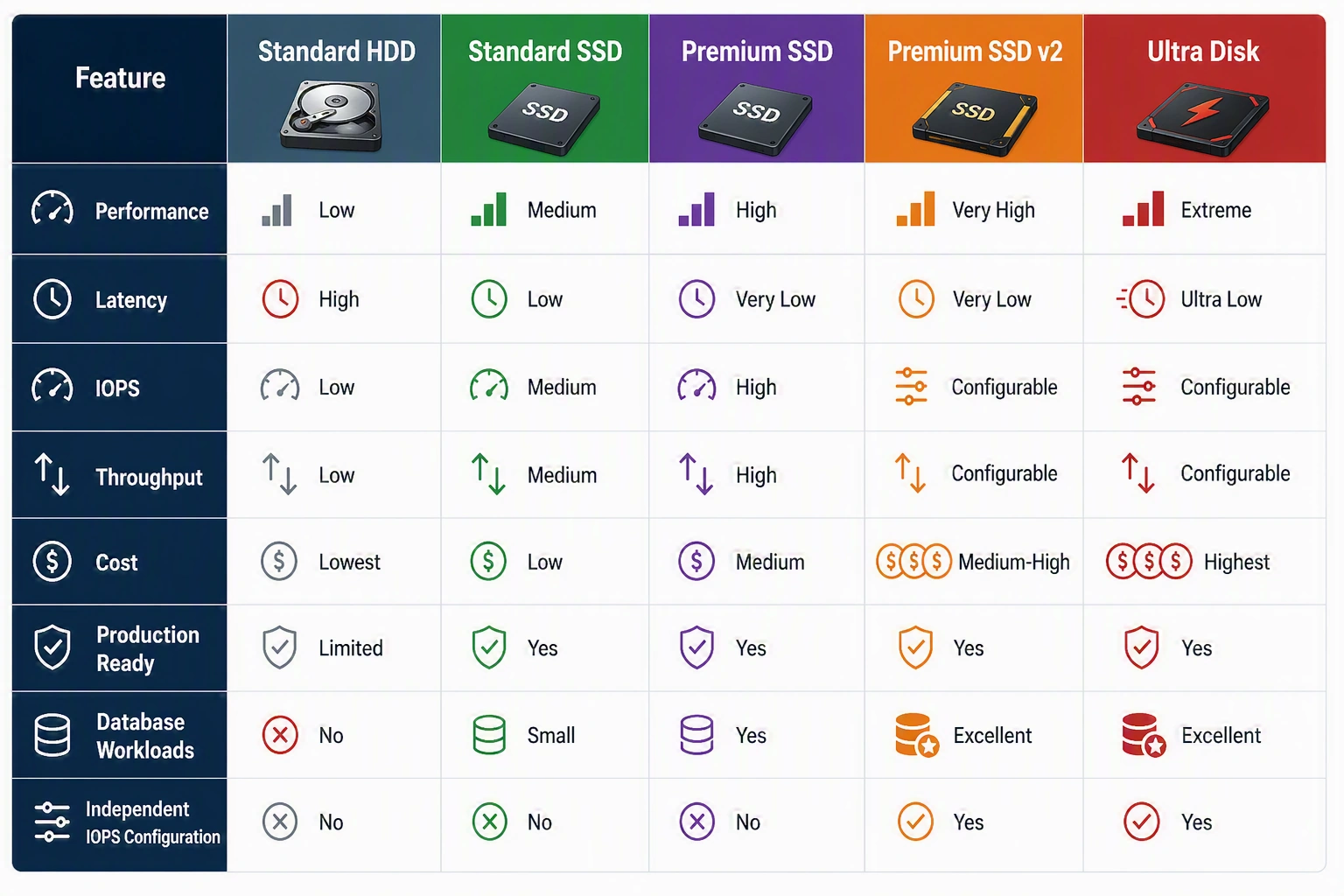

Managed Disk Comparison

Designer (35)

Understanding Disk Sizes

Managed disks are available in predefined sizes.

Examples include

Disk SizeCapacity
P14 GiB
P28 GiB
P316 GiB
P432 GiB
P664 GiB
P10128 GiB
P15256 GiB
P20512 GiB
P301 TiB
P402 TiB
P504 TiB
P608 TiB
P7016 TiB
P8032 TiB

With Premium SSD, disk performance generally increases as the disk size increases. Premium SSD v2 and Ultra Disk remove this dependency by allowing performance to be configured independently.

OS Disk vs Data Disk

Every Azure Virtual Machine includes at least one OS disk.

OS Disk

Stores:

Data Disk

Used for:

Separating the operating system from application data improves performance, simplifies backups, and reduces recovery time during failures.

Disk Redundancy Options

Azure provides multiple redundancy options to protect data against hardware failures.

Locally Redundant Storage (LRS)

Zone-Redundant Storage (ZRS)

Geo-Redundant Storage (GRS)

Choose the redundancy option based on your availability and disaster recovery requirements.

Disk Encryption

Azure automatically encrypts managed disks at rest using Microsoft-managed keys.

For organizations with stricter compliance requirements, Customer-Managed Keys (CMK) can be used through Azure Key Vault.

Additional security features include:

Disk Snapshots

Snapshots create point-in-time copies of managed disks.

Common use cases include:

Snapshots are incremental, meaning only changed blocks are stored after the first snapshot, helping reduce storage costs.

Azure Backup Integration

Managed disks integrate seamlessly with Azure Backup.

Benefits include

For production workloads, regular backups should always be part of your operational strategy.

Performance Optimization Best Practices

To maximize storage performance:

Cost Optimization Tips

Storage costs can quickly add up if disks are oversized or underutilized.

To optimize costs

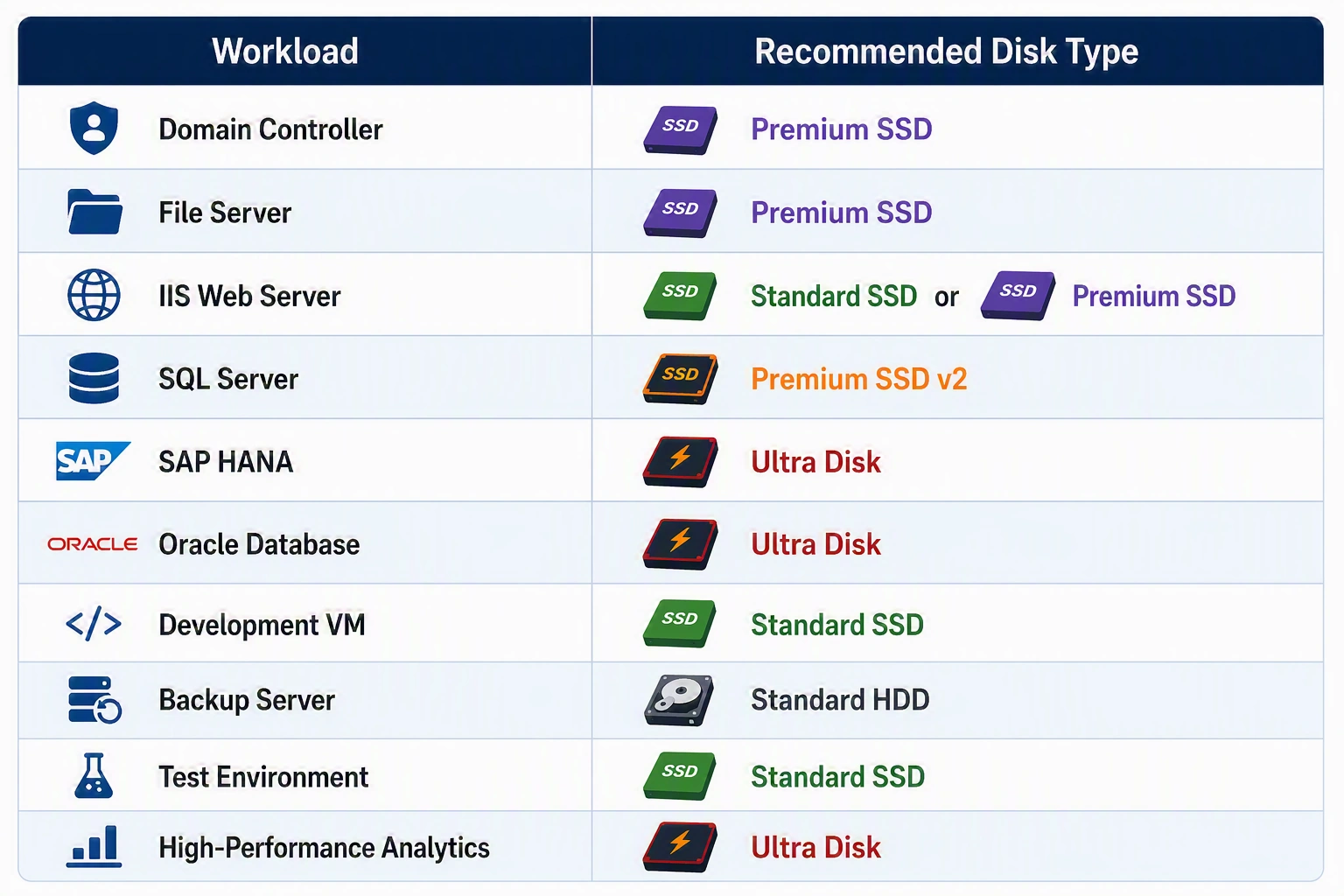

Real-World Recommendations

Designer (36)

Common Mistakes to Avoid

Many organizations experience performance issues due to poor disk selection. Avoid these common pitfalls:

Final Thoughts

Azure Managed Disks are the foundation of reliable and high-performing virtual machines. Selecting the correct disk type is just as important as choosing the right VM size, as storage directly influences application responsiveness, database performance, and overall user experience.

For most enterprise workloads, Premium SSD remains a dependable choice, offering consistent performance and broad compatibility. Premium SSD v2 introduces greater flexibility by allowing independent configuration of capacity, IOPS, and throughput, making it an excellent option for modern, performance-sensitive applications. Ultra Disk is reserved for the most demanding, mission-critical workloads where ultra-low latency and maximum performance are essential.

By understanding the strengths and trade-offs of each managed disk type, implementing proper monitoring, and following Azure best practices, organizations can build storage solutions that are cost-effective, scalable, and resilient.

Key Takeaways
