Azure Stream Analytics Job And Tools For Visual Studio

Creating Azure Stream Analytics jobs and working with them is always fun. And what if there were a tool which helps you create a stream solution in Visual Studio so that you don’t have to go over to the browser and do some manual button clicks? That’s where the Azure Data Lake and Stream Analytics Tool extension comes into play.

Introduction


Creating an Azure Stream Analytics job and working with that is always fun. What if there was a tool to help you create a stream solution in Visual Studio so that you don’t have to go over to the browser and do some manual button clicks? That’s where the Azure Data Lake and Stream Analytics Tool extension come into play. In my previous post, we have already discussed what an Azure Stream Analytics job is and how can we work with the same. If you haven’t read the same, please read it. Now, let’s go and use the extension.
You can always see this article on my blog here.


Background


Recently, I started working with Azure IoT Device Kit, which is a wonderful microcontroller board, it can send a lot of information like temperature, humidity to the Azure cloud, as it has a lot of inbuilt sensors. Now, in this article, we will create a Visual Studio solution for our Stream Analytics Job so that the same can be moved to a source control and can be easily managed.

Please note that the extension we are going to use is not yet supported with Visual Studio 2019. Still, if you try to create the same in VS2019, you will get an error as the version of Visual Studio is not supported.

The extension is not supported in VS2019,


Setting up the Environment


I am assuming that you have a valid Azure Subscription and you have access to create the resources in it.


Modify Visual Studio with Required Workloads

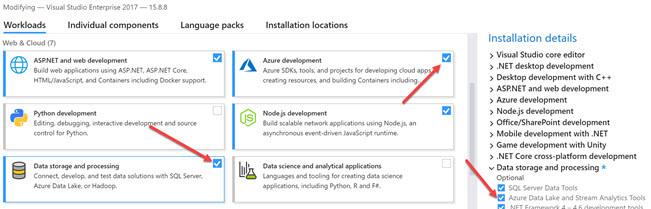

Let’s go to our Visual Studio installer and modify the workloads now.

Azure Stream Analytics Job and Tools for Visual Studio
Install the Required Workloads

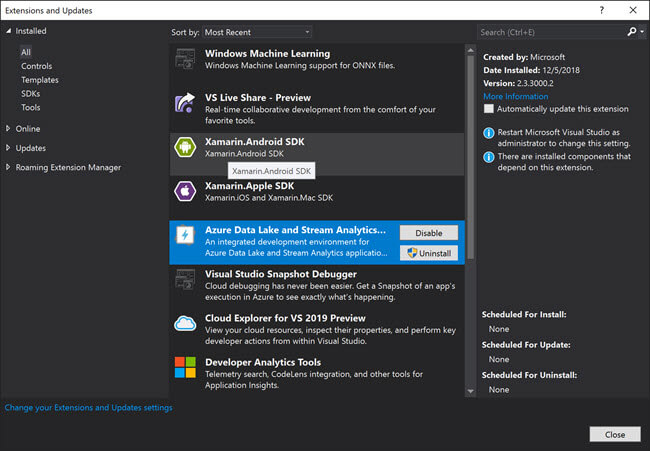

Once the workloads are modified, make sure that the extension is available in your Extensions, you can do that by going to Tools -> Extension menu.

Azure Stream Analytics Job and Tools for Visual Studio
Azure Data Lake Extension


Creating a New Stream Analytics Project

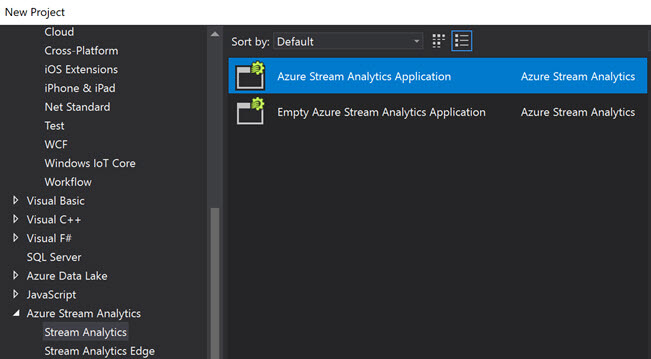

Once the Extension is enabled, you should be able to create a new Azure Stream Analytics Application.

Azure Stream Analytics Job and Tools for Visual Studio
Azure Stream Analytics Application

The new project will contain the below files.

  1. Input.json
  2. Output.json
  3. JobConfig.json
  4. Script.asaql

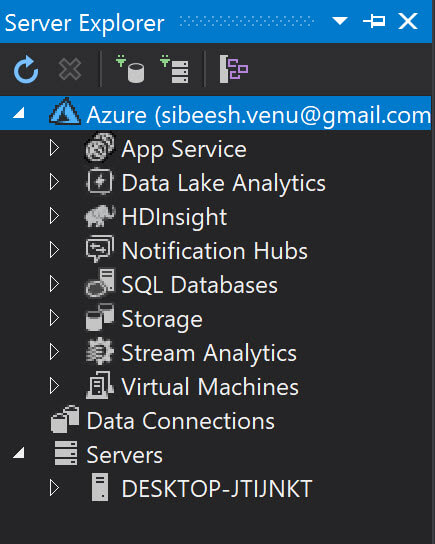

To configure your subscription, please make sure that you have added your Subscription in the Server Explorer.

Azure Stream Analytics Job and Tools for Visual Studio
Azure Server Explorer

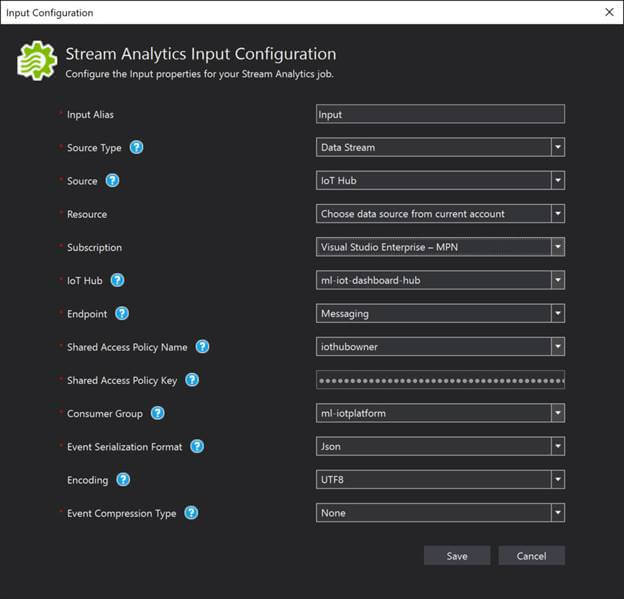

The Input.json file is the replica of your Input job topology, double click on the file will give you the configuration page to configure the details.

Azure Stream Analytics Job and Tools for Visual Studio
Input Configuration

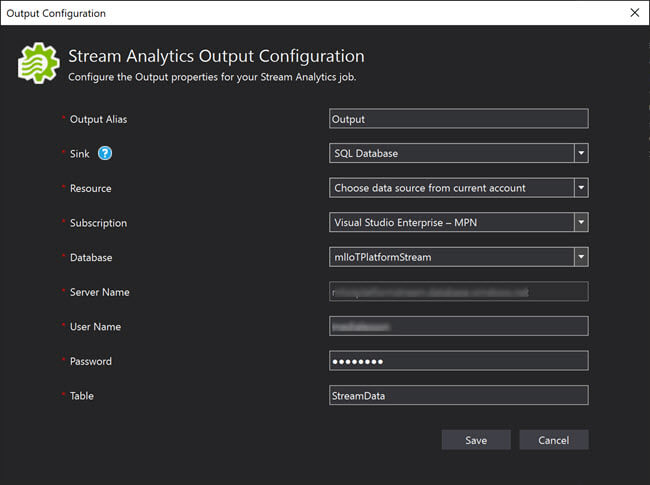

The Output.json file is your output job topology, you can have as many outputs you need. In my case, it is just one, SQL Server Database.

Azure Stream Analytics Job and Tools for Visual Studio
Output Configuration

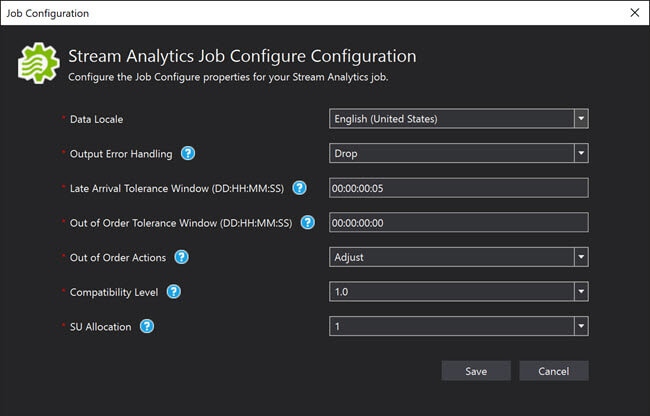

You can always configure your job using the JobConfig.json file. When you configure the Job, you need to be sure about the values you are providing and what their needs are.

Data Locale is your locale input. The option Output Error Handling is for handling the situation when the events fail to be written to the output, you can select either Drop or Retry. The Late Arrival Tolerance Window is the timeframe which you can wait for the event to reach the IoT hub, the time difference is between the event timestamp and the system time.

Azure Stream Analytics Job and Tools for Visual Studio
Job Configuration

And the Script.asaql is the file where you need to add your custom query which gets data from the input and sends it to the output.

  1. SELECT messageId, deviceId, temperature, humidity, pressure, pointInfo, IoTHub, EventEnqueuedUtcTime, EventProcessedUtcTime, PartitionId INTO streamoutputs FROM streaminputs

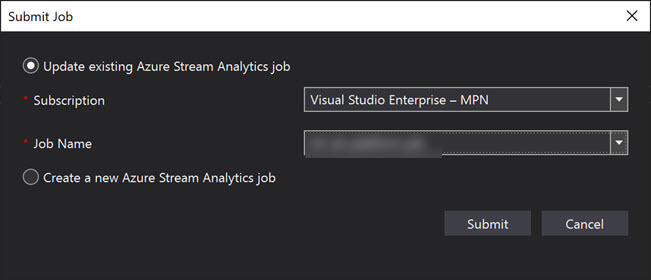

Once everything is done, you are ready to submit the same to Azure. You can either create a new job or use the existing one.

Azure Stream Analytics Job and Tools for Visual Studio
Submit Job

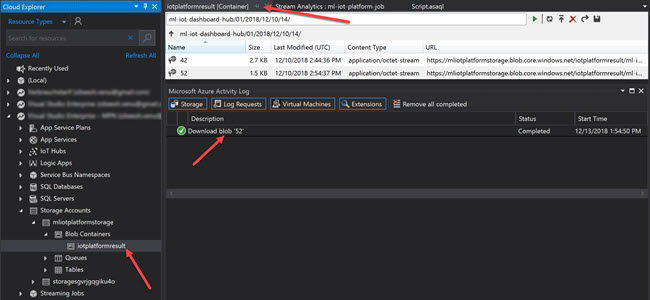

When you submit, you can see that a new Stream Analytics view will get opened and the job will be starting automatically. You can always see the blobs created under your container by going to the cloud explorer.

Azure Stream Analytics Job and Tools for Visual Studio
Cloud Explorer

Now, just right-click on your solution and select “Add solution to Source Control" and then push the same to your git repository. Once you have added the solution to the source control, your team members can easily update the Input and Output configuration and have a history of the same.

Conclusion


In this article, we have learned how to,
  1. Set up the Visual Studio for using Data Lake and Stream Analytics tool
  2. Use the Data Lake and Stream Analytics tool
  3. Configure the Input for Stream Analytics
  4. Configure the Stream Analytics Job
  5. Use the created package in another solution

Your turn. What do you think?

Thanks a lot for reading. I will come back with another post on the same topic very soon. Did I miss anything that you may think is needed? Did you find this post useful? Kindly do not forget to share your feedback with me.
