Bind 3D Chart In ASP.NET Using C#

We take a chart between name and age and bind that data to our chart control.

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty Website. Give a suitable name [ChartControl_demo].

Step 2: In Solution Explorer you get your empty website, Add a web form and SQL Database. By going like this –

For Web Form:

ChartControl_demo (Your Empty Website) - Right Click, Add New Item, then Web Form and name it ChartControl_demo.aspx.

For SQL Server Database:

ChartControl_demo (Your Empty Website) - Right Click, Add New Item, SQL Server Database and add Database inside the App_Data_folder.

Database chamber

Step 3: In Server Explorer, click on your database [Database.mdf] - Tables, Add New Table and make table like the following:

Table - tbl_age [Don’t Forget to make ID as IS Identity -- True].

table design

Show table data:

table

Design chamber

Step 4: Open ChartControl_demo.aspx file from the Solution Explorer and start designing your Application:

Here is the Code:

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default2.aspx.cs" Inherits="Default2" %>
<%@ Register Assembly="System.Web.DataVisualization, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" Namespace="System.Web.UI.DataVisualization.Charting" TagPrefix="asp" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:Chart ID="Chart1" runat="server" Palette="None" AntiAliasing="Graphics" Width="563px">
<Series>
<%-- <asp:Series ChartArea="ChartArea1" IsValueShownAsLabel="True" Name="Series1">
</asp:Series>--%>
</Series>
<ChartAreas>
<asp:ChartArea Name="ChartArea1">
<AxisX Title ="name"></AxisX>
<AxisY Title ="age"></AxisY>
<Area3DStyle Enable3D="true" LightStyle="Realistic" />
</asp:ChartArea>
</ChartAreas>
</asp:Chart>
</div>
<p>
<asp:Button ID="Button1" runat="server" OnClick="Button1_Click" Text="Load Chart " />
</p>
</form>
</body>
</html>

Code chamber

At last open your ChartControl_demo.aspx.cs file to write the code for making the 3D Chart like we assumed.

Here is the code:

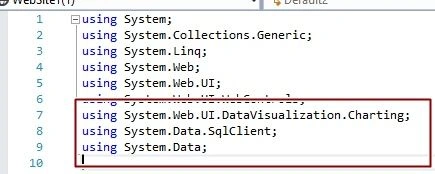

Add these Namespaces:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.DataVisualization.Charting;
using System.Data.SqlClient;
using System.Data;
public partial class Default2 : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
}
protected void Button1_Click(object sender, EventArgs e)
{
SqlConnection con = new SqlConnection(@"Data Source=NiluNilesh;Initial Catalog=mynewdata;Integrated Security=True");
con.Open();
SqlCommand cmd = new SqlCommand("select name, age from tbl_age", con);
SqlDataReader sdr = cmd.ExecuteReader();
Chart1.DataBindTable(sdr, "name");
}
}

Output chamber

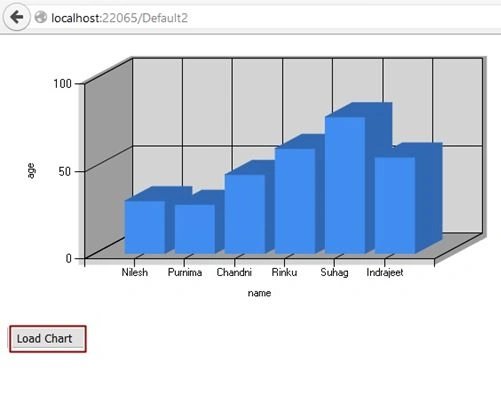

Output

Hope you like it. Thank you for Reading. Have a good Day.
