Bind Drilldown Highchart in ASP.NET Using jQuery and Ajax

I am using the same concept to create a web method in a web service and calling those methods in jQuery.

Step 1

Create a table as in the following:

CREATE TABLE tblRevenue (
Id int Primary Key IDENTITY(1,1) NOT NULL,
amount bigint NULL,
quarter varchar(4) NULL,
year varchar(4) NULL,
)

After completion of table design, enter some of the test data into table to work for our sample

We will now create a web method in the web service and use that method to call it from jQuery.

Step 2

Create an ASP.NET Web Service. Add an .asmx page to the current solution and modify the code as in the following example:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Services;
using System.Data;//
using System.Data.SqlClient;//
namespace DrillDownHighchart.Services
{
/// <summary>
/// Summary description for WebServiceChart
/// </summary>
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
[System.ComponentModel.ToolboxItem(false)]
// To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
[System.Web.Script.Services.ScriptService]
public class WebServiceChart : System.Web.Services.WebService
{
public class RevenueEntity
{
public string year { get; set; }
public int amount { get; set; }
public Boolean drilldown { get; set; }
}
[WebMethod]
public List<RevenueEntity> GetRevenueByYear()
{
List<RevenueEntity> YearRevenues = new List<RevenueEntity>();
DataSet ds = new DataSet();
using (SqlConnection con = new SqlConnection("Data Source=.;Trusted_Connection=true;DataBase=test"))
{
using (SqlCommand cmd = new SqlCommand())
{
cmd.CommandText = "select year,SUM(amount)amount from tblRevenue group by year";
cmd.Connection = con;
using (SqlDataAdapter da = new SqlDataAdapter(cmd))
{
da.Fill(ds, "dsRevenue");
}
}
}
if (ds != null)
{
if (ds.Tables.Count > 0)
{
if (ds.Tables["dsRevenue"].Rows.Count > 0)
{
foreach (DataRow dr in ds.Tables["dsRevenue"].Rows)
{
YearRevenues.Add(new RevenueEntity
{
year = dr["year"].ToString(),
amount = Convert.ToInt32(dr["amount"]),
drilldown = true
});
}
}
}
}
return YearRevenues;
}
[WebMethod]
public List<RevenueEntity> GetRevenueByQuarter(string year)
{
List<RevenueEntity> QuarterRevenues = new List<RevenueEntity>();
DataSet ds = new DataSet();
using (SqlConnection con = new SqlConnection("Data Source=.;Trusted_Connection=true;DataBase=test"))
{
using (SqlCommand cmd = new SqlCommand())
{
cmd.CommandText = "select quarter,SUM(amount)amount from tblRevenue where year='" + year + "' group by quarter";
cmd.Connection = con;
using (SqlDataAdapter da = new SqlDataAdapter(cmd))
{
da.Fill(ds, "dsQuarter");
}
}
}
if (ds != null)
{
if (ds.Tables.Count > 0)
{
if (ds.Tables["dsQuarter"].Rows.Count > 0)
{
foreach (DataRow dr in ds.Tables["dsQuarter"].Rows)
{
QuarterRevenues.Add(new RevenueEntity
{
year = dr["quarter"].ToString(),
amount = Convert.ToInt32(dr["amount"])
});
}
}
}
}
return QuarterRevenues;
}
}
}

Don't forget to enable the attribute as in the following:

[System.Web.Script.Services.ScriptService]

Step 3

Add jQuery references as in the following:

<script src="Script/jquery.min.js" type="text/javascript"></script>
<script src="Script/highcharts.js" type="text/javascript"></script>
<script src="Script/drilldown.js" type="text/javascript"></script>

Step 4

Implement jQuery Ajax as in the following:

<script type="text/javascript">
$(document).ready(function () {
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "Services/WebServiceChart.asmx/GetRevenueByYear",
data: "{}",
dataType: "json",
success: function (Result) {
Result = Result.d;
var data = [];
for (var i in Result) {
var serie = { name: Result[i].year, y: Result[i].amount, drilldown: Result[i].drilldown };
data.push(serie);
}
BindChart(data);
},
error: function (Result) {
alert("Error");
}
});
});
function BindChart(seriesArr) {
$('#container').highcharts({
chart: {
type: 'column',
backgroundColor: '#CCE6FF',
borderColor: '#6495ED',
borderWidth: 2,
className: 'dark-container',
plotBackgroundColor: '#F0FFF0',
plotBorderColor: '#6495ED',
plotBorderWidth: 1,
events: {
drilldown: function (e) {
if (!e.seriesOptions) {
var chart = this;
chart.showLoading('Loading Quarter wise Revenue ...');
var dataArr = CallChild(e.point.name);
chart.setTitle({
text: 'Quarter wise Revenue Report'
});
data = {
name: e.point.name,
data: dataArr
}
setTimeout(function () {
chart.hideLoading();
chart.addSeriesAsDrilldown(e.point, data);
}, 1000);
}
}
}
},
title: {
text: 'Year wise Revenue Report'
},
xAxis: {
type: 'category'
},
plotOptions: {
series: {
borderWidth: 0,
dataLabels: {
enabled: true
}
}
},
series: [{
name: 'Year',
colorByPoint: true,
data: seriesArr
}],
drilldown: {
series: []
}
});
}
function CallChild(name) {
var Drilldowndata = [];
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "Services/WebServiceChart.asmx/GetRevenueByQuarter",
data: JSON.stringify({ year: name }),
dataType: "json",
success: function (Result) {
Result = Result.d;
for (var i in Result) {
var serie = { name: Result[i].year, y: Result[i].amount };
Drilldowndata.push(serie);
}
},
error: function (Result) {
alert("Error");
}
})
return Drilldowndata;
}
t;/script>

Step 5

Do the UI Design as in the following:

<body>
<form id="form1" runat="server">
<div id="container">
</div>
</form>
</body>

Step 6

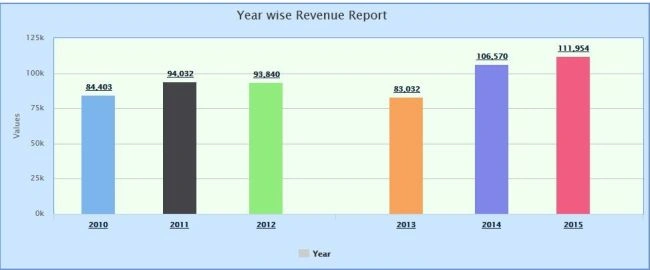

The output in a browser is as in the following:

Output in Browser

After clicking on bar the following chart by quarter will be generated.

quarter wise chart

I hope you like this article and understood how to bind a drilldown highchart in ASP.NET using jQuery Ajax.
