We are going to learn little things on how to setup Entity Framework Core in .NET Core Web Application. Developers coming from a background of ASP.NET MVC will find it easy to work with ASP.NET Core MVC.
If you are new to .NET Core read these articles to kickstart your .NET Core knowledge:
- Creating a New .NET Core Web Application Using Visual Studio 2015
- Creating A New .NET Core Web Application With Command Line Interface (CLI)
Topic
- Database part.
- Creating an Application.
- Installing package for an Entity Framework Core From NuGet.
- Adding the Connection string and Setting up DbContext.
- Adding Model CountryMaster in Models Folder.
- Adding DbSet for CountryMaster Model in DatabaseContext class.

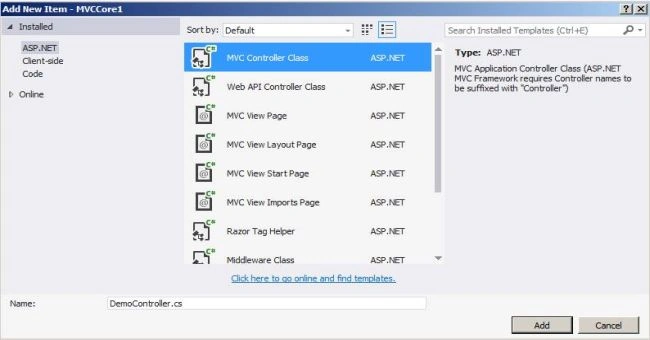

- Adding Controller.
- Getting Data from the database, using Entity Framework Core.

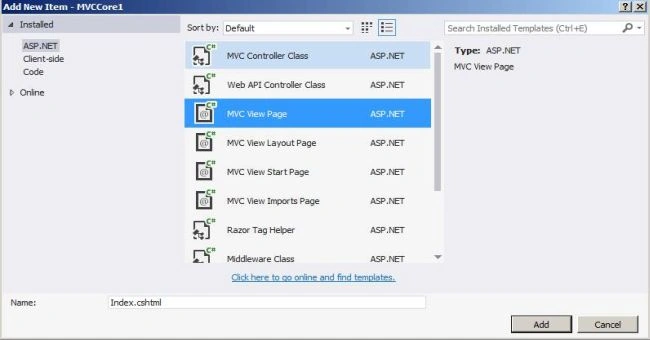

- Adding View.

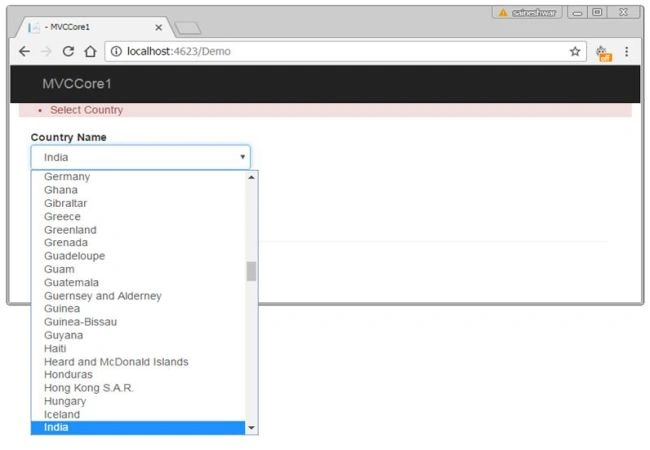

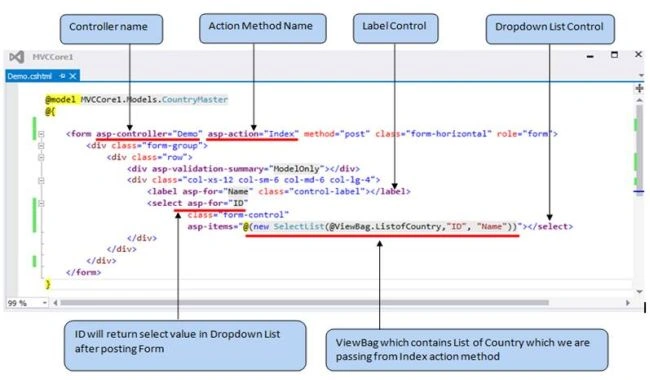

- Binding Dropdownlist, using new Tag helper.

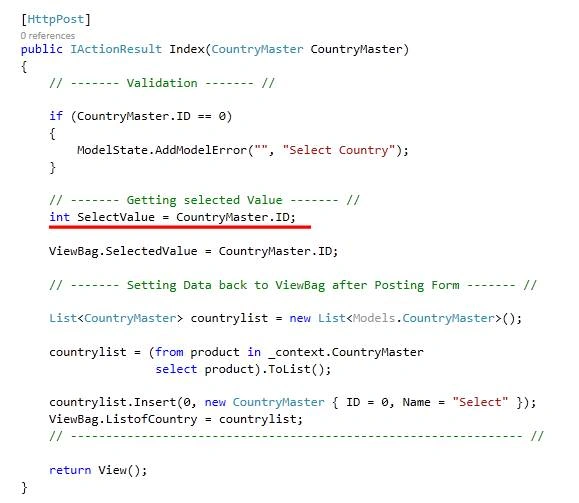

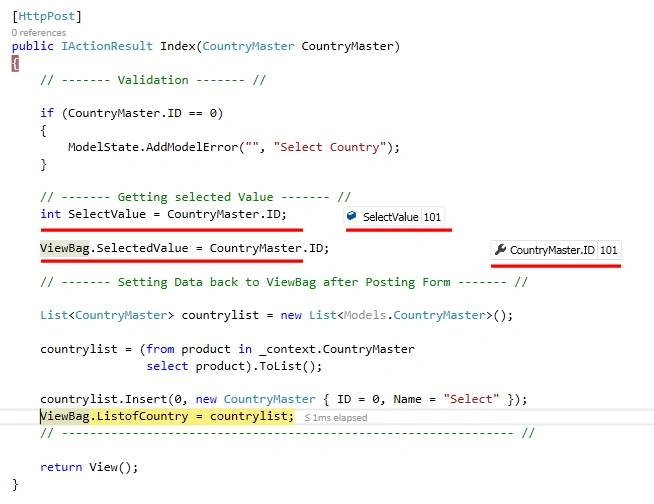

- Adding Index Action method to handle POST request and getting the selected values.
- Saving and running an Application.
Step 1
Database part
Create a sample database with the name “AllSampleCode” to show demo
Inside this database, I have added a simple table, CountryMaster, and you can see the structure, as shown below.
Step 2
Create a sample database with the name “AllSampleCode” to show demo
Inside this database, I have added a simple table, CountryMaster, and you can see the structure, as shown below.
Step 2
Creating application

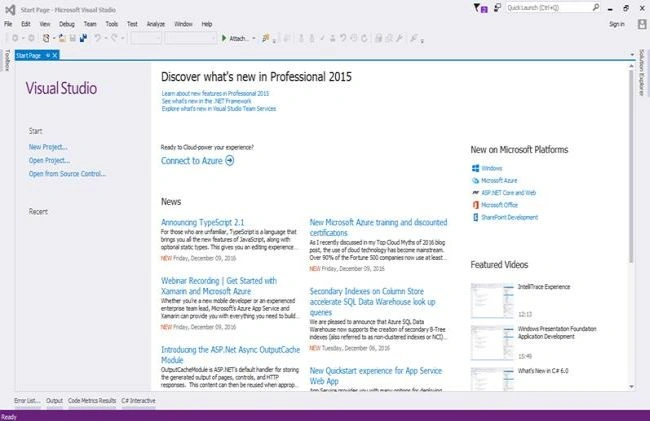

Now, let’s create a .NET Core Web Application. Open Visual Studio IDE from the start page and click New Project link.

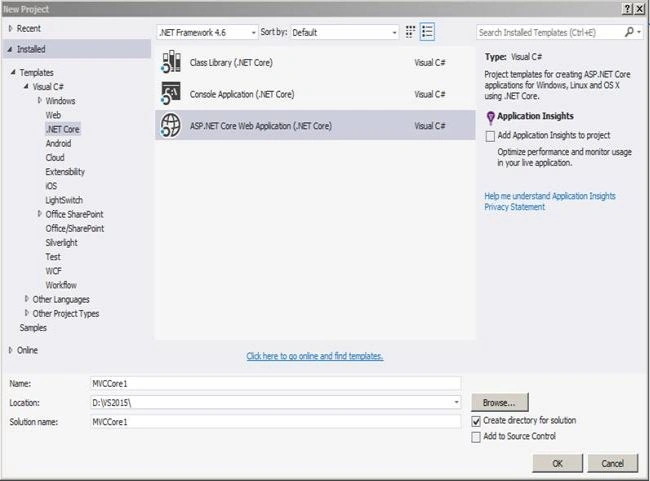

Afterwards, click New Project link and it will open a new dialog with the name “New Project” inside it. From the left pane, choose templates and inside it, choose Visual C#. Afterwards, choose .NET Core template. In the middle of your pane, you will see .NET Core project templates. In templates, choose “ASP.NET Core Web Application (.NET Core)” project templates.
After choosing project template next we are going to name the project as “MVCCore1” and finally click OK button to create a project, but it will pop up another dialog with the name “New ASP.NET Core Web Application (.NET Core)”.
Now, let’s create a .NET Core Web Application. Open Visual Studio IDE from the start page and click New Project link.
Afterwards, click New Project link and it will open a new dialog with the name “New Project” inside it. From the left pane, choose templates and inside it, choose Visual C#. Afterwards, choose .NET Core template. In the middle of your pane, you will see .NET Core project templates. In templates, choose “ASP.NET Core Web Application (.NET Core)” project templates.
After choosing project template next we are going to name the project as “MVCCore1” and finally click OK button to create a project, but it will pop up another dialog with the name “New ASP.NET Core Web Application (.NET Core)”.

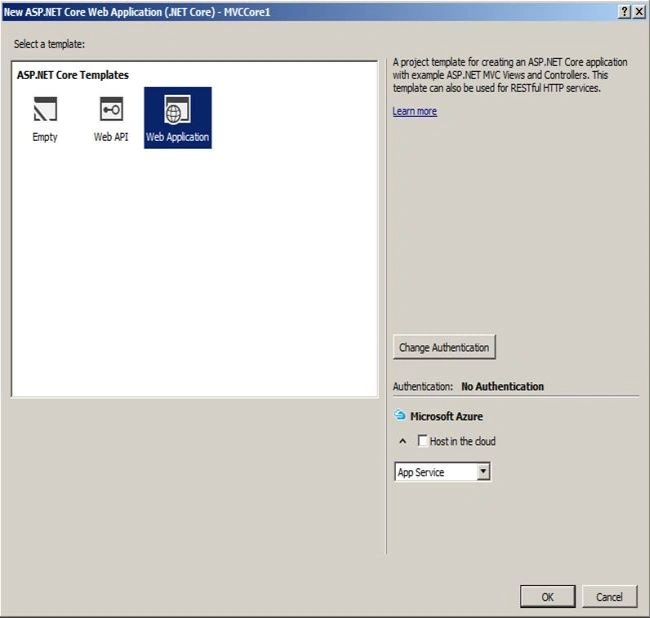

Inside this dialog, we are going to choose “Web application” project template to create “Web Application” and click OK button to create a project.

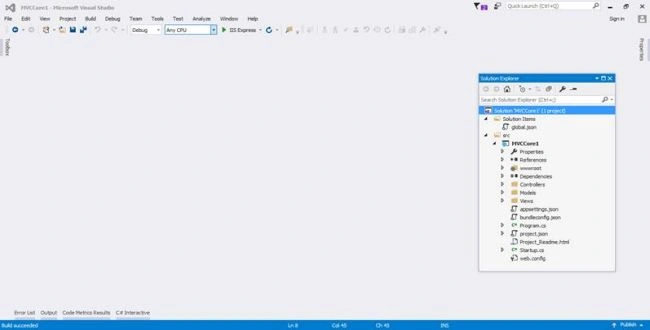

Below is the newly-created complete project view
After creating an Application, we are going to add the reference required for Entity Framework Core.
Step 3
Installing Package for Entity framework core From NuGet

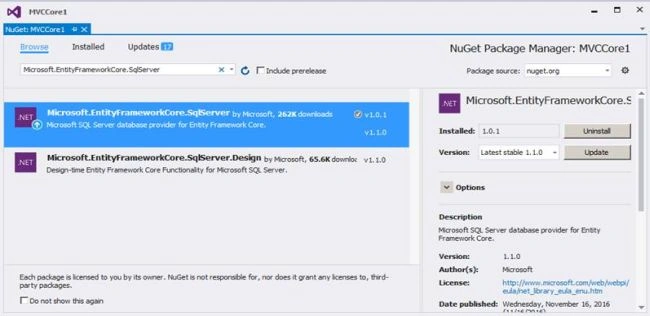

To install the package just right click on the project (MVCCore1) and then select Manage NuGet package. Below dialog of NuGet Package Manager will pop up. In the browse tab, there is a search box, where you are required to type “Microsoft.EntityFrameworkCore.SqlServer” and just click Install button to install.
To install the package just right click on the project (MVCCore1) and then select Manage NuGet package. Below dialog of NuGet Package Manager will pop up. In the browse tab, there is a search box, where you are required to type “Microsoft.EntityFrameworkCore.SqlServer” and just click Install button to install.
- Microsoft.EntityFrameworkCore.SqlServer
Step 4
Adding Connection string and Setting up DbContext

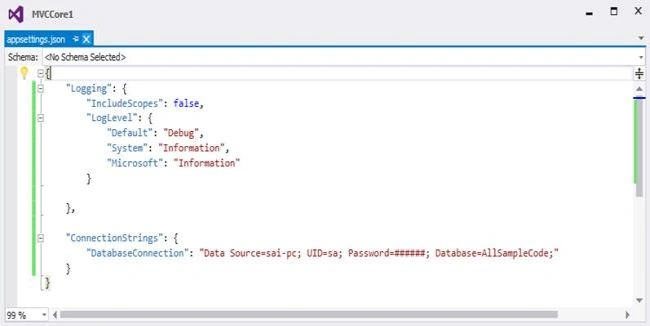

After adding the reference, there is a need to add a connection string in appsetting.json file.
After adding the connection string, next step is to add a class, which will inherit DbContext class, but before doing this, let's start creating a folder for Models and inside it, we are going to add this class.

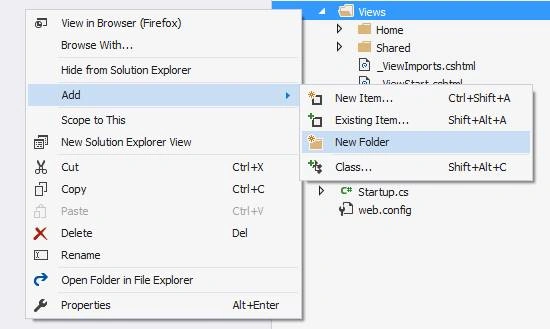

For adding a folder, just right click on the project (MVCCore1), then choose Add from Menu that pops up and inside it and choose New Folder.
Add - New Folder.
Now, let’s add a class with the name DatabaseContext in model folder.

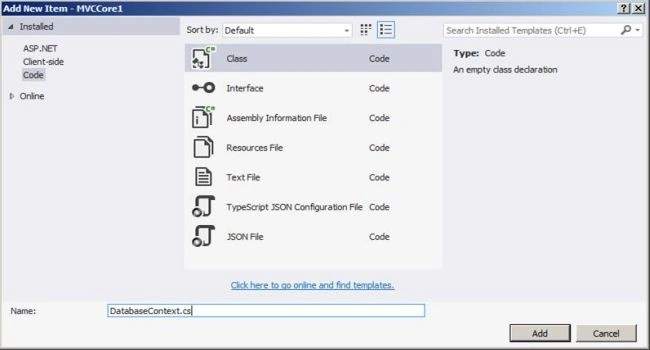

For adding model, just right click on Models folder, then select add. Inside it, select Class and add New Item; a dialog will pop up with default class selected, followed by naming class as DatabaseContext and clicking Add button.
After adding a DatabaseContext class, we are going to inherit DbContext class.

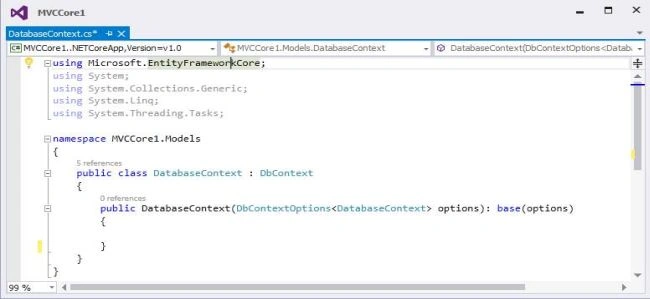

After inheriting with DbContext, we are having a constructor, which takes DbContextOptions as an input parameter and also inherits base class constructor (: base(options)) [DbContext].

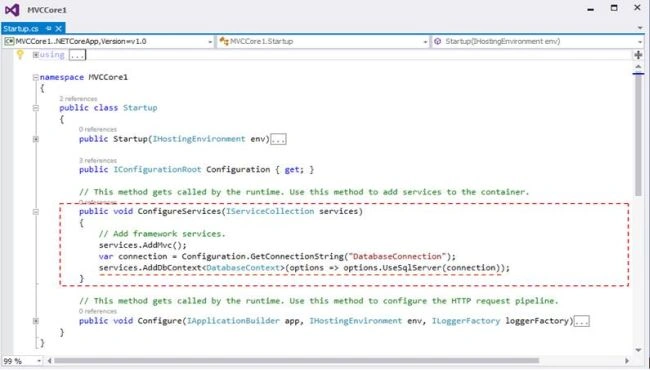

Now, we are going to add new Service in Startup.cs class to inject dependency.
Now, whenever you are going to use DatabaseContext class, DbContext instance will be injected.
After completing with add Service, we are going to add Model.
Step 5
After adding the reference, there is a need to add a connection string in appsetting.json file.
After adding the connection string, next step is to add a class, which will inherit DbContext class, but before doing this, let's start creating a folder for Models and inside it, we are going to add this class.
For adding a folder, just right click on the project (MVCCore1), then choose Add from Menu that pops up and inside it and choose New Folder.
Add - New Folder.
Now, let’s add a class with the name DatabaseContext in model folder.
For adding model, just right click on Models folder, then select add. Inside it, select Class and add New Item; a dialog will pop up with default class selected, followed by naming class as DatabaseContext and clicking Add button.
After adding a DatabaseContext class, we are going to inherit DbContext class.
After inheriting with DbContext, we are having a constructor, which takes DbContextOptions as an input parameter and also inherits base class constructor (: base(options)) [DbContext].
Now, we are going to add new Service in Startup.cs class to inject dependency.
Now, whenever you are going to use DatabaseContext class, DbContext instance will be injected.
After completing with add Service, we are going to add Model.
Step 5

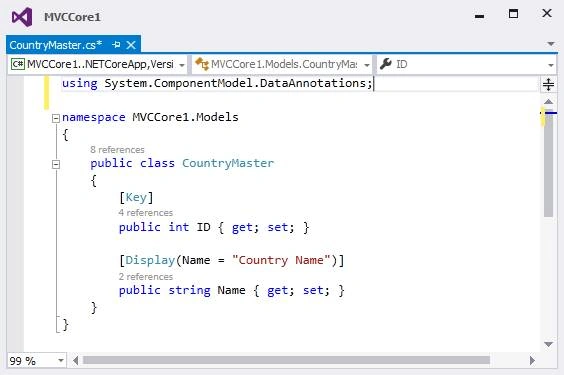

Adding Model CountryMaster in Models Folder
For adding model, just right click on Models folder and select Add. Inside it, select Class and add New Item. The dialog will pop up with default class, which is selected, then we are going to name class as CountryMaster and click Add button.
Step 6
For adding model, just right click on Models folder and select Add. Inside it, select Class and add New Item. The dialog will pop up with default class, which is selected, then we are going to name class as CountryMaster and click Add button.
Step 6
Adding DbSet for CountryMaster Model in DatabaseContext class

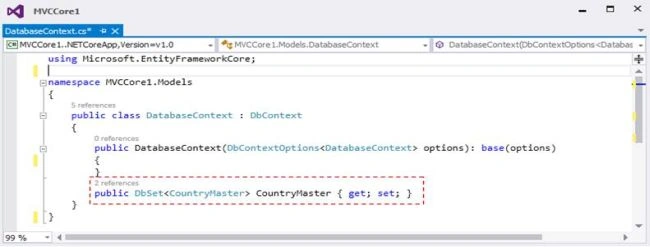

After adding CountryMaster Model, now let's add DbSet for CountryMaster Model in DatabaseContext class, as shown below.
Step 7
After adding CountryMaster Model, now let's add DbSet for CountryMaster Model in DatabaseContext class, as shown below.
Step 7
