Check and Update Expiration date of Client ID in SharePoint Online

We normally generate client ID and secret key from SharePoint Online for provider-hosted app. We use this client ID and key to authorize the application to access SharePoint based on permissions.

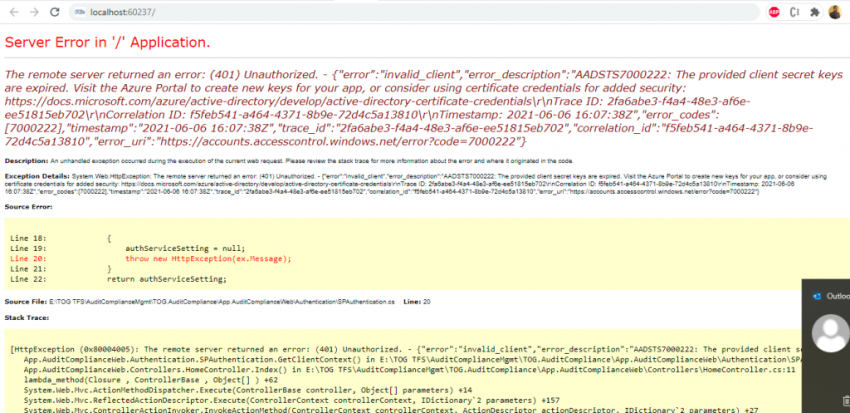

This client Id and secret key is generated from SharePoint Online and gets expired after one year. After one year, your application will be unauthorized to SharePoint. You will get an error message like below,

The remote server returned an error: (401) Unauthorized. – {“error”:”invalid_client”,”error_description”:”AADSTS7000222: The provided client secret keys are expired. Visit the Azure Portal to create new keys for your app, or consider using certificate credentials for added security: https://docs.microsoft.com/azure/active-directory/develop/active-directory-certificate-credentials\r\nTrace ID: 2fa6abe3-f4a4-48e3-af6e-ee51815eb702\r\nCorrelation ID: f5feb541-a464-4371-8b9e-72d4c5a13810\r\nTimestamp: 2021-06-06 16:07:38Z”,”error_codes”:[7000222],”timestamp”:”2021-06-06 16:07:38Z”,”trace_id”:”2fa6abe3-f4a4-48e3-af6e-ee51815eb702″,”correlation_id”:”f5feb541-a464-4371-8b9e-72d4c5a13810″,”error_uri”:”https://accounts.accesscontrol.windows.net/error?code=7000222″}

Exact Error

Check and Update Expiration date of Client ID in SharePoint Online

After one year, the generated Client Id and secret key will be expired and we need to renew the client ID.

In this article, I will show how to check the client ID expiration date and also write scripts to renew it.

Check the expiration date of Client ID.
Renew or create new secret for the expired Client ID.

Prerequisites

SharePoint Online Management Shell
Global Administrator Account for the SharePoint

Checking the expiration of Client Id

There are couple of ways to checking the expiry date of client ID. Our first step for above error message is to verify the expiration date.

Open SharePoint Online Management Shell (with Administrator).

Then we will install Microsoft Online Service with the following script. If you have already installed MSOnline then you can skip this step.

Install-Module MSOnline

We will import the MS Online service using the below script,

Import-Module MSOnline

Connect to tenant. (Better use Site Administrator),

Connect-MSOLService

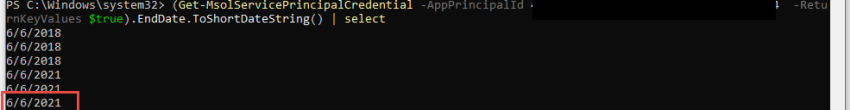

You can check this particular Client Id expiration date.

(Get-MsolServicePrincipalCredential -AppPrincipalId [Enter App GUID] -ReturnKeyValues $true).EndDate.ToShortDateString() | select

Then you will get list of date and last will be latest expiry date.

Check and Update Expiration date of Client ID in SharePoint Online

If you want to get list of all the app id with expiration date, then run below script.

$applist = Get-MsolServicePrincipal -all  |Where-Object -FilterScript { ($_.DisplayName -notlike "*Microsoft*") -and ($_.DisplayName -notlike "autohost*") -and  ($_.ServicePrincipalNames -notlike "*localhost*") }

foreach ($appentry in $applist) {
    $principalId = $appentry.AppPrincipalId
    $principalName = $appentry.DisplayName

    Get-MsolServicePrincipalCredential -AppPrincipalId $principalId -ReturnKeyValues $false | ? { $_.Type -eq "Password" } | % { "$principalName;$principalId;" + $_.KeyId.ToString() +";" + $_.StartDate.ToString() + ";" + $_.EndDate.ToString() } | out-file -FilePath c:\temp\appsec.txt -append
}

You need to create file appsec.txt in the given location. After completion of this script, we will get the file with all apps id with expiry date.

Renew or create a new secret for the expired Client ID

Once we are confirmed that the client Id is expired then we run these scripts to update the expiry date and get a new secret key.

Renew or create a new secret key means our client Id will be the same and a new secret key will be generated with a new expiration date.

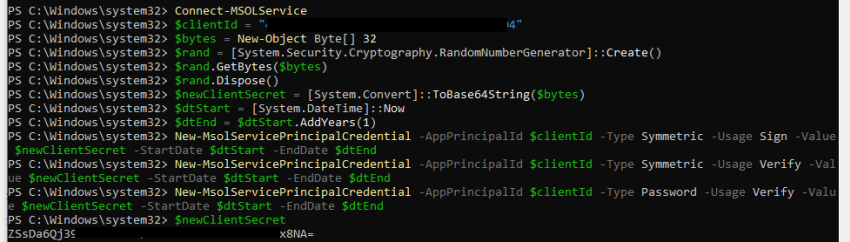

To create a new secret with a new expiry date we need to run the below script.

Again, connect to MS tenant

Connect to tenant. (Global SharePoint Administrator),

Connect-MSOLService

$clientId = "4991213c-e9f3-4fdf-bf0d-d7ba23515a04"
$bytes = New-Object Byte[] 32
$rand = [System.Security.Cryptography.RandomNumberGenerator]::Create()
$rand.GetBytes($bytes)
$rand.Dispose()
$newClientSecret = [System.Convert]::ToBase64String($bytes)
$dtStart = [System.DateTime]::Now
$dtEnd = $dtStart.AddYears(1)
New-MsolServicePrincipalCredential -AppPrincipalId $clientId -Type Symmetric -Usage Sign -Value $newClientSecret -StartDate $dtStart -EndDate $dtEnd
New-MsolServicePrincipalCredential -AppPrincipalId $clientId -Type Symmetric -Usage Verify -Value $newClientSecret -StartDate $dtStart -EndDate $dtEnd
New-MsolServicePrincipalCredential -AppPrincipalId $clientId -Type Password -Usage Verify -Value $newClientSecret -StartDate $dtStart -EndDate $dtEnd
$newClientSecret

Check and Update Expiration date of Client ID in SharePoint Online

Output will be a new secret key. Now, we can use this new secret key in our application and the above mentioned issue will be resolved.

Conclusion

In this article, I have discussed SharePoint Online client Id and secret key expiry date related error. I have also explained how to check the expiration date for Client ID or all app in SharePoint Online to validate. Furthermore, I have shared the script to update or create a new secret with new expiration which we can use in application to resolve the error.
