Introduction
As ASP.NET Core applications increase in size and complexity, sustaining high code quality becomes a significant challenge. Problems such as tight coupling, dispersed business logic, and strong framework dependencies reduce testability, hinder extensibility, and complicate long-term maintenance.
Clean Architecture mitigates these challenges by promoting a clear separation of concerns, applying the dependency inversion principle, and ensuring testability. In this article, we’ll walk through applying it in ASP.NET Core with a focus on practical, real-world use—not just theory.
What Is Clean Architecture?
Clean Architecture is a software design approach that structures applications into distinct layers, each with a well-defined role. The goal is to build systems that are flexible, maintainable, and testable, regardless of the frameworks or technologies used. Clean Architecture organizes code into layers, ensuring that
Business logic remains framework independent: The core rules and policies of your application are not tied to external libraries or infrastructure. This makes the business layer portable and reusable across different environments.
Dependencies always point inward: Outer layers (such as UI, database, or external services) depend on inner layers, but never the other way around. This protects the core domain from implementation details.
Each layer has a clear responsibility: the architecture enforces separation of concerns, the domain layer handles business rules, the application layer coordinates use cases, and the infrastructure layer handles technical details such as persistence and APIs.
Changes in external systems do not affect core business rules: Whether you swap out the database, redesign the UI, or adopt a new framework, the heart of your application—the business logic—remains untouched. This stability reduces maintenance costs and future-proofs your system.

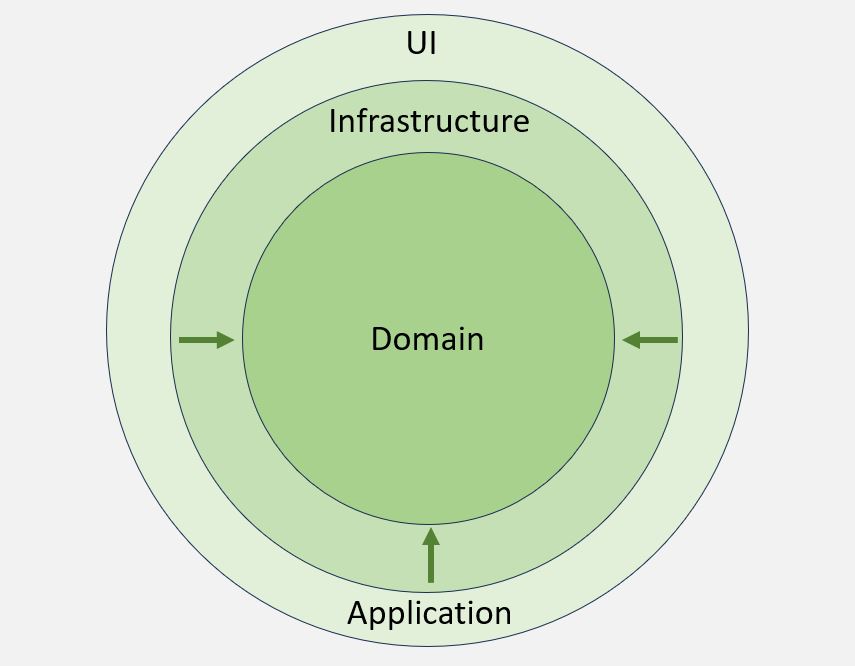

Clean Architecture Layers
A typical Clean Architecture setup in ASP.NET Core consists of four main layers:
1) Domain Layer (Core Business Rules)
At the center of the architecture lies the Domain Layer, which represents the business problem and its governing rules. It focuses on expressing domain concepts and business policies while remaining isolated from delivery, persistence, and framework-specific concerns. As the source of truth for business logic, it must be explicit, robust, and easy to reason about.
Responsibilities
Business entities — represent core domain concepts and state.
Domain logic — encapsulate rules and behaviors that govern the domain.
Value objects — immutable types that model domain values and equality.
Domain interfaces — abstractions such as repository contracts that the outer layers implement.
Characteristics
Framework agnostic — contains no dependencies on other application layers.
No external libraries — avoids direct use of EF Core, ASP.NET, or third party frameworks.
Highly testable — designed for easy unit testing and isolated verification.
The Domain layer typically includes entities, repository interfaces, domain services, domain events, value objects, and business-specific enums or constants.
2) Application Layer (Use Cases)
The Application Layer is responsible for coordinating how the system executes business use cases. Positioned between the Domain layer and the UI or infrastructure layers, it converts user intentions into domain interactions. This layer orchestrates workflows, applies application-level rules, and prepares data for input and output, while keeping core business logic out of its scope.
Responsibilities
Orchestrate use cases — coordinate domain operations to fulfill application workflows.
Enforce application rules — implement policies specific to scenarios (not core domain rules).
Shape data — define DTOs and request/response models.
Handle commands/queries — host CQRS handlers or application services.
Characteristics
Depends only on Domain — references domain types and interfaces, not infrastructure.
Framework agnostic — contains no ASP.NET/EF Core specific code.
Validation & authorization — ideal place for input validation and request level access checks.
The Application layer typically includes UseCases / Services, Commands, Queries, Handlers, DTOs, Interfaces (Ports), Mappings, Validators, Exceptions and UnitOfWork.
3) Infrastructure Layer (External Concerns - Technical Implementations)
The Infrastructure Layer contains the technical implementations required to run the application.It sits at the outer edge of the architecture and translates abstract contracts from the inner layers into working integrations with databases, external services, file systems, and platform APIs. Its purpose is to contain all side effects and framework dependencies so the core application and domain remain clean and testable.
Responsibilities
Data access — implement EF Core contexts and repository persistence.
External integrations — API clients, message brokers, and third party services.
Platform services — file storage, email, logging, and other I/O.
Adapter implementations — concrete implementations of domain repository interfaces.
Characteristics
Depends on Application and Domain — implements contracts defined by inner layers.
Framework specific — contains EF Core, ASP.NET, or other technology dependent code.
Handles side effects — where external I/O and integration details live.
The Infrastructure layer typically contains the Entity Framework context, concrete repository implementations, integrations with external services such as email, storage, and payment providers, as well as caching, logging, and configuration concerns.
4) Presentation Layer (ASP.NET Core)
The Presentation Layer handles all incoming HTTP traffic. In ASP.NET Core, it maps requests to application commands or queries and returns appropriate HTTP responses, acting as a bridge between clients and the application layer without embedding business rules in controllers.
Responsibilities
Handle HTTP — receive requests and route to handlers.
Validate input — ensure requests are well‑formed.
Map DTOs — translate between transport models and application contracts.
Return responses — format HTTP status codes and payloads.
Characteristics
Depends on Application — calls application services/handlers.
Thin controllers — no business logic; delegate orchestration.
Framework specific — contains ASP.NET Core constructs (controllers, middleware).
The Infrastructure layer typically contains the Controllers / Endpoints, Requests, Responses / ViewModels, Filters, Middleware, Mappings, Validation, Swagger and Configuration
Are Clean Architecture and Onion Architecture the same?
Both Clean Architecture and Onion Architecture are based on similar principles and target the same goals, including maintainability, separation of concerns, and loose coupling. Because of this strong overlap, many developers consider them different perspectives of the same architectural approach, even though there are slight differences in how they are structured and applied.
Clean Architecture separates the system into layers based on abstraction, enforcing a strict inward dependency rule where outer, concrete layers depend on inner, abstract layers. This makes it particularly effective for complex, large-scale systems that require modularity and independent deployment.
Onion Architecture, on the other hand, revolves around a Core layer that encapsulates the domain and business rules. Through dependency inversion and interface-based communication, it promotes loose coupling and high testability. Its strong alignment with domain-driven design makes it a good fit for small to medium-sized applications.
| Aspect | Clean Architecture | Onion Architecture |
|---|---|---|
| Core Idea | Layers are organized by levels of abstraction | Architecture revolves around a central Core |
| Dependency Direction | Dependencies always point inward toward abstract layers | All outer layers depend on the Core |
| Focus | Separation of concerns and scalability | Domain model and business rules |
| Central Layer | Entities and use cases | Core (domain + business logic) |
| Decoupling Approach | Abstraction and dependency rule | Interfaces and dependency inversion |
| Testability | High, due to strict separation | Very high, due to core isolation |
| Project Size Suitability | Large and complex applications | Small to medium-sized applications |
| DDD (Domain-Driven Design) Alignment | Can support DDD | Strongly aligned with DDD |
How to Implement Clean Architecture in .NET?
Now that we understand the core concepts of Clean Architecture, let’s move on to a practical implementation using an ASP.NET Core Web API. We’ll break down the solution into layers and discuss the responsibilities of each one.
To demonstrate the concept, I created a blank solution with three folders: Core, Infrastructure, and Presentation. Within these folders, I added the following projects.
| Project Name | Project Type | Folder Name (Layer) | Responsibility | Dependencies |
|---|---|---|---|---|
| ToDoApp.Domain | Class Library | Core (Domain) | Contains core business entities and domain rules | None |
| ToDoApp.Application | Class Library | Core (Application) | Defines use cases, application logic, and interfaces | Depends only on ToDoApp.Domain |
| ToDoApp.Infrastructure | Class Library | Infrastructure(Infrastructure) | Handles external concerns such as services, logging, and integrations | Implements interfaces defined in ToDoApp.Application |
| ToDoApp.Persistence | Class Library | Infrastructure(Infrastructure) | Manages data persistence and database access | Implements persistence interfaces (Ideally defined in ToDoApp.Domain) |
| ToDoApp.API | ASP.NET Core Web API | Presentation(Presentation) | Handles HTTP requests and responses | Ideally depends on ToDoApp.Application; references ToDoApp.Infrastructure and ToDoApp.Persistence only for runtime dependency injection |
The complete source code is not included, as it is intended for readers already familiar with implementing the solution. The examples focus on demonstrating key concepts and architectural patterns rather than full implementation details.

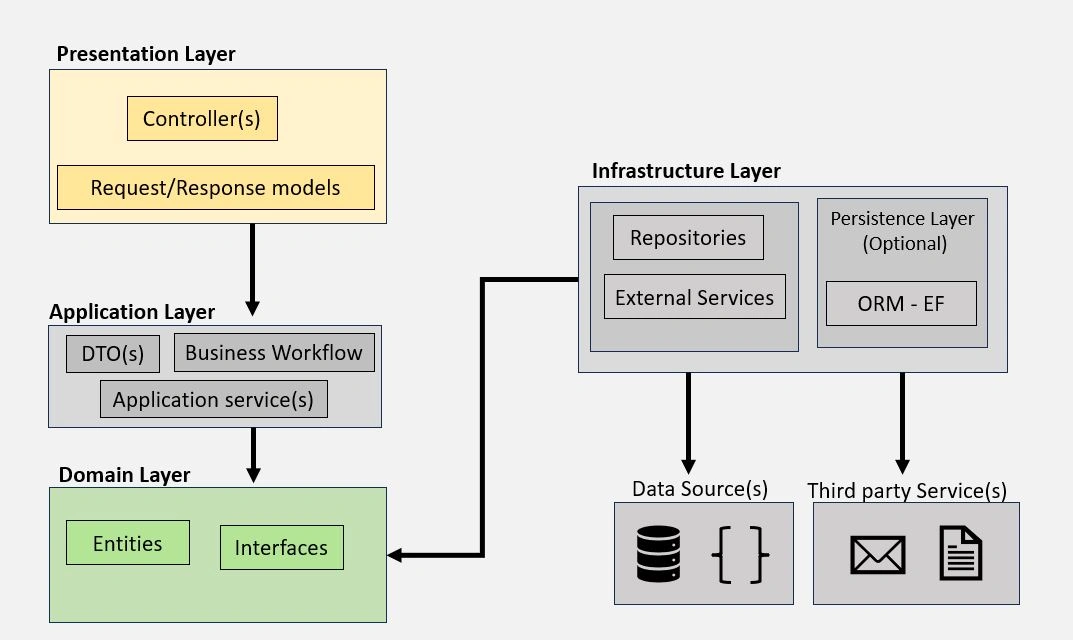

Dependency Direction in Clean Architecture
Advantages of Clean Architecture
Separation of Concerns - Each layer has a clearly defined responsibility, making the codebase easier to understand, maintain, and extend.
Loose Coupling - Core business logic is independent of frameworks, databases, and UI technologies, allowing components to change with minimal impact.
High Testability - Because business rules are isolated and depend on abstractions, unit testing becomes easier without requiring external dependencies.
Framework Independence - The application is not tightly coupled to any specific framework. Technologies such as databases or web frameworks can be replaced with minimal effort.
Scalability - Clean Architecture works well for large and complex applications where multiple teams work independently on different layers.
Long-Term Maintainability - enforcing architectural boundaries, the system remains easier to evolve and refactor over time.
Supports Domain-Driven Design (DDD) - The clear focus on domain and application logic aligns well with DDD principles.
Disadvantages of Clean Architecture
Initial Complexity - The architecture introduces multiple layers and abstractions, which can feel overwhelming for small or simple projects.
Increased Boilerplate Code - Interfaces, DTOs, and mappings can lead to additional code that may seem unnecessary at the beginning.
Steeper Learning Curve - Developers unfamiliar with the pattern may find it difficult to understand dependency rules and project structure.
Slower Development for Small Projects - For simple CRUD-based applications, Clean Architecture may add more overhead than value.
Over-Engineering Risk - If not applied thoughtfully, the architecture can become overly complex, with abstractions that are never actually needed.
Performance Overhead (Minor) - Extra layers and mappings can introduce slight performance costs, though this is usually negligible in most applications.
When to Use Clean Architecture
Large or long-term projects
Applications requiring high testability and flexibility
Systems expected to evolve or change technologies over time
When to Avoid It
Small, short-lived applications
Simple CRUD systems with minimal business logic
Conclusion
Clean Architecture provides a structured and maintainable approach for building scalable applications by clearly separating business logic from external dependencies. When applied correctly, it enhances testability, flexibility, and long-term maintainability. With a well-organized solution structure, ASP.NET Core integrates naturally with this architectural style, making it a strong choice for modern application development.
