Coding A AOP Logger

Look at the following points

Create a new project (I created a Console Application).

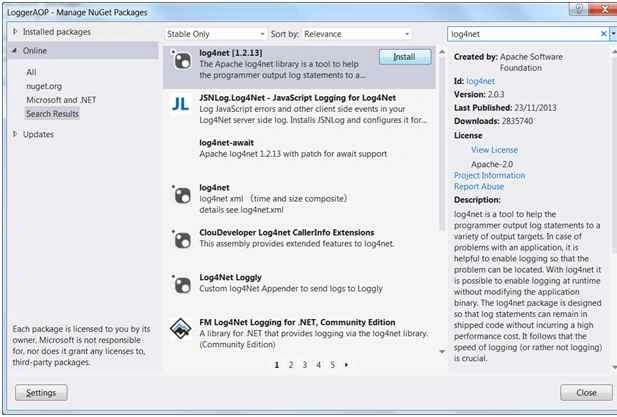

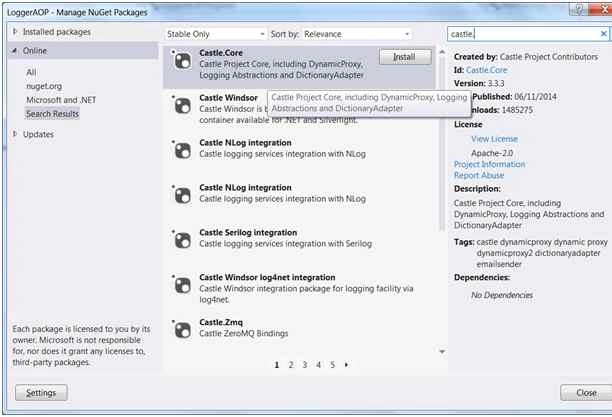

Add NuGet package Castle.Core, Castle.Windsor and Log4Net.
Castle.Core: Allow we to use Proxy

Proxy objects can assist in building a flexible application architecture because it allows functionality to be transparently added to code without modifying it. For example, a class could be proxied to add logging or security checking without making the code aware this functionality has been added.

For example, NHibernate, an object/relational mapper uses DynamicProxy to provide lazy loading of data without the domain model classes being aware of this functionality.

Castle.Widsor: IoC (Inversion of control container).
Log4net: Lib to log our application.

Implementing a simple calculator to logger their operations:
1. public interface ICalculator
2. {
3. double Add(double x, double y);
4. double Divide(double x, double y);
5. }
6. public class Calculator: ICalculator
7. {
8. public double Add(double x, double y)
9. {
10. return x + y;
11. }
12. public double Divide(double x, double y)
13. {
14. return x / y;
15. }
16. }

Now we can proceed to coding our logger. We want to log every call function including their parameters and the return value.
Let’s create a simple Class Calculator to be logged as follows.
Now we need to configure log4net,

Open the AssemblyInfo.cs and insert the follow line:

[assembly: log4net.Config.XmlConfigurator(Watch = true)]

Configure the application config (app.config) as follows:
1. <?xml version="1.0" encoding="utf-8" ?>
2. <configuration>
3. <configSections>
4. <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net" /> </configSections>
5. <startup>
6. <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" /> </startup>
7. <log4net>
8. <appender name="MyLogger" type="log4net.Appender.RollingFileAppender">
9. <file type="log4net.Util.PatternString" value="MyLog.txt" />
10. <appendToFile value="true" />
11. <rollingStyle value="Size" />
12. <maxSizeRollBackups value="20" />
13. <maximumFileSize value="1000KB" />
14. <layout type="log4net.Layout.PatternLayout">
15. <param name="ConversionPattern" value="%date [%thread] %-5level %logger [%ndc] - %message%newline" /> </layout>
16. </appender>
17. <root>
18. <level value="DEBUG" />
19. <appender-ref ref="MyLogger" /> </root>
20. </log4net>
21. </configuration>

Now we need to create an Interceptor to be invoked in every method call to create our log.
1. public class LogInterceptor: IInterceptor
2. {
3. void IInterceptor.Intercept(IInvocation invocation)
4. {
5. var logger = LogManager.GetLogger(invocation.TargetType);
6. try
7. {
8. StringBuilder sb = null;
9. if (logger.IsDebugEnabled)
10. {
11. sb = new StringBuilder(invocation.TargetType.FullName).Append(".").Append(invocation.Method).Append("("); //getting method name
12. //getting parameters
13. for (int i = 0; i < invocation.Arguments.Length; i++)
14. {
15. if (i > 0) sb.Append(", ");
16. sb.Append(invocation.Arguments[i]);
17. }
18. sb.Append(")");
19. logger.Debug(sb);
20. }
21. invocation.Proceed();
22. if (logger.IsDebugEnabled)
23. {
24. //getting return
25. logger.Debug("Return of " + sb + " is: " + invocation.ReturnValue);
26. }
27. }
28. catch (Exception e)
29. {
30. logger.Error(e);
31. throw;
32. }
33. }
34. }

Now we need to test our Logger.

At my console application main I have the following code:
1. class Program
2. {
3. static void Main(string[] args)
4. {
5. InitCalc();
6. }
7. private static void InitCalc()
8. {
9. //A little of IoC here
10. //Here I put our LogInterceptor into my Calculator
11. var container = new WindsorContainer().Register(Component.For < LogInterceptor > (), Component.For < ICalculator > ().ImplementedBy < Calculator > ().Interceptors(new InterceptorReference(typeof (LogInterceptor))).First);
12. BasicConfigurator.Configure(); // configure log4net
13. //Create my ICalculator Object to be able to log method calls
14. var c = container.Resolve < ICalculator > ();
15. try
16. {
17. c.Add(1, 2);
18. c.Divide(1, 2);
19. c.Divide(1, 0);
20. }
21. catch (Exception)
22. {}
23. Console.ReadKey();
24. }
25. }

Check the MyLog.txt at bin folder:
1. 2015 - 10 - 28 16: 30: 07, 455[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Add(Double, Double)(1, 2)
2. 2015 - 10 - 28 16: 30: 07, 529[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Add(Double, Double)(1, 2) is: 3
3. 2015 - 10 - 28 16: 30: 07, 530[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Divide(Double, Double)(1, 2)
4. 2015 - 10 - 28 16: 30: 07, 530[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Divide(Double, Double)(1, 2) is: 0, 5
5. 2015 - 10 - 28 16: 30: 07, 531[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Divide(Double, Double)(1, 0)
6. 2015 - 10 - 28 16: 30: 07, 531[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Divide(Double, Double)(1, 0) is: +Infinito
