Consuming Web Service In Windows Application

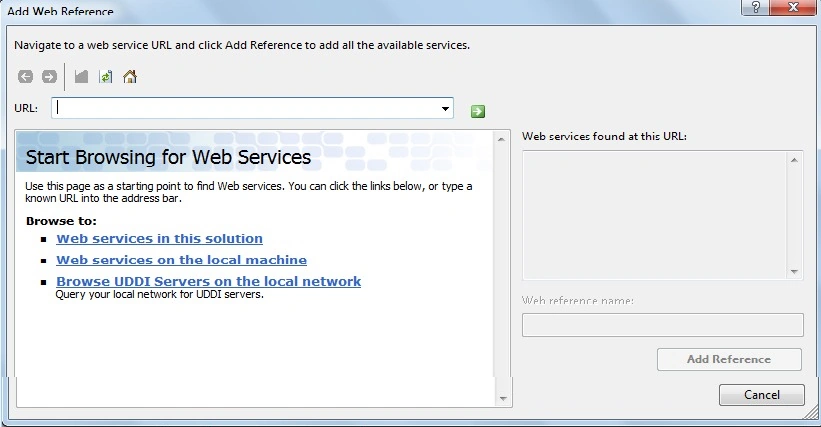

Now in the preceding box, paste the URL of the Web Service that you have seen in the browser URL while running the Web Service.

What after pasting the URL in the preceding URL box

After pasting the URL in the preceding window box, click on the green right-headed arrow button, it will discover the Web Services available related to that URL address and you see that in that related URL one Web Service is found. The message is displayed along with the Web Service name, "Web Services" in the preceding right-hand side window.

The Name of the Web Service is "WebService" because I have given the class name as Web Service, that's why the name is Web Services, in your case it might be different or the class name is anything so you can use any name for Web Service so don't be confused about it. Then click on the "OK" button.

Then after adding the Web Service reference in the ASP.Net Windows application, the Solution Explorer will look as follows.

In the preceding window, you have seen that the Web Service reference named "localhostService" is added to the ASP.Net Windows Application. I hope you understand how to add the Web Service reference to the ASP.Net Windows application.

Calling the Web Service method from the ASP.Net Windows Application.

We have added the Web Service reference to our Windows application. Now next is how to call the Web Service method that we created in our Web Service Application from the ASP.Net Windows Application.

The following is the procedure.

1. Double-click on the button that we placed on the Windows Forms form.
2. Now write the following code in the button click to create the object of the Web Service class.

   localhostservice.webservice objservice = new localhostservice.webservice();


In the code above, I have created the object of the Web Service class named "objservice" followed by the Web reference name ("localhostservice") and Web Service class ("webservice"), I hope you understand how to create the object of the Web Service class.

The entire code will be as follows.

Code explanation

In the code above, I first created the object of the Web Service class named "objservice" followed by Web reference name ("localhostservice") and Web Service class ("webservice").

Then I declared the three integer variables "day", "month" and "year" to store the values provided by the user as input from Textbox1, Textbox2, and Textbox3.

Now, in the next step, as you know our new Web Service method takes three parameters, so I ed the three input parameters "day", "month" and "year" to the Web Service method "converttodaysweb".

Then I declared another integer variable, "days", to store the values returned by the Web Service method "converttodaysweb".

Finally, I displayed the values returned by the Web Service method "converttodaysweb" on the Messagebox using the variable "days" because, as you know, we have stored the returned values of the method into the variable days, so the final result will be stored in the variable days.

Now, run the ASP.Net Windows application and provide the input of day, month, and year. I will enter my Date of Birth and then I will click on the "Calculate" button, it will show the output as in the following.

In the preceding screen, you see that currently, I am currently 8838 days old, which means that for the last 8838 days, I have been on this earth.

Note

• For detailed code please download the zip file attached above.
• Also, refer to my previous article about creating a Web Service.

Summary

I hope that beginner as well as students understand the creation and consumption of Web Services in ASP.Net Windows Applications using my two articles. If you have any suggestion regarding this article then please contact me. Student suggestions are also welcomed.
