Convert Decimal Number to Hexadecimal Number in Windows Store App

Introduction

In this article I explain how to convert a number using decimal to a number using hexadecimal in Windows Store App. So here I will describe both decimal and hexadecimal numbers and some character values of Unicode.

Decimal Number: A number expressed using a base 10 numbering system using digits from 0 to 9.

Hexadecimal Number : A number expressed using a base 16 numbering system using digits from 0 to 9 and A to F.

Where A=10, B=11, C=12, D=13, E=14 and F=15.

Conversion Example: suppose you want to convert number expressed as decimal 500 to hexadecimal. Then use the following procedure:

Step 1 :500/16 Then Remainder=4 , Quotient=31
Step 2 : 31/16 Then Remainder=15 , Quotient=1
Step 3 : 1/16 Then Remainder=1 , Quotient =0

Hence the equivalent in hexadecimal = 4F1. Because F=15.

Now understand some character values of Unicode that are needed to understand this conversion.

Unicode Value of Character 0=48
Unicode Value of Character 1=49
Unicode Value of Character 2=50
Unicode Value of Character 3=51
Unicode Value of Character 4=52
Unicode Value of Character 5=53
Unicode Value of Character 6=54

Unicode Value of Character 7=55
Unicode Value of Character 8=56
Unicode Value of Character 9=57 and

Unicode Value of Character A=65
Unicode Value of Character B=66

Unicode Value of Character C=67

Unicode Value of Character D=68
Unicode Value of Character E=69

Unicode Value of Character F=70

Use the following procedure to create it.

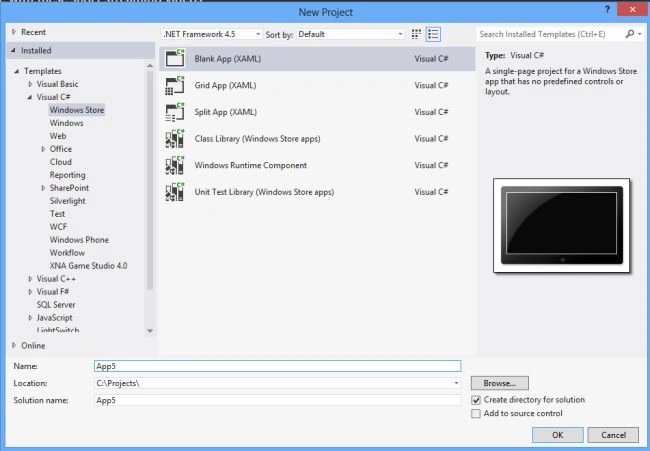

Step 1

First of all you must create a new Windows Store Application.

Open Visual Studio 2012
"File" -> "New" -> "Project..."
Choose "Template" -> "Visual C#" -> "Window Store app"
Choose "Blank App (XAML)" then rename the application

Step 2

Write the following XAML code in "Mainpage.Xaml" (that is available in Solution Explorer):

<Page

x:Class="binding_app.MainPage"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:local="using:binding_app"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

mc:Ignorable="d">

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

<Grid.RowDefinitions>

</Grid.RowDefinitions>

</Grid>

</Page>

Step 3

Now write the following C# code for the button within "Mainpage.Xaml.cs".

using System;

using System.Collections.Generic;

using System.IO;

using System.Linq;

using Windows.Foundation;

using Windows.Foundation.Collections;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

using Windows.UI.Xaml.Controls.Primitives;

using Windows.UI.Xaml.Data;

using Windows.UI.Xaml.Input;

using Windows.UI.Xaml.Media;

using Windows.UI.Xaml.Navigation;

namespace binding_app

{

public sealed partial class MainPage : Page

{

public MainPage()

{

this.InitializeComponent();

}

protected override void OnNavigatedTo(NavigationEventArgs e)

{

}

private void button1_Click(object sender, RoutedEventArgs e)

{

long decnum = 0;

int[] hexnum = new int[20];

int i = 0, r;

decnum = long.Parse(textbox1.Text);

while (decnum != 0)

{

r =(int) decnum % 16;

if (r < 10)

{

r = r + 48;

}

else

{

r = r + 55;

}

hexnum[i++] = r;

decnum = decnum / 16;

}

for (int j = i -1; j >= 0; j--)

{

text1.Text +=(char) hexnum[j];

}

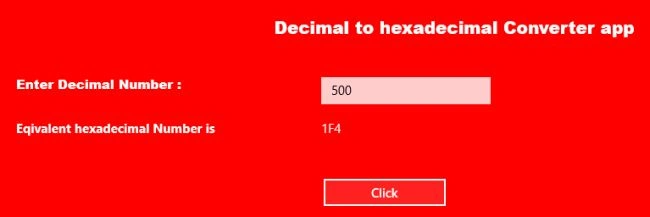

Step 4

Now run your app.
