Introduction:

This article shows how to create and use AutoCompleteExtender to display Country and States. When you are typing in txtCountry, it will list out all country names that start with the typed characters, and then when you are typing in txtStates, it will list out all States for that Country (txtCountry).

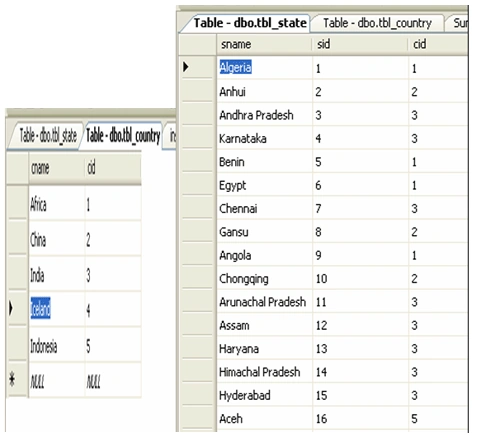

Step 1: Create a table for Country and State

tbl_country Table

Create Table tbl_Country
(
Cid Int Primary Key,
cname Varchar(30)
)

tbl_state Table

Create Table tbl_State
(
sid Int Primary Key,
cid Int Foreign Key References tbl_Country(cid),
sname Varchar(30)
)

Now drag and drop the two textboxes and two AutoCompleteExtenders

.aspx code :

In the below source code I used JQuery to pass id of the country to another autocomplete extender (acestate).

eventArgs.get_value() The method will return id of selected country (acecountry).

TargetControlID: The textbox control where user type content to be automatically completed.

OnClientItemSelected: It will call the client side javascript method to set contexKey to another AutoCompleteExtender(acestate).

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="cc1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<script src="jquery-1.5.min.js" type="text/javascript"></script>
<script type="text/javascript">
function IAmSelected(source, eventArgs) {
$find('acestate').set_contextKey(eventArgs.get_value());
}
</script>

</head>
<body>
<form id="form1" runat="server">
<div>
<asp:ScriptManager runat="server" ID="sc">
<Services>
<asp:ServiceReference Path="~/WebService.asmx" />
</Services>
</asp:ScriptManager>
<table>
<tr>
<td>
<asp:Label Text="Country" ID="lblcountry" runat="server"></asp:Label>
</td>
<td>
<asp:UpdatePanel runat="server" ID="Up1" UpdateMode="Conditional">
<ContentTemplate>
<asp:TextBox runat="server" ID="txtcountry"></asp:TextBox>
<div>
<cc1:AutoCompleteExtender runat="server" ID="acecountry" TargetControlID="txtcountry"
MinimumPrefixLength="1" ServiceMethod="GetCountryList" ServicePath="WebService.asmx"
EnableCaching="true" OnClientItemSelected="IAmSelected">
</cc1:AutoCompleteExtender>
</div>
</ContentTemplate>
</asp:UpdatePanel>
</td>
</tr>
<tr>
<td>
<asp:Label runat="server" ID="lblstate" Text="State"></asp:Label>
</td>
<td>
<asp:UpdatePanel runat="server" ID="up2" UpdateMode="Conditional">
<ContentTemplate>
<asp:TextBox runat="server" ID="txtstate"></asp:TextBox>
<cc1:AutoCompleteExtender runat="server" ID="acestate" TargetControlID="txtstate"
MinimumPrefixLength="1" ServicePath="WebService.asmx" UseContextKey="true" ServiceMethod="GetStatesList"
</cc1:AutoCompleteExtender>
</ContentTemplate>
</asp:UpdatePanel>
</td>
</tr>
</table>
</div>
</form>
</body>
</html>

Create one webservice in the website, name it as WebService.cs. And add the two service methods in that webservice. Here, the server side methods will return an array of strings.

GetCountryList:

The below method is used to get list of Country names from the database whose letters starts with prefixText

Note : Dont forget to add [System.Web.Script.Services.ScriptService] to Web service class, because if want to access service through asp.net AJAX we have to add above line

[WebMethod]
[System.Web.Script.Services.ScriptMethod]
public string[] GetCountryList(string prefixText)
{
SqlConnection con = new SqlConnection("connection string");
SqlDataAdapter dad = new SqlDataAdapter("select cname,cid from tbl_country where cname like '" + prefixText + "%'", con);
DataSet ds = new DataSet();
dad.Fill(ds);
List<string> list = new List<string>(ds.Tables[0].Rows.Count);
foreach (DataRow dr in ds.Tables[0].Rows)
{
list.Add(AjaxControlToolkit.AutoCompleteExtender.CreateAutoCompleteItem(dr[0].ToString(), dr[1].ToString()));
 }

return list.ToArray();
 }

GetStatesList: Used to get list of state for that particular country from database. Here country id is availble in ContextKey parameter of GetStatesList so that we can filter state by country id and prefixText.

[WebMethod]
[System.Web.Script.Services.ScriptMethod]
public string[] GetStatesList(string prefixText, int count, string contextKey)
{
SqlConnection con = new SqlConnection("connection string");
SqlDataAdapter dad = new SqlDataAdapter("select sname,sid from tbl_state where cid=" + contextKey + "and sname like '" + prefixText + "%'", con);
DataSet ds = new DataSet();
dad.Fill(ds);
List<string> list = new List<string>(ds.Tables[0].Rows.Count);
foreach (DataRow dr in ds.Tables[0].Rows)
{
list.Add(AjaxControlToolkit.AutoCompleteExtender.CreateAutoCompleteItem(dr[0].ToString(), dr[1].ToString()));
}
return list.ToArray();
}
Now run the application and test it , first type 'I' letter in txtcountry textbox then it will list out all country names whose letter statrs with 'I'.


Now type 'A' in txtstate textbox it will list out all state names for a particular country (ex:India).


Note: It is very important that you keep the signature of the method same as what given above. The method must have two parameters namely.

  1. prefixText (string)
  2. count (int)
  3. contextKey(string)

Otherwise the method won't work with AutoCompleteExtender. You can see the demo of this article by downloading this application.
