New Create Database name BCSForSharePoint2010

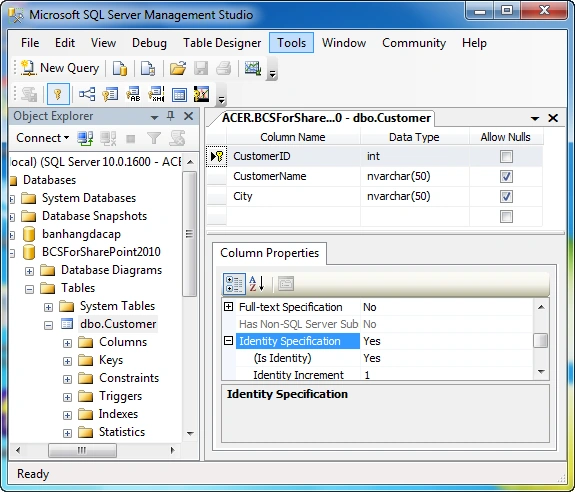

- Create a new table name: Customer with the following columns:

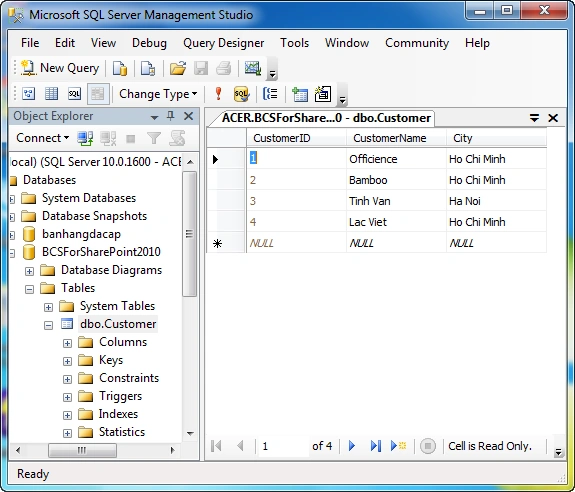

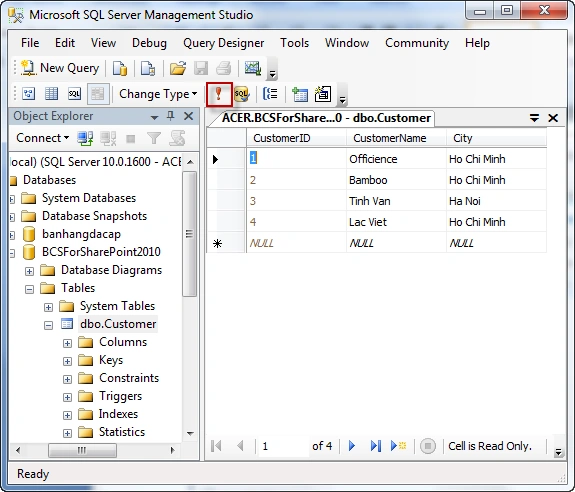

- Enter new customer data

Open Visual Studio 2010 to create a new BCS

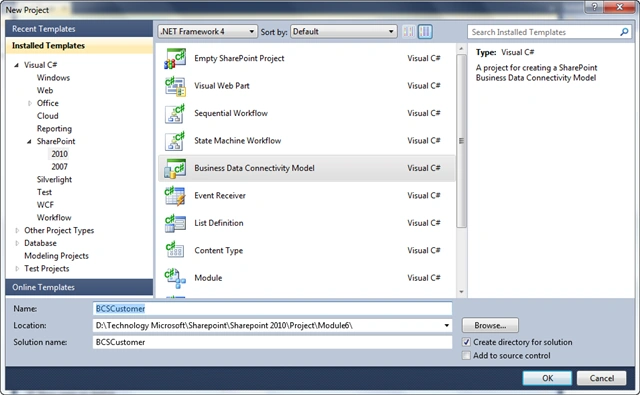

- File | New Project | SharePoint | 2010 | Select Data Connectivity
Business Model and name BCSCustomer

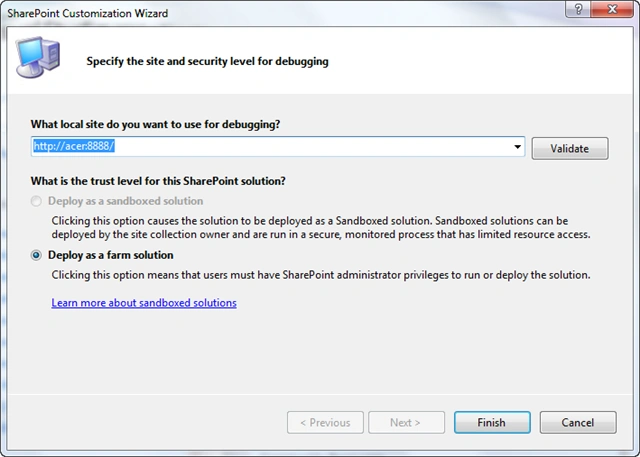

- Select Site and click Finish to Dubugging

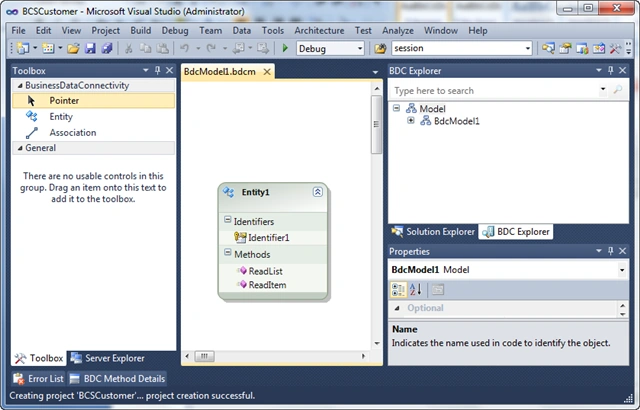

Interface creates the following new

- Rename the Class Entity1 CustomerEntity

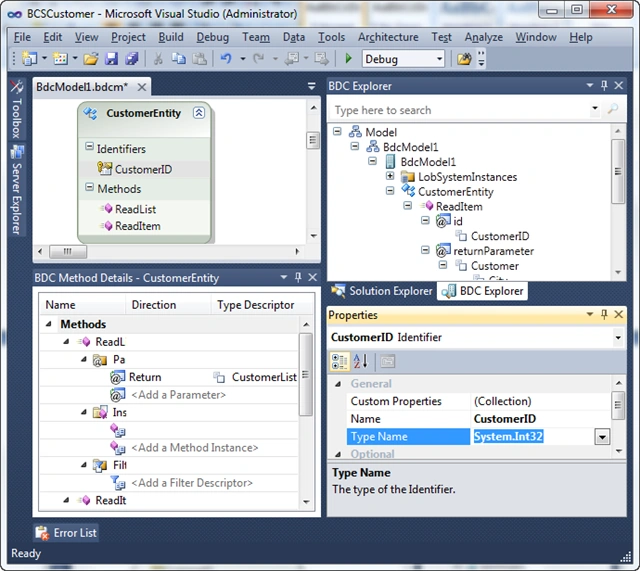

- Rename the primary key of CustomerID from Identifier1

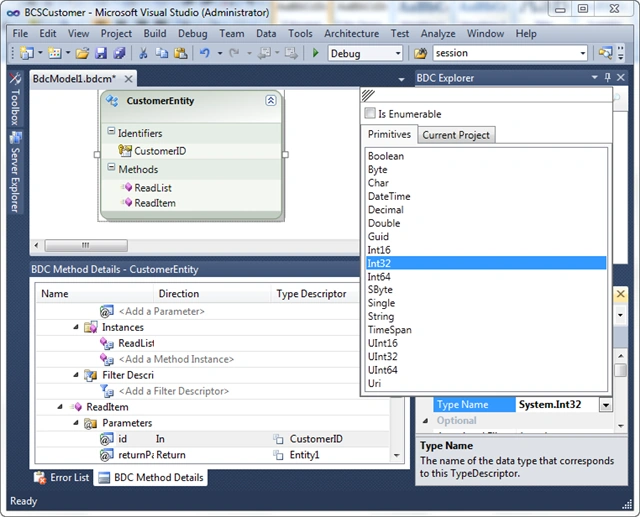

- In the Properties window of the CustomerID, Name Type: select
System.Int32

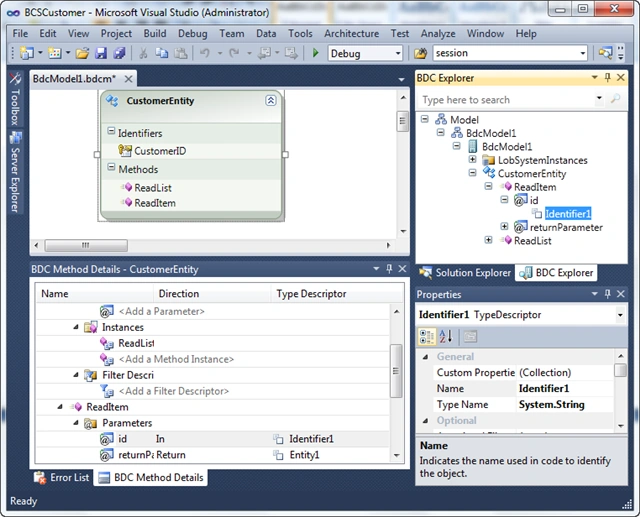

BDC Explorer window

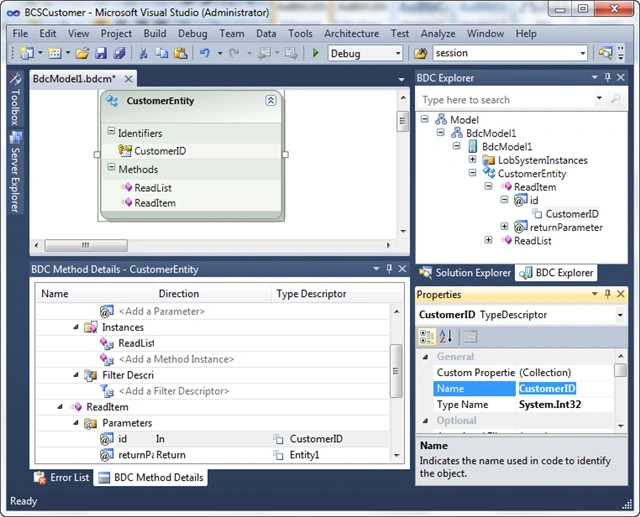

- Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand
ReadItem | Expand id and choose Identifier

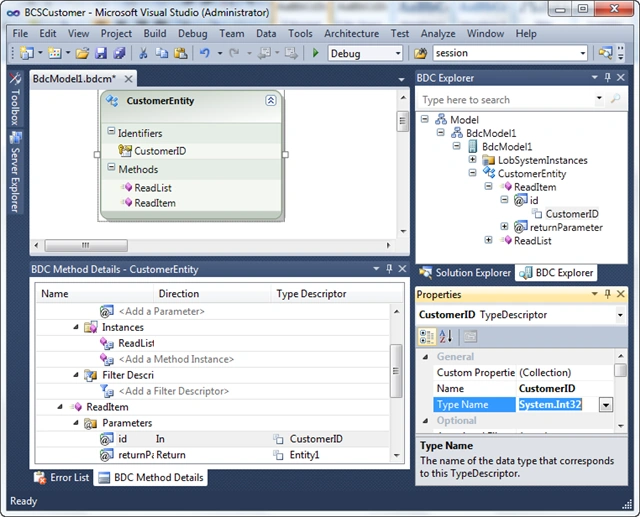

-Rename the primary key of CustomerID from Identifier1
-In the Properties window of the CustomerID, Name Type: select System.Int32
-Selected the following image

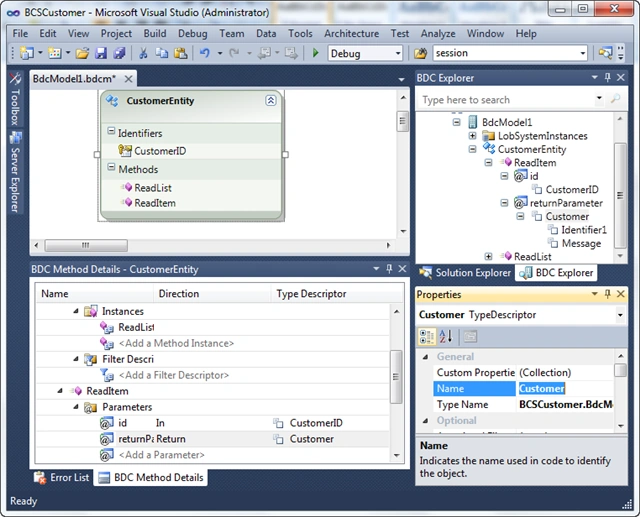

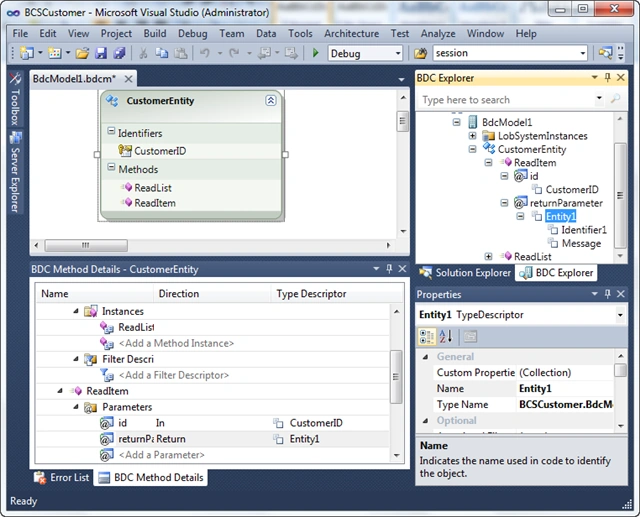

- Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand
ReadItem | Expand returnParameter and select Entity1

-Change from the Customer Entity1

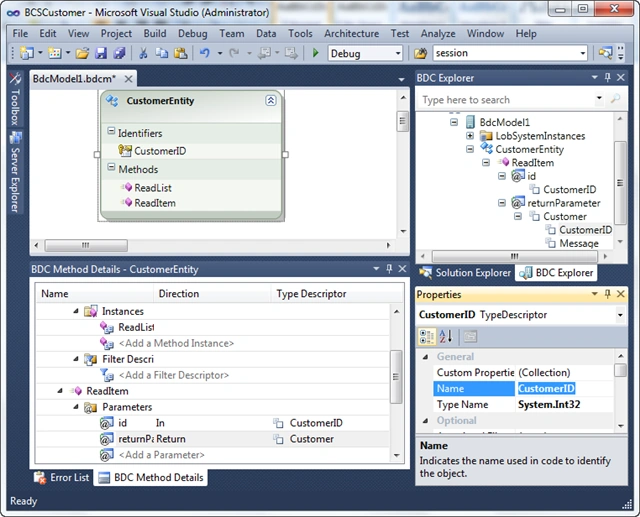

-In the customer select the CustomerID and choose Identifier1 Name Type: select System.Int32

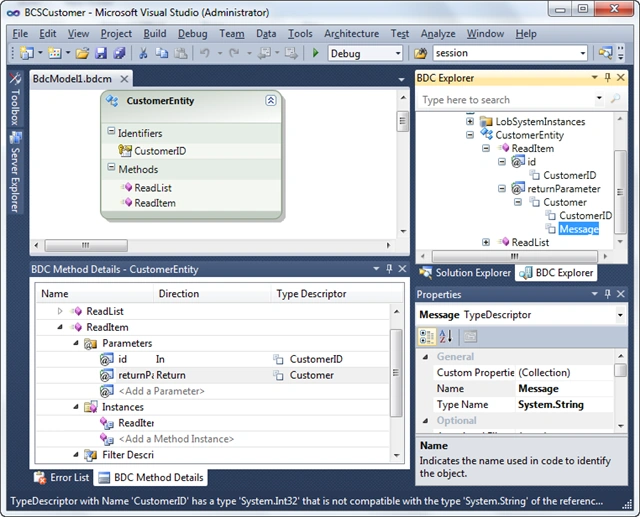

-Select Message
-Renamed CustomerName, Type Name: System.String

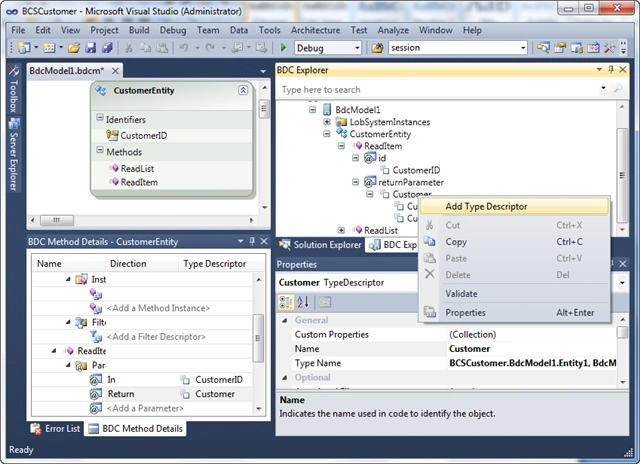

-Click to Customer | Add Type Descriptor

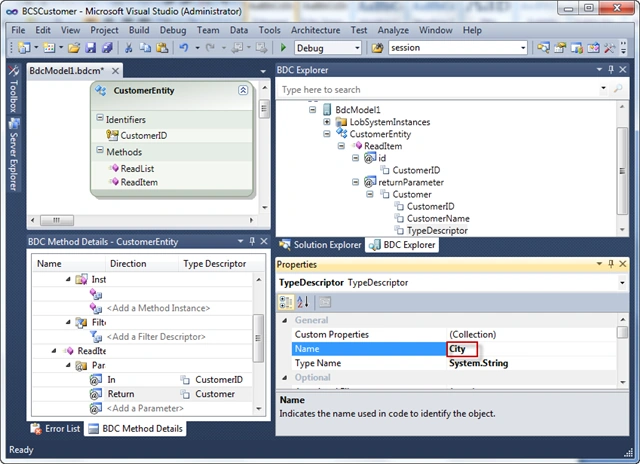

-Named the City, the Type Name: System.String

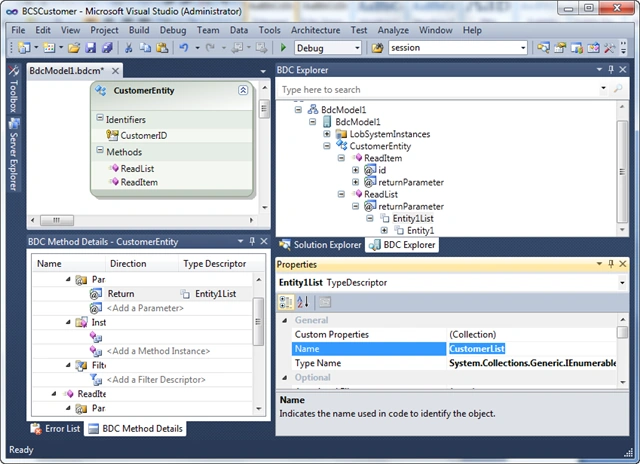

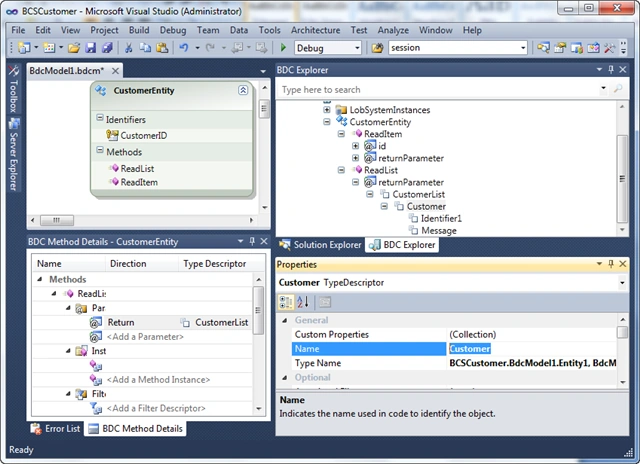

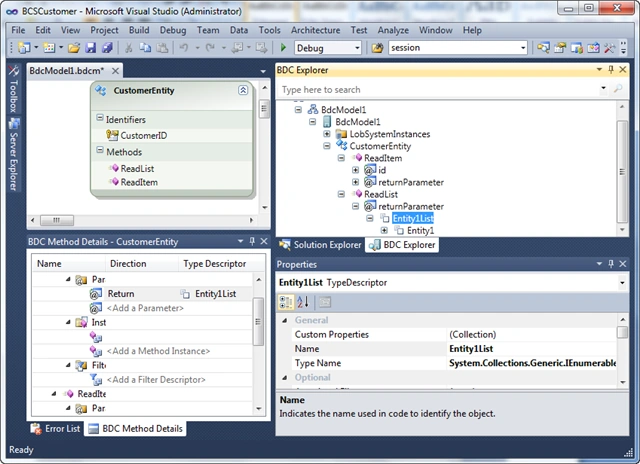

-Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadList | Expand returnParameter and select Entity1List
-CustomerList changed

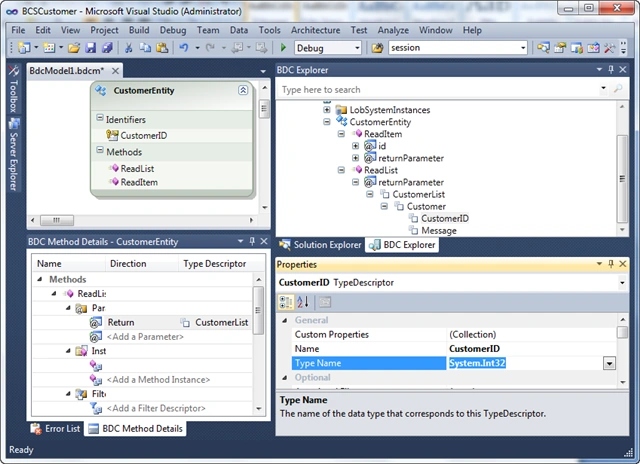

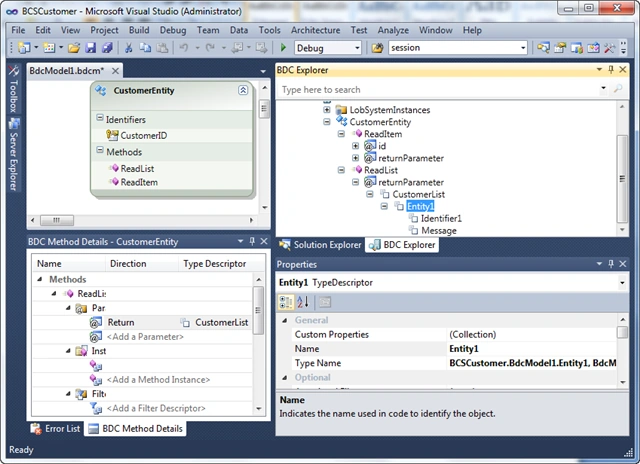

-Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadList | Expand returnParameter | Expand CustomerList | Choose Entity1
-Customer changed
-Expand Customer | Change Identifier1 the CustomerID
-In the Properties window of the CustomerID, Name Type: select System.Int32

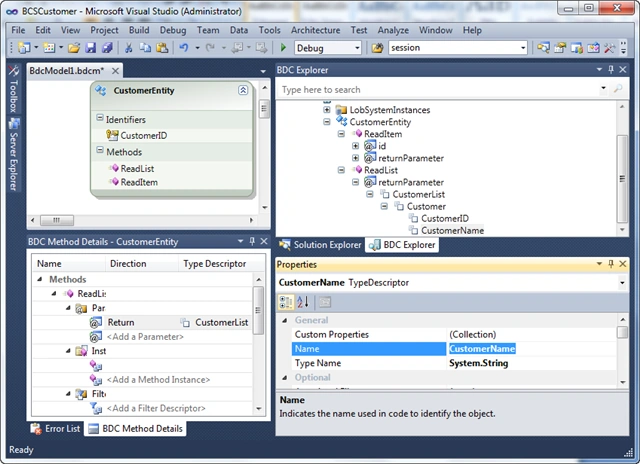

-Select Message and renamed CustomerName, Type Name: System.String

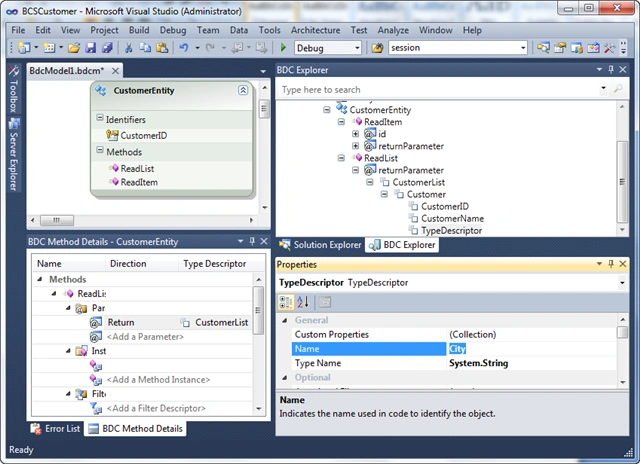

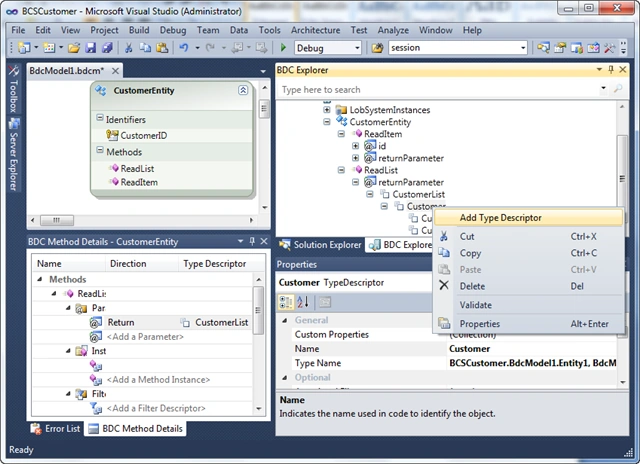

-Click to Customer | Add Type Descriptor
-Named the City, the Type Name: System.String

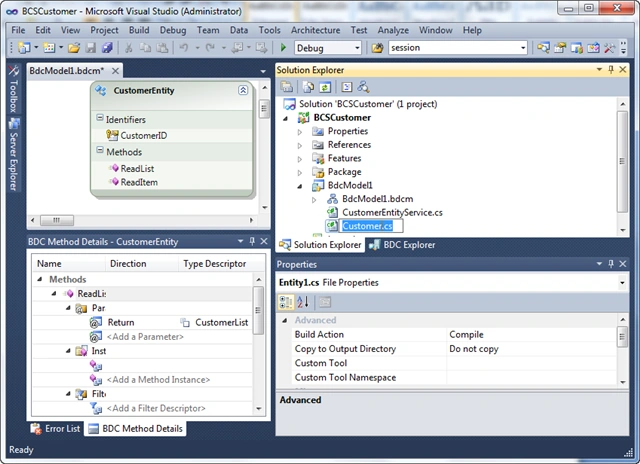

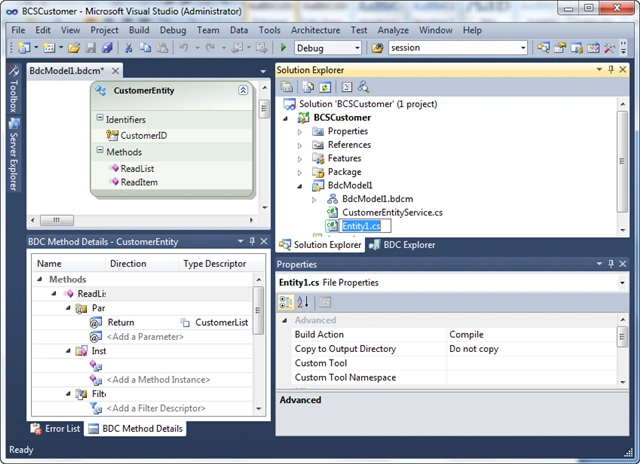

Solution Explorer window | Select Class Entity1

- Renamed Customer

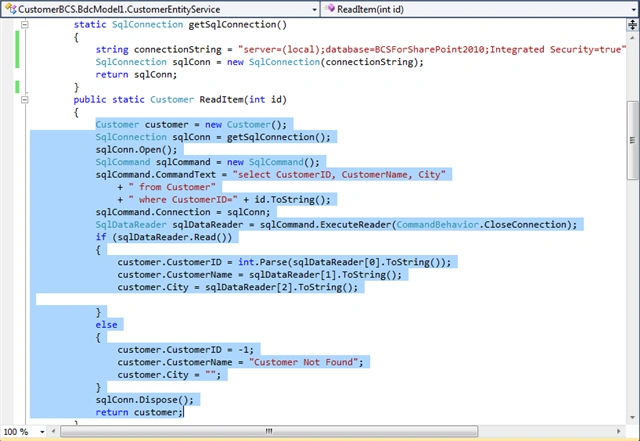

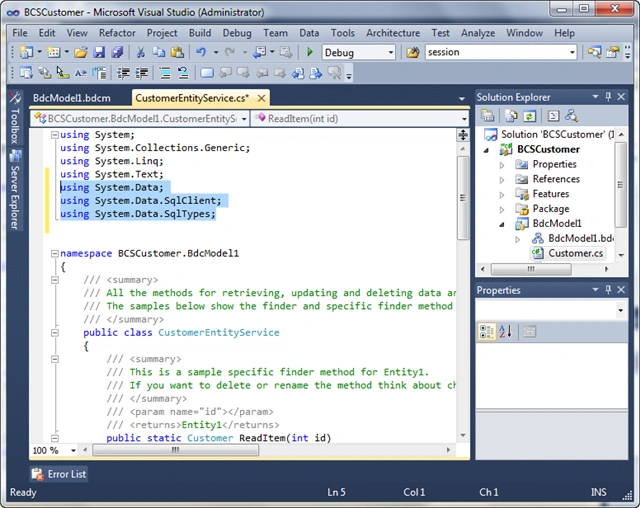

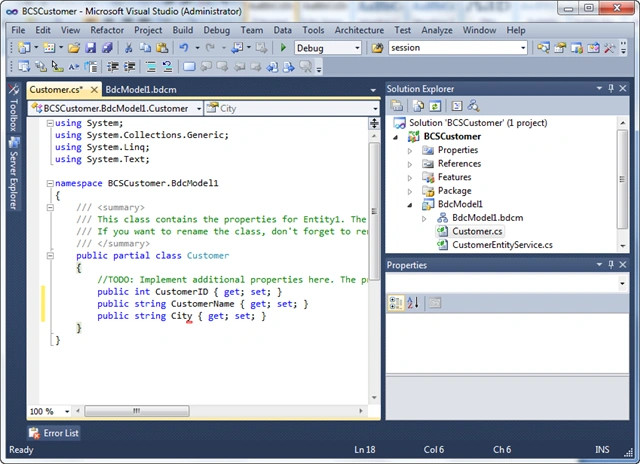

- Declare the following code

public partial class Customer
{
/ / TODO: Implement Additional properties here.
/ / The Message property is just a sample how a property could look like.
public int CustomerID {get; set;}
public string CustomerName {get; set;}
public string City {get; set;}
}

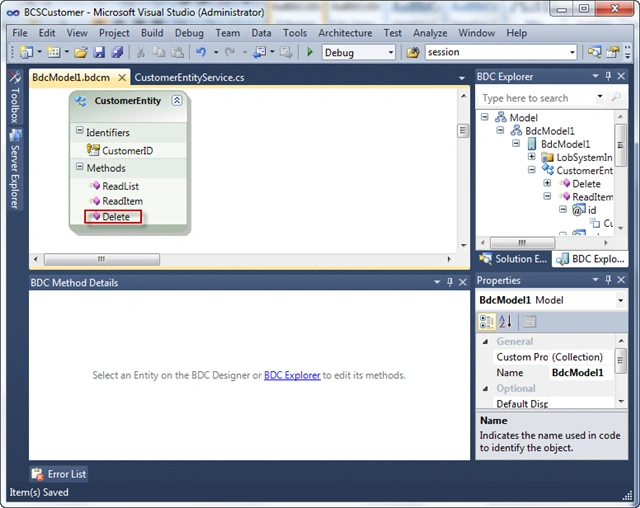

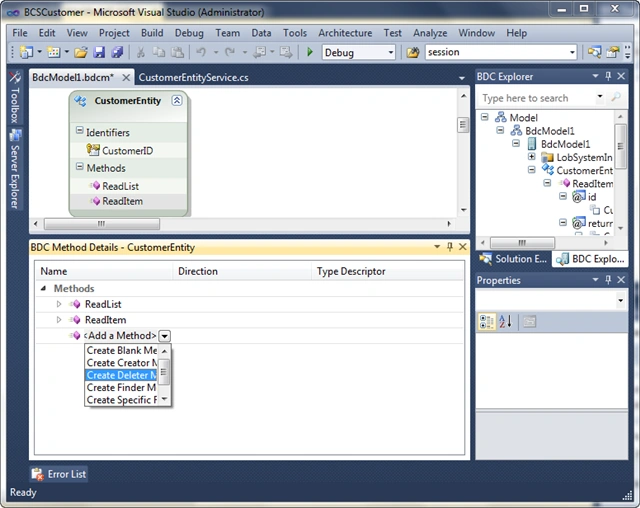

Method Details window BDC - CustomerEntity | collap ReadItem method, ReadList

























chandan guptaPosted Dec 9, 2013, 7:38 AM

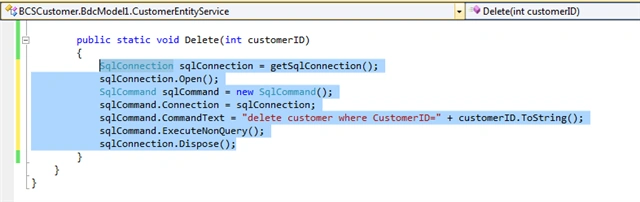

public static void Delete(int empId) { SqlConnection SqlConnection = GetSqlConnection(); SqlConnection.Open(); SqlCommand SqlCommand = new SqlCommand(); SqlCommand.Connection = SqlConnection; SqlCommand.CommandText = "delete from EmployeeTab WHERE EmpId =" empId.ToString(); SqlCommand.ExecuteNonQuery(); SqlConnection.Dispose(); }
chandan guptaPosted Dec 9, 2013, 7:37 AM

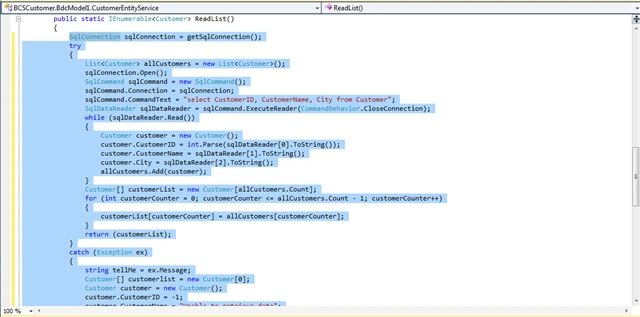

public static IEnumerable<Employee> ReadList() { //TODO: This is just a sample. Replace this simple sample with valid code. SqlConnection SqlConnection = GetSqlConnection(); try { List<Employee> allCustomers = new List<Employee>(); SqlConnection.Open(); SqlCommand SqlCommand = new SqlCommand(); SqlCommand.Connection = SqlConnection; SqlCommand.CommandText = "select EmpId, FirstName, LastName from EmployeeTab"; SqlDataReader SqlDataReader = SqlCommand.ExecuteReader(CommandBehavior.CloseConnection); while (SqlDataReader.Read()) { Employee customer = new Employee(); customer.EmpId = int.Parse(SqlDataReader[0].ToString()); customer.FirstName = SqlDataReader[1].ToString(); customer.LastName = SqlDataReader[2].ToString(); allCustomers.Add(customer); } Employee[] customerList1 = new Employee[allCustomers.Count]; for (int customerCounter = 0; customerCounter <= allCustomers.Count - 1; customerCounter ) { customerList1[customerCounter] = allCustomers[customerCounter]; } return (customerList1); } catch (Exception ex) { //throw ex; Employee[] customerlist = new Employee[0]; Employee customer = new Employee(); customer.EmpId = -1; customer.FirstName = "Unable to retrieve data"; customer.LastName = ""; customerlist[0] = customer; return (customerlist); } finally { SqlConnection.Dispose(); } }
chandan guptaPosted Dec 9, 2013, 7:37 AM
public static Employee ReadItem(int id) { //TODO: This is just a sample. Replace this simple sample with valid code. Employee customer = new Employee(); SqlConnection sqlConn = GetSqlConnection(); sqlConn.Open(); SqlCommand SqlCommand = new SqlCommand(); SqlCommand.CommandText = "select EmpId, FirstName, LastName From EmployeeTab WHERE EmpId =" id.ToString(); SqlCommand.Connection = sqlConn; SqlDataReader SqlDataReader = SqlCommand.ExecuteReader(CommandBehavior.CloseConnection); if (SqlDataReader.Read()) { customer.EmpId = int.Parse(SqlDataReader[0].ToString()); customer.FirstName = SqlDataReader[1].ToString(); customer.LastName = SqlDataReader[2].ToString(); } else { customer.EmpId = -1; customer.FirstName = "Customer Not Found"; customer.LastName = ""; } sqlConn.Dispose(); return customer; }
chandan guptaPosted Dec 9, 2013, 7:37 AM

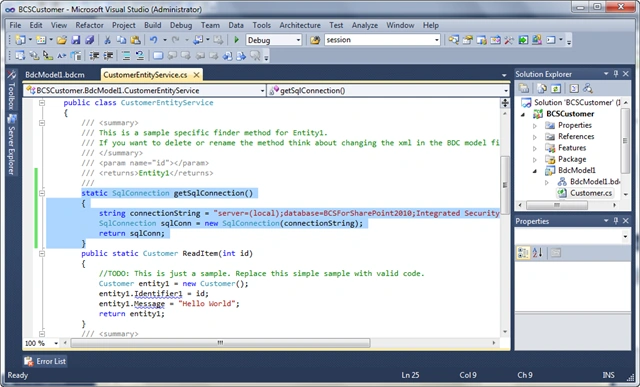

static SqlConnection GetSqlConnection() { string ConnectionString = @"Data Source=chandan-ltp\Sqlexpress;Initial Catalog=ABC;Integrated Security=True"; SqlConnection SqlConn = new SqlConnection(ConnectionString); return SqlConn; }
