CRUD Operations In .NET Core 3.0 With Visual Studio 2019

Recommended Prerequisites

.NET Core 3.0 (Download from here)
Visual Studio 2019. (Download from here)

Step 1 - Create a Database, Tables, and Stored Procedures.

First, we need to create a SQL Server database, tables, and stored procedure which we need to use in the application.

Here, I'm creating a database, "CoreMaster" and a table "Job".

CREATE TABLE [dbo].[Job](
[JobID] [int] IDENTITY(1,1) NOT NULL,
[JobTitle] [nchar](250) NULL,
[JobImage] [nvarchar](max) NULL,
[CityId] [int] NULL,
[IsActive] [bit] NULL,
[CreatedBY] [nvarchar](50) NULL,
[CreatedDateTime] [datetime] NULL,
[UpdatedBY] [nvarchar](50) NULL,
[UpdatedDateTime] [datetime] NULL,
CONSTRAINT [PK_Job] PRIMARY KEY CLUSTERED
(
[JobID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]

Now, I'm going to create stored procedures for adding job, fetching job list, and updating job.

The "Add Job" stored procedure is named "[SP_Add_Job]" which returns the inserted record's job Id.

CREATE PROCEDURE [dbo].[SP_Add_Job]
@JobTitle NVARCHAR(250) ,
@JobImage NVARCHAR(Max) ,
@CityId int ,
@IsActive BIT ,
@CreatedBY NVARCHAR(50) ,
@CreatedDateTime DATETIME ,
@UpdatedBY NVARCHAR(50),
@UpdatedDateTime DATETIME
AS
BEGIN
DECLARE @JobId as BIGINT
INSERT INTO [Job]
(JobTitle ,
JobImage ,
CityId ,
IsActive ,
CreatedBY ,
CreatedDateTime ,
UpdatedBY ,
UpdatedDateTime
)
VALUES ( @JobTitle ,
@JobImage ,
@CityId ,
@IsActive ,
@CreatedBY ,
@CreatedDateTime ,
@UpdatedBY ,
@UpdatedDateTime
);
SET @JobId = SCOPE_IDENTITY();
SELECT @JobId AS JobId;
END;

The "Update job" stored procedure is "[SP_Update_Job]".

CREATE PROCEDURE [dbo].[SP_Update_Job]
@JobId INT,
@JobTitle NVARCHAR(250) ,
@JobImage NVARCHAR(Max) ,
@CityId INT ,
@IsActive BIT ,
@UpdatedBY NVARCHAR(50),
@UpdatedDateTime DATETIME
AS
BEGIN
UPDATE job
SET
job.JobTitle = @JobTitle,
job.JobImage = @JobImage ,
job.CityId = @CityId ,
job.IsActive = @IsActive ,
job.UpdatedBY = @UpdatedBY ,
job.UpdatedDateTime = @UpdatedDateTime
FROM [Job] job
WHERE JobId = @JobId
END;

The "Fetch job list" store procedure is [SP_Job_List].

CREATE PROCEDURE [dbo].[SP_Job_List]
AS
BEGIN
SET NOCOUNT ON;
select * from [Job]
END

Step 2 - Open Visual Studio 2019

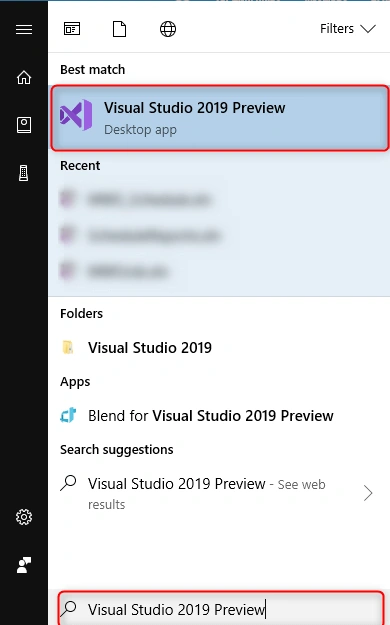

Go to the Start menu on your Windows desktop and type Visual studio 2019; open it.

CRUD Operations In .NET Core 3.0 With Visual Studio 2019

Step 3 - Create a new project

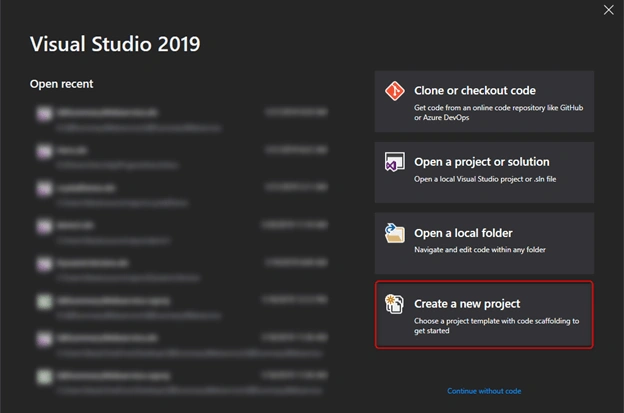

The Visual Studio 2019 welcome screen will pop up, which contains four boxes on the right side.

Clone or checkout code
Open a project or solution
Open a local folder
Create a new project

From the above options, we need to click on the "Create a new project" box.

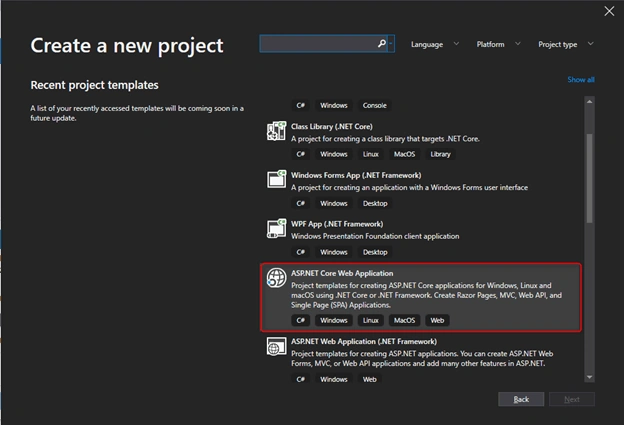

Click on the "ASP.NET Core Web Application" and press "Next".

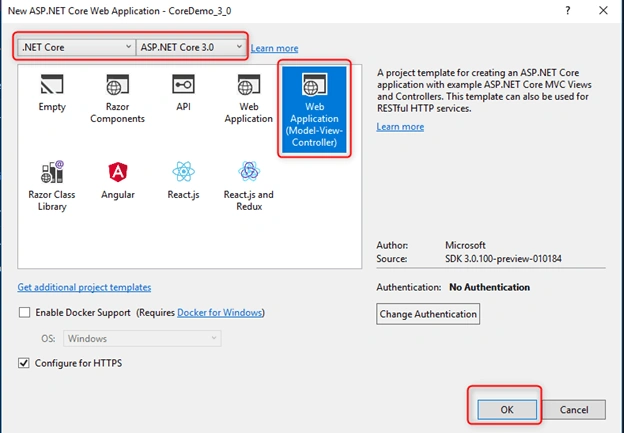

From the wizard, select "Web Application (Model-View-Controller)". The framework must be selected as .NET Core 3.0. Then, click on the "OK" button.

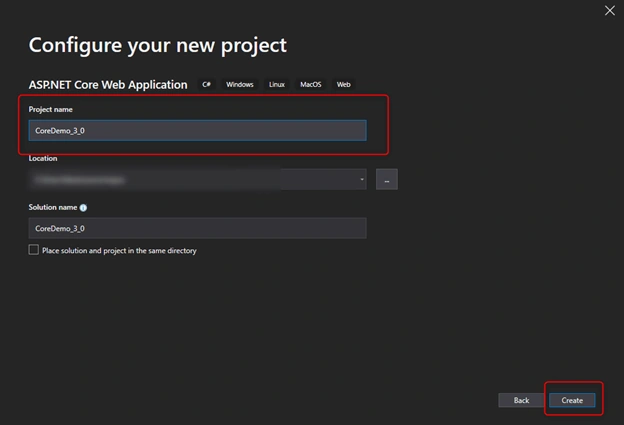

Put an appropriate project name and select the location where you want to create this project. Again, click the "Create" button.

Now "Build" the project. It will install .NET Core 3.0 runtime (if it not installed on the machine).

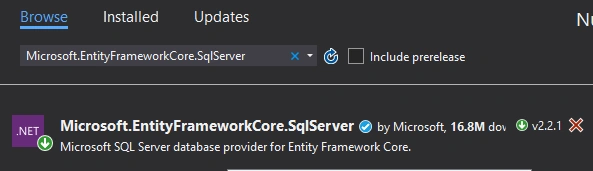

Step 4 - Install NuGet packages.

We need to install the below packages.

Microsoft.EntityFrameworkCore.SqlServer

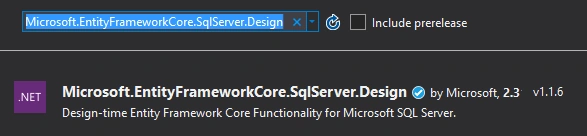

Microsoft.EntityFrameworkCore.SqlServer.Design

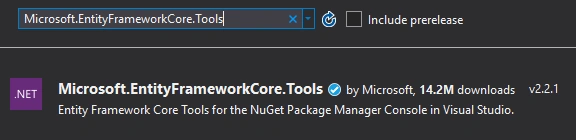

Microsoft.EntityFrameworkCore.Tools

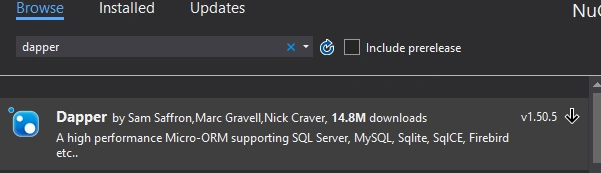

Dapper

Step 5 - Create Dapper Class and Interface

Now, create two folders -

Helper
Interface

In the Interface folder, add a new interface namely "IDapperHelper" and copy the below code and paste in that class.

using Dapper;
using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Common;
using System.Linq;
using System.Linq.Expressions;
using System.Threading.Tasks;
namespace CoreDemo_3_0.Interfaces
{
public interface IDapperHelper : IDisposable
{
DbConnection GetConnection();
T Get<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure);
List<T> GetAll<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure);
int Execute(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure);
T Insert<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure);
T Update<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure);
}
}

In the Helper folder, add a new class namely "DapperHelper" and copy the below code and paste in that class.

using System;
using System.Collections.Generic;
using System.Linq;
using Dapper;
using Microsoft.Extensions.Configuration;
using System.Data;
using System.Data.Common;
using System.Data.SqlClient;
using System.Linq.Expressions;
using static Dapper.SqlMapper;
using CoreDemo_3_0.Interfaces;
namespace CoreDemo_3_0.Helper
{
public class DapperHelper : IDapperHelper
{
private readonly IConfiguration _config;
public DapperHelper(IConfiguration config)
{
_config = config;
}
public DbConnection GetConnection()
{
return new SqlConnection(_config.GetConnectionString("DefaultConnection"));
}
public T Get<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure)
{
using (IDbConnection db = new SqlConnection(_config.GetConnectionString("DefaultConnection")))
{
return db.Query<T>(sp, parms, commandType: commandType).FirstOrDefault();
}
}
public List<T> GetAll<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure)
{
using (IDbConnection db = new SqlConnection(_config.GetConnectionString("DefaultConnection")))
{
return db.Query<T>(sp, parms, commandType: commandType).ToList();
}
}
public int Execute(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure)
{
using (IDbConnection db = new SqlConnection(_config.GetConnectionString("DefaultConnection")))
{
return db.Execute(sp, parms, commandType: commandType);
}
}
public T Insert<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure)
{
T result;
using (IDbConnection db = new SqlConnection(_config.GetConnectionString("DefaultConnection")))
{
try
{
if (db.State == ConnectionState.Closed)
db.Open();
using (var tran = db.BeginTransaction())
{
try
{
result = db.Query<T>(sp, parms, commandType: commandType, transaction: tran).FirstOrDefault();
tran.Commit();
}
catch (Exception ex)
{
tran.Rollback();
throw ex;
}
}
}
catch (Exception ex)
{
throw ex;
}
finally
{
if (db.State == ConnectionState.Open)
db.Close();
}
return result;
}
}
public T Update<T>(string sp, DynamicParameters parms, CommandType commandType = CommandType.StoredProcedure)
{
T result;
using (IDbConnection db = new SqlConnection(_config.GetConnectionString("DefaultConnection")))
{
try
{
if (db.State == ConnectionState.Closed)
db.Open();
using (var tran = db.BeginTransaction())
{
try
{
result = db.Query<T>(sp, parms, commandType: commandType, transaction: tran).FirstOrDefault();
tran.Commit();
}
catch (Exception ex)
{
tran.Rollback();
throw ex;
}
}
}
catch (Exception ex)
{
throw ex;
}
finally
{
if (db.State == ConnectionState.Open)
db.Close();
}
return result;
}
}
public void Dispose()
{
throw new NotImplementedException();
}
}
}

Here, we created a Dapper helper which we will use to communicate with the database.

Step 6 - Create a Context class

Create a new folder named "Context" and add one class "DataContext" which extends from the DbContext class.

Copy the below code and paste inside "DataContext" class.

using CoreDemo_3_0.Entities;
using Microsoft.EntityFrameworkCore;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDemo_3_0.Context
{
public class DataContext : DbContext
{
public DataContext() { }
public DataContext(DbContextOptions<DataContext> options) : base(options) { }
}
}

Step 7

Create one folder named "Entities" and add a class, namely "Job".

Copy the below code and paste into the "Job" class.

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDemo_3_0.Entities
{
public class Job
{
[Key]
public int JobID { get; set; }
public string JobTitle { get; set; }
public int CityId { get; set; }
public string JobImage { get; set; }
public bool IsActive { get; set; }
public string CreatedBY { get; set; }
public DateTime? CreatedDateTime { get; set; }
public string UpdatedBY { get; set; }
public DateTime? UpdatedDateTime { get; set; }
}
}

Step 8

Create one folder named "Models" and add a class "JobModel".

Copy the below code and paste into "JobModel" class.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDemo_3_0.Models
{
public class JobModel
{
public int JobID { get; set; }
public string JobTitle { get; set; }
public int CityId { get; set; }
public string JobImage { get; set; }
public bool IsActive { get; set; }
public string CreatedBY { get; set; }
public DateTime? CreatedDateTime { get; set; }
public string UpdatedBY { get; set; }
public DateTime? UpdatedDateTime { get; set; }
public int JobState { get; set; }
}
}

Step 9 - Add IJob interface

Add IJob interface, "IJobService" inside the interface folder which we created before. Below is the code of the interface.

using CoreDemo_3_0.Entities;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace CoreDemo_3_0.Interfaces
{
public interface IJobService
{
int Delete(int JobId);
Job GetByJobId(int JobId);
string Update(Job job);
int Create(Job JobDetails);
List<Job> ListAll();
}
}

Step 10 - Add Job service

Add a new folder named "Services" and one class inside that folder. The class name will be "JobService". Below is the JobService class code.

using CoreDemo_3_0.Entities;
using CoreDemo_3_0.Interfaces;
using Dapper;
using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Threading.Tasks;
using System.Transactions;
namespace CoreDemo_3_0.Services
{
public class JobService : IJobService
{
private readonly IDapperHelper _dapperHelper;
public JobService(IDapperHelper dapperHelper)
{
this._dapperHelper = dapperHelper;
}
public int Create(Job job)
{
var dbPara = new DynamicParameters();
dbPara.Add("JobTitle", job.JobTitle, DbType.String);
dbPara.Add("JobImage", job.JobImage, DbType.String);
dbPara.Add("CityId", job.CityId, DbType.Int32);
dbPara.Add("IsActive", job.IsActive, DbType.String);
dbPara.Add("CreatedBY", "1", DbType.String);
dbPara.Add("CreatedDateTime", DateTime.Now, DbType.DateTime);
dbPara.Add("UpdatedBY", "1", DbType.String);
dbPara.Add("UpdatedDateTime", DateTime.Now, DbType.DateTime);
#region using dapper
var data = _dapperHelper.Insert<int>("[dbo].[SP_Add_Job]",
dbPara,
commandType: CommandType.StoredProcedure);
return data;
#endregion
}
public Job GetByJobId(int JobId)
{
#region using dapper
var data = _dapperHelper.Get<Job>($"select * from job where JobId={JobId}", null,
commandType: CommandType.Text);
return data;
#endregion
}
public int Delete(int JobId)
{
var data = _dapperHelper.Execute($"Delete [Job] where JObId={JobId}", null,
commandType: CommandType.Text);
return data;
}
public List<Job> ListAll()
{
var data = _dapperHelper.GetAll<Job>("[dbo].[SP_Job_List]", null, commandType: CommandType.StoredProcedure);
return data.ToList();
}
public string Update(Job job)
{
var dbPara = new DynamicParameters();
dbPara.Add("JobTitle", job.JobTitle, DbType.String);
dbPara.Add("JobId", job.JobID);
dbPara.Add("JobImage", job.JobImage, DbType.String);
dbPara.Add("CityId", job.CityId, DbType.Int32);
dbPara.Add("IsActive", job.IsActive, DbType.String);
dbPara.Add("UpdatedBY", "1", DbType.String);
dbPara.Add("UpdatedDateTime", DateTime.Now, DbType.DateTime);
var data = _dapperHelper.Update<string>("[dbo].[SP_Update_Job]",
dbPara,
commandType: CommandType.StoredProcedure);
return data;
}
}
}

Step 11 - Add Connection String

Add a connection string into the appsettings.json file. Here is the code of the appsettings.json file.

{
"ConnectionStrings": {
"DefaultConnection": "data source=.;initial catalog=CoreMaster;User Id=sa;Password=******;"
},
"Logging": {
"LogLevel": {
"Default": "Warning",
"Microsoft.Hosting.Lifetime": "Information"
}
},
"AllowedHosts": "*"
}

Step 12 - Changes in Startup class

Now, we need to add a connection string context and register our services.

Code to add connectionstring -

services.AddDbContext<DataContext>(options =>
options.UseSqlServer(
Configuration.GetConnectionString("DefaultConnection")));

Add a service to scoped.

//Job service
services.AddScoped<IJobService, JobService>();
//Register dapper in scope
services.AddScoped<IDapperHelper, DapperHelper>();

Step 13 - Add Controller

It's now time to add a Job Controller inside the Controllers folder. Below is the full code of JobController.

using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Net.Http.Headers;
using System.Threading.Tasks;
using CoreDemo_3_0.Entities;
using CoreDemo_3_0.Interfaces;
using CoreDemo_3_0.Models;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
namespace CoreDemo_3_0.Controllers
{
public class JobController : Controller
{
private readonly IJobService _jobManager;
private readonly IHostingEnvironment _hostingEnvironment;
public JobController(IJobService jobManager, IHostingEnvironment hostingEnvironment)
{
_jobManager = jobManager;
_hostingEnvironment = hostingEnvironment;
}
public ActionResult Index()
{
var data = _jobManager.ListAll();
string baseUrl = $"{this.Request.Scheme}://{this.Request.Host}{this.Request.PathBase}";
foreach (var item in data)
{
if (!string.IsNullOrEmpty(item.JobImage))
item.JobImage = Path.Combine(baseUrl, "Images", item.JobImage);
else
item.JobImage = Path.Combine(baseUrl, "Images", "404.png");
}
return View(data);
}
#region Add Job
public ActionResult Add()
{
return View("Form", new JobModel());
}
[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Add(JobModel model)
{
if (ModelState.IsValid)
{
var fileName = "";
if (Request.Form.Files.Count > 0)
{
var file = Request.Form.Files[0];
var webRootPath = _hostingEnvironment.WebRootPath;
var newPath = Path.Combine(webRootPath, "images");
if (!Directory.Exists(newPath)) Directory.CreateDirectory(newPath);
if (file.Length > 0)
{
fileName = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
var fullPath = Path.Combine(newPath, fileName);
using (var stream = new FileStream(fullPath, FileMode.Create))
{
file.CopyTo(stream);
}
}
}
var job = new Job()
{
CityId = model.CityId,
JobImage = fileName,
CreatedBY = "1",
CreatedDateTime = DateTime.Now,
JobTitle = model.JobTitle,
UpdatedBY = "1",
IsActive = model.IsActive,
UpdatedDateTime = DateTime.Now
};
_jobManager.Create(job);
return RedirectToAction("Index", "Job");
}
return View("Form", model);
}
#endregion
#region Edit Job
public ActionResult Edit(int JobId)
{
var jobEntity = _jobManager.GetByJobId(JobId);
var jobModel = new JobModel
{
JobID = jobEntity.JobID,
CityId = jobEntity.CityId,
JobImage = jobEntity.JobImage,
CreatedBY = jobEntity.CreatedBY,
CreatedDateTime = jobEntity.CreatedDateTime,
JobTitle = jobEntity.JobTitle,
UpdatedBY = jobEntity.UpdatedBY,
IsActive = jobEntity.IsActive,
UpdatedDateTime = jobEntity.UpdatedDateTime
};
return View("Form", jobModel);
}
[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Edit(JobModel model)
{
if (ModelState.IsValid)
{
var fileName = model.JobImage ?? "";
if (Request.Form.Files.Count > 0)
{
var file = Request.Form.Files[0];
var webRootPath = _hostingEnvironment.WebRootPath;
var newPath = Path.Combine(webRootPath, "images");
if (!Directory.Exists(newPath)) Directory.CreateDirectory(newPath);
if (file.Length > 0)
{
fileName = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
var fullPath = Path.Combine(newPath, fileName);
using (var stream = new FileStream(fullPath, FileMode.Create))
{
file.CopyTo(stream);
}
}
}
var job = new Job()
{
JobID = model.JobID,
CityId = model.CityId,
JobImage = fileName,
JobTitle = model.JobTitle,
UpdatedBY = "1",
IsActive = model.IsActive,
};
_jobManager.Update(job);
return RedirectToAction("Index", "Job");
}
return View("Form", model);
}
#endregion
#region Delete Job
public ActionResult Delete(int JobId)
{
var jobEntity = _jobManager.Delete(JobId);
return RedirectToAction("Index", "Job");
}
#endregion
}
}

Step 14 - Add Views

It is time to add a ViewController inside Views > Job folder. Below is the code for all views of JobController.

Form.cshtml

@addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers
@model CoreDemo_3_0.Models.JobModel
@{
ViewData["Title"] = "Add Job";
Layout = "~/Views/Shared/_Layout.cshtml";
}
<div class="row">
<div class="col-md-12">
<div class="box box-primary">
@using (Html.BeginForm(Model.JobID == 0 ? "Add" : "Edit", "Job", FormMethod.Post, new { enctype = "multipart/form-data" }))
{
<div class="box-body">
@Html.AntiForgeryToken()
<div class="row">
@Html.HiddenFor(model => model.JobID)
<div class="col-xs-12" f>
<label>Job Title</label>
@Html.TextBoxFor(model => model.JobTitle, new { @class = "form-control", @placeholder = "Job Title" })
</div>
</div>
<br />
<div class="row">
<div class="col-xs-12">
<label>Enter City ID</label>
@Html.TextBoxFor(model => model.CityId, new { @class = "form-control" })
</div>
</div>
<br />
<div class="row">
<div class="col-xs-12">
<label>Job Image</label>
<input type="file" id="file" name="file">
@Html.HiddenFor(model => model.JobImage)
</div>
</div>
<div class="row">
<div class="col-xs-12">
@Html.CheckBoxFor(model => model.IsActive, new { @class = "col-form-checkbox" }) Vacancy Available
</div>
</div>
</div>
<div class="box-footer">
<button type="submit" class="btn btn-primary"><i class="fa fa-save"></i> Save</button>
</div>
}
</div>
</div>
</div>

Index.cshtml

@model List<CoreDemo_3_0.Entities.Job>
@{
ViewData["Title"] = "Job List";
}
<a href="/Job/Add" class="btn btn-primary">Add</a>
<br />
<table id="_DataTable" class="table compact table-striped table-bordered nowrap dataTable" aria-describedby="_DataTable_info">
<thead>
<tr role="row">
<th class="sorting_asc" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-sort="ascending" aria-label="Image: activate to sort column descending" style="width: 127px;">Image</th>
<th class="sorting" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-label="Title: activate to sort column ascending" style="width: 209px;">Title</th>
<th class="sorting" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-label="City: activate to sort column ascending" style="width: 116px;">City</th>
<th class="sorting" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-label="Vacancy: activate to sort column ascending" style="width: 127px;">Vacancy</th>
<th class="sorting" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-label="Created Date: activate to sort column ascending" style="width: 190px;">Created Date</th>
<th style="width: 38px;" class="sorting" role="columnheader" tabindex="0" aria-controls="_DataTable" rowspan="1" colspan="1" aria-label=" Action : activate to sort column ascending"> Action </th>
</tr>
</thead>
<tbody role="alert" aria-live="polite" aria-relevant="all">
@foreach (var item in Model)
{
<tr class="even">
<td style="text-align:left"><img src="@item.JobImage" alt="Image" width="50" height="50"></td>
<td style="text-align:left">@item.JobTitle</td>
<td style="text-align:left">@item.CityId</td>
<td style="text-align:left">@(item.IsActive == true ? "Yes" : "No")</td>
<td style="text-align:right">@item.CreatedDateTime</td>
<td class="text-center ">
<a href="/Job/[email protected]" title="Edit">Edit <i class="fa fa-edit"></i></a><a href="/Job/Delete?&[email protected]" class="" onclick="return confirm(" Are you sure you want to delete this job?");" title="Delete">Delete <i class="fa fa-times"></i></a>
</td>
</tr>
}
</tbody>
</table>

Output

Index Page

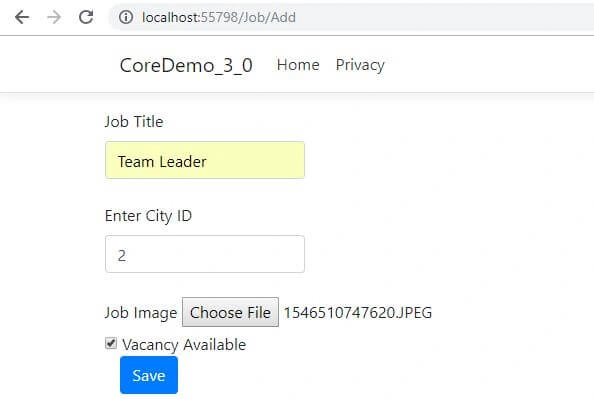

Add Page

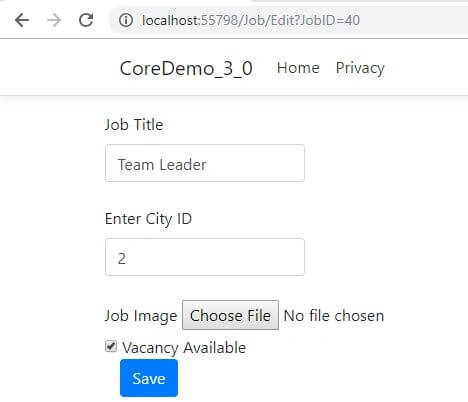

Edit Page

Summary

Here, we created a simple application that uses the dapper, Core 3.0 preview, SQL Server, and Visual Studio 2019 to perform CRUD operations. You can leave the feedback/comment/questions about this article below. Please let me know how you like and understand this article and how I could improve it.

11 Comments

Join the conversation! Your thoughts help the community grow.

Dinesh Kumar4y ago
Nice article
Maurice Aboagye6y ago
This Update is marvellous. Your Style of Coding is Expert. Love the way you blend Dapper with MVC.
- Faisal Pathan6y ago
  Thanks, Maurice Aboagye :)
Krishna Jadav6y ago
Why could you use interface and class structure for database access ? either directly dapper access is possible from main controller ?
- Faisal Pathan6y ago
  Just structure, you can use anyway!
Stephen Lynch7y ago
Thanks, Dapper coming along. Good article. Can you do one with a Razor Application using 3.0?
Deepan7y ago
Nice article
- Faisal Pathan7y ago
  Thanks @Deepan
dhiren pathak7y ago
Thanks can you one tutorial ?? deployed to IIS , its not working after add sql database
Maurice Aboagye7y ago
Thanx very much Faisal . Really Good
- Faisal Pathan7y ago
  Glad to hear that :)
