Introduction

This article explains how to use a DataGrid control in WPF and binding to a DataGrid in a WPF 4.5 application.
  • WPF ApplicationFrom
  • DataGrid control
  • MySQL Database

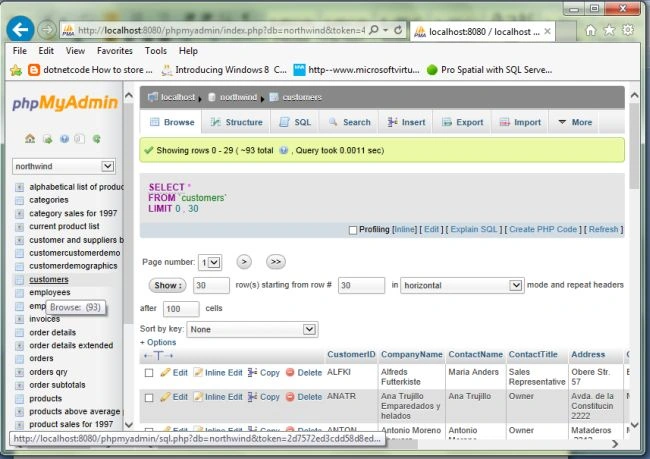

See the following screen; select "MySQL Wamp Server database" > "customers data".

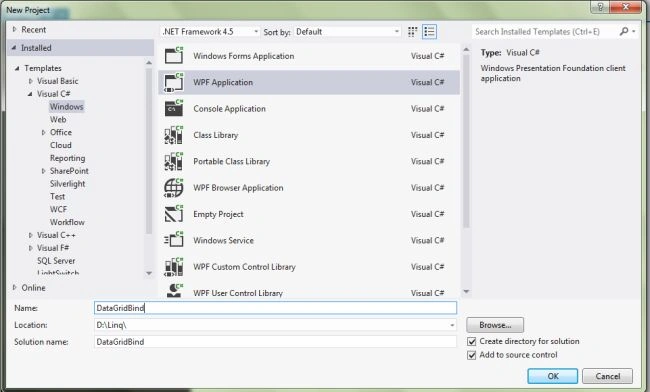

Create a new project using "File" > "New" > "Project..." > "WPF Application" and name it: "DataGridBind".

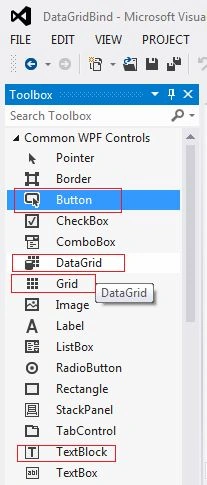

Now from the Toolbox Select:
  • 1 Grid
  • 1 Text block
  • DataGrid control
  • 1 Button

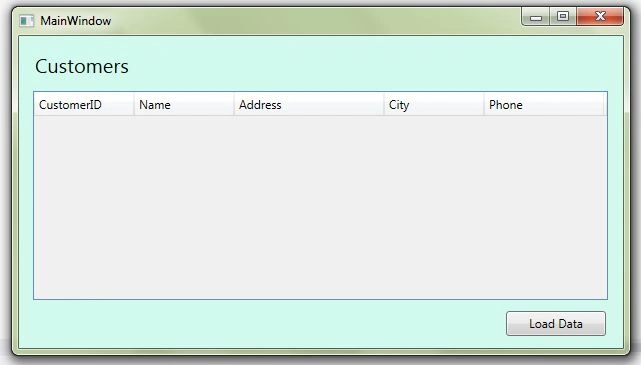

You will get the MainWindow.xaml window form.
Now design your MainWindow.xaml View design part; use the following code:
  1. <Window x:Class="DataGridBind.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="MainWindow" Height="350" Width="620">
  2. <Grid Height="350" Width="625" Background="#FFD1F9EE">
  3. <TextBlock Height="32" HorizontalAlignment="Left" Margin="16,15,0,0" Name="textBlockHeading" Text="Customers" VerticalAlignment="Top" Width="310" FontSize="20" FontStretch="Normal" />
  4. <Grid HorizontalAlignment="Left" Height="310" VerticalAlignment="Top" Width="625">
  5. <DataGrid AutoGenerateColumns="False" HorizontalAlignment="Left" Margin="14,55,0,46" Name="dataGridCustomers" Width="575" ItemsSource="{Binding Path=LoadDataBinding}" CanUserResizeRows="False">
  6. <DataGrid.Columns>
  7. <DataGridTextColumn Binding="{Binding Path=CustomerID}" Header="CustomerID" Width="100" IsReadOnly="True" />
  8. <DataGridTextColumn Binding="{Binding Path=ContactName}" Header="Name" Width="100" IsReadOnly="True" />
  9. <DataGridTextColumn Binding="{Binding Path=Address}" Header="Address" Width="150" IsReadOnly="True" />
  10. <DataGridTextColumn Binding="{Binding Path=City}" Header="City" Width="100" IsReadOnly="True" />
  11. <DataGridTextColumn Binding="{Binding Path=Phone}" Header="Phone" Width="120" IsReadOnly="True" />
  12. </DataGrid.Columns>
  13. </DataGrid>
  14. <Button Content="Load Data" Height="25" HorizontalAlignment="Left" Margin="487,275,0,0" Name="btnloaddata" VerticalAlignment="Top" Width="100" Click="btnloaddata_Click" />
  15. </Grid>
  16. </Grid>
  17. </Window>
In the App.config file create the database connection string as:
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <configuration>
  3. <connectionStrings>
  4. <add name="connectionString" connectionString="Server=localhost;userid=root;password=;Database=northwind" providerName="MySql.Data.MySqlClient" />
  5. </connectionStrings>
  6. <startup>
  7. <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" />
  8. </startup>
  9. </configuration>
Now, in the code-behind file “MainWindow.xaml.cs“ use the following code.
MainWindow.xaml.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  16. //Using namespaces
  17. using System.Data;
  18. using MySql.Data.MySqlClient;
  19. using System.Configuration;
  21. namespace DataGridBind {
  22. /// <summary>
  23. /// Interaction logic for MainWindow.xaml
  24. /// </summary>
  25. public partial class MainWindow: Window {
  26. #region MySqlConnection Connection
  27. MySqlConnection conn = new
  28. MySqlConnection(ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString);
  29. public MainWindow() {
  30. InitializeComponent();
  31. }
  32. #endregion
  33. #region bind data to DataGrid.
  34. private void btnloaddata_Click(object sender, RoutedEventArgs e) {
  35. try {
  36. conn.Open();
  37. MySqlCommand cmd = new MySqlCommand("Select CustomerID,ContactName,Address,City,Phone,Email from customers", conn);
  38. MySqlDataAdapter adp = new MySqlDataAdapter(cmd);
  39. DataSet ds = new DataSet();
  40. adp.Fill(ds, "LoadDataBinding");
  41. dataGridCustomers.DataContext = ds;
  42. } catch (MySqlException ex) {
  43. MessageBox.Show(ex.ToString());
  44. }
  45. Finally {
  46. conn.Close();
  47. }
  48. }
  49. #endregion
  50. }
  51. }

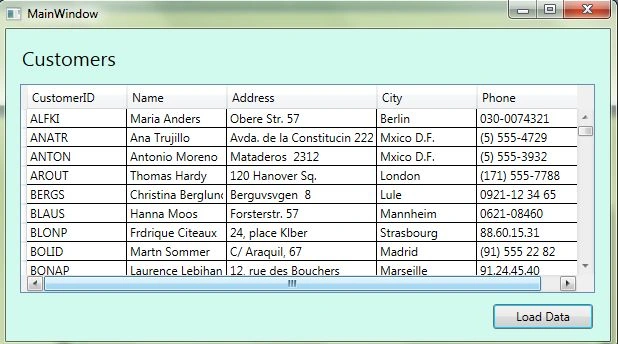

Run the application and select “Customer Window Show”.
Use the following for “btnloaddata_Click"; bind the Data Grid with the Customer data.
Now bind the DataGrid in the WPF 4.5 application using a MySQL Database. I hope this article is useful. If you have any other questions then please provide your comments below.
