Developing ComboBox Filtered Screen Using Light Switch 2012

This article describes how to create a ComboBox filtered screen in LightSwitch using Visual Studio 2012.

The following is the procedure for creating a ComboBox search screen in LightSwitch 2012.

Step 1

Open the Solution Explorer.

sol explo.jpg

Step 2

In the Solution Explorer, right-click on the data source and choose "Add Table".

Add Table.jpg

Step 3

The table appears. In this way we create two tables (Customer and Item).

The Item Table is shown below.

Step 4

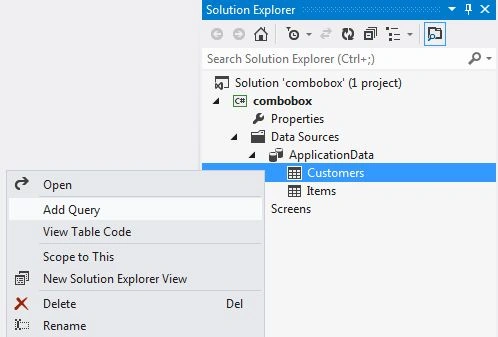

Right-click on the Customer Table and select "Add Query".

Add Query.jpg

The Query Designer appears.

Step 5

In the Query Designer, click on the "Add Parameter" button and add a parameter named "Id" of the "Integer" data type.

parameter in Query.jpg

Step 6

Now click on the "Add filter" button. Under the Filter condition, next to the where condition from the drop-down list, select "Id". From the next drop-down list select the "Equal" condition. From the next dropdown list select the "parameter" and from the last drop down list, select "Id".

Step 7

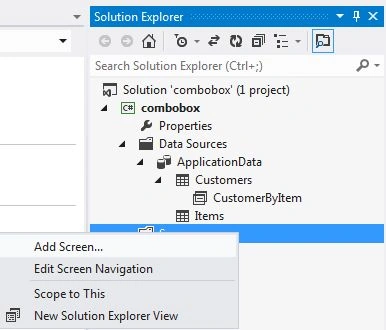

Right-click on the Screens and choose "Add Screen".

add src.jpg

Step 8

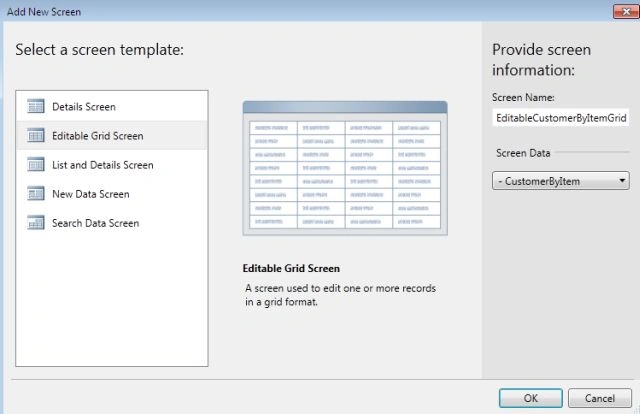

Select the Editable Grid Screen from the Screen Template. Under Screen Information we provide the Screen Name and choose CustomerByItem in the Screen Data and then click OK.

add nw src des.jpg

Step 9

The Screen Designer appears.

Step 10

Select "Add Data Item" from the Menu bar of the Screen Designer.

add data item.jpg

Step 11

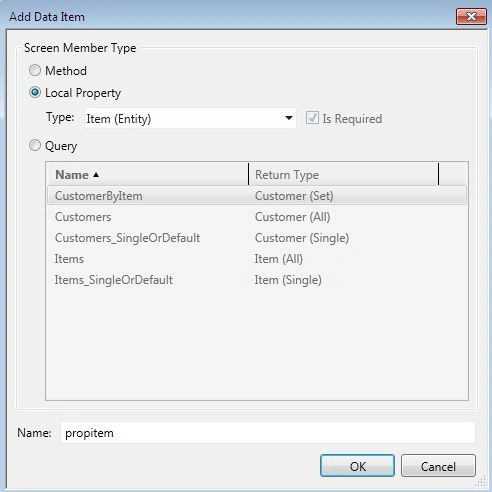

The Add Data Item dialog box appear on the screen. Select the Local Property radio button. From the Type option, select the Item (Entity) and name the property "propitem".

add data item dialog.jpg
