Overview
Sometimes, there is a situation when the client wishes to see all the version history for an appended multiline textbox in PowerApps. In this article, we will talk about how we can easily get the version history for appended multiline textbox within the PowerApps.

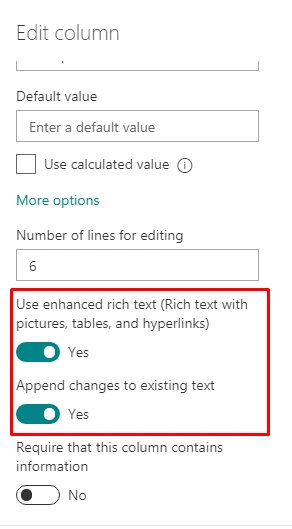

Please refer to the following list structure I have in SharePoint List.

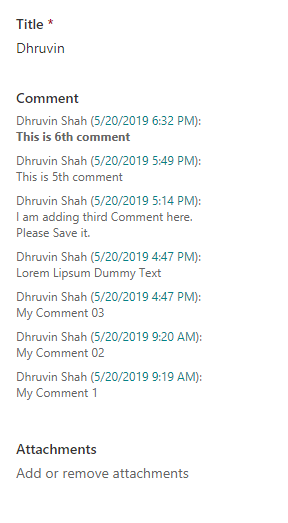

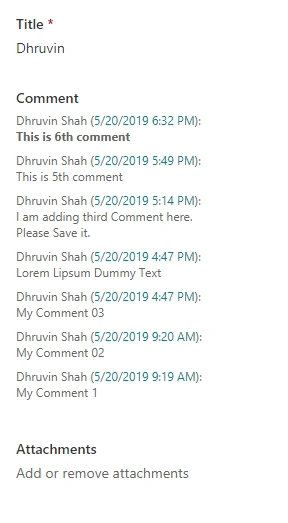

Below is the result of SharePoint item where we need to show all the comment history in PowerApps.

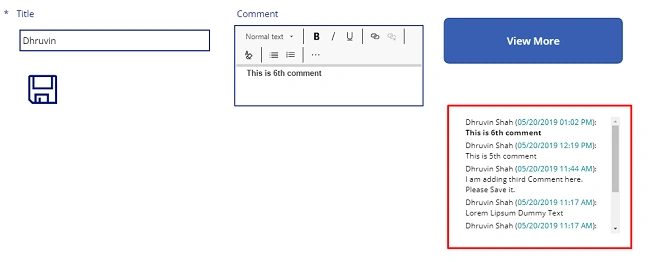

At the end of the article, you will be able to see the version history within the PowerApps something like this.

Step 1 - Create MS Flow to retrieve Append Comment History from SharePoint List
- Click on "New flow" and select “Instant – From blank”.

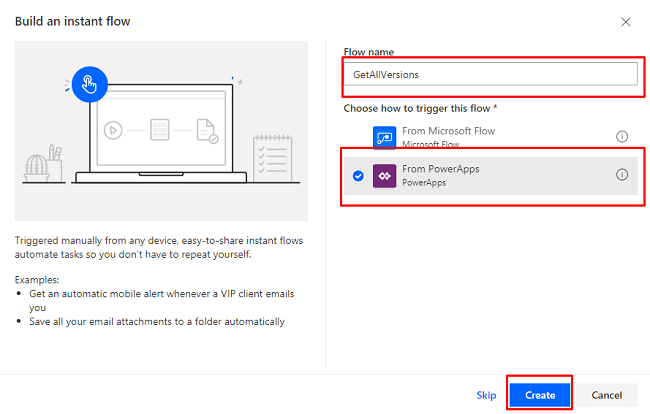

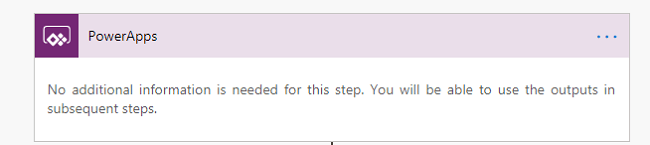

- Give the name of flow and select “PowerApps” as Triggering.

- The following step has been created.

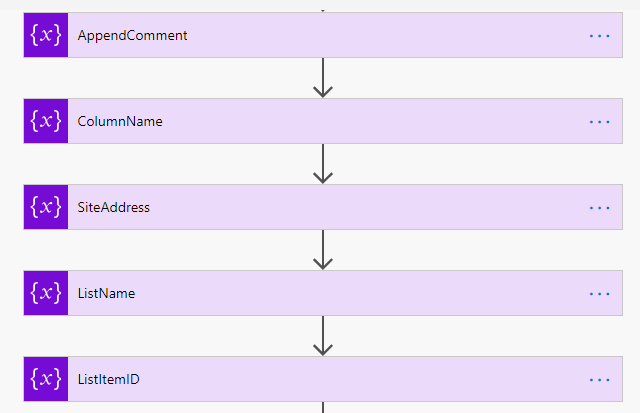

- Now, we need to initialize four variables which accept the value from PowerApps.
To create the variables, follow the below procedure.

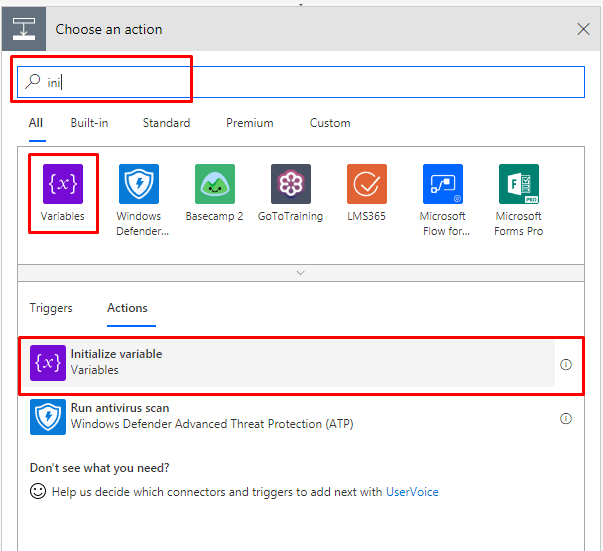

Add an action named “Initialize Variables”.

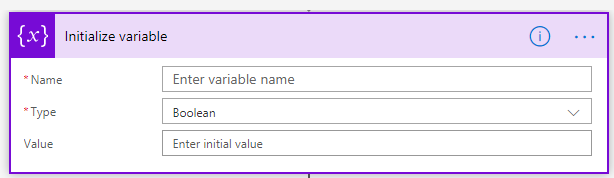

It will ask for the following information.
- Name
- Type
- Value

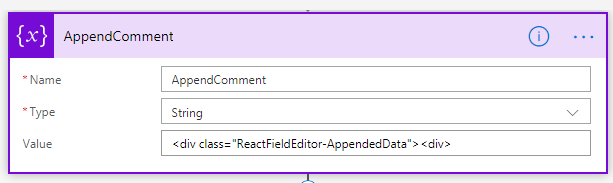

Now, let’s create the first variable named “AppendComment”.

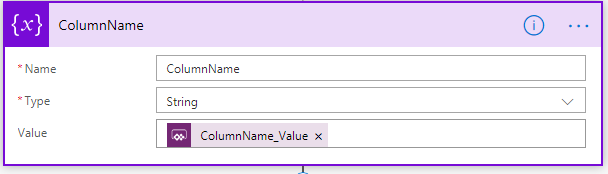

Name AppendComment Type String Value <div class="ReactFieldEditor-AppendedData"><div> Create a variable named “Column Name”.

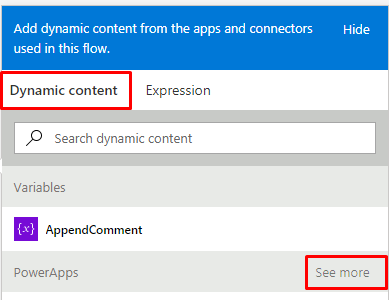

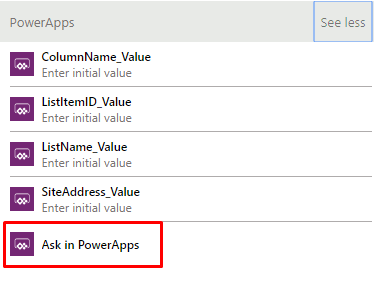

Name ColumnName Type String Value Ask in PowerApps / @{triggerBody()['ColumnName_Value']} Now, here in Value, we need a parameter from PowerApps. So, when we click on the value, from the right side, select “Dynamic Content” and click on “Ask in PowerApps”. Sometimes, if PowerApps don’t show this option, then click on “See More” and select “Ask in PowerApps”.

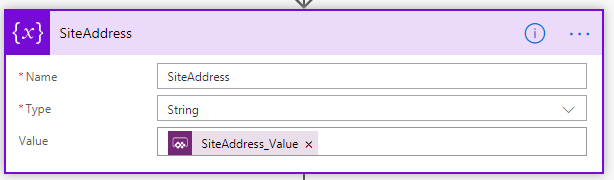

In a similar way, let’s create the third variable named “Site Address”.

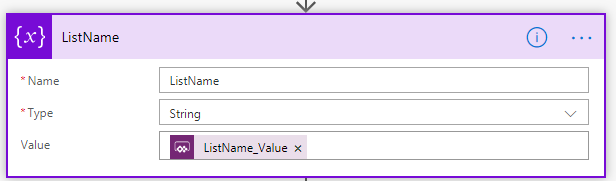

Name SiteAddress Type String Value Ask in PowerApps / @{triggerBody()['SiteAddress_Value']} Create a variable named “ListName”.

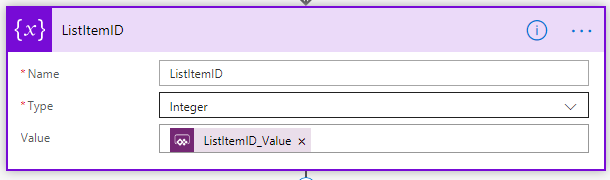

Name ListName Type String Value @{triggerBody()['ListName_Value']} Create a variable named “ListItemID”.
Name ListItemID Type Integer Value @{triggerBody()['ListItemID_Value']}

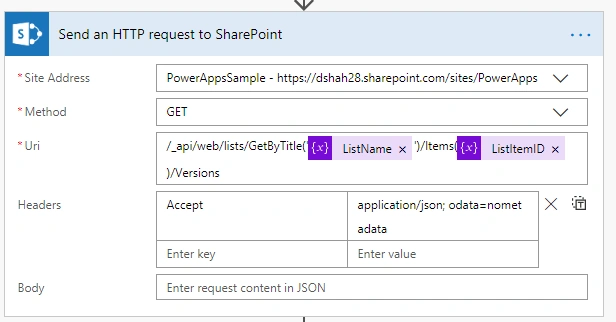

- Now, add an action for “Send an HTTP request to SharePoint”.
Add the following information.
SiteAddress URL of SharePoint Site Method GET Uri /_api/web/lists/GetByTitle('@{variables('ListName')}')/Items(@{variables('ListItemID')})/Versions Headers Accept application/json; odata=nometadata

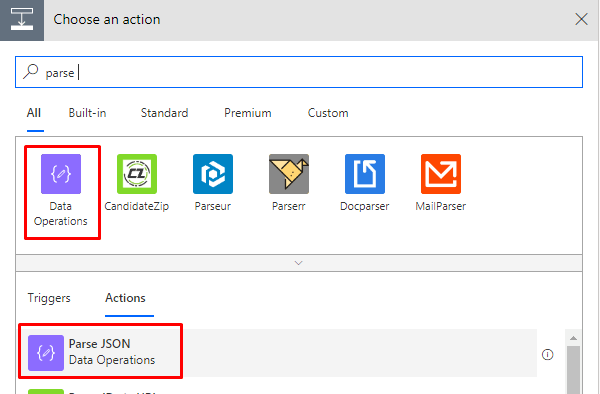

- Add an action to “Parse JSON”.

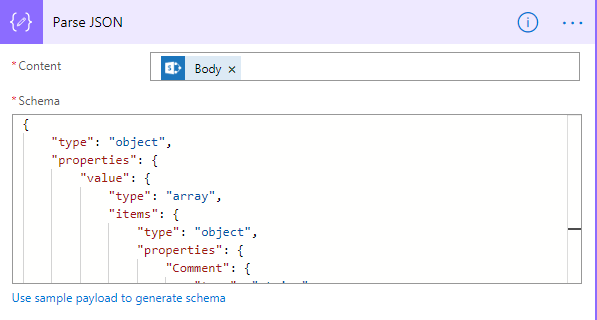

- Add Content, select Body as result there. We need to parse a comment from the value. So, we will add the following thing as schema.
- {
- "type": "object",
- "properties": {
- "value": {
- "type": "array",
- "items": {
- "type": "object",
- "properties": {
- "Comment": {
- "type": "string"
- }
- },
- "required": ["Comment"]
- }
- }
- }
- }

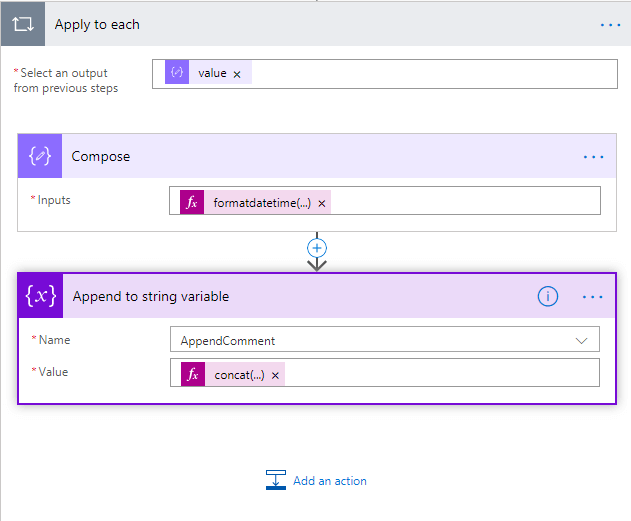

- Click an action “Compose” so that “Apply to each” will be created automatically.

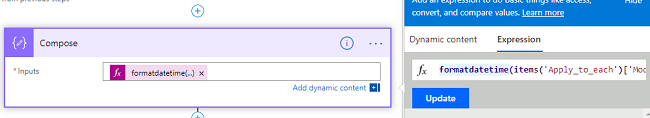

- In Compose, create the below formula.
- formatdatetime(items('Apply_to_each')['Modified'],'MM/dd/yyyy hh:mm tt')

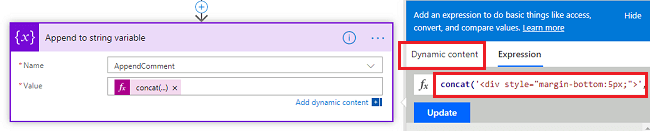

- Now, add an action “Append to string variable”.
In name, select the already created variable named “AppendComment”.
- concat('<div style="margin-bottom:5px;">',items('Apply_to_each')['Author']
- ['LookupValue'],' (<span style="color: rgb(3, 131,
- 135)">',outputs('Compose'),'</span>)',': ',items('Apply_to_each')
- [variables('ColumnName')],'</div>')

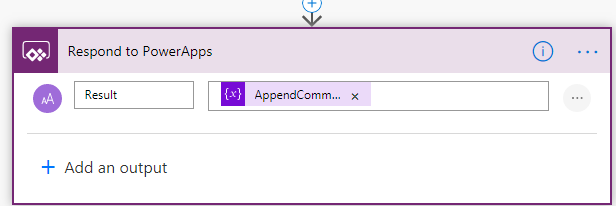

- Add an action named “Respond to PowerApps”.
- Add an output “Result” and pass “AppendComment” variable.
- Our Flow has been created successfully.

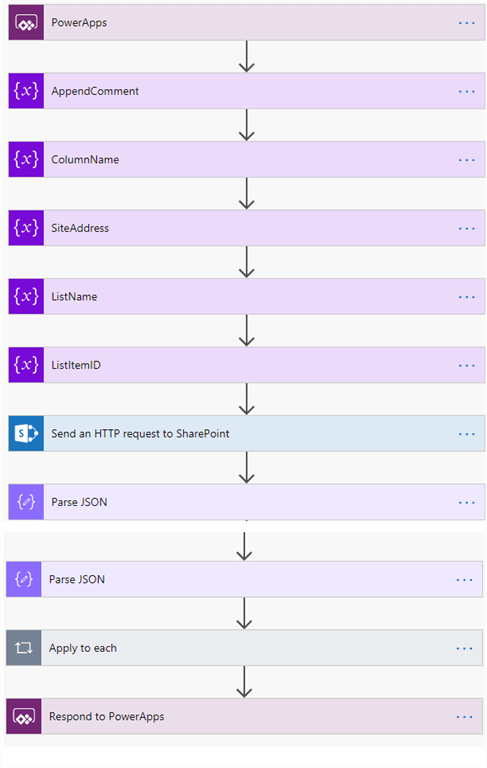

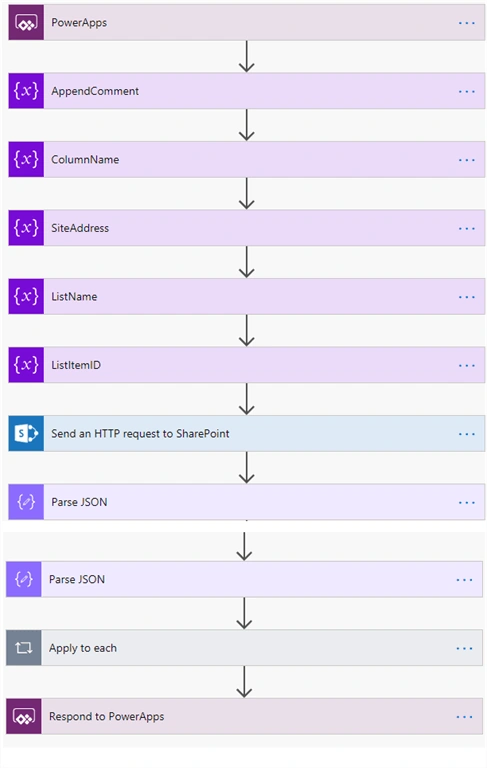

- The overall flow will look like the following screen.
Now, let’s trigger the MS Flow from PowerApps.
Step 2: Call MS Flow from PowerApps by Passing the Parameters

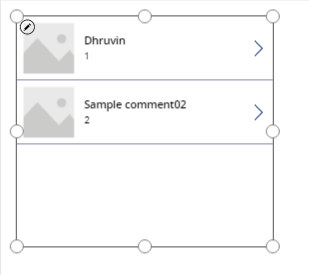

- I already have a SharePoint list shown in PowerApps.

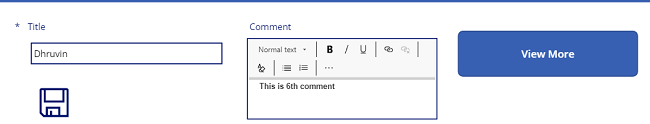

- On the Details screen, create a button. I created a button named “View More”.
- Go to Action, select Flow. It will show our created Flow.
- Now, write the following formula in the OnSelect button.
- Set(AppendCommentsMore,GetAllversions.Run("Comment","https://xyz8.sharepoint.com/sites/PowerApps","AppendedTextSample",SPAppendText.Selected.ID))
Here, in Set function, the variable named “AppendCommentsMore” has been created. It will run our flow and pass 4 parameters as an argument.
- Columnname = Comment
- Site URL
- ListName
- ItemId

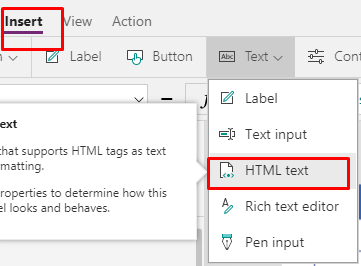

- Add an HTML Textbox to show the end result.

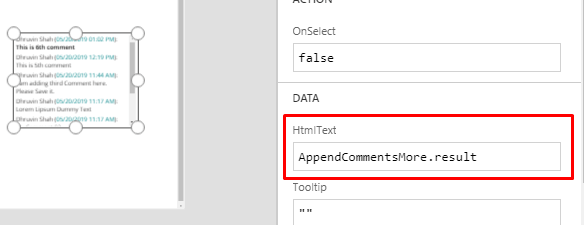

- Select HTML text and go to Advanced Property. Under Data, set HTMLtext as following.
- AppendCommentsMore.result
Step 3 - Run the PoweApps and test the Application
- Run PowerApps.
- Click on "View More".
- It will show all the comments.

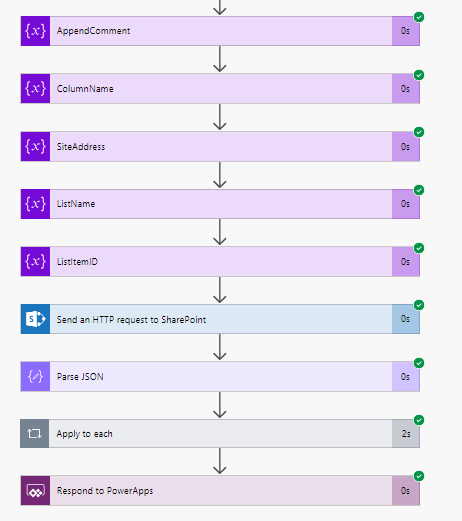

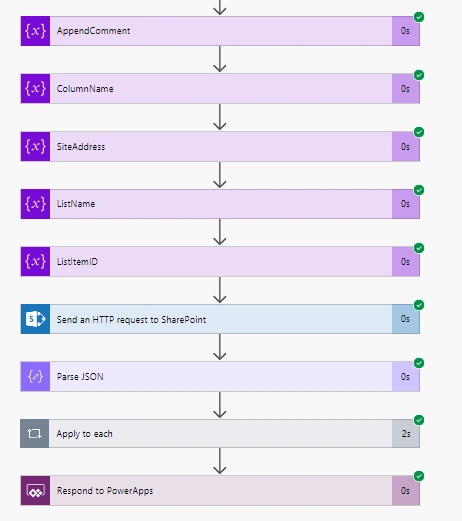

- Now, let’s check the flow history as well.
- The flow has been run successfully.
This is how we can easily get SharePoint Appended Column Version History in PowerApps.
Conclusion
I hope you love this article. If you do, don’t forget to follow me for more amazing articles on PowerApps. Stay connected with me for more articles.
Happy PowerApping !!!!!
