Display AutoSuggest Textbox in Web API

Introduction

This articles describes the Auto Suggested TextBox in the Web API. Type a letter in the TextBox and press the Enter key. It then displays an Autosuggest list.

The following is the procedure for creating the application.

Step 1

Create a Web API application.

Start Visual Studio 2012.

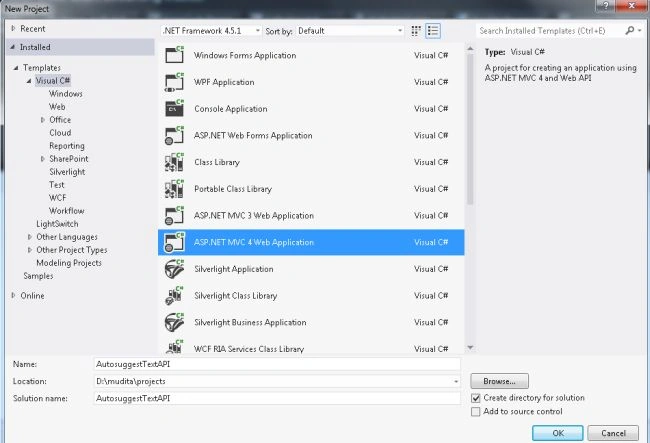

From the start window Select "Installed" -> "Visual C#" -> "Web".
Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.

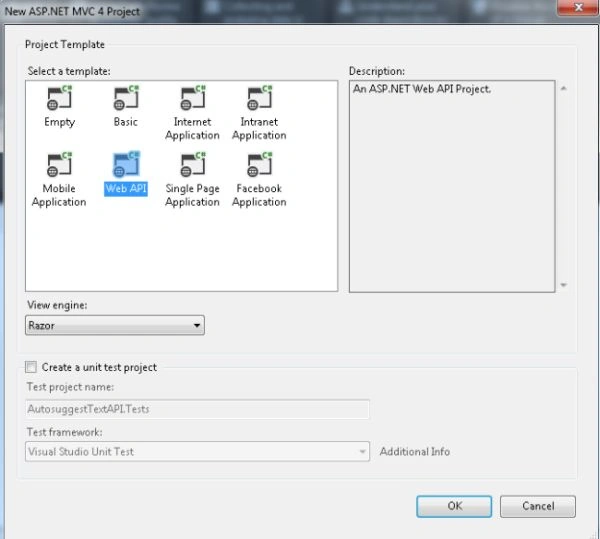

From the "MVC4 Project" window select "Web API".
Click on the "OK" button.

Step 2

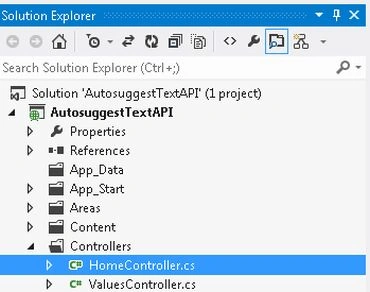

Now select the "HomeController".

In the "Solution Explorer".
Expand the Controller folder.
Select the "HomeController".

Add the following code:

using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Text;
using System.Web;
using System.Web.Mvc;
namespace AutosuggestTextAPI.Controllers
{
public class HomeController : Controller
{
public ActionResult Index()
{
return View();
}
public DataTable Items()
{
DataTable cityname = new DataTable();
cityname.Columns.Add("ID", typeof(int));
cityname.Columns.Add("Level", typeof(string));
cityname.Columns.Add("value", typeof(string));
cityname.Columns.Add("word", typeof(string));
DataRow dr = cityname.NewRow();
dr["ID"] = 1;
dr["Level"] = "2";
dr["value"] = "Kanpur";
dr["word"] = "KNP";
cityname.Rows.Add(dr);
dr = cityname.NewRow();
dr["ID"] = 2;
dr["Level"] = "3";
dr["value"] = "Lucknow";
dr["word"] = "LKW";
cityname.Rows.Add(dr);
dr = cityname.NewRow();
dr["ID"] = 3;
dr["Level"] = "4";
dr["value"] = "Delhi";
dr["word"] = "DLH";
cityname.Rows.Add(dr);
dr = cityname.NewRow();
dr["ID"] = 3;
dr["Level"] = "5";
dr["value"] = "Banaras";
dr["word"] = "BNA";
cityname.Rows.Add(dr);
dr = cityname.NewRow();
dr["ID"] = 4;
dr["Level"] = "6";
dr["value"] = "Banglore";
dr["word"] = "BNG";
cityname.Rows.Add(dr);
return cityname;
}
public ActionResult CityAutoSuggestByName(string autotext)
{
autotext = (autotext == null) ? "" : autotext;
return Content(JsonForAutoSuggestforName(Items().Select("value LIKE '%" + autotext + "%'")), "application/json");
}
static string loc;
public static string JsonForAutoSuggestforName(DataRow[] datarow)
{
StringBuilder jsonBuilder = new StringBuilder();
jsonBuilder.Append("[");
for (int a = 0; a < datarow.Length; a++)
{
jsonBuilder.Append("{\"ID\": \"");
jsonBuilder.Append(datarow[a][0].ToString());
jsonBuilder.Append("\",");
jsonBuilder.Append("\"Level\": \"");
loc = datarow[a][2].ToString().Replace("\\", "\\\\");
jsonBuilder.Append(loc.Replace("\"", "\\\""));
jsonBuilder.Append("\",");
jsonBuilder.Append("\"value\": \"");
datarow[a][2].ToString().Replace("\\", "\\\\");
jsonBuilder.Append(loc.Replace("\"", "\\\""));
jsonBuilder.Append("\",");
jsonBuilder.Append("\"word\": \"");
loc = datarow[a][3].ToString().Replace("\\", "\\\\");
jsonBuilder.Append(loc.Replace("\"", "\\\""));
jsonBuilder.Append("\",");
jsonBuilder.Remove(jsonBuilder.Length - 1, 1);
jsonBuilder.Append("},");
}
jsonBuilder.Remove(jsonBuilder.Length - 1, 1);
jsonBuilder.Append("]");
string jason = jsonBuilder.ToString();
return jsonBuilder.ToString();
}
}
}

Step 3

Now write some HTML code in the "index.cshtml" file. This file exists:

In the "Solution Explorer".
Expand "Views" folder.
Select "Home" -> "index.cshtml".

Add the following code:

@{ ViewBag.Title = "Using AutoSuggest on Enter Key"; }
<table>
<tr>
<td style="width:320px">
@Html.TextBox("CityName", "", new { @style = "width:320px;outline: 2px solid #FBEC88" })
</td>
</tr>
</table>
@section JavaScript {
<script type="text/javascript">
$(document).ready(function () {
$("#CityName").autocomplete({
search: function (event, ui) {
var k = event.keyCode;
if (k == 13) {
return true;
}
else
return false;
},
source: function (request, response) {
$.ajax({
url: '@Url.Action("CityAutoSuggestByName")',
data: { autotextext: request.term },
dataType: 'json',
type: 'POST',
success: function (data) {
response(data);
}
});
},
select: function (event, ui) {
$('#CityName').val(ui.city ? ui.city.value : 'Select');
}
});
});
</script>
}

Step 4

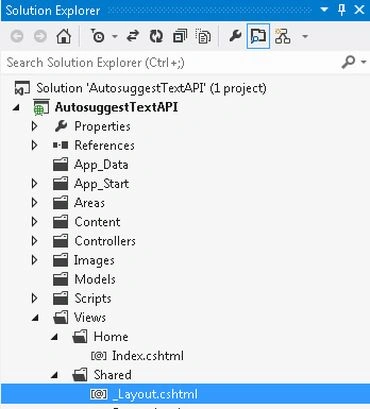

Select the "_Layout.cshtml" file.

In the "Solution Explorer".
Expand "Views" folder.
Select "Shared" -> "_Layout.cshtml".

Add the following code:

<!DOCTYPE html>
<html>
<head>
<title>@ViewBag.Title</title>
<link href="@Url.Content("~/Content/site.css")" rel="stylesheet" type="text/css" />
<link href="@Url.Content("~/Content/themes/base/jquery-ui.css")" rel="stylesheet" type="text/css" />
</head>
<body>
<div class="page">
<div id="header">
<div id="title">
<h1>For AutoSuggested List Press Enter</h1>
</div>
</div>
<div id="main">
@RenderBody()
<div id="footer">
</div>
</div>
</div>
<script src="@Url.Content("~/Scripts/jquery-1.4.4.min.js")" type="text/javascript"></script>
<script src="@Url.Content("~/Scripts/jquery-ui-1.8.7.min.js")" type="text/javascript"></script>
@RenderSection("JavaScript", false)
</body>
</html>

Step 5

Execute the application:

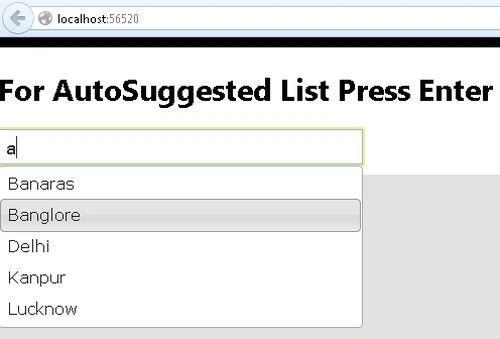

Show Autosuggest List

Display AutoSuggest Textbox in Web API
