Enhanced MSI Analyzer in .NET using C# and Windows Forms

Whenever we create an MSI, it will internally maintain a database with all the details of it like version, files, author etc. The main functionality of this application is to list all tables present in the MSI database along with updating capability.

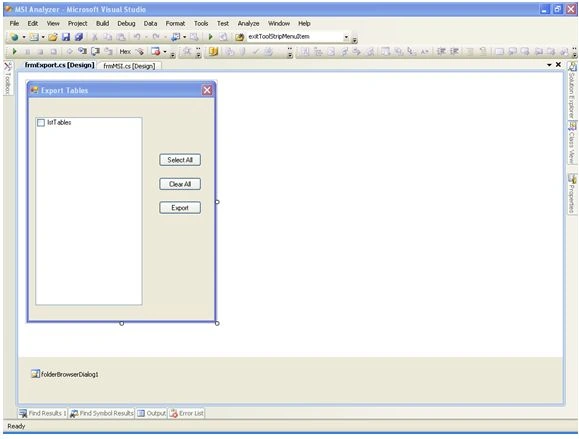

We will create another form, which will allow us to export the MSI contents to text files for future reference as shown below:

This form will list all the tables present in the selected MSI file. We can select which all tables are needed to be exported.

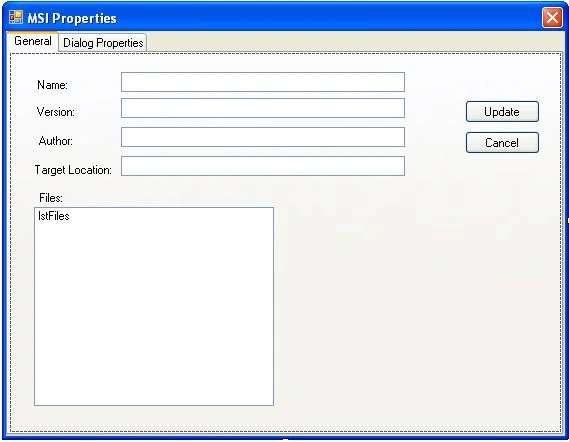

We will create last but not least form, which will allow us to view and update commonly changing properties as shown below:

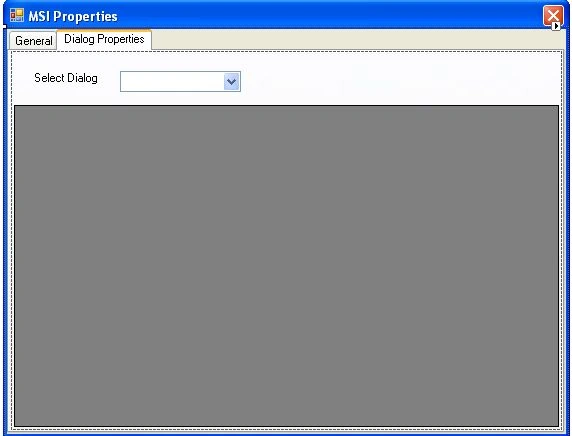

Here, I placed a Tab panel having two panels in it. One panel will list the properties like Name, Author, files and the other panel will list all the dialogs (like Welcome Screen, Progress Screen etc) of the MSI.

By this, we completed Design part. Let's start with the coding details:

Functionality present in MSIItems.cs:

In order to create buttons for each table present in the selected MSI, I implemented concept of control array of VB here. Here, I just created a class named MSIItems which inherits from System.Collections.CollectionBase. And in constructor of this class, I am passing container (Panel) for this buttons. Than, I added a method to implement add new button (table) to the Panel.

Functionality present in frmMSI.cs:

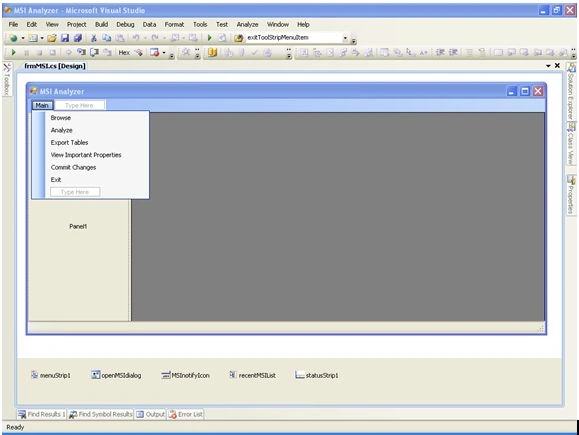

After selecting the MSI file by using Browse menuitem. When we click on Analyze menuitem, it will perform following steps:

• Opens the MSI database by using OpenDatabase of the Installer object.
• It will get the list of tables present in the MSI database from "_Tables".
• It will create a button in the panel1 for each table of the database.

When we click on a table button, it will perform following steps:

· Get the columns details of the selected table using "_Columns".

· Creates a DataTable and adds the columns to it based on the column details.

· Creates a DataRow for each record present in the selected table and adds it to the DataTable.

· Binds the DataTable to the GridView (dgContents).

Functionality present in frmExport.cs:

This will list all the tables of the MSI. We can select the tables that are needed to be exported. We are using Export method of the MSI database object to store in a text file format.

Functionality present in frmImpProperties.cs:

This will list commonly changing properties like name, version, dialog buttons etc.

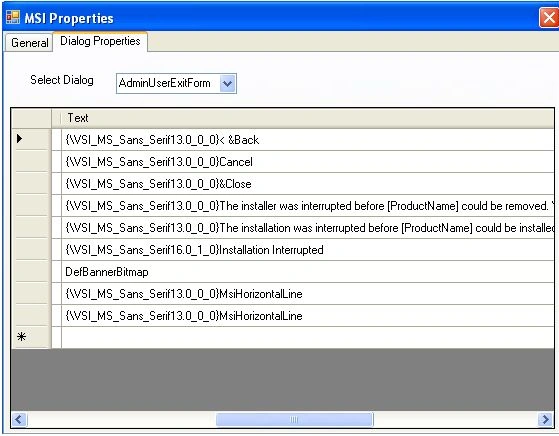

It will load the files present in the MSI. Later, it will load all the dialogs present in the MSI by using "Control" table of the MSI. Here, we can update the properties of all dialogs like caption, height and width of the buttons like Next, Back etc.

After making changes to any of the Dialog properties, we have to click on Update button of the corresponding row to commit those changes.

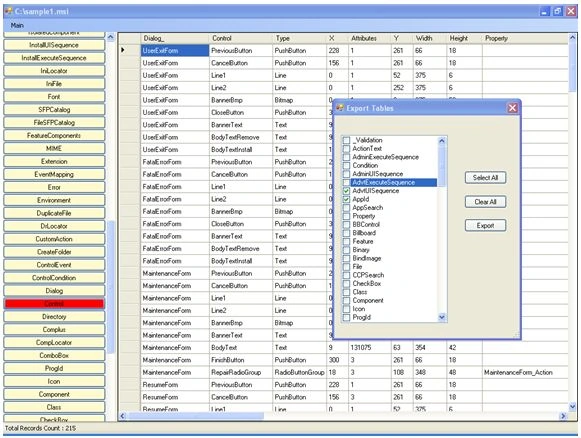

Finally, some code is added to include an Update button, highlight the edited row in Dialog grid, list recently opened MSIs etc. And, the final output will be like this:

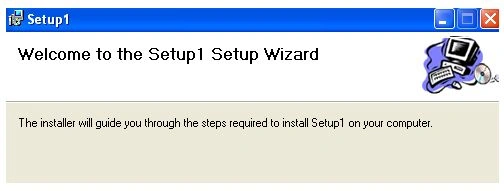

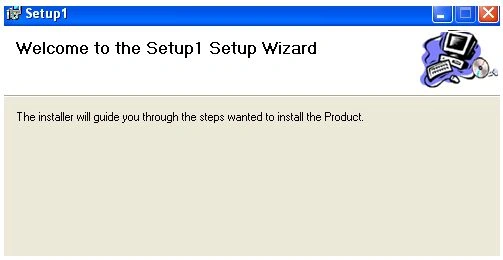

A small sample of the MSI changed by the application:

Like this, we can change the dialog properties, version, author etc without rebuilding it. This tool will be really useful, if we are customizing the same MSI for different clients.

We can still enhance this application by improving UI, adding extra functionality like adding, updating files present in the MSI.

By using this application, we can easily view and update the MSI without any extra effort. I am attaching source code for further reference. I hope this code will be useful for all.
