Enterprise-Grade Private LLM Deployment Architecture: Secure, Autoscaling, Multi-Region, and Internet-Isolated

Multi-Region Component Diagram

This diagram represents a fully isolated but synchronized multi-region architecture.

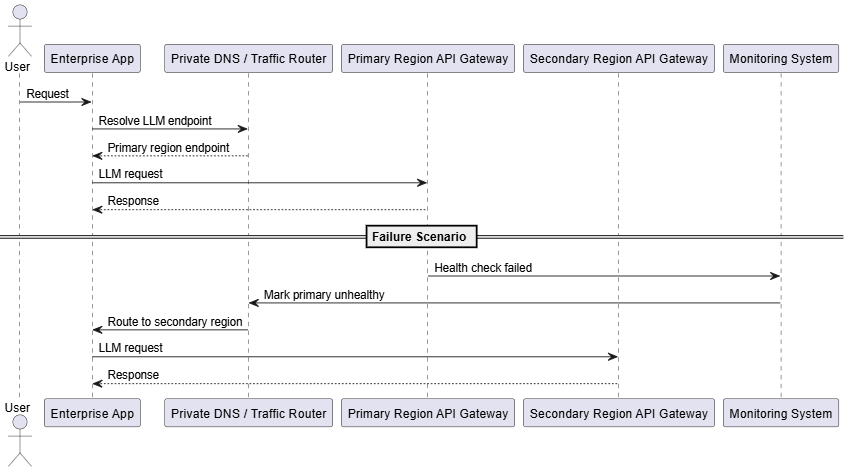

The multi-region component diagram represents a resilient, enterprise-grade LLM deployment architecture in which identical application stacks are deployed across two or more isolated regions or data centers to ensure high availability and disaster recovery. Each region contains its own internal API Gateway, authentication and IAM services, LLM inference services, vector database, and model storage, making every region fully self-sufficient and capable of serving traffic independently. Enterprise applications access the LLM platform through private network connectivity, ensuring that no component is exposed to the public internet. The regions are interconnected using secure private connectivity such as VPN, or MPLS, which enables controlled synchronization of critical data. Model artifacts and embeddings are replicated between regions to maintain consistency while allowing local, low-latency access during normal operations. In the event of a regional failure, traffic is seamlessly redirected to another healthy region without shared runtime dependencies or cross-region execution, thereby minimizing blast radius and ensuring operational continuity. This design provides strong fault isolation, supports regulatory compliance, and enables predictable recovery behaviour for mission-critical enterprise AI workloads.

Design highlights:

• Each region is self-sufficient

• Data replication ensures consistency

• No shared runtime dependencies

• Private connectivity only

• IAM can be centralized or regionally replicated

• Data Replication Strategy

In a multi-region enterprise LLM deployment, the data replication strategy is designed to balance consistency, performance, and resilience while avoiding tight coupling between regions. LLM model artifacts, which are typically large and immutable, are replicated across regions using secure object storage synchronization with versioning to ensure that every region runs the same validated model release. Vector databases that store embeddings and contextual data are usually replicated asynchronously, allowing each region to perform local read and write operations with low latency while tolerating eventual consistency during regional failovers. Logs, metrics, and audit data are collected locally and then forwarded to a centralized or federated observability system, with buffering mechanisms in place to prevent data loss during connectivity interruptions. This approach ensures that each region remains operational independently while still maintaining sufficient data alignment to support seamless disaster recovery.

Model Artifacts:

• Replicated using object storage sync

• Immutable versioning

• Vector Database:

• Asynchronous replication

• Eventual consistency acceptable

• Region-local read/write

Logs & Metrics:

• Centralized aggregation

• Region-local buffering during outages

• Autoscaling Across Regions

Autoscaling in a multi-region LLM architecture is handled independently within each region to preserve fault isolation and predictable performance. Each region's Kubernetes cluster monitors its own metrics—such as request rate, token throughput, GPU utilization, memory pressure, and latency percentiles—and scales LLM inference pods and underlying compute nodes accordingly. When a regional failover occurs and traffic is redirected from an unhealthy region to a healthy one, the sudden increase in load automatically triggers horizontal pod autoscaling and, if necessary, GPU node provisioning in the target region. This decentralized scaling model ensures that no cross-region coordination is required at runtime, preventing cascading failures and enabling each region to respond quickly to demand spikes while maintaining service-level objectives.

• Autoscaling happens per region

• Failover causes traffic surge → triggers HPA

• GPU nodes scale independently

• No cross-region scaling dependency

• Security in DR & Multi-Region

Security in a disaster recovery and multi-region LLM deployment follows a zero-trust, defense-in-depth model, where each region enforces the same strict controls independently. All inter-region communication, including data replication and health signaling, occurs over private, encrypted channels with mutual authentication to prevent unauthorized access. Identity and access management policies are either centrally governed and synchronized or replicated per region to avoid dependency on a single control plane during outages. Network segmentation, private endpoints, and strict firewall rules ensure that LLM services are accessible only through internal API gateways by authorized applications or users. Additionally, region-specific audit logs, security monitoring, and compliance reporting enable forensic analysis and regulatory adherence even during partial outages, ensuring that resilience does not compromise security or governance.

• Zero-trust network policies per region

• Private certificates per cluster

• No shared service accounts

• Encrypted replication channels

• Independent audit logs per region

Advantages

• Near-zero downtime

• Enterprise-grade resilience

• No public internet dependency

• Transparent failover

• Regulatory compliance (BCP/DR)

• Region-level isolation for blast-radius control

• Supports both cloud and on-prem DR sites

Summary

Disaster Recovery and Multi-Region design transforms a custom LLM deployment into a mission-critical, enterprise AI platform. By deploying identical stacks across regions, replicating data securely, and using private traffic routing with health-based failover, organizations can achieve high availability, fault tolerance, and regulatory compliance. This design ensures that AI services remain operational even during catastrophic failures—without sacrificing security, performance, or portability.
