Entity Splitting Delete Data Using Code First Approach

Introduction

This article shows how to perform Entity Splitting and later we will also look at how to perform a delete data operation using the Code First Approach.

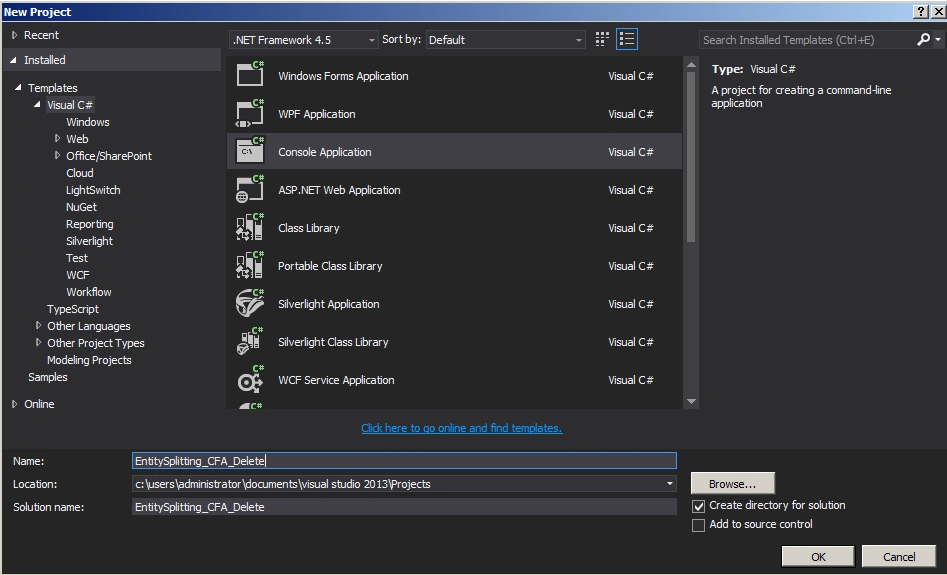

Create console application as in the following:

Employee.cs

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace EntitySplitting_CFA_Delete
{
public class Employee
{
public Employee()
{
}
[Key]
[DatabaseGenerated(DatabaseGeneratedOption.Identity)]
public int Id { get; set; }
public string FirstName { get; set; }
public string LastName { get; set; }
public int Phone { get; set; }
public string Email { get; set; }
}
}

Employeecontext.cs

using System;
using System.Collections.Generic;
using System.Data.Entity;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace EntitySplitting_CFA_Delete
{
public class EmployeeContext : DbContext
{
public EmployeeContext()
: base("EmployeeConn")
{
Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
}
public DbSet<Employee> Employees { get; set; }
protected override void OnModelCreating(DbModelBuilder modelBuilder)
{
modelBuilder.Entity<Employee>()
.Map(map =>
{
map.Properties(r => new
{
r.Id,
r.FirstName,
r.LastName
}); map.ToTable("Employee");
})
.Map(map =>
{
map.Properties(r => new
{
r.Phone,
r.Email
}); map.ToTable("EmployeeDetails");
});
base.OnModelCreating(modelBuilder);
}
}
}

Web.config

<connectionStrings>
<add name="EmployeeConn"
connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
providerName="System.Data.SqlClient"/>
</connectionStrings>

Program.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace EntitySplitting_CFA_Delete
{
class Program
{
static void Main(string[] args)
{
EmployeeContext empContext = new EmployeeContext();
var empID = 1;
var emp = empContext.Employees.Where(a => a.Id.Equals(empID)).SingleOrDefault();
empContext.Employees.Remove(emp);
empContext.SaveChanges();
}
}
}

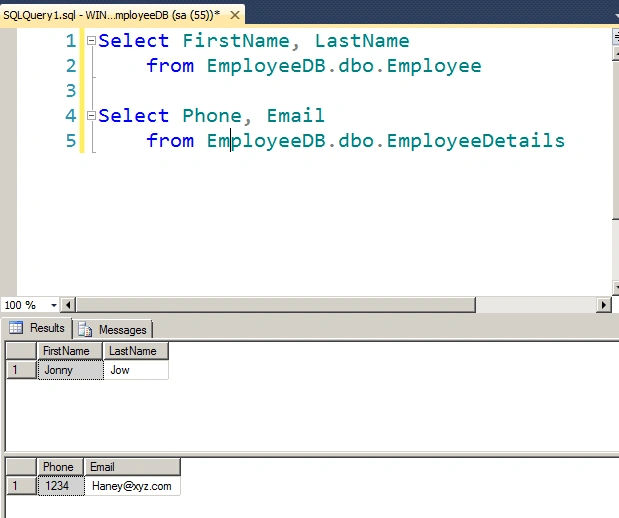

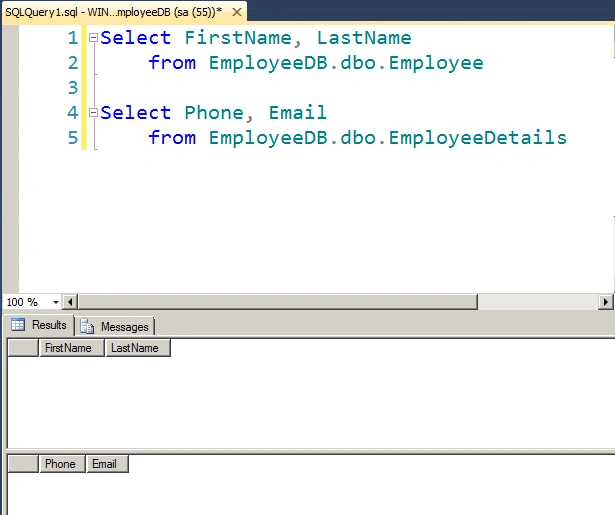

The output of the application looks as in the following:

Summary

In this article we saw how to perform Entity Splitting and how to perform a delete data operation using the Code First Approach. Happy coding!
