Introduction

This article shows how to perform Entity Splitting and later we will also look at how to perform an insert data operation using the Code First Approach.

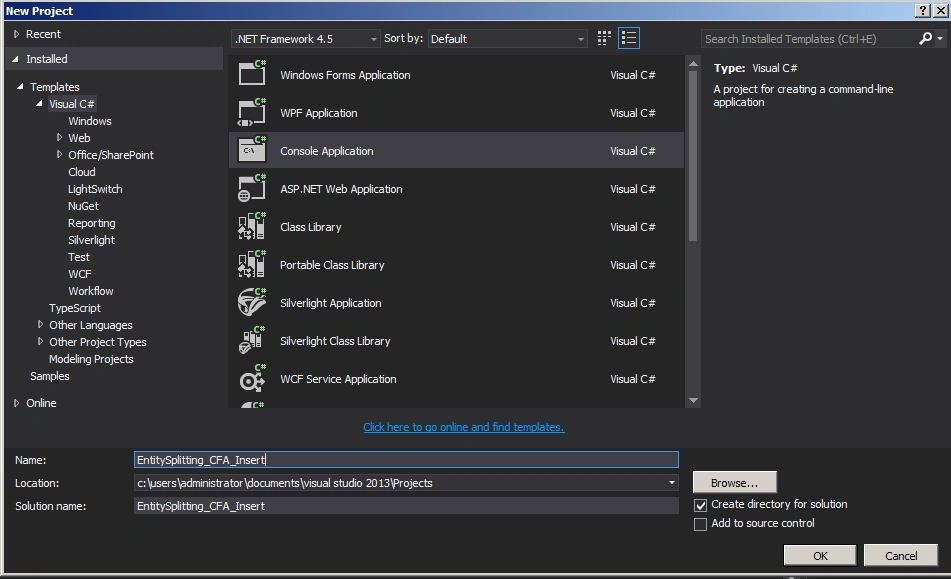

Create a console application as in the following:

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  9. namespace EntitySplitting_CFA_Insert
  10. {
  11. public class Employee
  12. {
  13. public Employee()
  14. {
  15. }
  17. [Key]
  18. [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  19. public int Id { get; set; }
  20. public string FirstName { get; set; }
  21. public string LastName { get; set; }
  22. public int Phone { get; set; }
  23. public string Email { get; set; }
  24. }
  25. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  8. namespace EntitySplitting_CFA_Insert
  9. {
  10. public class EmployeeContext : DbContext
  11. {
  12. public EmployeeContext()
  13. : base("EmployeeConn")
  14. {
  15. Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  16. }
  18. public DbSet<Employee> Employees { get; set; }
  20. protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21. {
  22. modelBuilder.Entity<Employee>()
  23. .Map(map =>
  24. {
  25. map.Properties(r => new
  26. {
  27. r.Id,
  28. r.FirstName,
  29. r.LastName
  30. }); map.ToTable("Employee");
  31. })
  32. .Map(map =>
  33. {
  34. map.Properties(r => new
  35. {
  36. r.Phone,
  37. r.Email
  38. }); map.ToTable("EmployeeDetails");
  39. });
  41. base.OnModelCreating(modelBuilder);
  42. }
  43. }
  44. }

Web.config

  1. <connectionStrings>
  2. <add name="EmployeeConn"
  3. connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4. providerName="System.Data.SqlClient"/>
  5. </connectionStrings>
Program.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  7. namespace EntitySplitting_CFA_Insert
  8. {
  9. public class Program
  10. {
  11. static void Main(string[] args)
  12. {
  13. EmployeeContext empContext = new EmployeeContext();
  14. Employee emp = new Employee()
  15. {
  16. FirstName = "Haney",
  17. LastName = "Jow",
  18. Phone = 12345678,
  19. Email="[email protected]"
  21. };
  22. empContext.Employees.Add(emp);
  23. empContext.SaveChanges();
  24. Console.WriteLine("Inserted");
  25. Console.ReadKey();
  26. }
  27. }
  28. }

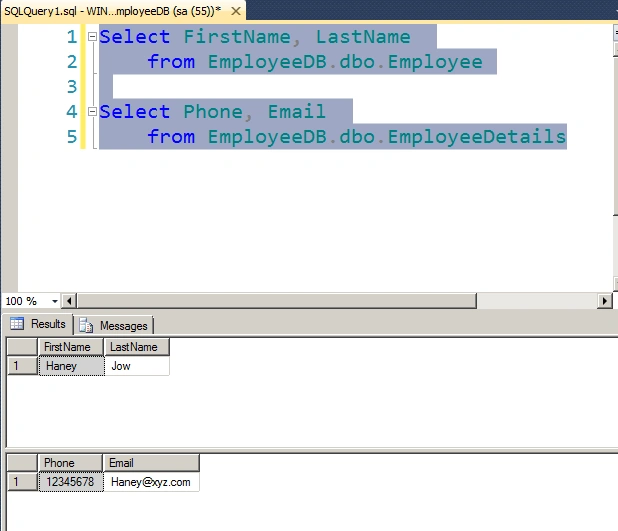

The output of the application looks as in the following:

Summary

In this article we saw how to perform Entity Splitting and how to perform an insert data operation using the Code First Approach. Happy coding!
