Fetch Image From Database in Windows Form Application

Introduction

In my previous article I described how to insert image into database and in this article I will describe how to retrieve an image from a database and display it in a picture box.

Use the following procedure to fetch the image.

Step 1

Open a Windows Forms application and insert a picture box and a button into the form.

Step 2

Write C# code to retrieve the image from the SQL Server database .

using System;

using System.Collections.Generic;

using System.ComponentModel;

using System.Data;

using System.Drawing;

using System.Linq;

using System.Text;

using System.Windows.Forms;

using System.Data.SqlClient;

using System.IO;

namespace insert_image_in_database

{

public partial class Form2 : Form

{

public Form2()

{

InitializeComponent();

}

SqlConnection con;

SqlCommand cmd;

private void button1_Click(object sender, EventArgs e)

{

con = new SqlConnection("Data Source=MCNDESKTOP03;Initial Catalog=pulkit;User ID=sa;Password=wintellect@123");

con.Open();

cmd = new SqlCommand("select picname from pic where id=2", con);

SqlDataAdapter da = new SqlDataAdapter(cmd);

DataSet ds = new DataSet();

da.Fill(ds);

if (ds.Tables[0].Rows.Count > 0)

{

MemoryStream ms = new MemoryStream((byte[])ds.Tables[0].Rows[0]["picname"]);

pictureBox1.Image = new Bitmap(ms);

}

}

}

}

Step 3

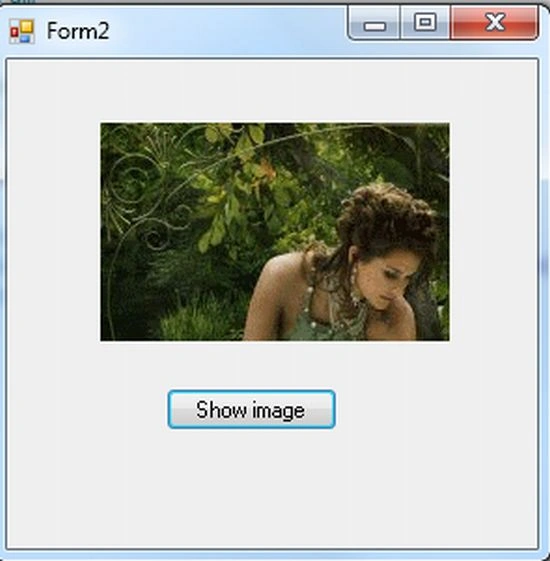

Now run your application and click on the button to see the image displayed in the picture box.
