Floyd's Triangle in Windows Store App

In this article I explain Floyd's Triangle in programming languages. But let us first of all understand what Floyd's Triangle is.

Floyd's Triangle

It is a right angle triangle of a natural number.

Use the following step to create the Floyd's Triangle in a Windows Store app.

Step 1

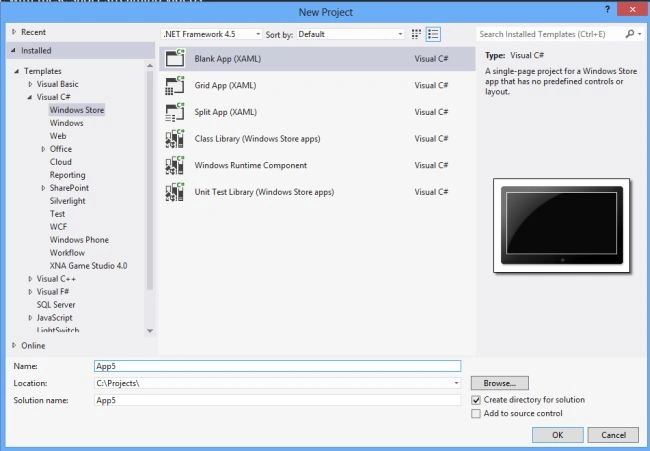

First of all you have to create a New Window Store Application.

Open Visual Studio 2012
"File" -> "New" -> "Project..."
Choose "Template" -> "Visual C#" -> "Window Store app"
Choose "Blank App (XAML)" then rename the application

Step 2

Write the following XAML code in "Mainpage.Xaml" (that is available in Solution Explorer):

<Page

x:Class="Floyd_triangle_app.MainPage"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:local="using:Floyd_triangle_app"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

mc:Ignorable="d">

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

<Grid.RowDefinitions>

</Grid.RowDefinitions>

</Grid>

</Page>

Step 3

Now write the following C# code in "Mainpage.Xaml.cs" for the button:

using System;

using System.Collections.Generic;

using System.IO;

using System.Linq;

using Windows.Foundation;

using Windows.Foundation.Collections;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

using Windows.UI.Xaml.Controls.Primitives;

using Windows.UI.Xaml.Data;

using Windows.UI.Xaml.Input;

using Windows.UI.Xaml.Media;

using Windows.UI.Xaml.Navigation;

using Windows.UI;

namespace Floyd_triangle_app

{

public sealed partial class MainPage : Page

{

public MainPage()

{

this.InitializeComponent();

}

protected override void OnNavigatedTo(NavigationEventArgs e)

{

}

private void Button1_Click(object sender, RoutedEventArgs e)

{

text1.Text = "";

int range = Convert.ToInt32(textbox1.Text);

int k = 1;

for (int i = 1; i <= range ; i++)

{

for (int j = 1; j <= i; j++,k++)

{

text1.Text += k.ToString();

text1.Text += " ";

}

text1.Text += Environment.NewLine;

}

Step 4

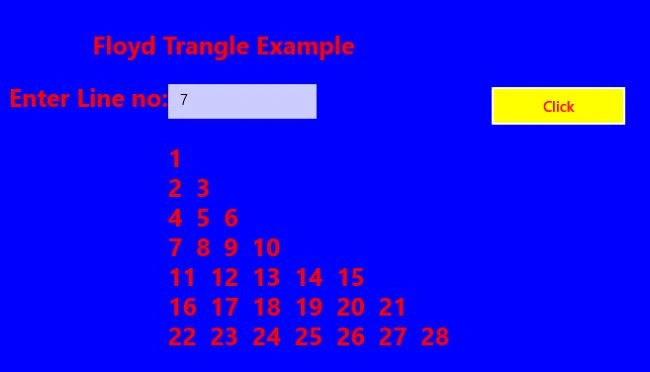

Run your App.
