Introduction

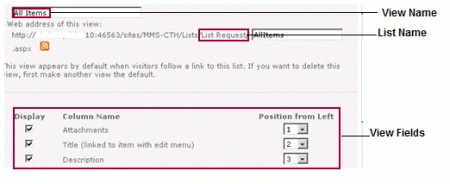

In this article you will see how to get all the field names from the specified list view in the SharePoint 2010 using ECMAScript. I have a list named "List Request" from which I need to get all the field names from a particular view (for example: "All Items"). In this I will show you how to get the field names from "All Items" view. My "All Items" view has the following view fields.

Step 1


Steps Involved

  • Navigate to the SharePoint site ( I have a site page created in my site where I am going to add the content editor web part).

  • On to Site Actions, click on Edit Page.

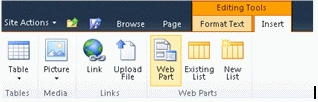

Step 2 : Click on Insert tab in the ribbon interface and then click on Web Part button.

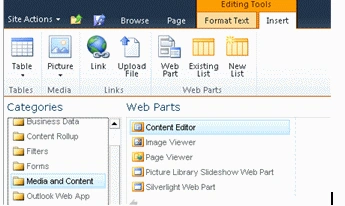

Step 3 : Select Media and Content in the Categories section and then click on Content Editor.


Step 4 : Click on Add.

Step 5 : Content editor web part will be added to the site page.

Step 6 : Click on down arrow and then click on Edit Web Part.


Step 7 : Click on "Click here to add new content".

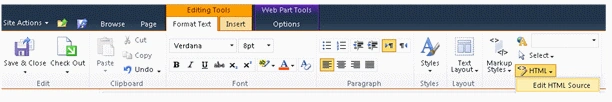

Step 8 : Click on Format Text tab in the ribbon interface and then click on HTML drop down.


Step 9 : Click on Edit HTML source.

Step 10 : HTML source window will pop up.


Step 11 : Copy and paste the following script.

code :

 <script language="ecmascript" type="text/ecmascript">
 var web = null;|
var listCollection = null;|
var list = null;
var viewCollection = null;|
var view = null;
var value = null;
var viewFieldColl = null;
function getViewFields() {
var clientContext = new SP.ClientContext.get_current();
if (clientContext != undefined && clientContext != null) {
this.web = clientContext.get_web();
this.listCollection = web.get_lists();
this.list = listCollection.getByTitle("List Request");
this.viewCollection = list.get_views();
this.view = viewCollection.getByTitle("All Items");
this.viewFieldColl = view.get_viewFields();
clientContext.load(this.viewFieldColl);
clientContext.executeQueryAsync(Function.createDelegate(this, this.onQuerySucceeded), Function.createDelegate(this, this.onQueryFailed));
}
}
function onQuerySucceeded() {
this.value = viewFieldColl.get_schemaXml();
alert(value)
}
function onQueryFailed(sender, args) {
alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
}</script>
 <input id="btnGetViewFields" onclick="getViewFields()" type="button" value="Get View Fields" />

Step 12 : Click on Ok.

Step 13 : In the ribbon interface click on Save & Close button.


Step 14 : In the content editor web part you could find a button named "Get View Fields", click on that button.


Step 15 : Alert will pop up displaying the field names as shown in the following.

 Reference

 SP.View.viewFields Property - http://msdn.microsoft.com/en-us/library/ee553144.aspx
 SP.ViewFieldCollection.schemaXml Property - http://msdn.microsoft.com/en-us/library/ee558136.aspx

 Summary

 Thus in this article you have seen how to get all the field names from the specified view in the SharePoint 2010 list
