Introduction
This article explains how to get the BIOS details of your system. Here I will get the information from the Win32_BIOS class.
What Win32_BIOS is
The Win32_Desktop WMI class represents the attributes of the computer system's Basic Input/Output Services (BIOS) that are installed on a computer.
Design
Create a new ASP.Net Empty website.
Add one page to that website.
Write the following source code:
- <head runat="server">
- <title></title>
- <style type="text/css">
- html
- {
- font-size: 1.5em;
- font-family: Calibri;
- color: Red;
- }
- </style>
- </head>
- <body>
- <form id="form1" runat="server">
- <div>
- </div>
- </form>
- </body>
- </html>
Next add a reference of "System.Management".
To add the reference use the following procedure.

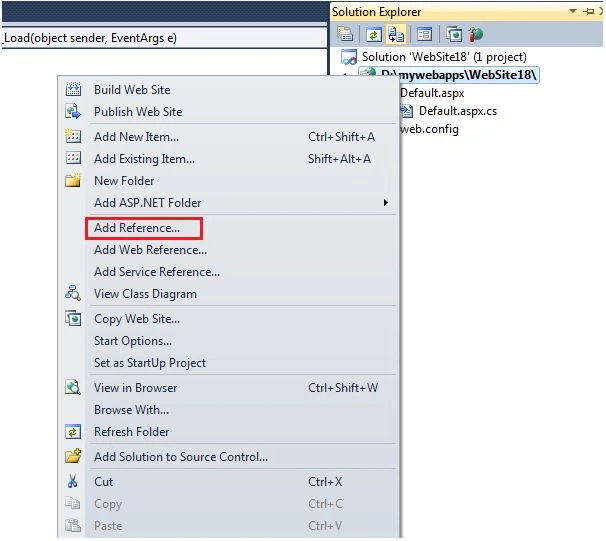

Go to Solution Explorer, select the project and right-click on that and choose "Add Reference" from the menu.

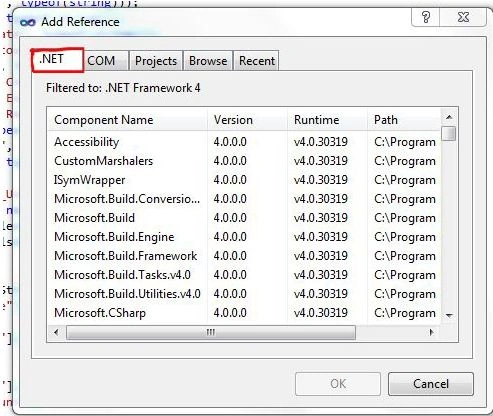

A window will open; in that choose the ".Net" tab.

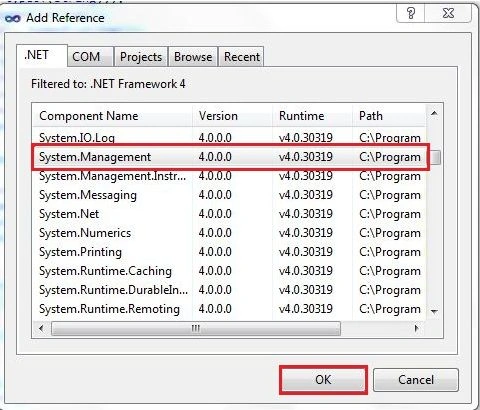

It will show a list. In that list, choose "System.Management" and click the "OK" Button.
Now go to code view and write the following code:
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.UI;
- using System.Web.UI.WebControls;
- using System.Management;
- public partial class _Default : System.Web.UI.Page
- {
- protected void Page_Load(object sender, EventArgs e)
- {
- SelectQuery Sq = new SelectQuery("Win32_BIOS");
- ManagementObjectSearcher objOSDetails = new ManagementObjectSearcher(Sq);
- ManagementObjectCollection osDetailsCollection = objOSDetails.Get();
- foreach (ManagementObject mo in osDetailsCollection)
- {
- Response.Write("Name : " + mo["Name"].ToString() + "<br/>");
- string[] BIOSVersion = (string[])mo["BIOSVersion"];
- string s2 = null;
- foreach (string version in BIOSVersion)
- {
- s2 += version;
- }
- Response.Write("BIOSVersion : " + s2 + "<br/>");
- Response.Write("Caption : " + mo["Caption"].ToString() + "<br/>");
- Response.Write("Description : " + mo["Description"].ToString() + "<br/>");
- Response.Write("InstallableLanguages : " + Convert.ToUInt16(mo["InstallableLanguages"]).ToString() + "<br/>");
- Response.Write("InstallDate : " + Convert.ToDateTime(mo["InstallDate"]).ToString() + "<br/>");
- Response.Write("Manufacturer : " + mo["Manufacturer"].ToString() + "<br/>");
- Response.Write("PrimaryBIOS : " + mo["PrimaryBIOS"].ToString() + "<br/>");
- Response.Write("ReleaseDate : " + mo["ReleaseDate"].ToString() + "<br/>");
- Response.Write("SerialNumber : " + mo["SerialNumber"].ToString() + "<br/>");
- Response.Write("SMBIOSBIOSVersion : " + mo["SMBIOSBIOSVersion"].ToString() + "<br/>");
- Response.Write("SMBIOSMajorVersion : " + mo["SMBIOSMajorVersion"].ToString() + "<br/>");
- Response.Write("SMBIOSMinorVersion : " + mo["SMBIOSMinorVersion"].ToString() + "<br/>");
- Response.Write("SMBIOSPresent : " + mo["SMBIOSPresent"].ToString() + "<br/>");
- Response.Write("SoftwareElementID : " + mo["SoftwareElementID"].ToString() + "<br/>");
- Response.Write("SoftwareElementState : " + mo["SoftwareElementState"].ToString() + "<br/>");
- Response.Write("Status : " + mo["Status"].ToString() + "<br/>");
- Response.Write("TargetOperatingSystem : " + mo["TargetOperatingSystem"].ToString() + "<br/>");
- Response.Write("Version: " + mo["Version"].ToString() + "<br/>");
- }
- }
In the code above I get the information from Win32_BIOS and display that in the page.
SelectQuery
It represents a WQL (WMI Query Language) SELECT data query.
ManagementObjectSearcher
It retrieves a collection of management objects based on a specified query.
This class is one of the more commonly used entry points to retrieving management information.
ManagementObjectCollection
It represents various collections of management objects retrieved using WMI.

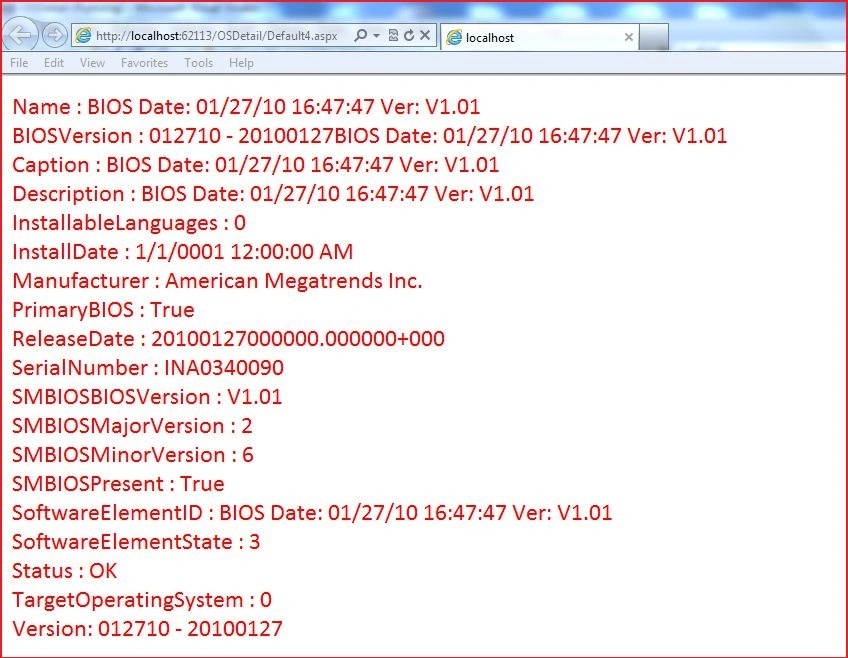

Now build your application, it will show the details of your BIOS details of your system in the page.
philip bishopPosted Jan 31, 2014, 3:36 PM
So can you get all the bios info and put in string format like !bios does? I like your approach because it works in windows where !bios has to be booted at startup
Sam HobbsPosted Aug 21, 2013, 12:36 PM
What system does this get the information for? I assume it gets the information for the server, not the client. I think WMI is more useful for desktop applications than server applications. How could a client use the information about the BIOS in the server?
