Getting Started With Azure IoT Hub And Devices

Introduction

Azure IoT Hub is a managed service of the Azure cloud which acts as central bi-directional message hub to exchange between IoT application and devices. Azure IoT hub allows you to create reliable and secure communication between IoT devices and Cloud apps. The devices can be virtual. It supports bi-directional communication; i.e. from the device to the cloud and from the cloud to the device.

Setting up an Azure IoT Hub

There are multiple ways to create Azure IoT Hub such as using Azure portal, Azure PowerShell, Azure CLI, etc. In this article, I will explain how to create and manage IoT hub using Azure portal.

To create an IoT hub, you must have an Azure account. Following are the steps to create an IoT hub using Azure portal.

Step 1

Sign into the Azure Portal

Step 2

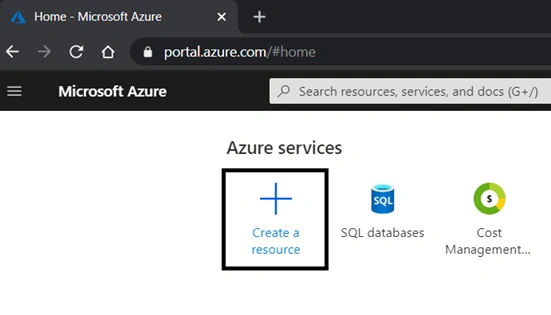

Click on “Create a resource” button from the portal home screen.

Getting Started With Azure IoT Hub And Devices

Step 3

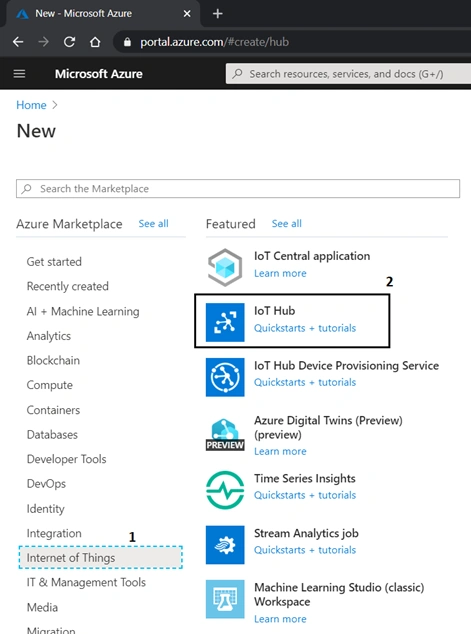

This will list down all available service. Select “Internet of Things” from left panel and click on “IoT Hub” from right panel. You can also search required service from search textbox.

Step 4

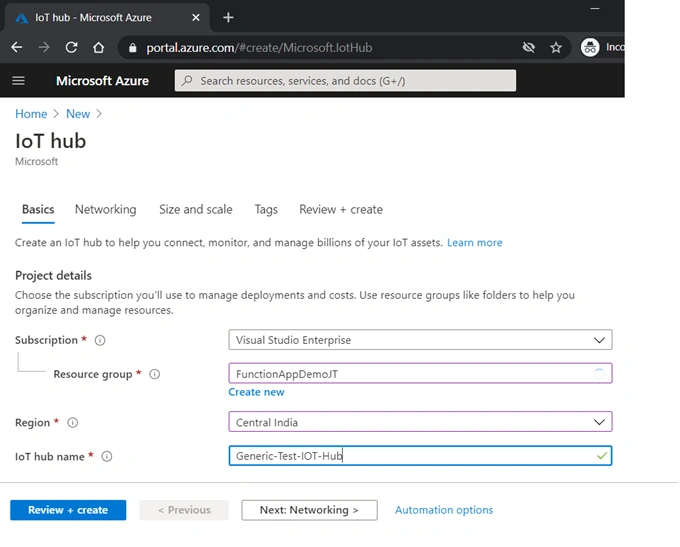

There are some mandatory information you need to fill up for IoT hub. Following information need to fill in "Basic" tab.

Subscription: select the subscription that you want to use to create IoT hub
Resource Group: select the existing resource group or create new one
Region: select region in which you want to host your IoT hub. You can select region that is very near to your devices.
IoT Hub Name: enter IoT hub name. It must be unique at global level

There are some other tabs also available such as Networking, Size and scale, and Tags. These tabs have some default option selected. You may change those default options base on your requirement.

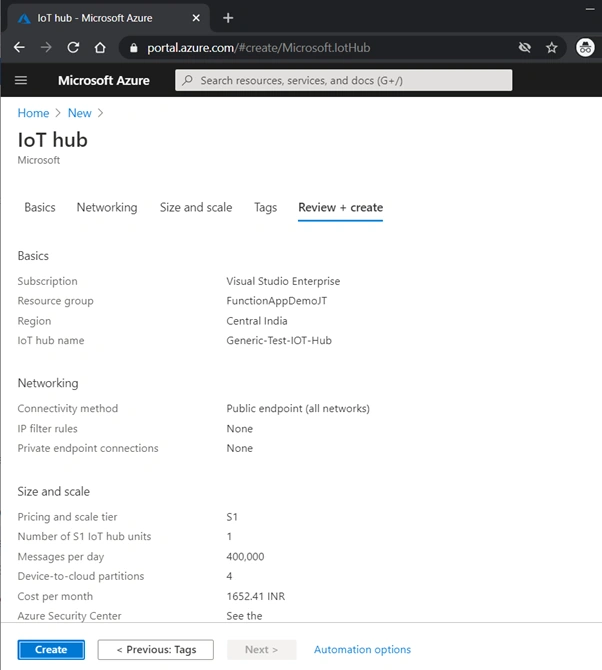

Click on “Review+ create” button, once you setting up all fields. It summarizes all the option that you have selected to create IoT hub. You can also modify the option if something wrong option has been selected by selecting particular tab.

Once you fine with selected options, click on “Create” button to create IoT hub.

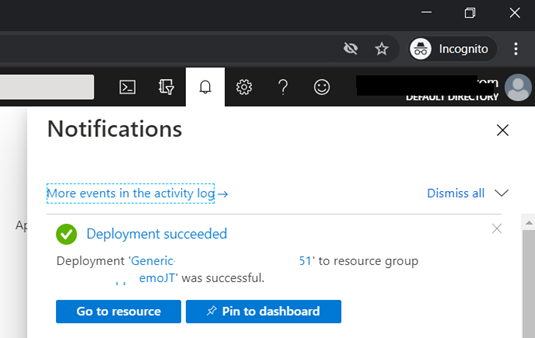

It takes some time to create and host your IoT hub. Once your IoT hub hosted and available for use, you will get notification.

You can also modify the setting of the IoT hub once you create have created it.

Shared access policies

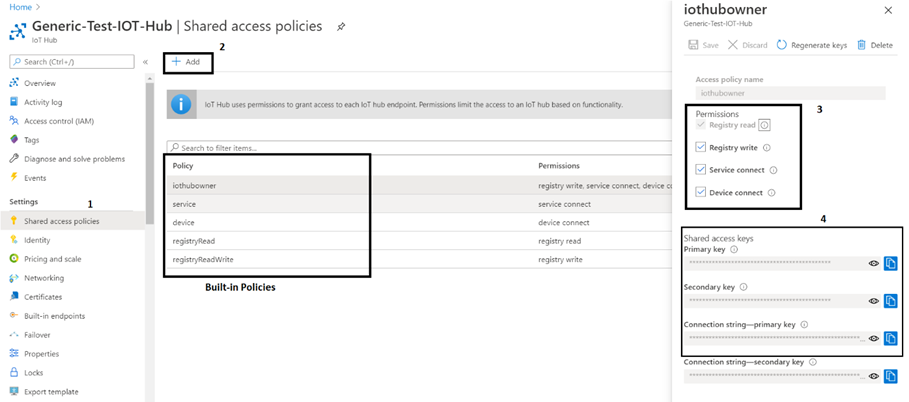

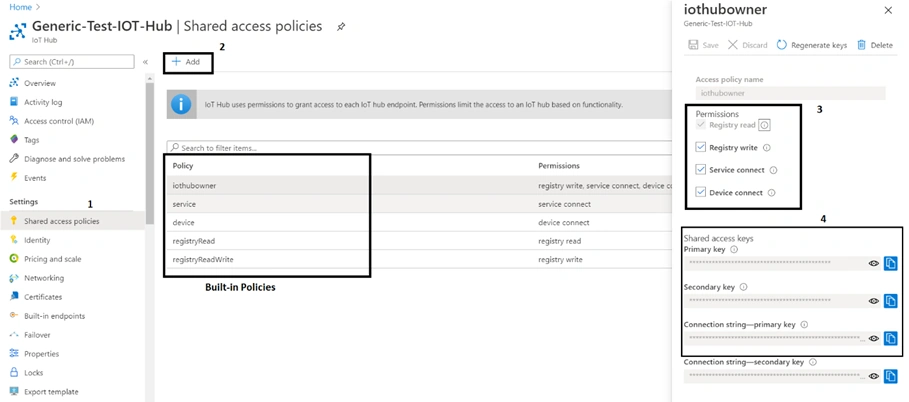

You can view and modify the IoT hub shared access policies by clicking on "Shared access policy" from left panel under the setting section. There are some pre-defined shared access policies that are defined. You can add your custom shared access policy. Basically, it contains the permission of IoT hub access. The access policies contain the key and connection string that can be use to connect IoT hub from the devices.

You can also view, modify and delete the pre-defined access policies.

To add new access policy, click on “+ Add” button. Here, you have to provide policy name and set of permission associate with the policy.

There are four permissions that you can set to policy.

Registry Read: It grants the read access rights to the identity registry
Registry write: It grants the write access rights to the identity registry
Service connect: It grants permission for access service endpoints. When you enable this option, one can connect service end point and send and receive messages from the device and also read and modify device twin data
Device connect: It grants the permission for sending receiving message. It is used to send and receive message from IoT hub. It also used to read and modify device twin data.

Creating new Devices in IoT Hub

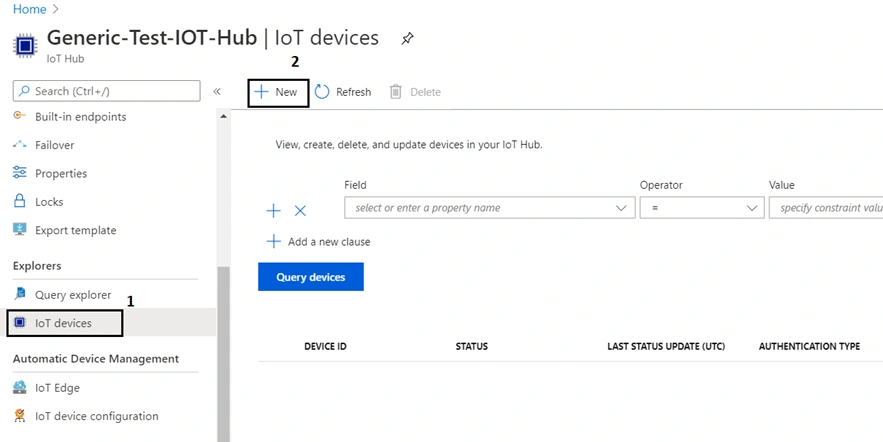

The devices can be created under the IoT hub. To create new device, select "IoT devices" from left panel under the Explorer section and then click on "+New" button.

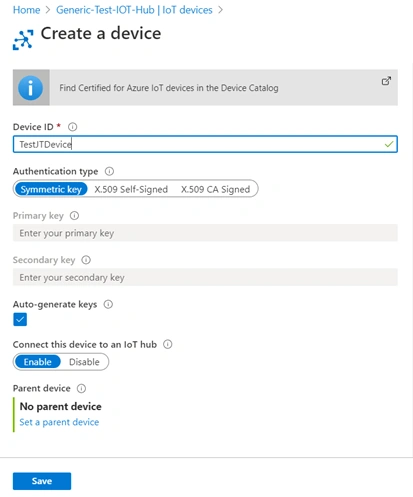

Provide the name of device and click on save button. Here, Azure provides the option to create custom primary key/secondary key. You can also generate a key automatically.

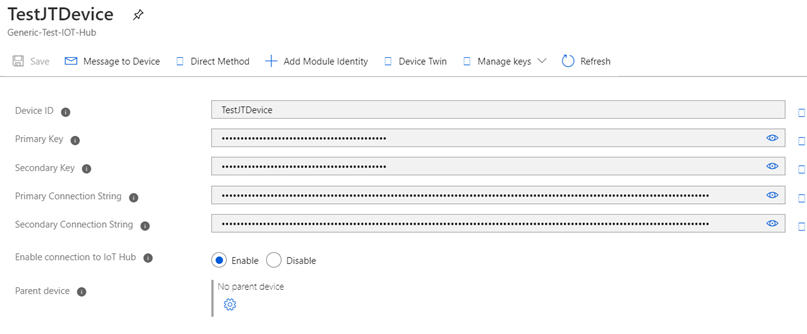

Once you have created a device, you can open the device from IoT device list and view / copy the keys and connection strings.

Delete the IoT devices

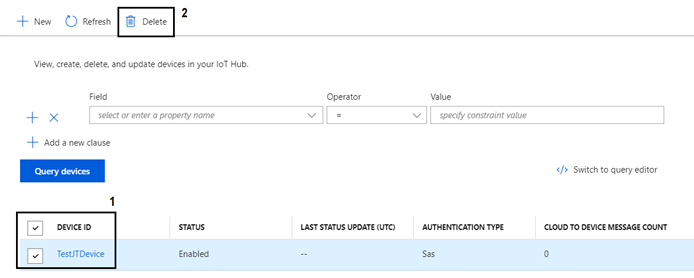

You can also delete the IoT devices. To delete devices, select the devices from the list and click on “Delete” button. It will ask for the conformation and when you confirm, it will delete the IoT device.

Delete IoT hub

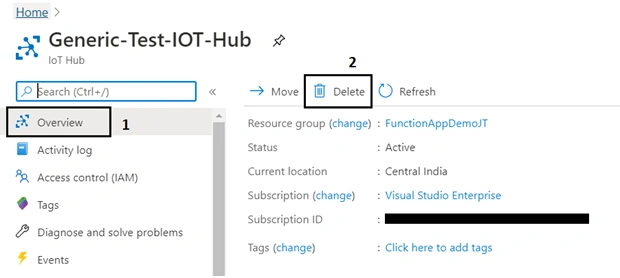

To delete the IoT hub, select the IoT hub and then click on the “Overview” section from left panel. Now, click on “Delete” button from the right panel.

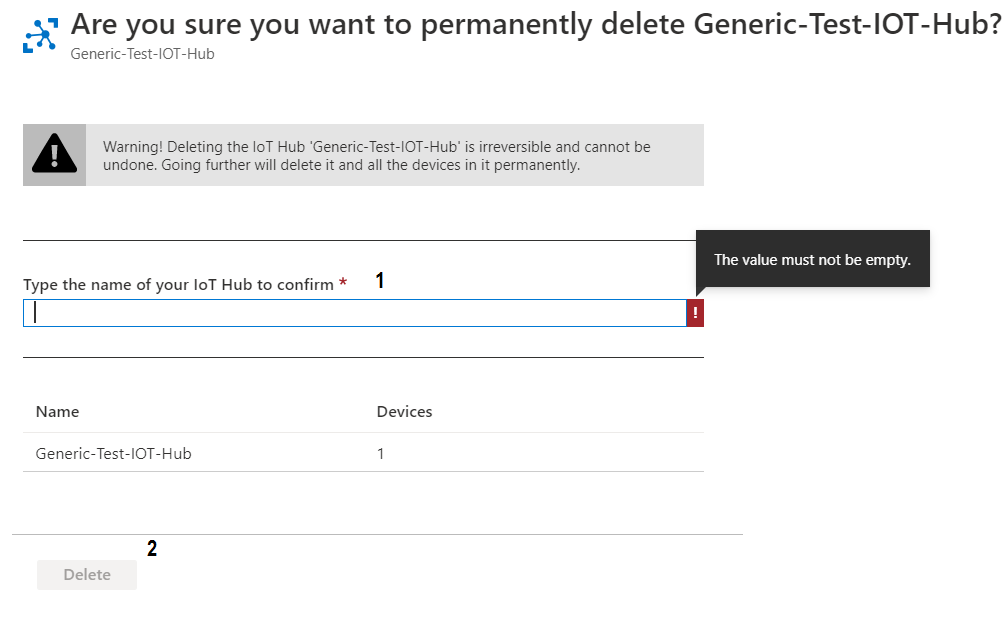

It will ask for confirmation and you have to type the name of the Iot hub to confirmthen click on delete button. Once you delete the IoT hub, all the devices are permanently deleted.

Summary

Azure IoT Hub is a managed service of Azure cloud which acts as central bi-directional message hub to exchange between IoT application and devices. It allows you create reliable and secure solution for connecting billions of devices. You can use Azure IoT device SDK to build device software. It supports many languages such as C, C#, Java, Python and Node.js. The IoT hub supports many protocols for connecting devices such as Https, AMQP, MQTT and AMQP/MQTT over WebSocket.
