Working With WPF Grid Panel

Introduction

Grid Panel is the most complicated but versatile panel among all panels in WPF. A Grid panel can be used to design complicated user interfaces where we need to place multiple elements in a tabular form of rows and columns layout.

The Grid element in XAML represents a Grid panel. The following code snippet creates a Grid element and sets its background, width, height, vertical and horizontal alignment properties.

<Grid Name="GridPanel" Background="Blue" Width="280" Height="220"
VerticalAlignment="Top" HorizontalAlignment="Center" >
</Grid>

The output looks like Figure 1.

Figure 1

Grid Properties

Grid has three major properties - RowDefinitions, ColumnDefinitions, and ShowGridLines. The RowDefinitions property is a collection of RowDefintion. The ColumnDefinitions property represents a collection of ColumnDefinition. The ShowGridLines property represents if grid lines of a Grid panel are visible or not.

Create Grid

The Grid element in XAML represents a WPF Grid control. The following code snippet creates a Grid control, sets it width and foreground color and make sure grid lines are visible.

<Grid Name="MCGrid" Width="400" Background="LightSteelBlue" ShowGridLines="True" \>

The ColumnDefinitions property is used to add columns and the RowDefinitions property is used to add rows to a Grid. The following code snippet adds three columns and three rows to a grid.

<Grid.ColumnDefinitions>
<ColumnDefinition/>
<ColumnDefinition/>
<ColumnDefinition/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="45"/>
<RowDefinition Height="45"/>
<RowDefinition Height="45"/>
</Grid.RowDefinitions>

Any control in WPF can be placed within a grid by using its Grid.Row and Grid.Column properties that represents what column and what row a control will be placed in. The values of rows and columns start with 0. That means, if there are three columns in a grid, the first column will be represented by the number 0. The following code snippet puts a TextBlock control in a cell that is in second row and third column.

<TextBlock Grid.Row="1" Grid.Column="2" Foreground="Green"
Text="Age" Height="20" VerticalAlignment="Top" />

Listing 1 is the complete code to create a Grid with three columns and three rows and some text data in the grid cells.

<Window x:Class="GridSample.Window1"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="Window1" Height="300" Width="450" WindowStyle="ThreeDBorderWindow">
<Grid Name="MCGrid" Width="400" Background="LightSteelBlue" ShowGridLines="True">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="45" />
<RowDefinition Height="45" />
<RowDefinition Height="45" />
</Grid.RowDefinitions>
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="0" Foreground="Green"
Text="Author Name" Height="20" VerticalAlignment="Top" />
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="1" Foreground="Green"
Text="Age" Height="20" VerticalAlignment="Top" />
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="2" Foreground="Green"
Text="Book" Height="20" VerticalAlignment="Top"/>
<TextBlock FontSize="12" Grid.Row="1" Grid.Column="0">Mahesh Chand</TextBlock>
<TextBlock FontSize="12" Grid.Row="1" Grid.Column="1">33</TextBlock>
<TextBlock FontSize="12" Grid.Row="1" Grid.Column="2">GDI+ Programming</TextBlock>
<TextBlock FontSize="12" Grid.Row="2" Grid.Column="0">Mike Gold</TextBlock>
<TextBlock FontSize="12" Grid.Row="2" Grid.Column="1">35</TextBlock>
<TextBlock FontSize="12" Grid.Row="2" Grid.Column="2">Programming C#</TextBlock>
</Grid>
</Window>

Listing 1

The output looks like Figure 2.

Figure 2

Create a Grid Dynamically

The Grid class in WPF represents a Grid control. The following code snippet creates a Grid control, sets its width, horizontal alignment, vertical alignment, shows grid lines, and background color.

Grid DynamicGrid = new Grid();
DynamicGrid.Width = 400;
DynamicGrid.HorizontalAlignment = HorizontalAlignment.Left;
DynamicGrid.VerticalAlignment = VerticalAlignment.Top;
DynamicGrid.ShowGridLines = true;
DynamicGrid.Background = new SolidColorBrush(Colors.LightSteelBlue);

The following code snippet adds three columns and three rows to Grid.

// Create Columns
ColumnDefinition gridCol1 = new ColumnDefinition();
ColumnDefinition gridCol2 = new ColumnDefinition();
ColumnDefinition gridCol3 = new ColumnDefinition();
DynamicGrid.ColumnDefinitions.Add(gridCol1);
DynamicGrid.ColumnDefinitions.Add(gridCol2);
DynamicGrid.ColumnDefinitions.Add(gridCol3);
// Create Rows
RowDefinition gridRow1 = new RowDefinition();
gridRow1.Height = new GridLength(45);
RowDefinition gridRow2 = new RowDefinition();
gridRow2.Height = new GridLength(45);
RowDefinition gridRow3 = new RowDefinition();
gridRow3.Height = new GridLength(45);
DynamicGrid.RowDefinitions.Add(gridRow1);
DynamicGrid.RowDefinitions.Add(gridRow2);
DynamicGrid.RowDefinitions.Add(gridRow3);

Once rows and columns are added to Grid, you can add any contents to Grid cells by using SetRow and SetColumn methods. SetRow and SetColumn methods take first parameter as the control name and second parameter as row number and column number respectively. The following code snippet creates a TextBlock control and displays it in Cell(0,0) that represents the first row and first column of Grid.

// Add first column header
TextBlock txtBlock1 = new TextBlock();
txtBlock1.Text = "Author Name";
txtBlock1.FontSize = 14;
txtBlock1.FontWeight = FontWeights.Bold;
txtBlock1.Foreground = new SolidColorBrush(Colors.Green);
txtBlock1.VerticalAlignment = VerticalAlignment.Top;
Grid.SetRow(txtBlock1, 0);
Grid.SetColumn(txtBlock1, 0);

Once a control is created and its position within Grid is set, the next step is to add control to Grid by using Grid.Children.Add method. This code snippet adds a TextBlock to Grid.

DynamicGrid.Children.Add(txtBlock1);

The complete code is listed in Listing 2.

private void CreateDynamicWPFGrid()
{
// Create the Grid
Grid DynamicGrid = new Grid();
DynamicGrid.Width = 400;
DynamicGrid.HorizontalAlignment = HorizontalAlignment.Left;
DynamicGrid.VerticalAlignment = VerticalAlignment.Top;
DynamicGrid.ShowGridLines = true;
DynamicGrid.Background = new SolidColorBrush(Colors.LightSteelBlue);
// Create Columns
ColumnDefinition gridCol1 = new ColumnDefinition();
ColumnDefinition gridCol2 = new ColumnDefinition();
ColumnDefinition gridCol3 = new ColumnDefinition();
DynamicGrid.ColumnDefinitions.Add(gridCol1);
DynamicGrid.ColumnDefinitions.Add(gridCol2);
DynamicGrid.ColumnDefinitions.Add(gridCol3);
// Create Rows
RowDefinition gridRow1 = new RowDefinition();
gridRow1.Height = new GridLength(45);
RowDefinition gridRow2 = new RowDefinition();
gridRow2.Height = new GridLength(45);
RowDefinition gridRow3 = new RowDefinition();
gridRow3.Height = new GridLength(45);
DynamicGrid.RowDefinitions.Add(gridRow1);
DynamicGrid.RowDefinitions.Add(gridRow2);
DynamicGrid.RowDefinitions.Add(gridRow3);
// Add first column header
TextBlock txtBlock1 = new TextBlock();
txtBlock1.Text = "Author Name";
txtBlock1.FontSize = 14;
txtBlock1.FontWeight = FontWeights.Bold;
txtBlock1.Foreground = new SolidColorBrush(Colors.Green);
txtBlock1.VerticalAlignment = VerticalAlignment.Top;
Grid.SetRow(txtBlock1, 0);
Grid.SetColumn(txtBlock1, 0);
// Add second column header
TextBlock txtBlock2 = new TextBlock();
txtBlock2.Text = "Age";
txtBlock2.FontSize = 14;
txtBlock2.FontWeight = FontWeights.Bold;
txtBlock2.Foreground = new SolidColorBrush(Colors.Green);
txtBlock2.VerticalAlignment = VerticalAlignment.Top;
Grid.SetRow(txtBlock2, 0);
Grid.SetColumn(txtBlock2, 1);
// Add third column header
TextBlock txtBlock3 = new TextBlock();
txtBlock3.Text = "Book";
txtBlock3.FontSize = 14;
txtBlock3.FontWeight = FontWeights.Bold;
txtBlock3.Foreground = new SolidColorBrush(Colors.Green);
txtBlock3.VerticalAlignment = VerticalAlignment.Top;
Grid.SetRow(txtBlock3, 0);
Grid.SetColumn(txtBlock3, 2);
//// Add column headers to the Grid
DynamicGrid.Children.Add(txtBlock1);
DynamicGrid.Children.Add(txtBlock2);
DynamicGrid.Children.Add(txtBlock3);
// Create first Row
TextBlock authorText = new TextBlock();
authorText.Text = "Mahesh Chand";
authorText.FontSize = 12;
authorText.FontWeight = FontWeights.Bold;
Grid.SetRow(authorText, 1);
Grid.SetColumn(authorText, 0);
TextBlock ageText = new TextBlock();
ageText.Text = "33";
ageText.FontSize = 12;
ageText.FontWeight = FontWeights.Bold;
Grid.SetRow(ageText, 1);
Grid.SetColumn(ageText, 1);
TextBlock bookText = new TextBlock();
bookText.Text = "GDI+ Programming";
bookText.FontSize = 12;
bookText.FontWeight = FontWeights.Bold;
Grid.SetRow(bookText, 1);
Grid.SetColumn(bookText, 2);
// Add first row to Grid
DynamicGrid.Children.Add(authorText);
DynamicGrid.Children.Add(ageText);
DynamicGrid.Children.Add(bookText);
// Create second row
authorText = new TextBlock();
authorText.Text = "Mike Gold";
authorText.FontSize = 12;
authorText.FontWeight = FontWeights.Bold;
Grid.SetRow(authorText, 2);
Grid.SetColumn(authorText, 0);
ageText = new TextBlock();
ageText.Text = "35";
ageText.FontSize = 12;
ageText.FontWeight = FontWeights.Bold;
Grid.SetRow(ageText, 2);
Grid.SetColumn(ageText, 1);
bookText = new TextBlock();
bookText.Text = "Programming C#";
bookText.FontSize = 12;
bookText.FontWeight = FontWeights.Bold;
Grid.SetRow(bookText, 2);
Grid.SetColumn(bookText, 2);
// Add second row to Grid
DynamicGrid.Children.Add(authorText);
DynamicGrid.Children.Add(ageText);
DynamicGrid.Children.Add(bookText);
// Display grid into a Window
RootWindow.Content = DynamicGrid;
}

Listing 2

Managing Column Width and Row Height

The ColumnDefinition has three properties that are used to manage the width of a column in a Grid. These properties are Width, MaxWidth, and MinWidth. The Width property represents the width of a column. The MaxWidth and MinWidth are used to set maximum and minimum width of a column.

The RowDefinition has three properties that are used to manage the height of a row in a Grid. These properties are Height, MaxHeight, and MinHeight. The Height property represents the height of a row. The MaxHeight and MinHeight are used to set maximum and minimum height of a row.

The code listed in Listing 3 sets the width of columns and height of rows in a Grid panel at design-time using XAML.

<Grid Name="MCGrid" VerticalAlignment="Top"
HorizontalAlignment="Left" Background="LightSteelBlue" ShowGridLines="False">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="120"/>
<ColumnDefinition Width="50" />
<ColumnDefinition Width="250"/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="25" />
<RowDefinition Height="22" />
<RowDefinition Height="22" />
<RowDefinition Height="22" />
<RowDefinition Height="22" />
<RowDefinition Height="22" />
</Grid.RowDefinitions>
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="0"
Text=" Author Name" Height="25"
VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="1"
Text=" Age" Height="25" VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
<TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="2"
Text=" Book" Height="25" VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
<TextBlock Grid.Row="1" Grid.Column="0">Mahesh Chand</TextBlock>
<TextBlock Grid.Row="1" Grid.Column="1">33</TextBlock>
<TextBlock Grid.Row="1" Grid.Column="2">GDI+ Programming</TextBlock>
<TextBlock Grid.Row="2" Grid.Column="0">John Trotter</TextBlock>
<TextBlock Grid.Row="2" Grid.Column="1">42</TextBlock>
<TextBlock Grid.Row="2" Grid.Column="2">ADO.NET Programming Cookbook</TextBlock>
<TextBlock Grid.Row="3" Grid.Column="0">Mike Gold</TextBlock>
<TextBlock Grid.Row="3" Grid.Column="1">35</TextBlock>
<TextBlock Grid.Row="3" Grid.Column="2">Programming C#</TextBlock>
<TextBlock Grid.Row="4" Grid.Column="0">Raj Kumar</TextBlock>
<TextBlock Grid.Row="4" Grid.Column="1">22</TextBlock>
<TextBlock Grid.Row="4" Grid.Column="2">XAML Development with C#</TextBlock>
<TextBlock Grid.Row="5" Grid.Column="0">Praveen Kumar</TextBlock>
<TextBlock Grid.Row="5" Grid.Column="1">28</TextBlock>
<TextBlock Grid.Row="5" Grid.Column="2">WPF and Visual Studio 2010</TextBlock>
</Grid>

Listing 3

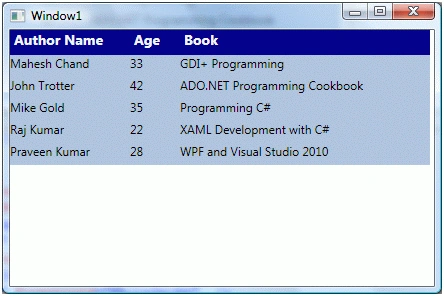

The output of Listing looks like Figure 3.

Figure 3

Add and Remove Columns

The Add method of Grid.ColumnDefinitions adds a new column to Grid.

DynamicGrid.ColumnDefinitions.Add(new ColumnDefinition());

The Grid.ColumnDefinitions.Insert method adds a column at a given position. The following code adds a new column at position 3 in a Grid.

DynamicGrid.ColumnDefinitions.Insert(3, new ColumnDefinition());

The RemoveAt method of Grid.ColumnDefinitions deletes a column at the given position.

DynamicGrid.ColumnDefinitions.RemoveAt(3);

The Clear method of Grid.ColumnDefinitions deletes all columns in a Grid.

DynamicGrid.ColumnDefinitions.Clear();

Add and Remove Rows

The Add method of Grid.RowDefinitions adds a new row to a Grid.

DynamicGrid.RowDefinitions.Add(new RowDefinition());

The Grid.RowDefinitions.Insert method adds a row at a given position.

DynamicGrid.RowDefinitions.Insert(3, new RowDefinition ());

The RemoveAt method of Grid.RowDefinitions deletes a row at the given position.

DynamicGrid.RowDefinitions.RemoveAt(3);

The Clear method of Grid.RowDefinitions deletes all rows in a Grid.

DynamicGrid.RowDefinitions.Clear();

Resize WPF Grid Rows with a GridSplitter

The following code snippet adds a Grid splitter to a Grid that you can use to resize a Grid row.

<Grid Name="DynamicGrid" Width="466" Background="LightSteelBlue" ShowGridLines="True"
Canvas.Top="119" Canvas.Left="8" Height="200">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="50*" />
<RowDefinition Height="Auto" />
<RowDefinition Height="50*" />
</Grid.RowDefinitions>
<GridSplitter
ResizeDirection="Rows"
Grid.Column="0"
Grid.ColumnSpan="10"
Grid.Row="1"
Width="Auto"
Height="3"
HorizontalAlignment="Stretch"
VerticalAlignment="Stretch"
Margin="0"
Background="Green"/>
</Grid>

Formatting Grid

The Background property of Grid sets the background colors of a Grid. The following code snippet uses linear gradient brushes to draw the background of a Grid.

<Grid.Background>
<LinearGradientBrush StartPoint="0,0" EndPoint="1,1" >
<GradientStop Color="Blue" Offset="0.1" />
<GradientStop Color="Orange" Offset="0.25" />
<GradientStop Color="Green" Offset="0.75" />
<GradientStop Color="Red" Offset="1.0" />
</LinearGradientBrush>
</Grid.Background>

The new Grid looks like Figure 4.

Figure 4

Setting Image as Background of a Grid

To set an image as background of a Grid, we can set an image as the Background of the Grid. The following code snippet sets the background of a Grid to an image. The code also sets the opacity of the image.

<Grid.Background>
<ImageBrush ImageSource="Flower.jpg" Opacity="0.3"/>
</Grid.Background>

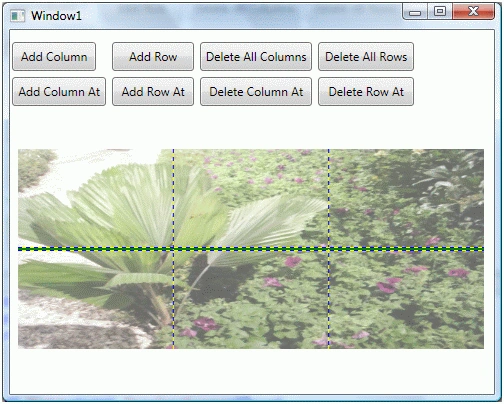

The new output looks like Figure 5.

Figure 5

Summary

In this article, we learned how to use a Grid panel in WPF at design-time in XAML and code-behind in C#. We also saw how set various properties of a Grid Panel. After that we learned how to work with rows and columns of a Grid panel. In the end of this article, we saw how to format a Grid panel.

6 Comments

Join the conversation! Your thoughts help the community grow.

Sampat Patil11y ago
how can we enable scroll bar for abve code... pls rely
Gurunatha Dogi12y ago
Nice article in simple words step by step...Thank you @Mahesh Sir
shivank thakur14y ago
Can we apply paging on Grid?
Mudassar Dar16y ago
Hello: last part of artical showes how to attach am background image to grid. I have a similar code to attach an image to a grid which is attached to TabControl window. The is bigger than tabcontrol there it shrinks and get skewed to fit into TabControl. Is there a way to TabControl to show scrollbar and scroll the image up/down and left/Right thanks [email protected]
- Mahesh Chand16y ago
  You need to place TabControl and Image within a scrollbar control. You can place any control within a scrollbar. Here is an article on Scrollbars in WPF. ScrollBar in WPF
Rajendra Tripathy16y ago
Hi. Your article is helpful, but I need Cell Merging In WPF DataGrid (Windows Application C#). Will you Guide me in this? for more detail u can see- http://img709.imageshack.us/img709/6213/cellmerged.jpg
