Handling Runtime Changes in Android

Introduction

In this article, you will learn about How to Runtime changes in Android.

You have seen that every android device has a functionality to change the orientation of the screen at runtime. So when the device changes its orientation the activity will be restarted by calling all its methods again. On orientation changes first, the activity will be destroyed and again created.

When the Activity is destroyed system calls onPause(), onStop(), and onDestroy() method simultaneously. And now to create activity system calls onCreate(), onStop(), and onResume() simultaneously.

First, let's see how you handle the runtime changes in Android

In this I am using a count down timer to show you, The timer will not be affected when the screen orientation changes. I have already explained that the activity restarted when the device changes its orientation. So to overcome this we write the element Android Manifest.xml file

android:configChanges="orientation|screenSize|keyboardHidden". In java class file we will override the onConfigurationChanged().

onConfiguration change() - This method is called by the system when the device configuration changes while your activity is running

Now when configuration changes the activity will not be restart. So when the device changes its orientation the onConfigurationChanged() method will be called.

Step 1

Create a project like this

Step 2

Create an Xml file and write this

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:background="#ff998765"
android:orientation="vertical" >
<TextView
android:id="@+id/textView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerHorizontal="true"
android:layout_centerVertical="true"
android:paddingRight="10dip"
android:textSize="50dp" />
<Button
android:id="@+id/button"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_alignParentLeft="true"
android:text="Start" />
</RelativeLayout>

Step 3

In this, I have created a timer inside activity that is started on button click. So when you start the timer in portrait mode the timer start counting. When you change the device orientation the timer will start from that count.

Create a java class file and write this

package com.example.screenorientation;
import android.os.Bundle;
import android.os.CountDownTimer;
import android.app.Activity;
import android.content.res.Configuration;
import android.util.Log;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.RadioButton;
import android.widget.TextView;
import android.widget.Toast;
public class MainActivity extends Activity
{
private CountDownTimer countDownTimer;
private boolean timerStarted = false;
private Button buttonStart;
public TextView textView;
private final long startTime = 100 * 100;
private final long interval = 1 * 100;
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Log.d("cycle", "onCreate wiil be invoke");
buttonStart = (Button) this.findViewById(R.id.button);
textView = (TextView) this.findViewById(R.id.textView);
countDownTimer = new CountDownTimerActivity(startTime, interval);
textView.setText(textView.getText() + String.valueOf(startTime / 1000));
buttonStart.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View arg0)
{
if (!timerStarted)
{
countDownTimer.start();
timerStarted = true;
buttonStart.setText("STOP");
}
else
{
countDownTimer.cancel();
timerStarted = false;
buttonStart.setText("RESTART");
}
}
});
}
public class CountDownTimerActivity extends CountDownTimer
{
public CountDownTimerActivity(long startTime, long interval)
{
super(startTime, interval);
}
@Override
public void onFinish()
{
textView.setText("Time's up!");
}
@Override
public void onTick(long millisUntilFinished)
{
textView.setText("" + millisUntilFinished / 1000);
}
}
@Override
protected void onStart()
{
super.onStart();
Log.d("cycle", "onStart wiil be invoked");
}
@Override
protected void onResume()
{
super.onResume();
Log.d("cycle", "onResume wiil be invoked");
}
@Override
protected void onPause()
{
super.onPause();
Log.d("cycle", "onPause wiil be invoked");
}
@Override
protected void onStop()
{
super.onStop();
Log.d("cycle", "onStop wiil be invoked");
}
@Override
protected void onRestart()
{
super.onRestart();
Log.d("cycle", "onRestart wiil be invoked");
}
@Override
protected void onDestroy()
{
super.onDestroy();
Log.d("cycle", "onDestroy wiil be invoked");
}
@Override
public void onConfigurationChanged(Configuration newConfig)
{
super.onConfigurationChanged(newConfig);
if (newConfig.orientation == Configuration.ORIENTATION_LANDSCAPE) {} else if (newConfig.orientation == Configuration.ORIENTATION_PORTRAIT) {}
}
@Override
public boolean onCreateOptionsMenu(Menu menu)
{
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
}

Step 4

Android Manifest.xml file

In Android Manifest .xml file you will write the configuration element in <activity>

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.example.screenorientation"
android:versionCode="1"
android:versionName="1.0">
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="18"/>
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme">
<activity
android:name="com.example.screenorientation.MainActivity"
android:configChanges="orientation|screenSize|keyboardHidden"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>

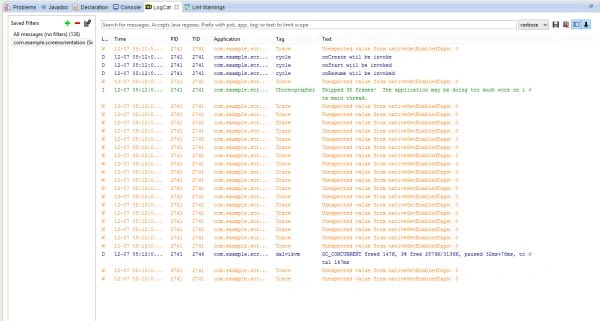

Step 5

After running of activity onCreate(), onStart, onResume() called simultaneuosly

When the Device orientation changes no methods called which means the activity not restarted
