How To Backup SQL Server In Azure

Introduction


Azure Backup is the modern way to take backup in the Cloud, and it is a zero infrastructure solution that allows us to deploy any backup infrastructure.

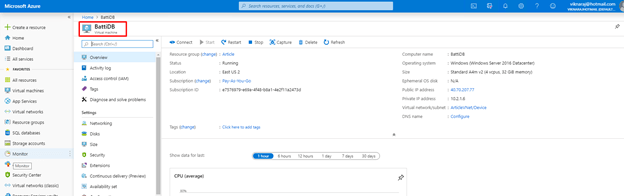

Step 1 - Verifying our Database Server named BattiDB is running


How To Back Up SQL Server In Azure


Step 2 - Installing Backup and Site Recovery

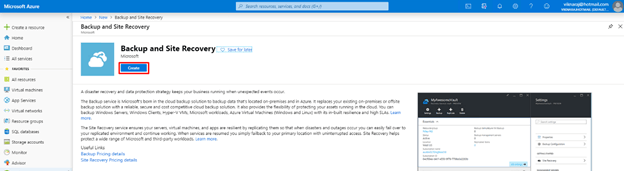

Go to the “+ Create a Resource” and search Backup and Site Recovery and then click “Create”.

How To Back Up SQL Server In Azure

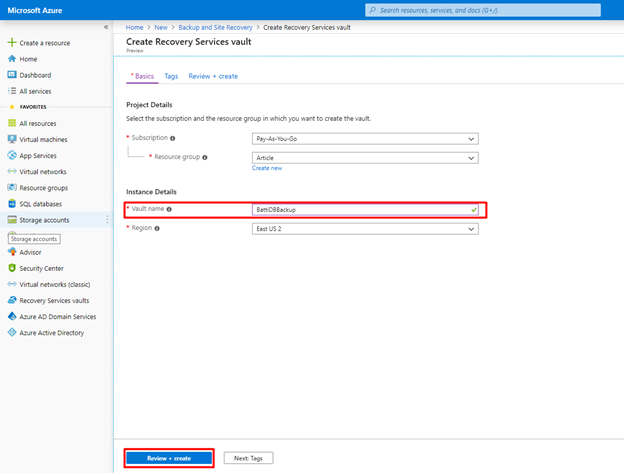

Step 3 - Creating the Recovery Service Vault


On the "Create Recovery Service Vault" screen, select the Subscription, Resource Group, and then enter the Vault Name “BattiDBBackup” and click “Review+Create”.

How To Back Up SQL Server In Azure


Step 4 - Creating a Backup

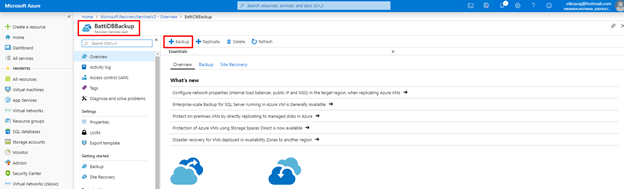

After you have successfully deployed, go to the backup named “BattiDBBackup” and click “+ Backup”.

How To Back Up SQL Server In Azure

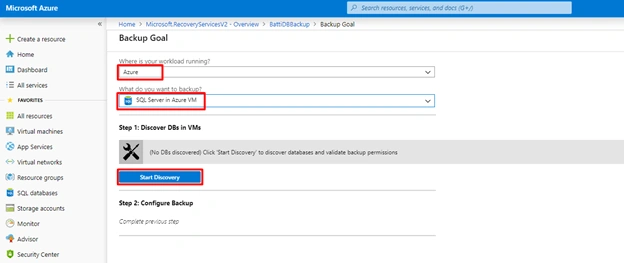

Step 5 - Selecting the Workloads and Backup Details

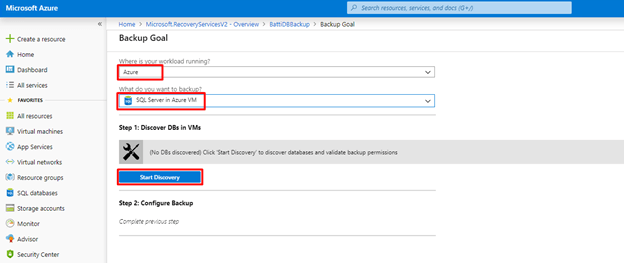

In the Backup Goal, select the Workload location as ”Azure”, and then select "What do you want to backup" as “SQL Server in Azure VM”, and then click “Start Discovery”.

How To Back Up SQL Server In Azure


Step 6 - Discovering the Database VMs

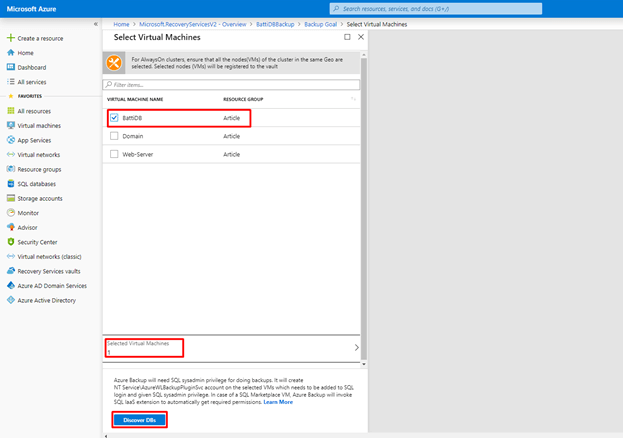

When we click the “Start Discovery” Button, It will show the Virtual Machine's Name, then select the Database virtual machine named “BattiDB” that we have already deployed, and then click “Discover DBs”

How To Back Up SQL Server In Azure

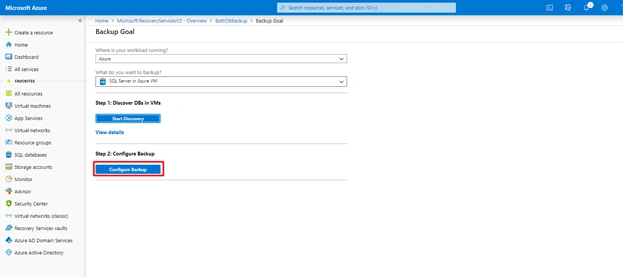

Step 7 - Configuring the Backup

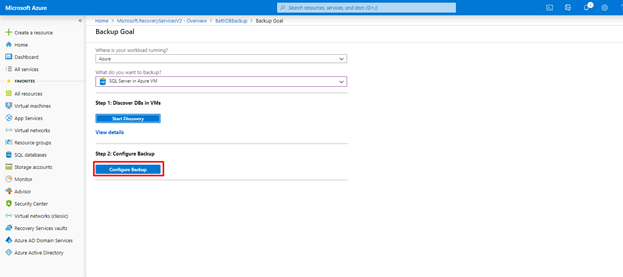

After Discovering the VMs, Click “Configure Backup”.

How To Back Up SQL Server In Azure


Step 8 - Selecting the Database

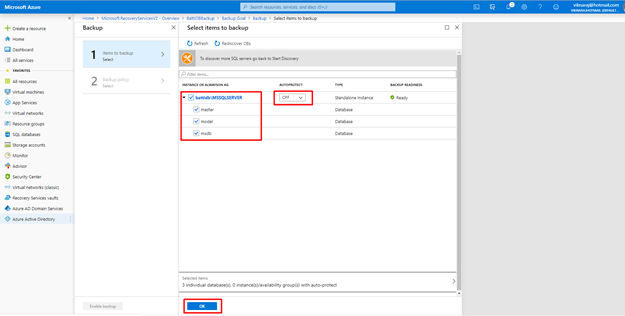

In the Items to Backup we can select single Database or we can fully select the database that we want, after selecting the database Select “On” under the AUTOPROTECT and then click “Ok”.

How To Back Up SQL Server In Azure

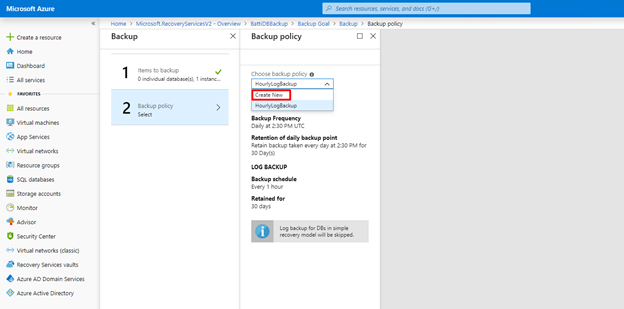

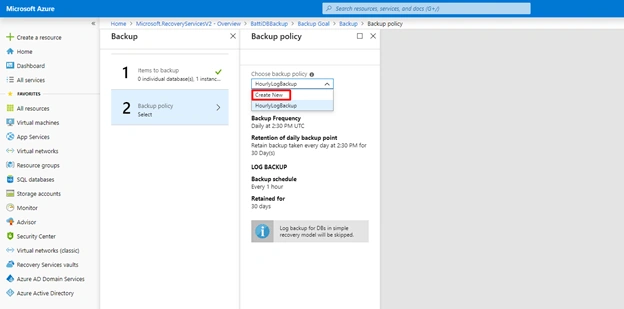

Step 9 - Creating the Backup Policy


In the Backup policy “Create New” policy under the Choose Backup Policy.

How To Back Up SQL Server In Azure

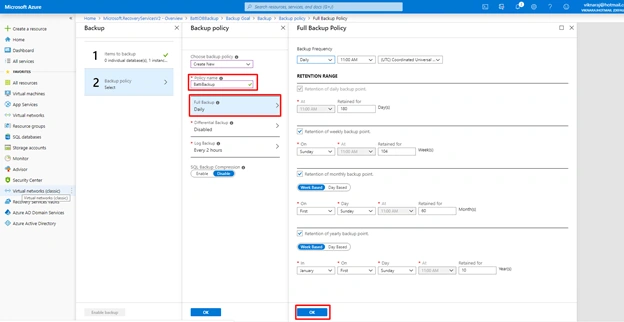

Step 10 - Assigning the Backup Policy

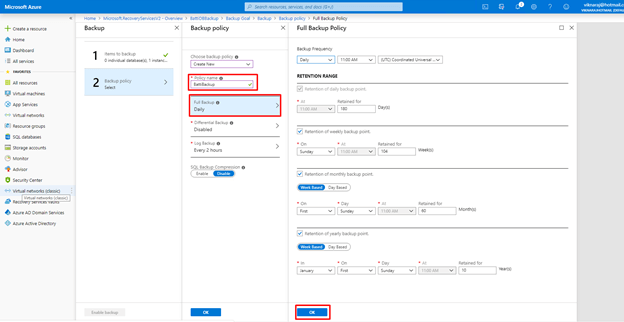

In the new policy Enter the Policy name and set the full backup policy and then click “Ok”

How To Back Up SQL Server In Azure

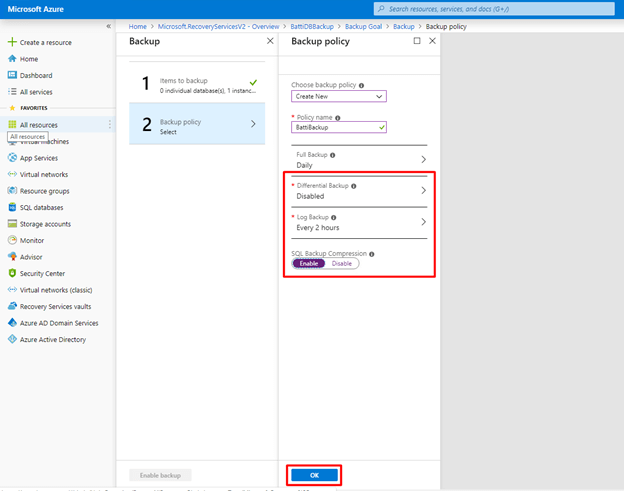

Step 11 - Finalizing the Backup Policy


After setting the Policy we can select the Log backup and SQL Backup Compression, and then click “Ok”.

How To Back Up SQL Server In Azure

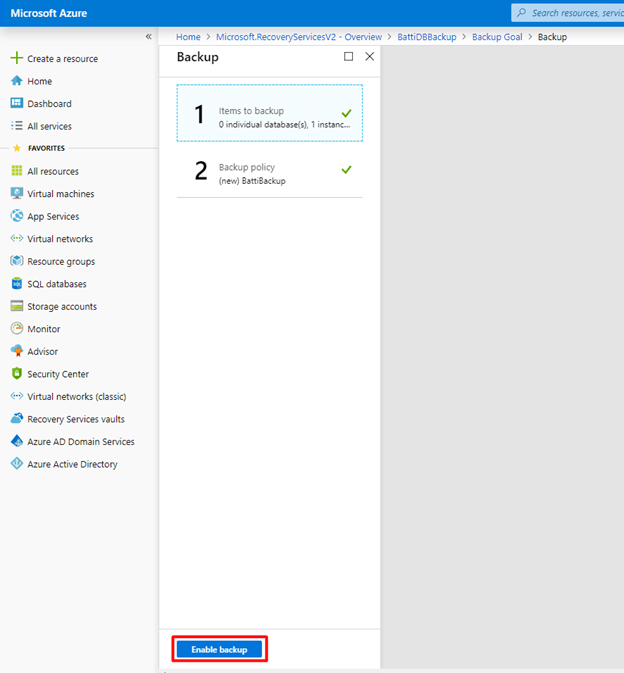

Step 12 - Enabling the Backup


After completing the settings click “Enable Backup”

How To Back Up SQL Server In Azure

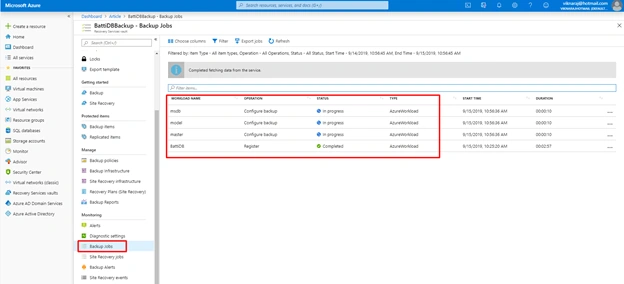

Step 13 - Verifying the Backup Jobs

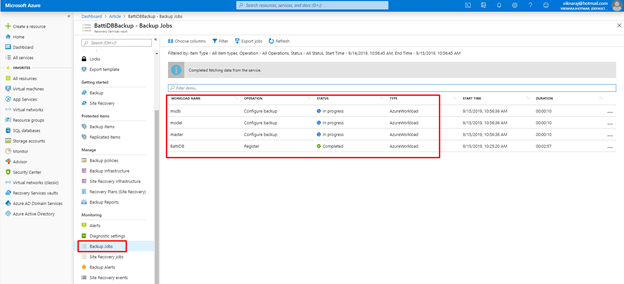

After enabling the Backup job, we need to check if the Backup is running, so Click “Backup Jobs” and verify if there are any errors.

How To Back Up SQL Server In Azure

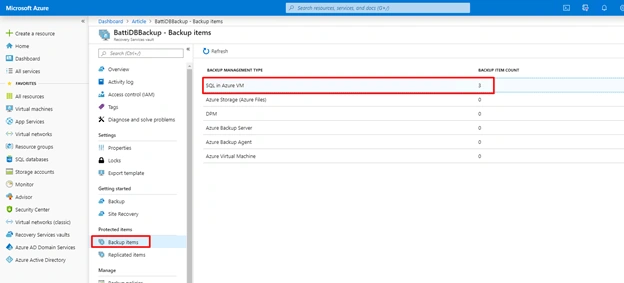

Step 14 - Verifying the Backup Items


After successfully completed the Backup Jobs, we can verify our Backup Items. If we want to Recover the Backup we can select the Backup Item and recover it from the “Backup items”.

How To Back Up SQL Server In Azure


Summary


In this article, we have learned how to backup a database using Backup Services. If you have any clarification feel free to comment under the comment box.
