How To Configure Exchange 2016 Hybrid Deployment With Office 365 - Part Three

In this multi part article series, we will see how to setup Hybrid Exchange 2016 with Office 365 by using ADFS and AAD Directory Sync Services.

In this multi part article series, we will see how to setup Hybrid Exchange 2016 with Office 365 by using ADFS and AAD Directory Sync Services.

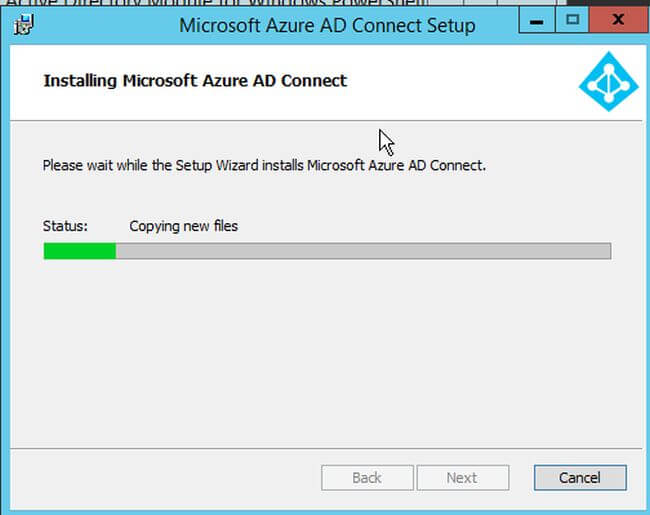

Click on Setup to begin the installation

Microsoft 365

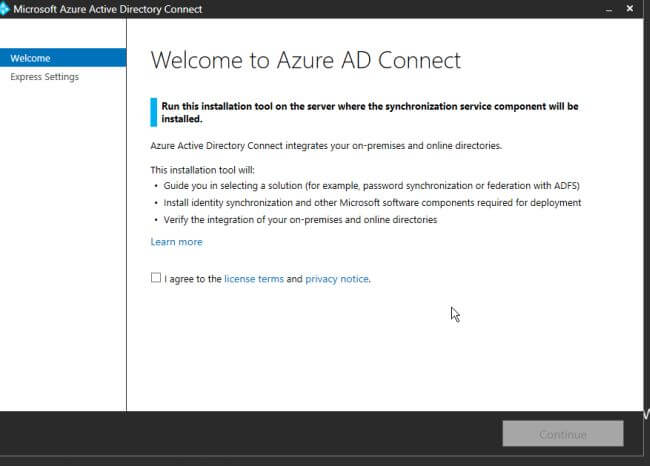

Select I Agree and click on Continue

Microsoft 365

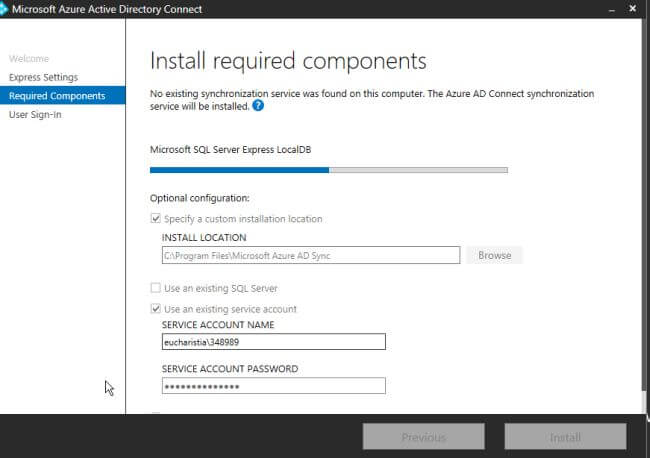

Select  Express installation and start the installation with Service account details

Microsoft 365

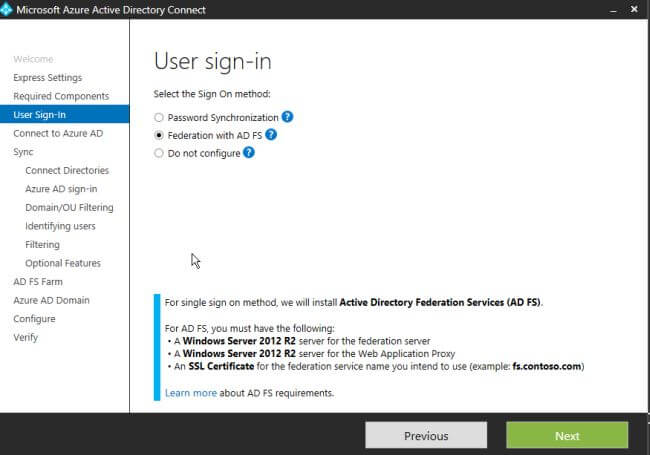

Select Federation with AD FS and Click on Next

Microsoft 365

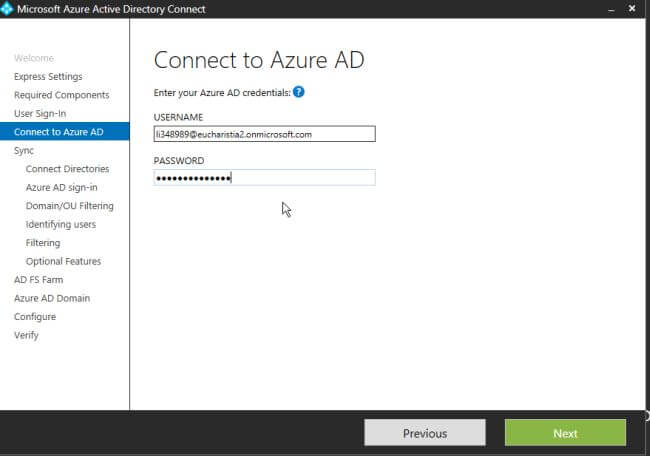

Enter the credentials  for Azure AD and Click Next

Microsoft 365

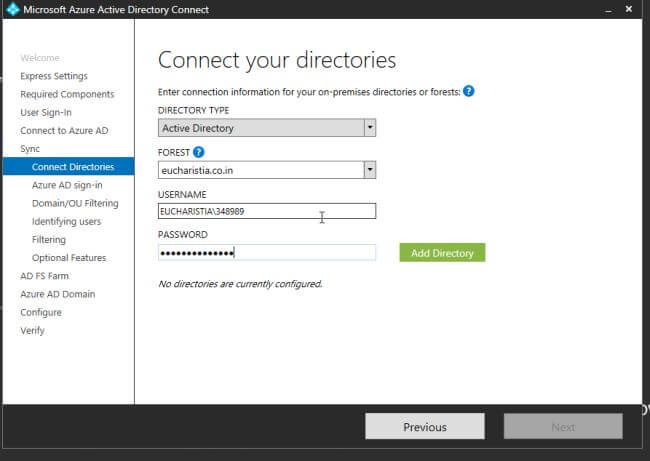

Enter credentials for On-premises and Click Next

Microsoft 365

Microsoft 365

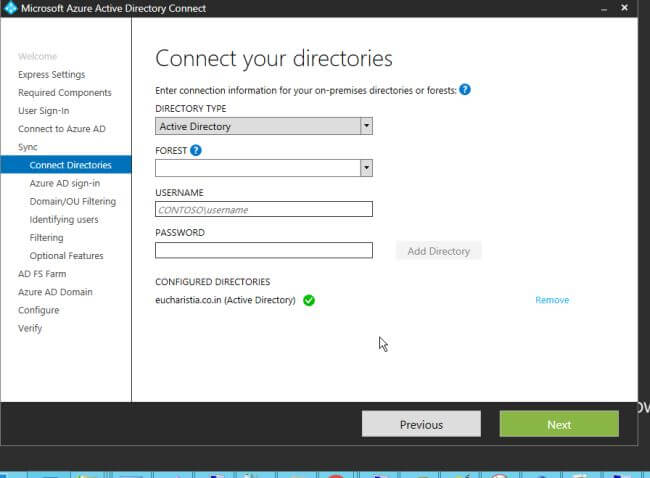

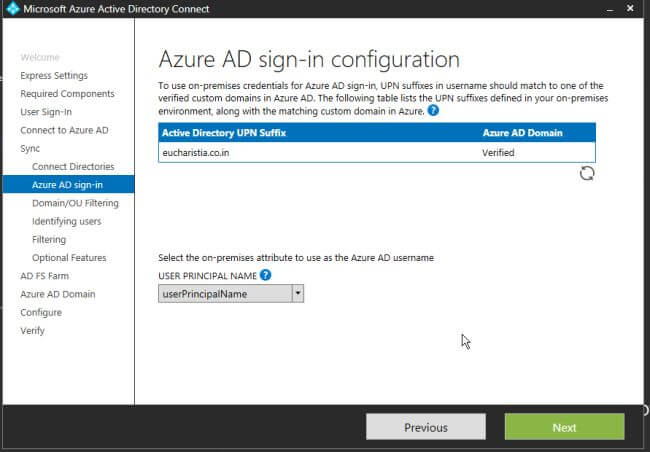

Click Next

Microsoft 365

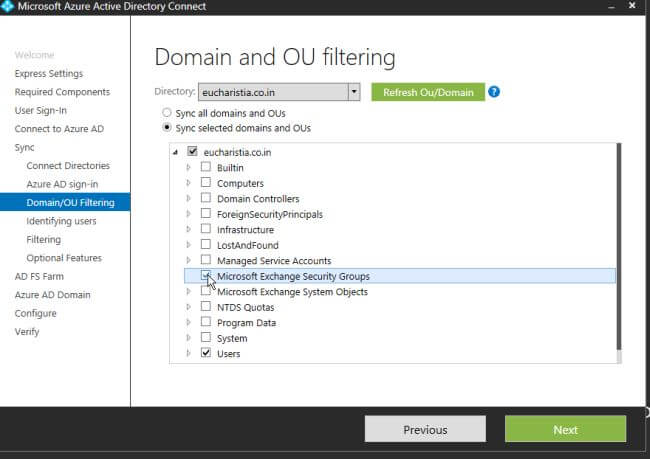

Select the OUs for Sync to Office 365 and Click Next

Microsoft 365

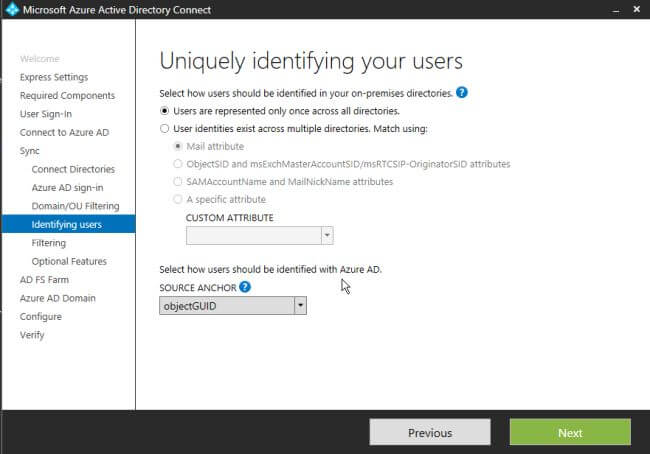

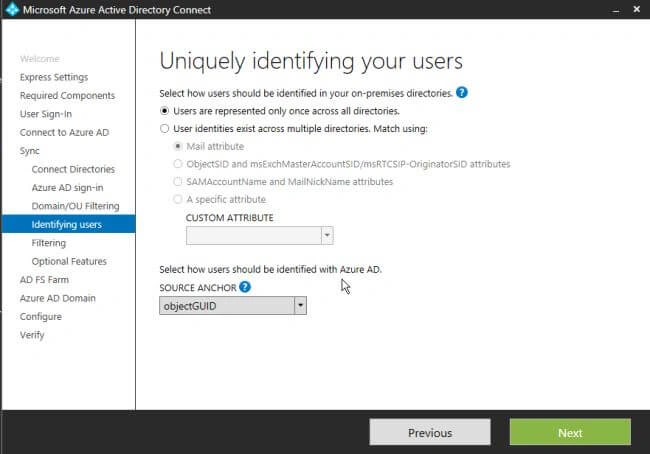

Click Users are represented only once across all directories and Click Next

Microsoft 365

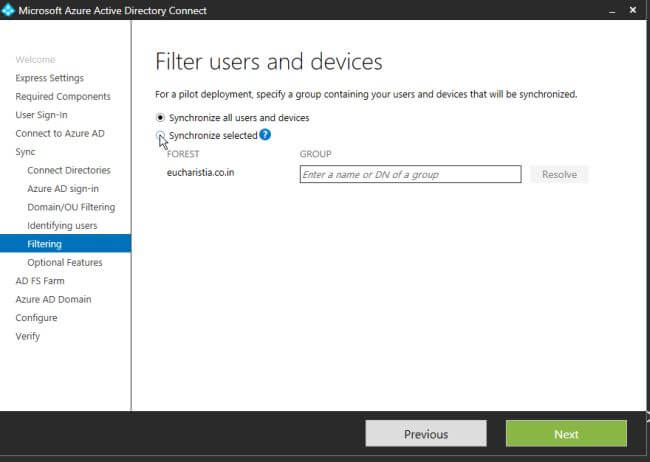

Select synchronize all the users and devices and Click Next

Microsoft 365

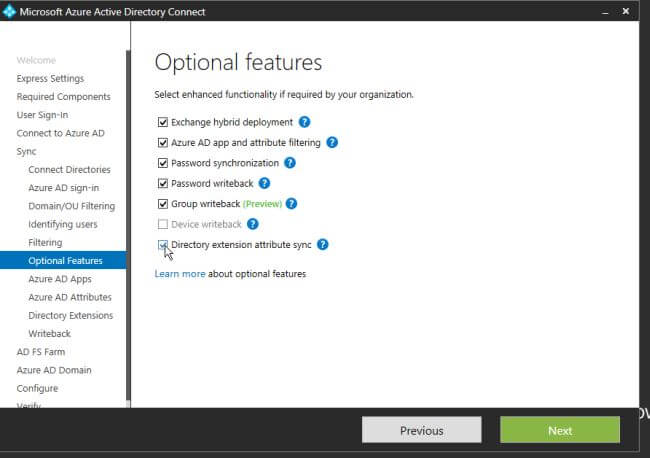

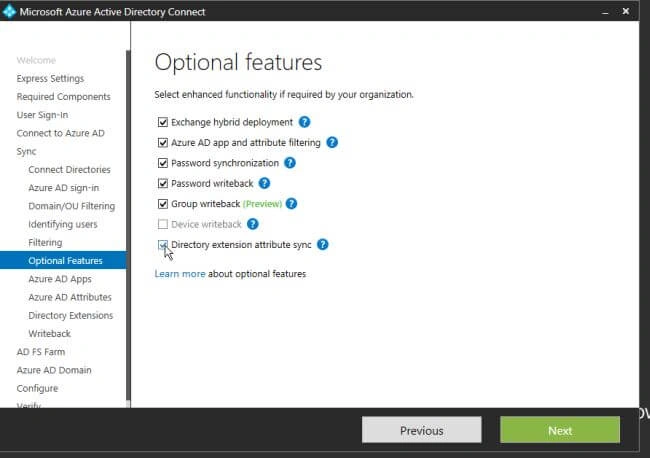

Select Exchange Hybrid deployment, Directory extension attributes Sync  and all the other  optional features based on the requirements.

Microsoft 365

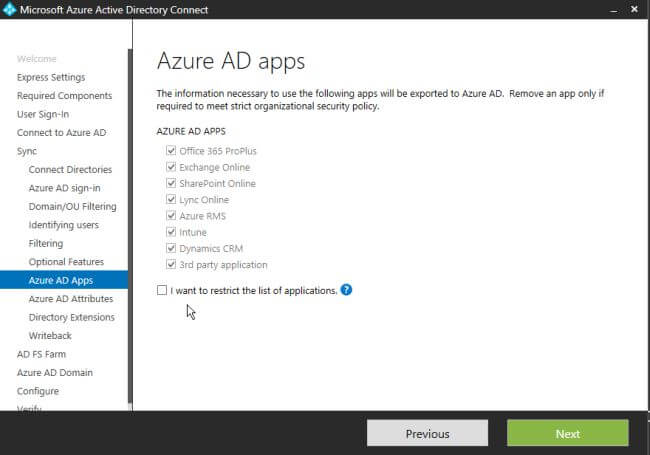

Select I want to restrict the list of applications if you want to restrict the applications otherwise uncheck to select all and Click on Next

Microsoft 365

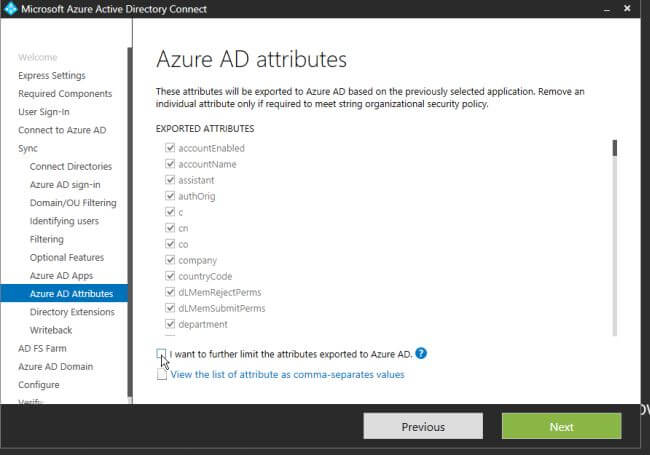

Select I want to further limit the attributes exported to Azure AD  if you want to restrict the attributes Sync, otherwise uncheck to select all and Click on Next

Microsoft 365

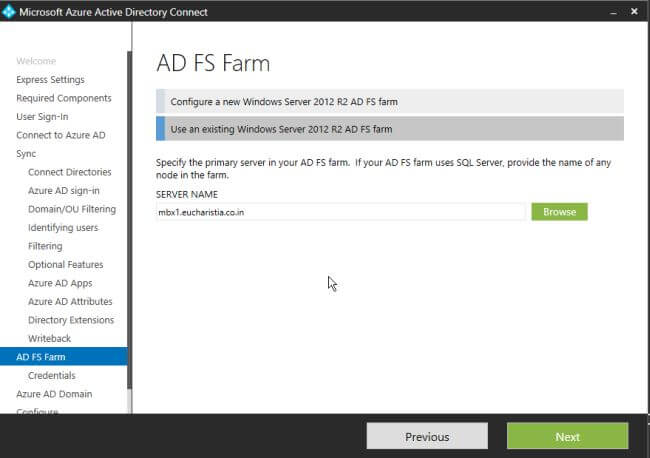

Select the AD FS Farm and Click Next

Microsoft 365

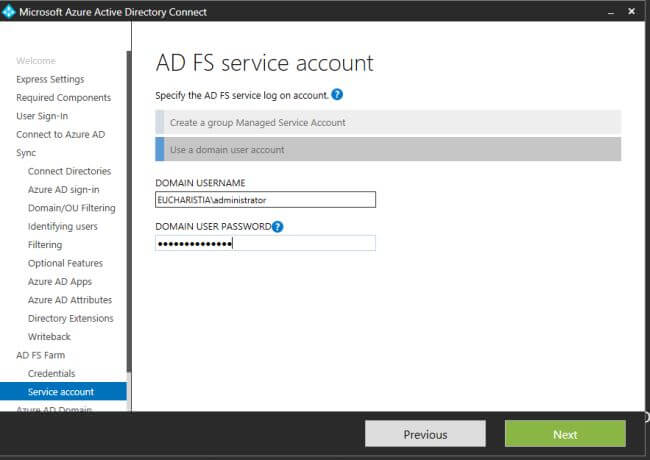

Enter the Service account details for AD FS

Microsoft 365

Microsoft 365

Microsoft 365

Microsoft 365
