How To Create An App In D365 CRM

Introduction


With the introduction of a Unified Interface in Dynamics CRM, we have the option of creating an app in D365 CRM with our custom entities and site maps and forms, views, charts, and Dashboards.

Following are various steps to implement,

Step 1

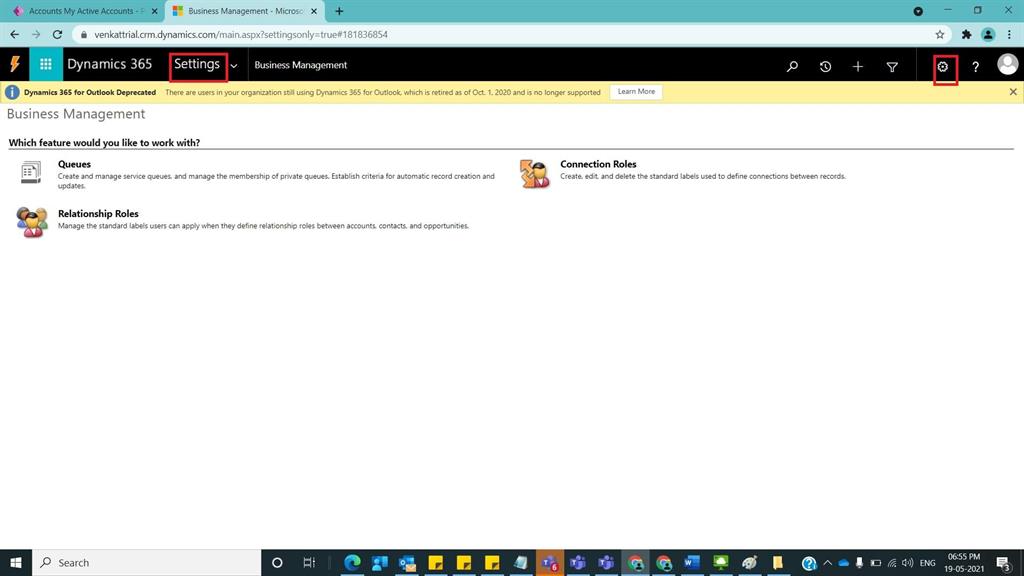

Login to D365 CRM environment /trial environment, if you want to know about how to create a trial environment, please refer to my previous log Back to Basics #1 and to the right of the page a gear icon will be present, click on it and select Advanced Settings as shown below,

How To Create An App In D365 CRM

Step 2

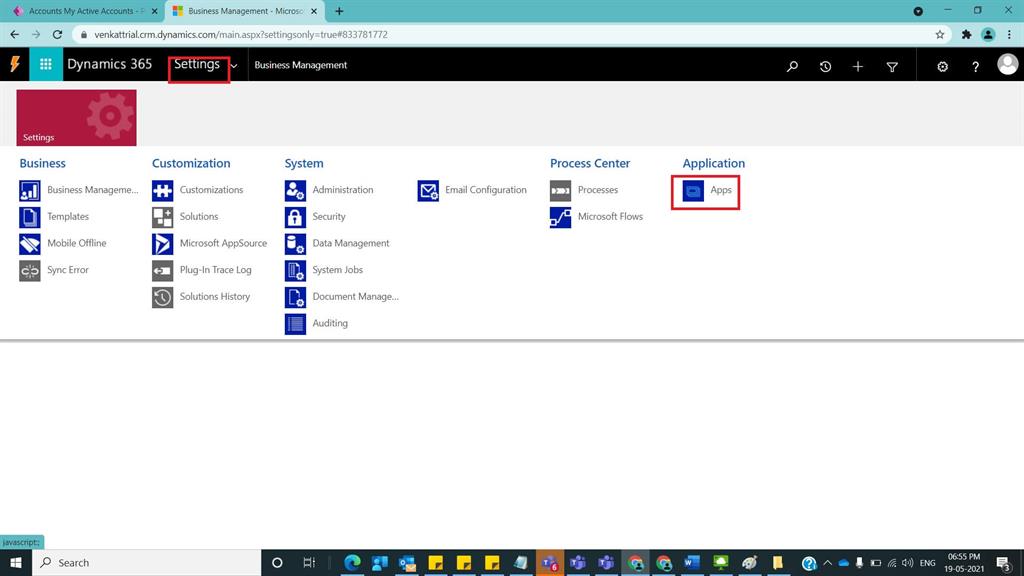

Now click on the settings tab and look for apps, select on apps screen should look like below,

How To Create An App In D365 CRM

Step 3

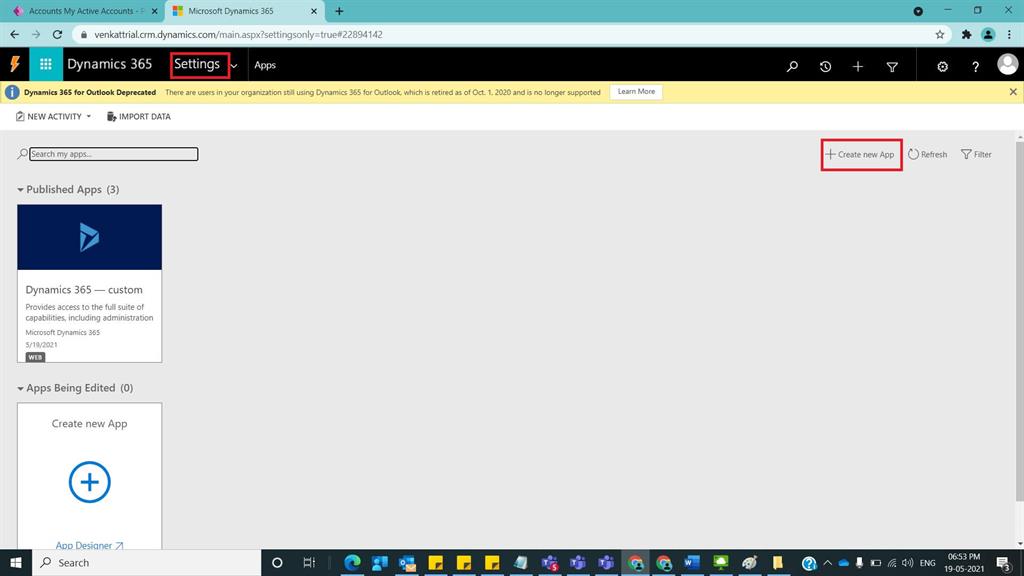

User will be navigated to Apps screen as shown below and click on + create new App from the right side of the window as shown below,

How To Create An App In D365 CRM

Step 4

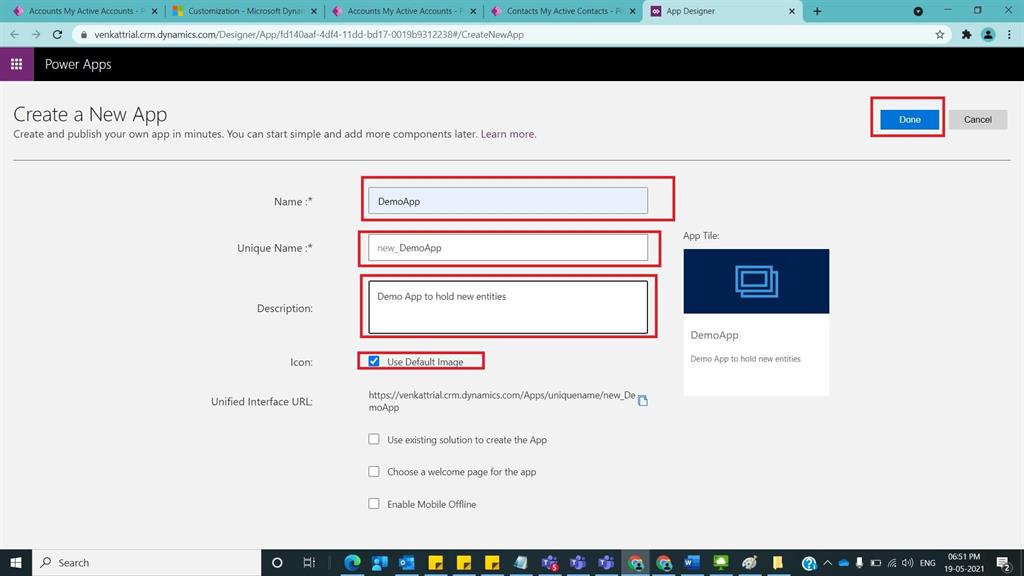

The user will be navigated to the below screen with the click of the new app button in the previous step and provide the name and description and icon and click on the Done Button.

How To Create An App In D365 CRM

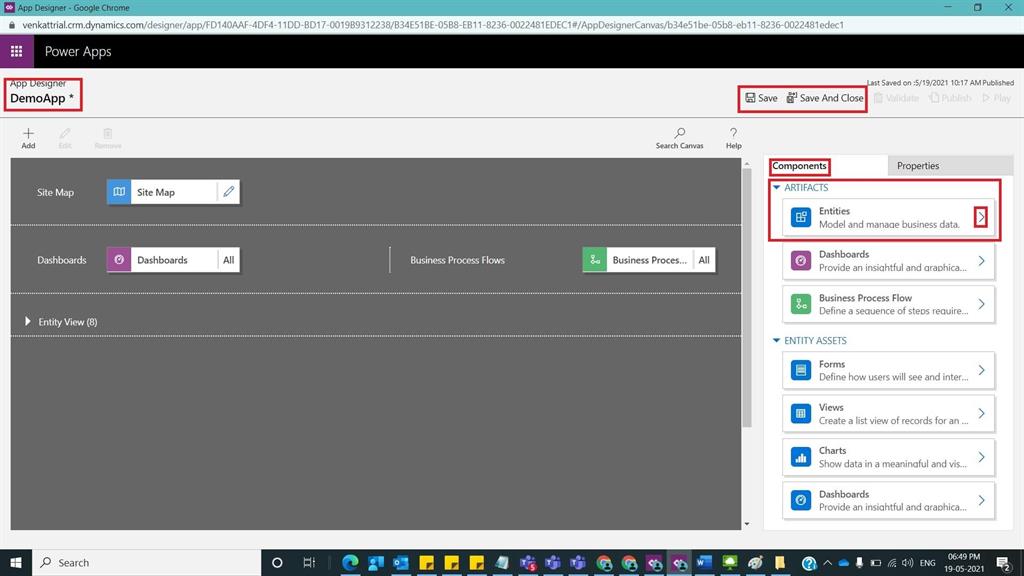

Step 5

Once you click on Done, the below screen will be shown and we have to add entities to the newly created app. To do this observe on the right side of the page under Components tab, under Artifacts section -> Entities as shown below,

How To Create An App In D365 CRM

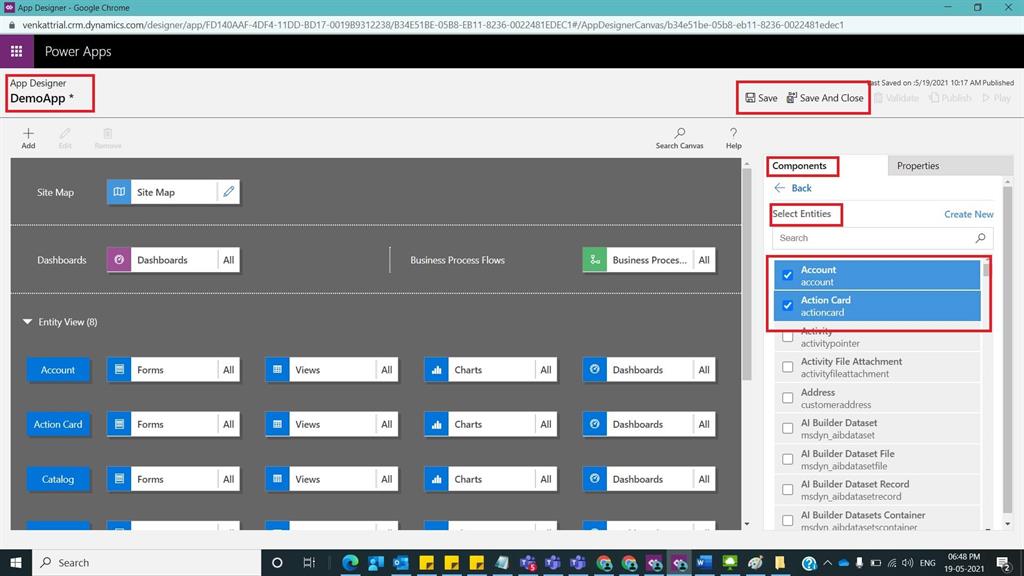

Step 6

Now click on entities and select the required entities that you like below and click on save,

How To Create An App In D365 CRM

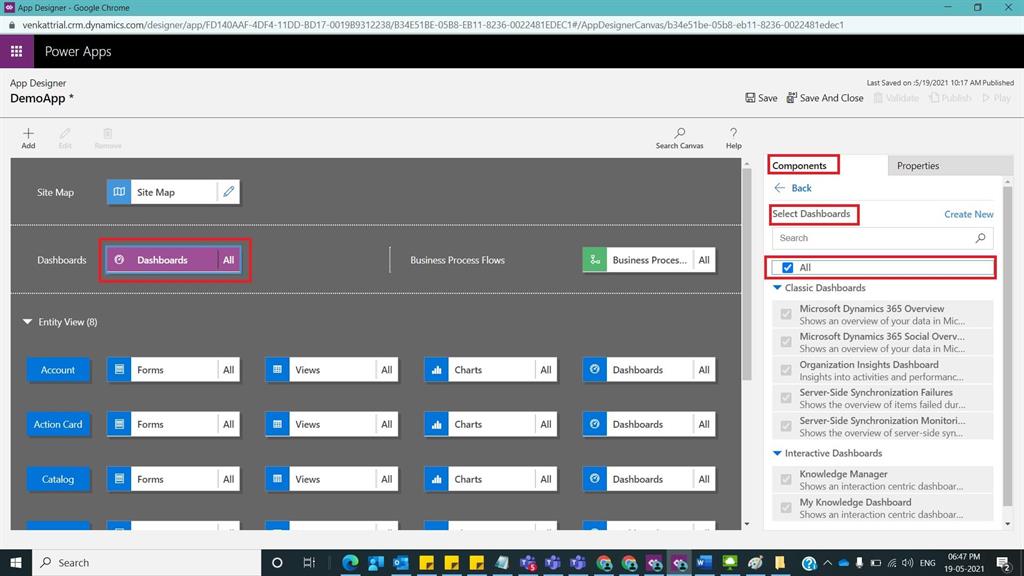

Step 7

Now click on Dashboards under components and select the required dashboards as shown below and click on save,

How To Create An App In D365 CRM

Step 8

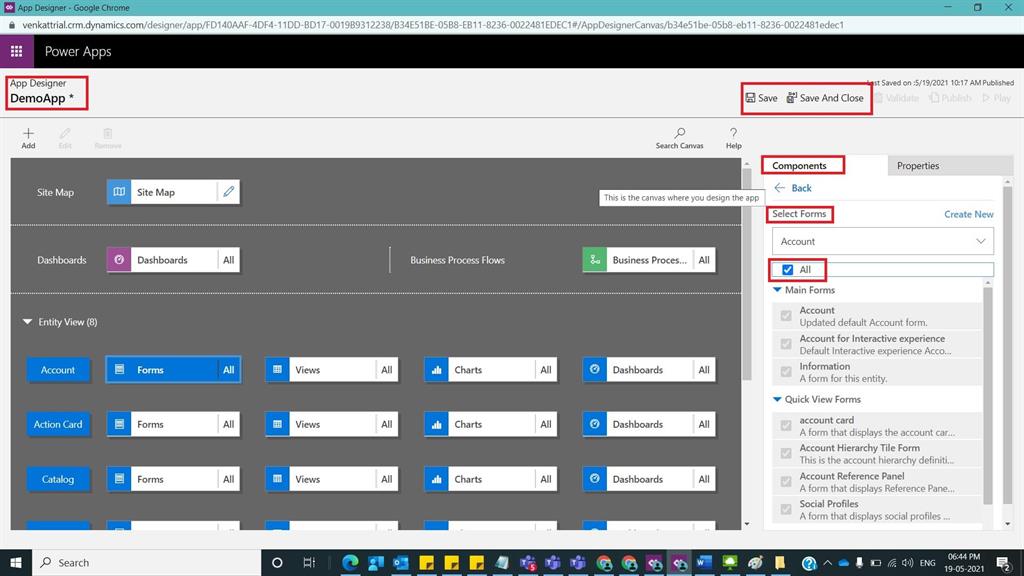

Now Click on all components that are present under Entity Assets like Forms, Views, Charts, Dashboards select the required components that you required and click on publish as shown below,

How To Create An App In D365 CRM

Step 9

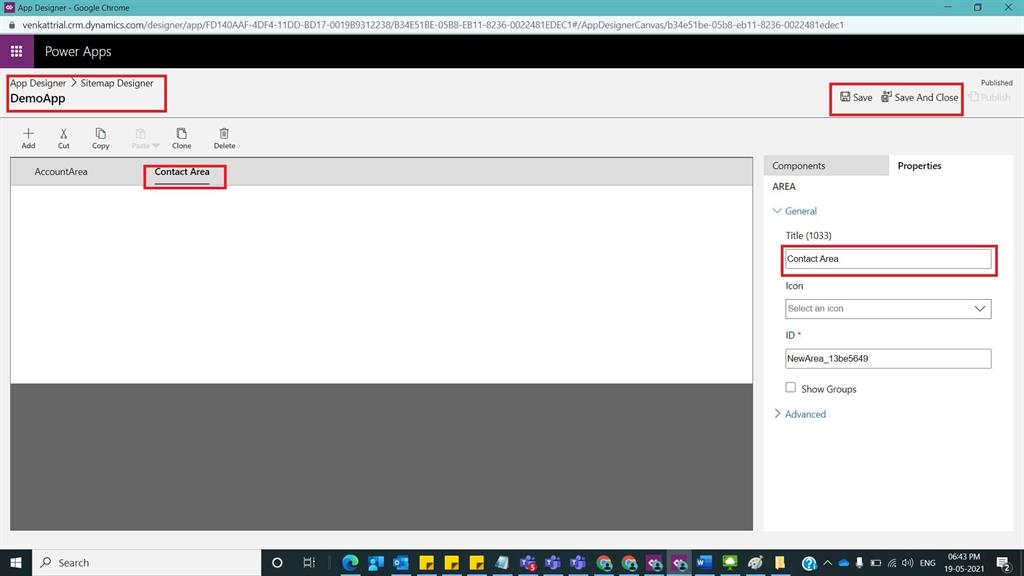

In the app designer, under Site Map click on the pencil icon beside the text Site Map as shown below and after that, you could see 3 components on the right side Area, Group, and Subarea. Select each component and specify Names for each of the components as,

How To Create An App In D365 CRM

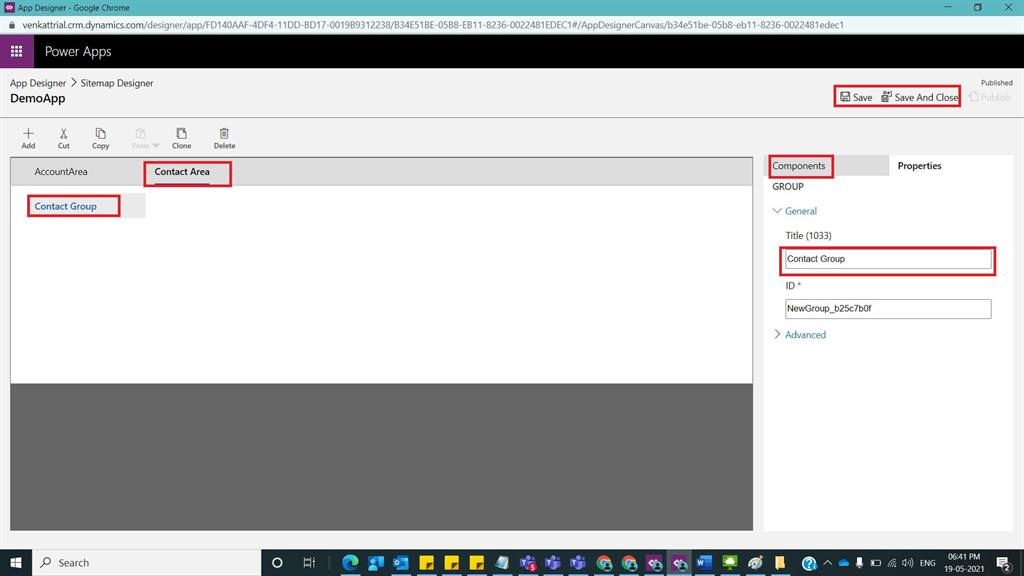

Step 10

Select Contact Area as created above and select on Add New Group and give name as Contact Group and click on save as shown below,

How To Create An App In D365 CRM

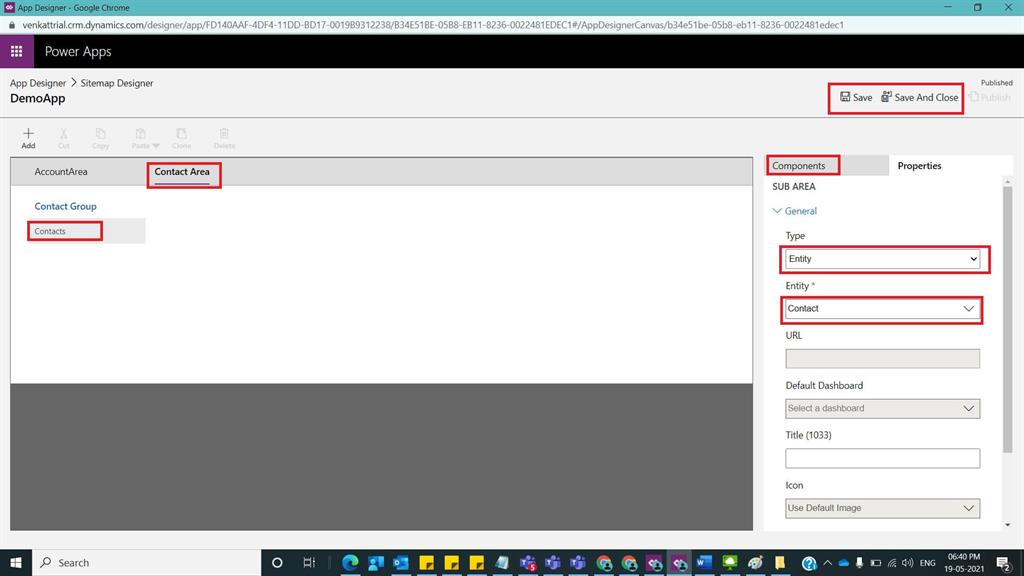

Step 11

Now Click on Contact Sub Area and again click on the + Add Button at the top and you should see the right side under sub-area and provide type – Entity and Entity as Contact for example and click on save and publish you should see a new sub-area for Contact should be created as shown below,

How To Create An App In D365 CRM

Step 12

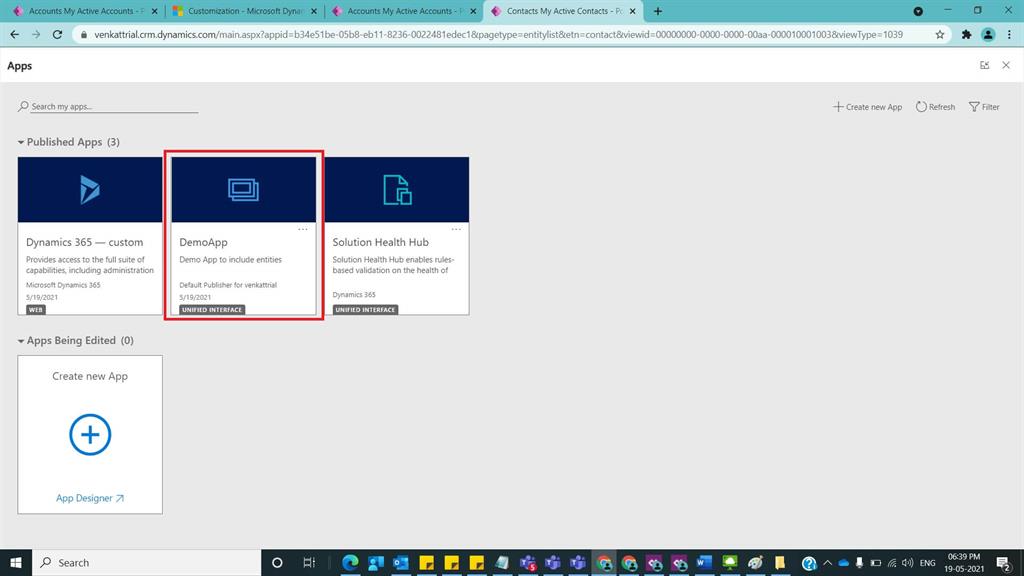

Now click on publish and navigate to apps section [Click on gear icon-> Advance settings-> Settings -> Apps and you could see our newly created app will appear as shown below,

How To Create An App In D365 CRM

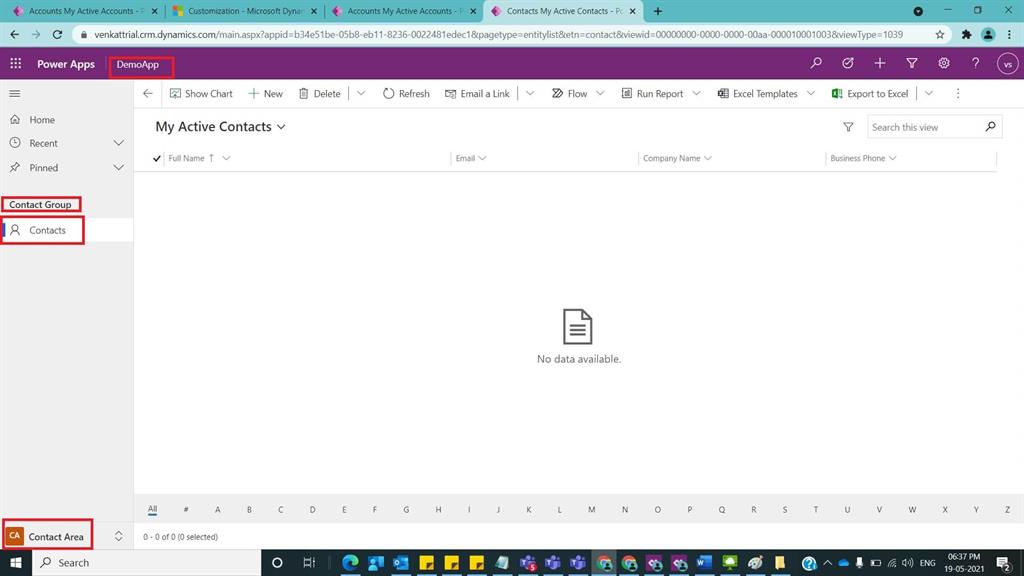

Step 13

Now click on Demo App and you should navigate to the following Demo App in Unified interface and observe our selected entity Contact and Area at the lower side of Demo App you should see sitemap for Contact as shown below,

How To Create An App In D365 CRM

Step 14

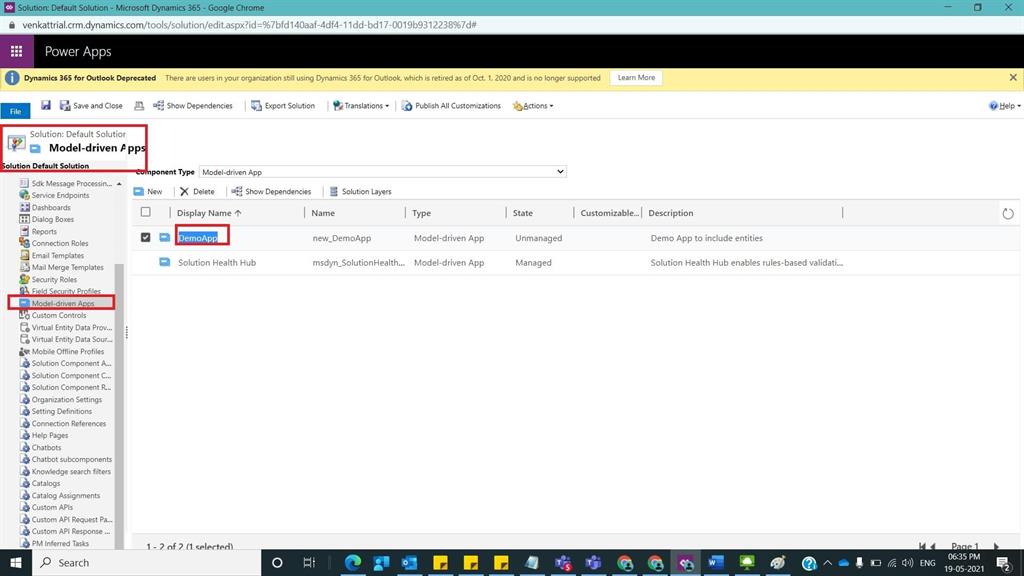

You can find the created above app in Default solution under Modern Driven Apps as shown in below diagram,

How To Create An App In D365 CRM


Conclusion


In this way, we can easily create the app in D365 CRM Environment without writing any code.
