How To Dynamic List View In Xamarin.Forms

Introduction

This article demonstrates how to create a Dynamic ListView Application using C# and XAML in Xamarin.Forms.

Let's start.

Step 1

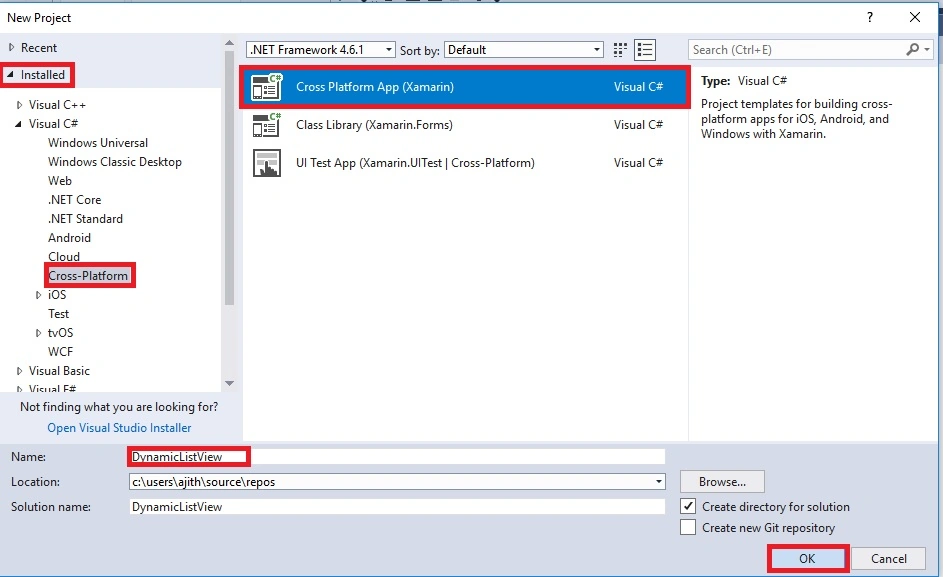

Open Visual Studio and go to New Project >> installed >> Visual C# >> Cross-Platform.

Select Cross-Platform App, then give your project a name and location.



Step 2

After project creation, update the following NuGet Packages to your project.

Xamarin.Forms

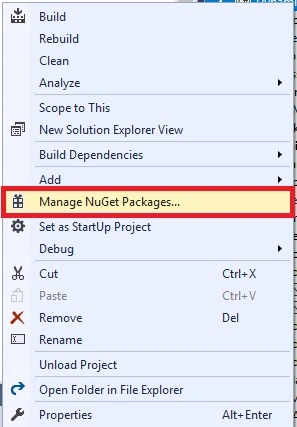

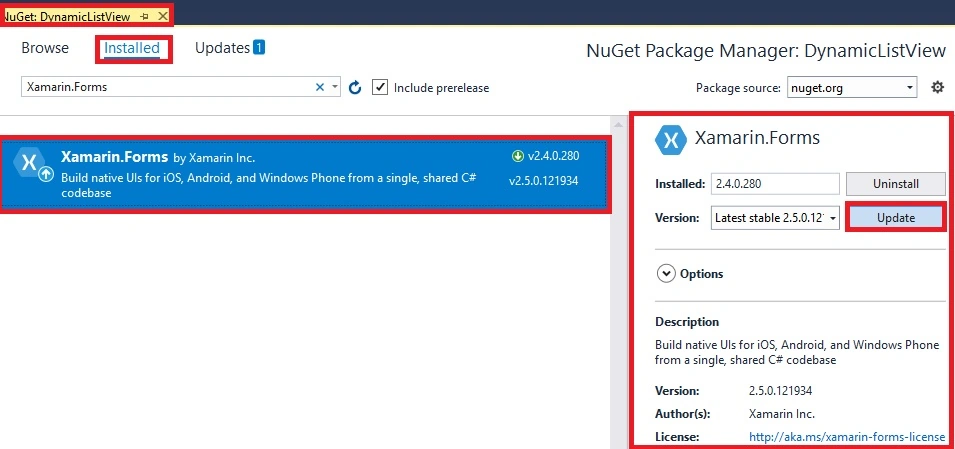

Go to Solution Explorer and select your solution. Right-click and select "ManageNuGett Packages for Solution".



Now, select the following NuGet package and select your project to update it.



Step 3

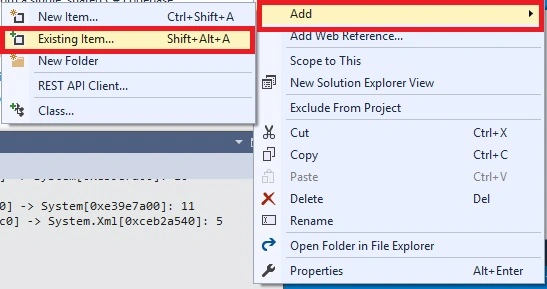

Next, add an image to open Solution Explorer >> projectName.Android >> Resources >> Right click the drawable >>Add >> Existing Item and add the image.





Step 4

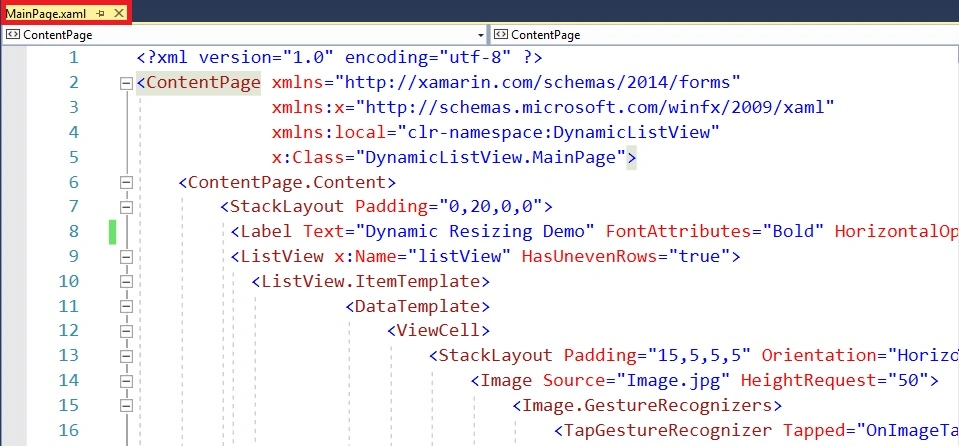

Open Solution Explorer >> Project Name >> Mainpage.xaml. Open the Design View of this page.



The code is given below.



XAML Code
  1. <StackLayout Padding="0,20,0,0">
  2.         <Label Text="Dynamic Resizing Demo" FontAttributes="Bold" HorizontalOptions="Center" />
  3.         <ListView x:Name="listView" HasUnevenRows="true">
  4.           <ListView.ItemTemplate>
  5.                    <DataTemplate>
  6.                        <ViewCell>
  7.                            <StackLayout Padding="15,5,5,5" Orientation="Horizontal">
  8.                                <Image Source="Image.jpg" HeightRequest="50">
  9.                                    <Image.GestureRecognizers>
  10.                                        <TapGestureRecognizer Tapped="OnImageTapped" />
  11.                                    </Image.GestureRecognizers>
  12.                                </Image>
  13.                                <Label Text="Flower" VerticalOptions="Center" />
  14.                            </StackLayout>
  15.                        </ViewCell>
  16.                    </DataTemplate>
  17.                </ListView.ItemTemplate>
  18.            </ListView>
  19.        </StackLayout>
Step 4

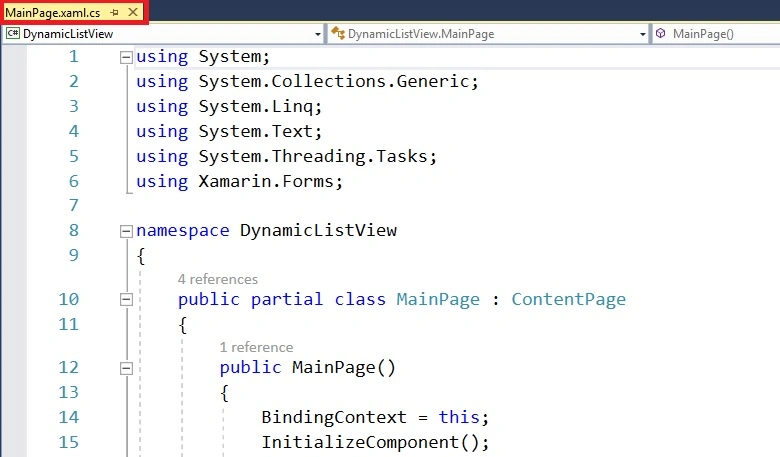

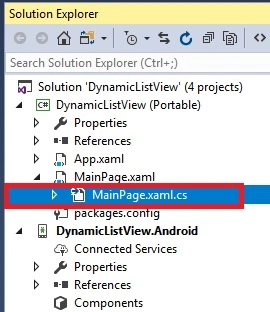

Open Solution Explorer >> Project Name >> Mainpage.xaml.cs. Open the Design View of this page.



The code is given below.



C# Code
  1. public partial class MainPage : ContentPage
  2.     {
  3.         public MainPage()
  4.         {
  5.             BindingContext = this;
  6.             InitializeComponent();
  7.             var items = Enumerable.Range(0, 10);
  8.             listView.ItemsSource = items;
  9.         }
  10.         void OnImageTapped(object sender, EventArgs args)
  11.         {
  12.             var image = sender as Image;
  13.             var viewCell = image.Parent.Parent as ViewCell;
  14.
  15.             if (image.HeightRequest < 250)
  16.             {
  17.                 image.HeightRequest = image.Height + 100;
  18.                 viewCell.ForceUpdateSize();
  19.             }
  20.         }
  21.     }
Step 5

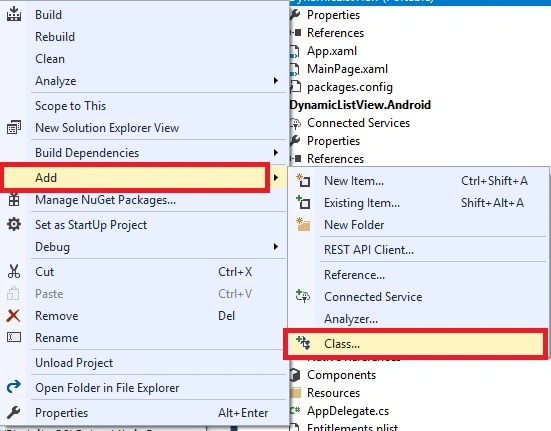

Next, open Solution Explorer >> ProjectName(Portable) >> Right Click >> Add >> Class.

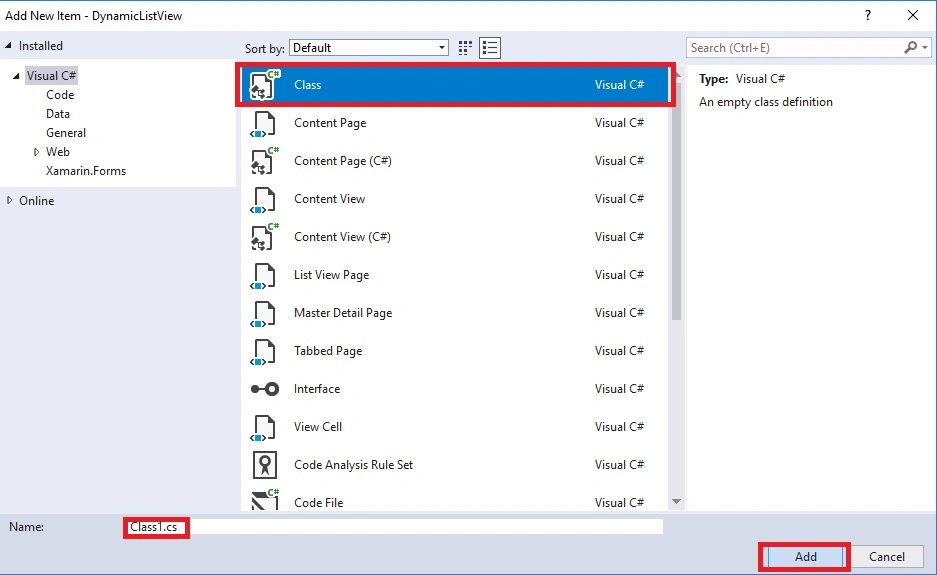

The Dialogue Box will open. Add the Class and give a name.



Step 6

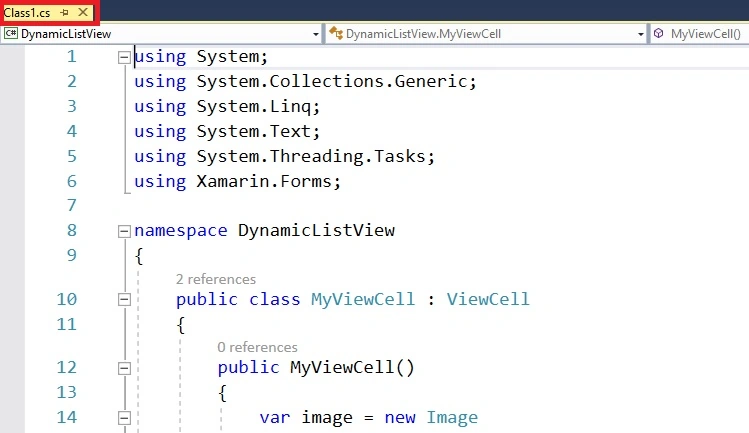

Open Solution Explorer >> Project Name >> Class.cs. Open the Design View of this page.



The code is given below.



C# Code
  1. public class MyViewCell : ViewCell
  2.     {
  3.         public MyViewCell()
  4.         {
  5.             var image = new Image
  6.             {
  7.                 Source = ImageSource.FromFile("Image.jpg"),
  8.                 HeightRequest = 50,
  9.             };
  10.
  11.             var tapGestureRecognizer = new TapGestureRecognizer();
  12.             tapGestureRecognizer.Tapped += (object sender, EventArgs e) => {
  13.                 if (image.HeightRequest < 250)
  14.                 {
  15.                     image.HeightRequest = image.Height + 100;
  16.                     ForceUpdateSize();
  17.                 }
  18.             };
  19.             image.GestureRecognizers.Add(tapGestureRecognizer);
  20.
  21.             var stackLayout = new StackLayout
  22.             {
  23.                 Padding = new Thickness(20, 5, 5, 5),
  24.                 Orientation = StackOrientation.Horizontal,
  25.                 Children = {
  26.                     image,
  27.                     new Label { Text = "Flower", VerticalOptions = LayoutOptions.Center }
  28.                 }
  29.             };
  30.
  31.             View = stackLayout;
  32.         }
  33.     }
  34.
  35.     public class HomePageCS : ContentPage
  36.     {
  37.         public HomePageCS()
  38.         {
  39.             var listView = new ListView { HasUnevenRows = true };
  40.             listView.ItemTemplate = new DataTemplate(typeof(MyViewCell));
  41.             var items = Enumerable.Range(0, 10);
  42.             listView.ItemsSource = items;
  43.
  44.             Content = new StackLayout
  45.             {
  46.                 Padding = new Thickness(0, 20, 0, 0),
  47.                 Children = {
  48.                     new Label {
  49.                         Text = "HasUnevenRows Dynamic Resizing Demo",
  50.                         FontAttributes = FontAttributes.Bold,
  51.                         HorizontalOptions = LayoutOptions.Center
  52.                     },
  53.                     listView
  54.                 }
  55.             };
  56.         }
  57.     }
Step 8

Press F5 or Build and Run the application.

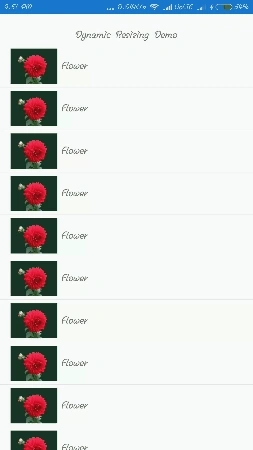

Output



Finally, we have successfully created a Xamarin.Forms DynamicListView.
