How to Implement the AutoComplete TextBox in Silverlight Application

Introduction

In this article we will implement an AutoComplete TextBox in Silverlight Applications using C#.

An AutoCompleteBox is just a kind of TextBox in which, when you start typing, items that match are displayed in a dropdown list and you can pick an item from the list.

Procedures

Step 1: Create a New “Silverlight Application” in Visual Studio and name it as you chooce (I named mine AutoCompleteBox).

Now a new Silverlight Application Page (MainPage.xaml) will be generated.

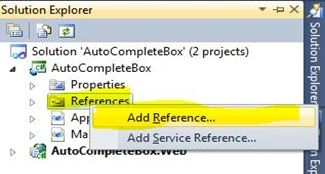

Step 2: Now go to the Solution Explorer Window and right-click on "References" and click on "Add Reference".

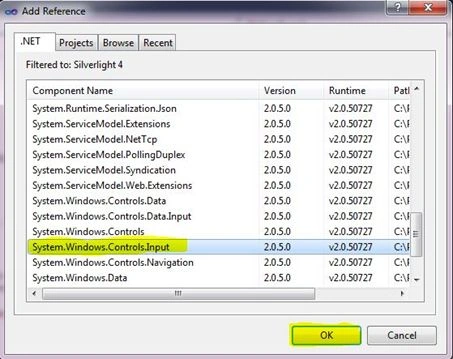

Step 3: Now an "Add Reference" window will appear. Navigate to the .NET tab and search for System.Windows.Controls.Input reference and add it to your project.



Step 4: Now navigate to the MainPage.xaml portion in your project and add the following code for the reference:

xmlns:sdk="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk"

Step 5: A reference is added to your project and now it's time to add the AutoCompleteBox.

Navigate to the XAML code and in the Grid tag add the following code:

<sdk:AutoCompleteBox Name="Colors" Width="200" Height="25"/>

An AutoCompleteBox is added to your project (here I named it Colors but it's up to you what to use).

Step 6: Now it's time to add some data in the AutoCompleteBox. To do that navigate to the .cs file of your project MainPage.xaml.cs and add the following code to the MainPage() block:

public MainPage()

{
