HTML Helpers In ASP.NET MVC 5.0: Part 10

Before reading this article, I highly recommend reading the previous part of the series on ASP.NET:

• Getting Started With ASP.NET MVC
• First ASP.NET MVC 5.0 Application
• How to Publish ASP.NET MVC on IIS MVC 5.0: Part 3
• How to Publish ASP.NET MVC 5.0 Application on Windows Azure: Part 4
• ASP.NET MVC 5.0 Views (Dynamic/Strongly Typed Views) - Part 5
• What Are Areas in ASP.NET MVC - Part 6
• Using Partial Views In ASP.NET MVC 5.0: Part 7
• MVC 5.0 Application using Entity Framework DB First Approach: Part 8
• MVC 5.0 Application using Entity Framework Code First Approach: Part 9

HTML Helpers

HTML Helpers are used to create HTML markup to create HTML Controls. HTML Helper is just a method that returns an HTML string. There are three kinds of HTML Helpers:

1. Inline HTML Helpers: These are created by the @helper tag of Razor Syntax. These Helpers can be reused only on the same view.


2. Built-In HTML Helpers: These HTML Helpers are extension methods on the HtmlHelper class. These are categorized in to three parts:


   • Standard HTML Helpers: These helpers are used to create the most common types of HTML elements.


   • Strongly Typed HTML Helpers: The HTML is generated through Model Class Properties. These helpers work on lambda expression.


   • Templated HTML Helpers: These helpers defines what HTML elements are required to render based on properties of our Model class.


3. Custom HTML Helpers: You can also create your own custom helper methods by creating an extension method on the HtmlHelper class or by creating static methods within a utility class.

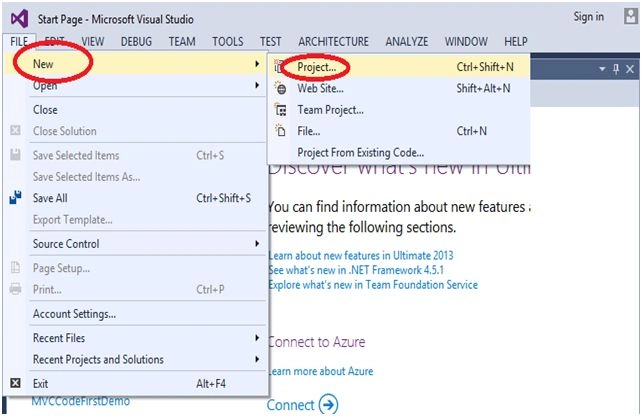

Step 1: Open the Visual Studio and select the “File” menu, New, then Project.

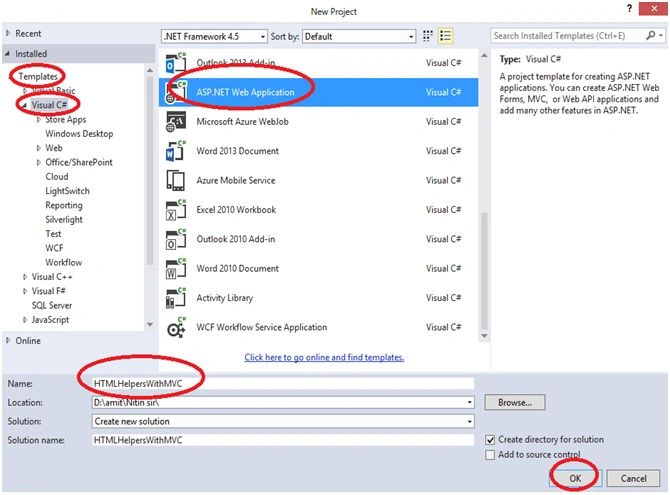

In the following figure select “Templates”, Visual C#, ASP.NET Web Application, and here I gave the name of project as “HTMLHelpersWithMVC.”

• You can give the project name as you wish.


• And then click on “OK” button.

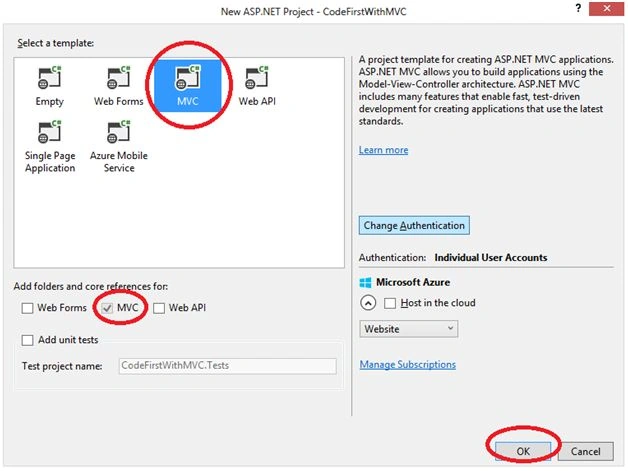

• In the following figure as you can see the default MVC will be selected, select MVC and then click “OK” button.

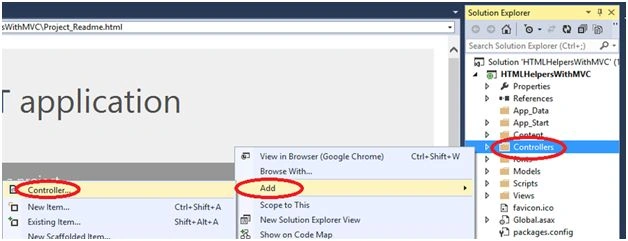

• First, I want to create a Controller, so right click on "Controllers" folder and click on “Add”, then click on to Controller, to add a Controller.

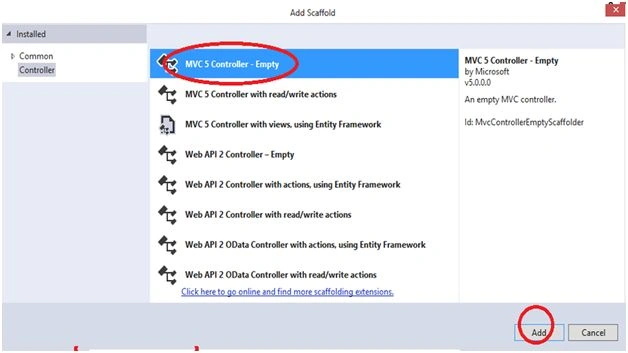

• Select the MVC 5 Controller - Empty.


• Click on to the “Add” button to add a Controller.




• Here I gave the “MyController” name to my Controller.


• Click on to the “Add” button.


• You can give the Controller name as you wish.

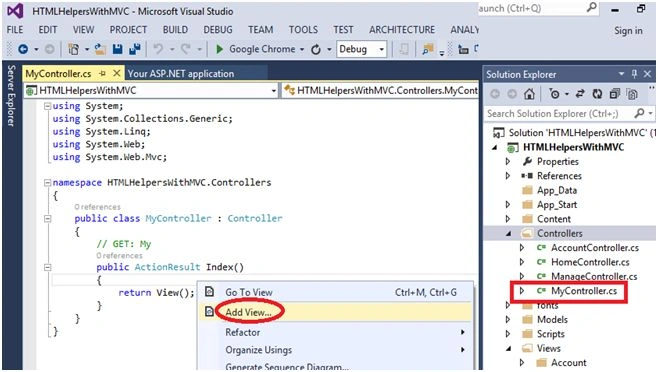

• In the “MyController”, right click near return view(); to add a view.

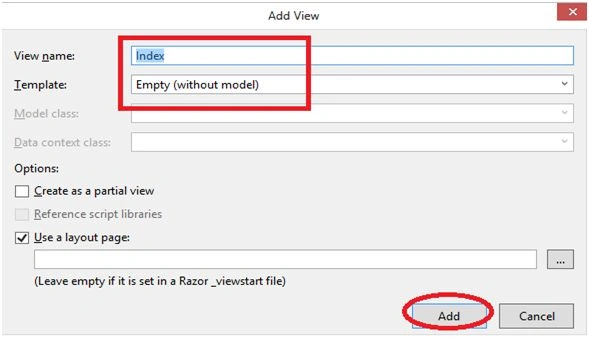

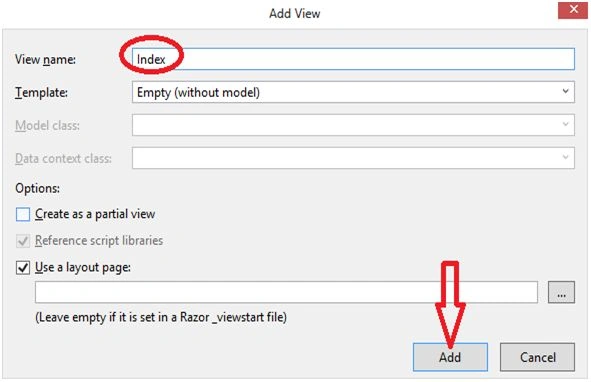

• In the following figure, the view name is by default Index, and Templates name is by default Empty (without model).


• Click on “Add” button to add a view.

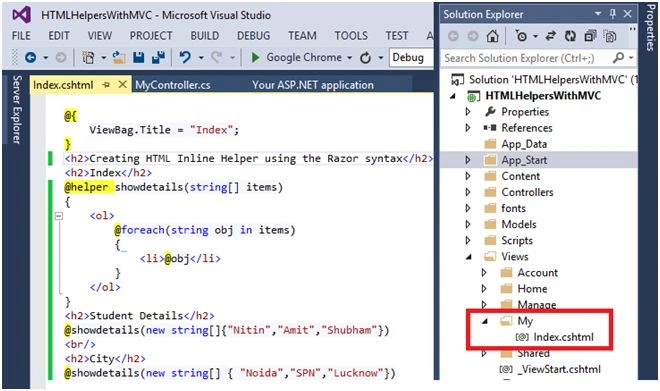

• Here is the first of all we have taken in the Inline HTML Helpers example, where we can show the items in Inline format.

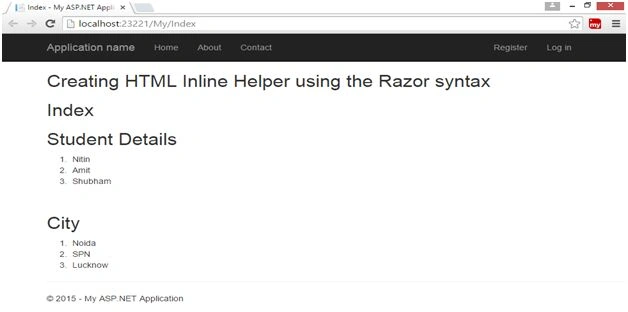

• This is the output of Inline HTML Helpers:




• Now I’m going to create Built-In Type HTML Helpers:

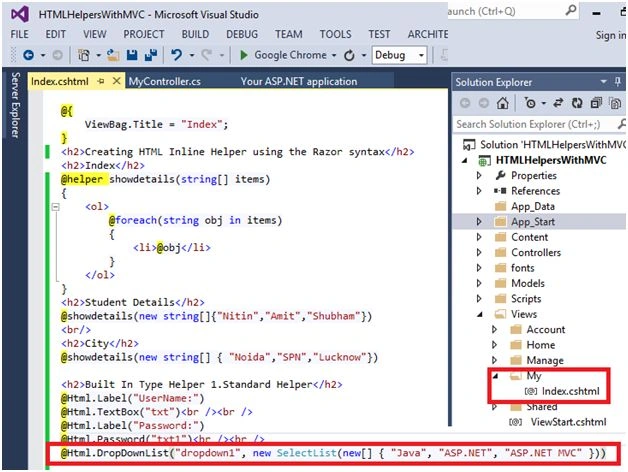

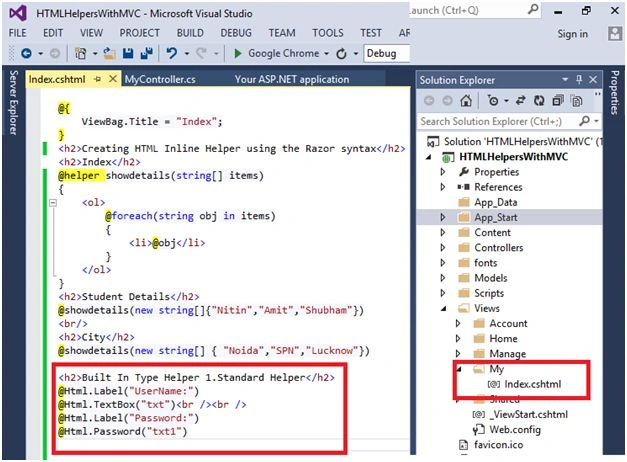

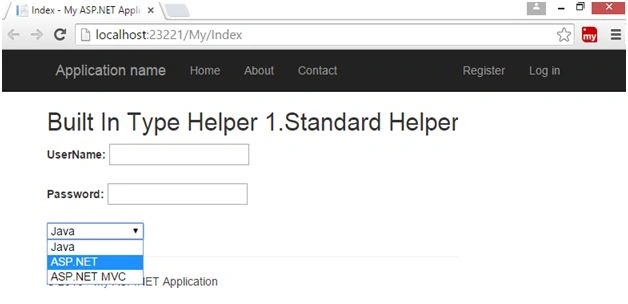

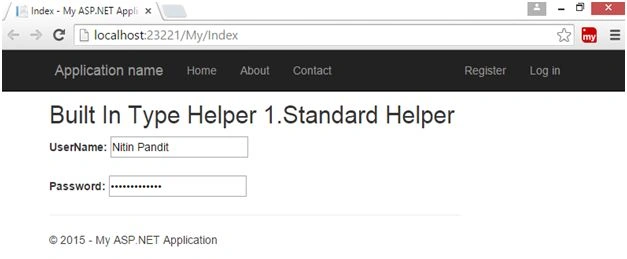

• Firstly, I’m using the Standard HTML Helpers like HTML text boxes, Password, Dropdown list, etc.










• Now I’m going to create Strongly Typed HTML Helpers-

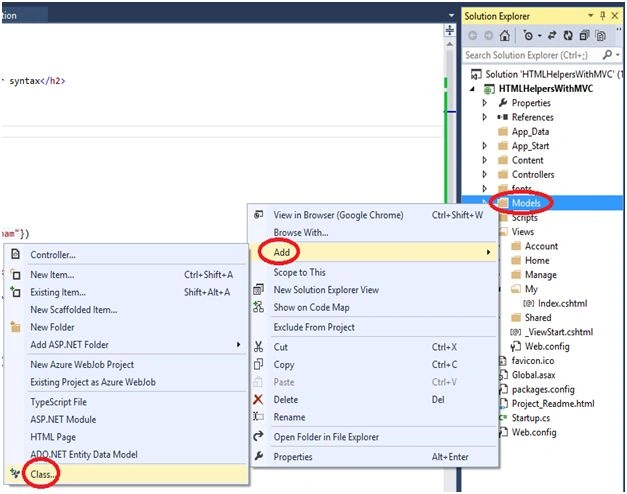

• For this I need to create a Model using a Model folder, right click on to Models folder, click on “Add” button and add a class.

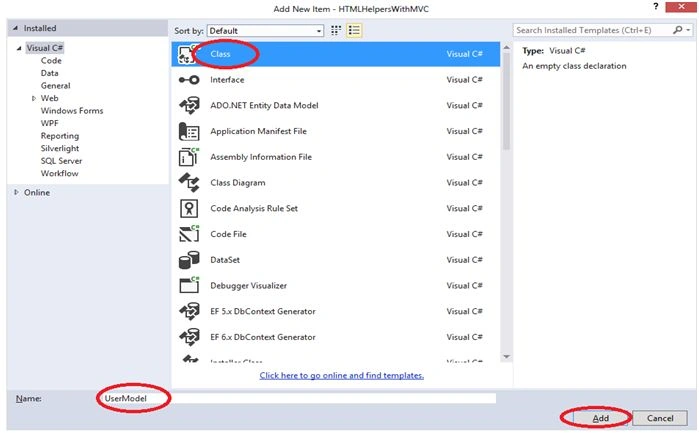

• Select the class name and give the name of this class “UserModel”.


• Click on to the “Add” button.

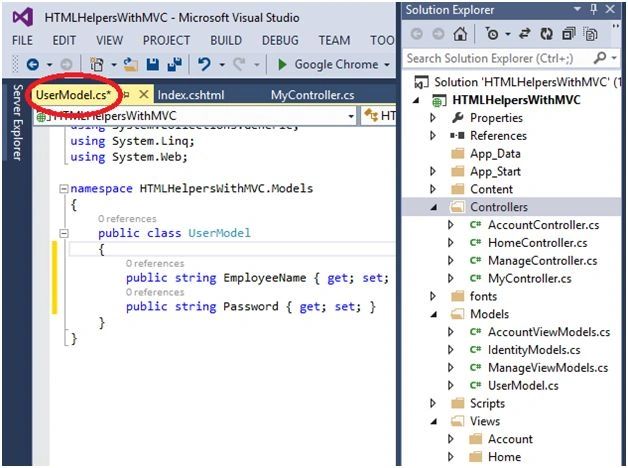

• In the Model Class, we have to create two properties, EmployeeName and Password.

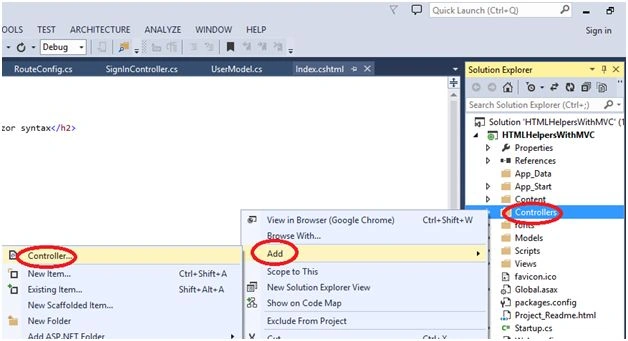

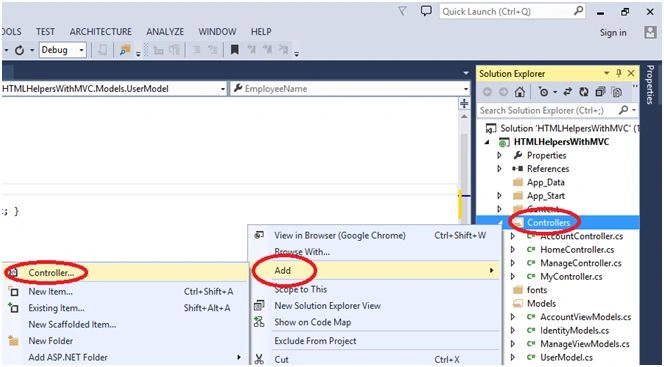

  To demonstrate, I want to add a new Controller, so right click on the Controllers folder and click on Add. Click on Controller to add a new Controller.




• Select the MVC 5 Controller - Empty.


• Click on “Add” button to add a Controller.

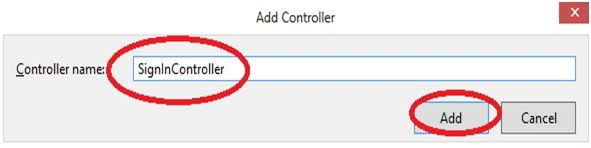

• So give the Controller name “SignInController”.


• Click on “Add” button.

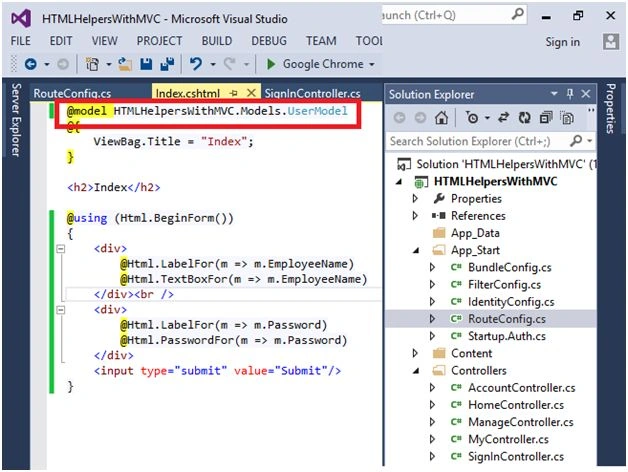

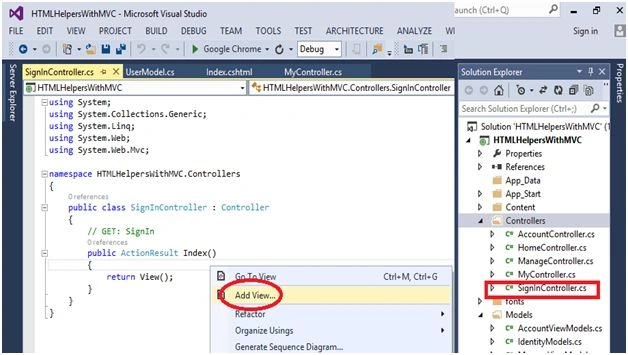

• Here we need to create a particular view, right click near return view(); and click “Add View”.

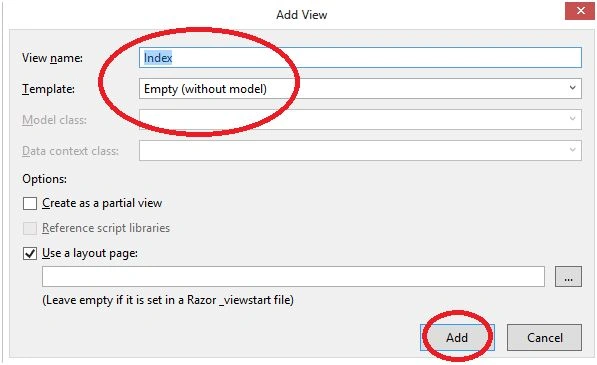

• The View name by default is Index and Template name by default is Empty.


• Click on Add button.

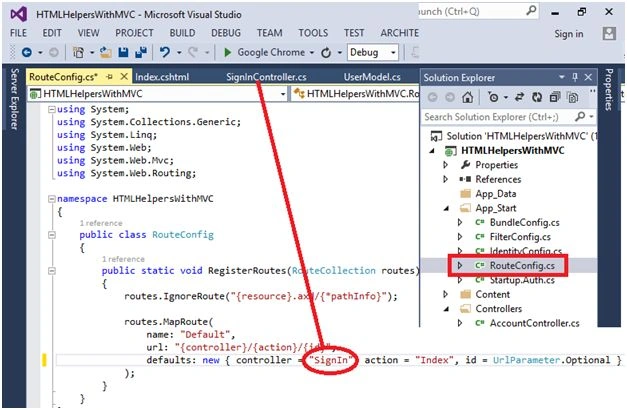

• In the RouteConfig.cs, change the Controller name, write the “SignIn”.

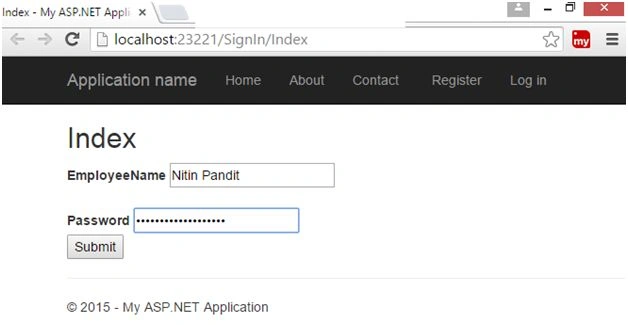

• Now run the Project, press F5 key to run the project.

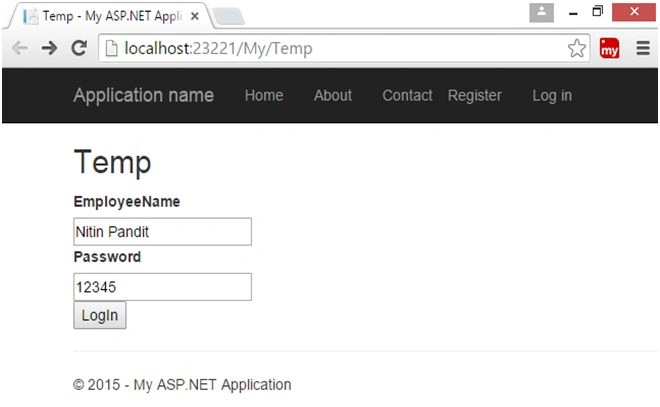

• Now I’m going to create Templated HTML Helpers-


• In MyController.cs, right click near return view(); to add a view.

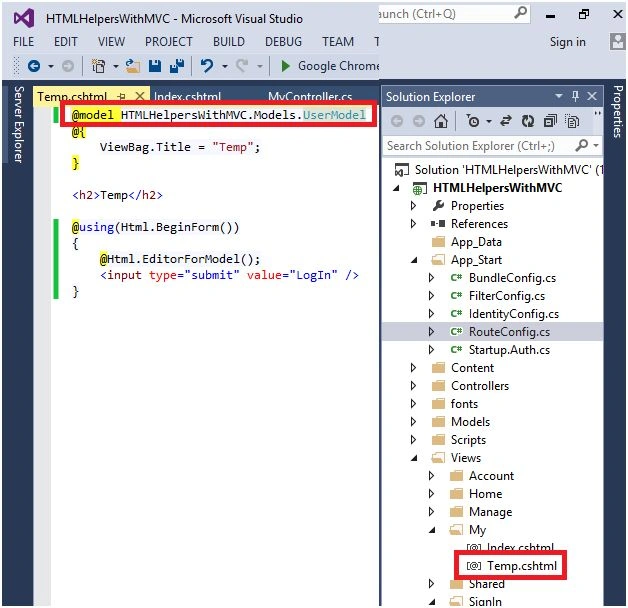

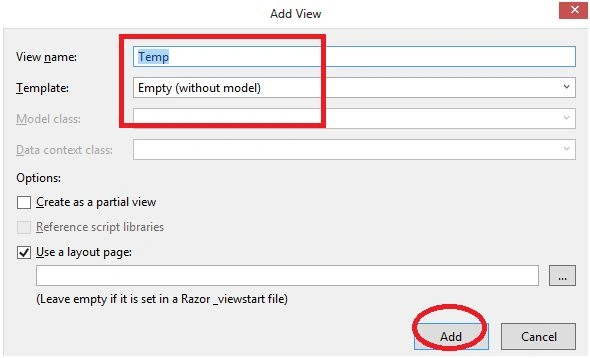

• The View Name is by default “Temp” and Template Name is by default Empty.


• Click on to the “Add” button.

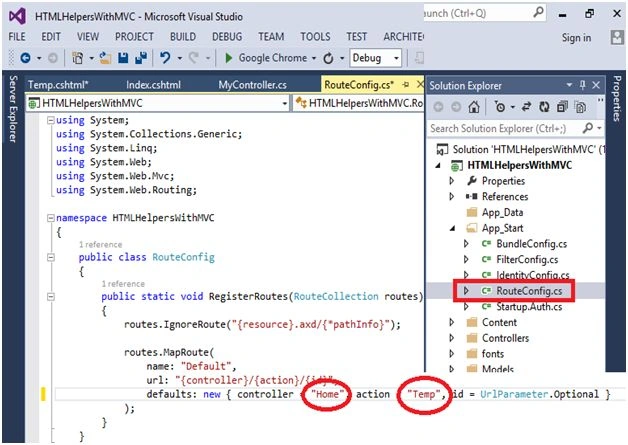

• Change the Controller and action name according to the View and Controller name in the RouteConfig.cs file.






• Now I’m going to create Custom HTML Helpers:


• First of all we need to create a Controller, so right click on Controllers folder, select “Add” and then Controller to add a Controller.




• Select the MVC 5 Controller - Empty.


• Click on “Add” button to add a Controller.




• So give the Controller name “CustomController”.


• Click on “Add” button.




• Now we need to create a class.

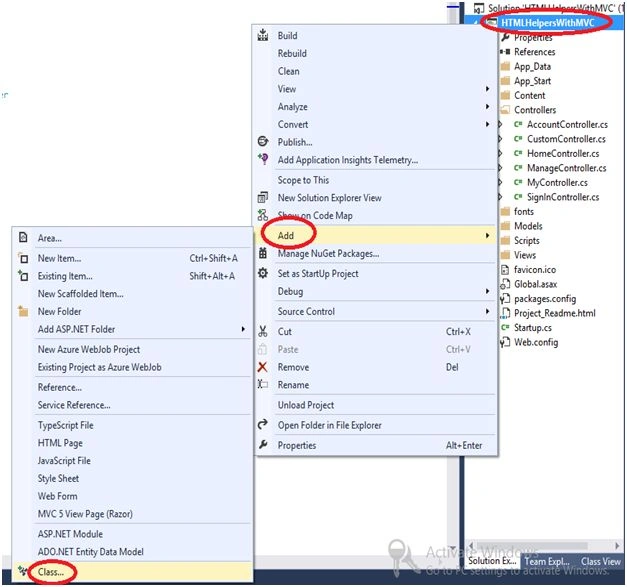

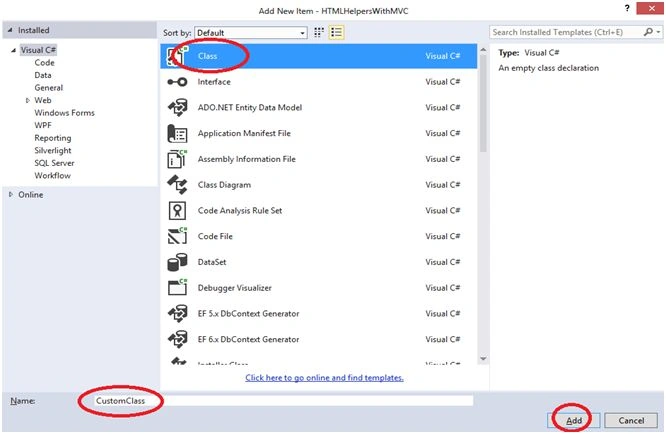

• Right click on to the Project and choose “Add” and then click on “class” to add a Class.

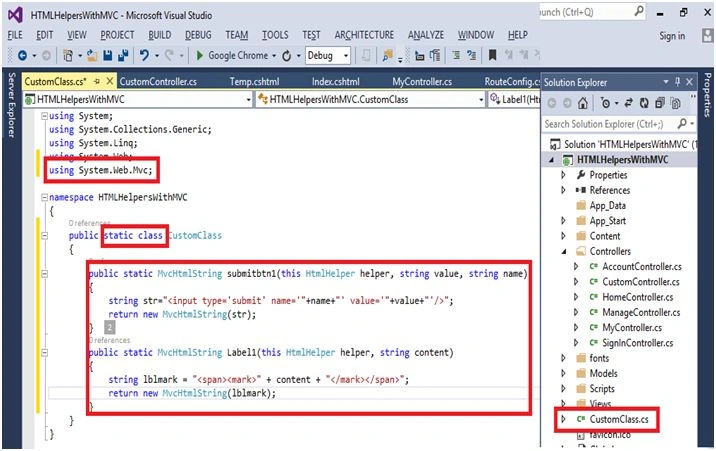

• Select the Class and give the “CustomClass” name of the class.


• Click on to the “Add” button.

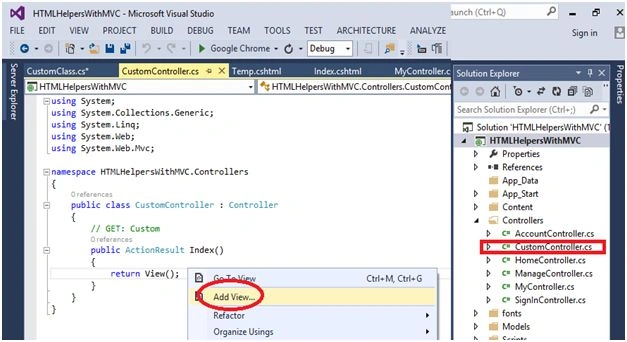

• In the “CustomController.cs”, we need to add a View, so right click near view and click on “Add View”.




• Click on the “Add” button.

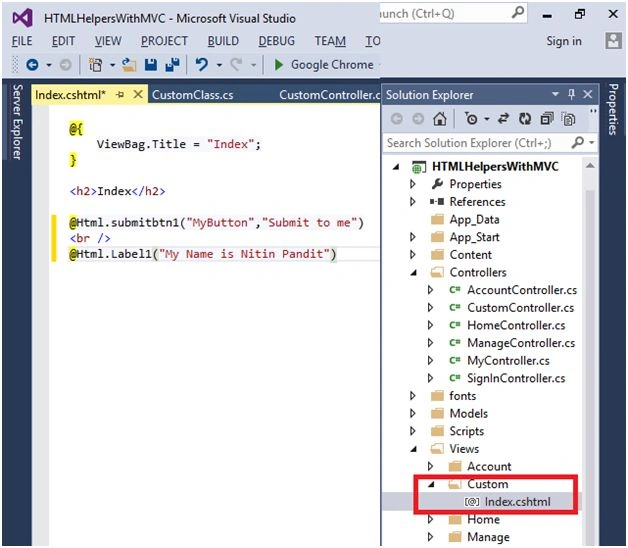

• In the view page take a button and a Label. 




• In the RouteConfig.cs, change the name of Controller and action.




• Run the project by pressing F5.

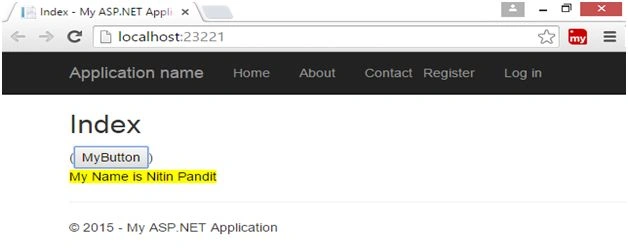

• The final output is here.



Thanks for reading this article and stay connected with my articles.
