Introduction
Today we will create a Metro Style application using JavaScript instead of C#. In this article we will use a HTML page and a JavaScript file to create a simple application. Through the JavaScript file we will use a function that has the functionality to make an image fade from the normal state of the image. To execute this function we will use a HTML button on the HTML page and the function is executed in its click event.
In the following we are including the entire code of the HTML file and the JavaScript file to create this mini application.

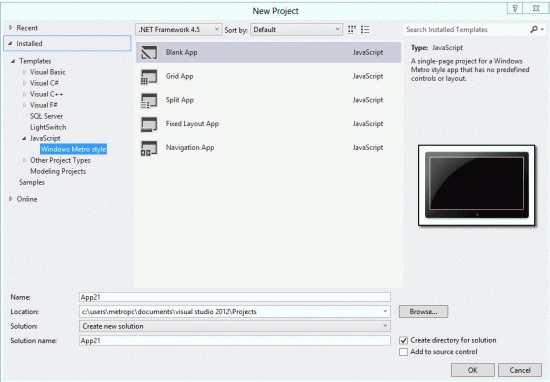

Step 1 : First, you will create a new Metro Style Application. Let us see the description with images of how to create it.
- Open Visual Studio 2012
- File -> New -> Project
- Choose Template -> JavaScript -> Metro Style Application
- Rename the application

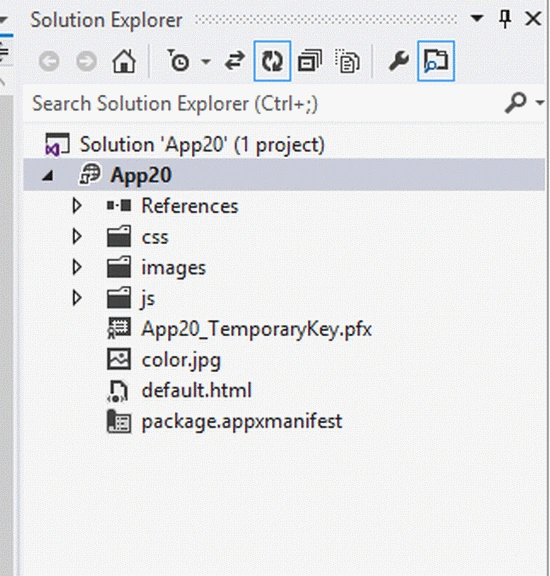

Step 2 : In the Solution Explorer there are two files that we will primarily work with; the Default.Html file.
Step 3 : The Default.Html file is as in the following code:
Code :
<!DOCTYPE html>
<!DOCTYPE html>
<html lang="en" xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Image Fading</title>
<style>
body
{background:white;
border:black;
cursor:crosshair
}
#mycanvas
{background:white
}
</style>
</head>
<body>
<div><h3>Image Fading Using HTML5</h3>
<input type="button" id="fade_button"value="Fade Button" />
</div>
<canvas id='mycanvas' width='650' height='450'></canvas>
<script type="text/javascript" src="fade.js">
</script>
</body>
</html>
Step 4 : The feade.js JavaScript file is as in the following code:
Code :
var img = new Image(),
mycanvas = document.getElementById('mycanvas'),
context = mycanvas.getContext('2d'),
newcanvas = document.createElement('canvas'),
offscreenContext = newcanvas.getContext('2d'),
fade_button = document.getElementById('fade_button'),
imgd,
gap = null,
imgdnewcanvas;
function incvisiblity(imgd, steps) {
var x,
dx,
nxt,
l = imgd.data.length;
for (var a = 3; a < l; a += 4) {
x = imgdnewcanvas.data[a];
if (x > 0) {
dx = imgd.data[a];
nxt = Math.ceil(x / steps);
if (dx + nxt <= x) {
imgd.data[a] += nxt;
}
else {
imgd.data[a] = x;
}
}
}
}
function startfade(context, imgd, steps, millisecondsPerStep) {
var y = 0;
for (var a = 3; a < imgd.data.length; a += 4) {
imgd.data[a] = 0;
}
gap = setInterval(function () {
y++;
if (y > steps) {
clearInterval(gap);
}
else {
incvisiblity(imgd, steps);
context.putImageData(imgd, 0, 0);
}
}, millisecondsPerStep);
}
fade_button.onclick = function () {
imgdnewcanvas = offscreenContext.getImageData(0, 0, mycanvas.width, mycanvas.height);
startfade(context, offscreenContext.getImageData(0, 0, mycanvas.width, mycanvas.height), 50, 1000 / 60);
};
img.src = 'color.jpg';
img.onload = function () {
newcanvas.width = mycanvas.width;
newcanvas.height = mycanvas.height;
offscreenContext.drawImage(img, 0, 0);
};

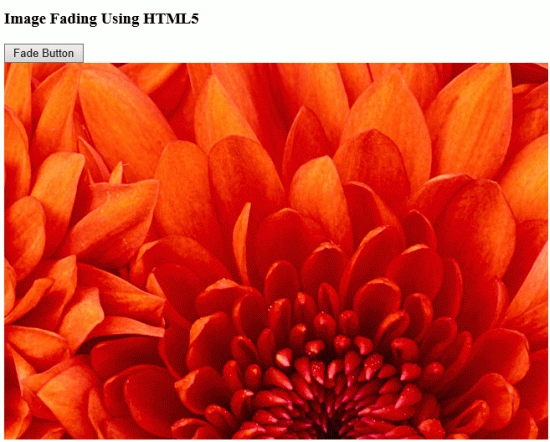

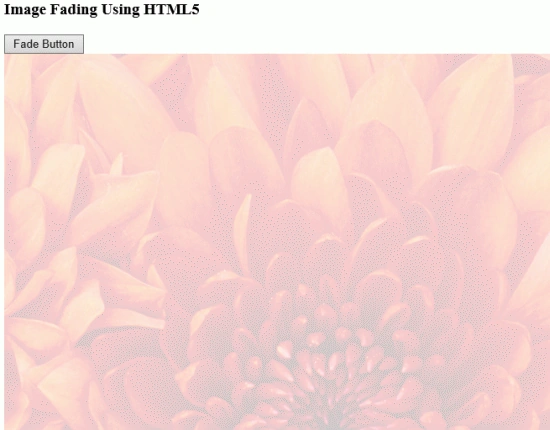

Step 5 : After running this code the output looks like this:
