Import and Save file in Visual Studio LightSwitch

Visual Studio Lightswitch is a Microsoft tool, which is used for to build business applications. If you want to browse a file in your LightSwitch application then follow these steps.

Step by step solution

Step 1 : Open Visual Studio LightSwitch->Create new table (like as FileInformation).

Step 2 : Right click on screens->Add screens.

Step 3 : Select editable grid screen->Select screen data (FileInformation)->Ok.

Step 4 : Now click on add in screen commandbar->Select new button.

Step 5 : Write method name (ImportFile)->Ok.

Step 6 : Right click on ImportAFile button->Edit execute code->Write the below code.

Code :

using System;
using System.Collections.Generic;
using System.IO;
using System.IO.IsolatedStorage;
using System.Linq;
using LightSwitchApplication.UserCode;
using Microsoft.LightSwitch;
using Microsoft.LightSwitch.Framework.Client;
using Microsoft.LightSwitch.Presentation;
using Microsoft.LightSwitch.Presentation.Extensions;
using Microsoft.LightSwitch.Threading;
namespace LightSwitchApplication
{
public partial class EditableFileInformationsGrid
{
partial void ImportAFile_Execute()
{
Dispatchers.Main.BeginInvoke(() =>
{
SelectFileWindow selectFileWindow = new SelectFileWindow();
selectFileWindow.Closed += new EventHandler(selectFileWindow_Closed);
selectFileWindow.Show();
});
}
void selectFileWindow_Closed(object sender, EventArgs e)
{
SelectFileWindow selectFileWindow = (SelectFileWindow)sender;
if (selectFileWindow.DialogResult == true && (selectFileWindow.DocumentStream != null))
{
byte[] fileData = new byte[selectFileWindow.DocumentStream.Length];
using (StreamReader streamReader = new StreamReader(selectFileWindow.DocumentStream))
{
for (int i = 0; i < selectFileWindow.DocumentStream.Length; i++)
{
fileData[i] = (byte)selectFileWindow.DocumentStream.ReadByte();
}
}
FileInformation fileInformation = this.DataWorkspace.ApplicationData.FileInformations.AddN();
fileInformation.Name = selectFileWindow.SafeFileName;
fileInformation.Miscellaneous = "Size of file in bytes: " + fileData.Length
fileInformation.Data = fileData;
selectFileWindow.DocumentStream.Close();
selectFileWindow.DocumentStream.Dispose();
}

}
}
}

Step 7 : Go to file view in solution explorer.

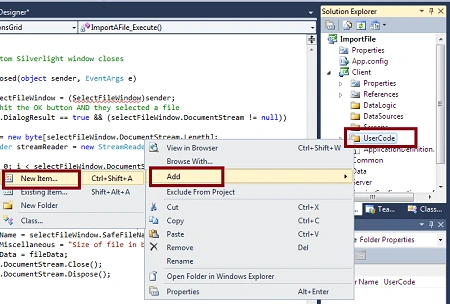

Step 8 : Expand client->Right click on user code->Add->New item.

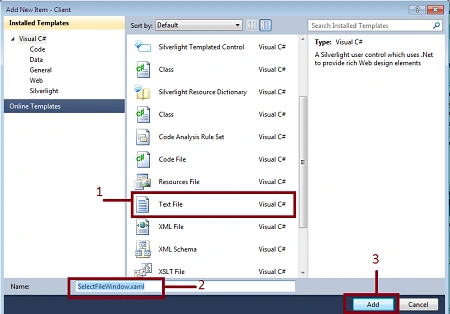

Step 9 : Select text file->Write name (SelectFileWindow.xaml)->Add->Write the below code.

Code :

<UserControl x:Class="LightSwitchApplication.UserCode.SelectFileWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
d:DesignHeight="300" d:DesignWidth="400">
<Grid x:Name="LayoutRoot" Background="White">
</Grid>
</UserControl>
<controls:ChildWindow x:Class="LightSwitchApplication.UserCode.SelectFileWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:controls="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls"
Width="394" Height="305"
Title="Select File Dialog" >
<Grid x:Name="LayoutRoot" Margin="2">
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition Height="Auto" />
</Grid.RowDefinitions>
<Button x:Name="CancelButton" Content="Cancel" Click="CancelButton_Click" Width="75" Height="23"
HorizontalAlignment="Right" Margin="0,12,0,0" Grid.Row="1" />
<Button x:Name="OKButton" Content="OK" Click="OKButton_Click" Width="75" Height="23"
HorizontalAlignment="Right" Margin="0,12,79,0" Grid.Row="1" />
<Button Content="Browse" Height="23" HorizontalAlignment="Left" Margin="291,92,0,0" Name="BrowseButton"
VerticalAlignment="Top" Width="75" Click="BrowseButton_Click" />
<TextBox Height="23" HorizontalAlignment="Left" Margin="66,92,0,0" Name="FileTextBox"
VerticalAlignment="Top" Width="219" IsEnabled="True"/>
</Grid>
</controls:ChildWindow>

Step 10 : Again right click on user code->Add->New item.

Step 11 : Select class->Write name (SelectFileWindow.cs)->Add->Write the below code.

Code :

using System;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Ink;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
namespace LightSwitchApplication.UserCode
{
public partial class SelectFileWindow : ChildWindow
{
public SelectFileWindow()
{
InitializeComponent();
}
private FileStream documentStream;
public FileStream DocumentStream
{
get { return documentStream; }
set { documentStream = value; }
}
private String safeFileName;
public String SafeFileName
{
get { return safeFileName; }
set { safeFileName = value; }
}
private void OKButton_Click(object sender, RoutedEventArgs e)
{
this.DialogResult = true;
}
private void CancelButton_Click(object sender, RoutedEventArgs e)
{
this.DialogResult = false;
}
private void BrowseButton_Click(object sender, RoutedEventArgs e)
{
OpenFileDialog openFileDialog = new OpenFileDialog();
if (openFileDialog.ShowDialog() == true)
{
this.FileTextBox.Text = openFileDialog.File.Name;
this.safeFileName = openFileDialog.File.Name;
this.FileTextBox.IsReadOnly = true;
FileStream myStream = openFileDialog.File.OpenRead();
this.documentStream = myStream;
}
}
}
}

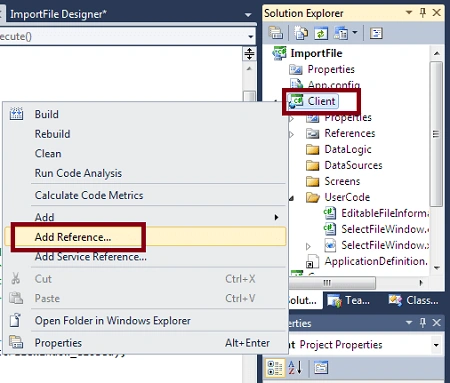

Step 12 : Now right click on client->Add references.

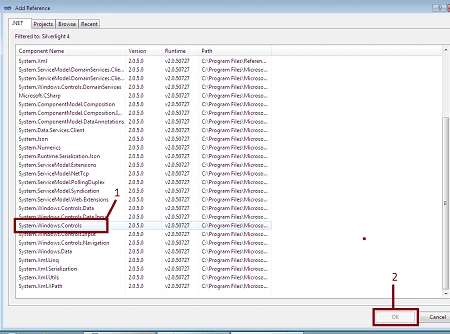

Step 13 : Select System.Windows.Controls->Ok.

Step 14 : Run application (Press F5)->Click on ImportAFile button.

Step 15 : Now you will browse a file from system drive then Ok.
