Import Data From Excel in LIghtSwitch 2012

This article describes how to import data from Excel in Light Switch using Visual Studio 2012.

The Excel Importer Extension allows us to add "Import From Excel" functionality in LightSwitch.

You can download the Excel Importer Extension from: Download the Excel Import Extension.

Procedure for importing data from Excel in LightSwitch 2012

Step 1

We need to first create the two Excel documents (Emp and Item) to be saved in the Document directory.

Emp Excel Document

emp excel.jpg

Item Excel Document

excel item.jpg

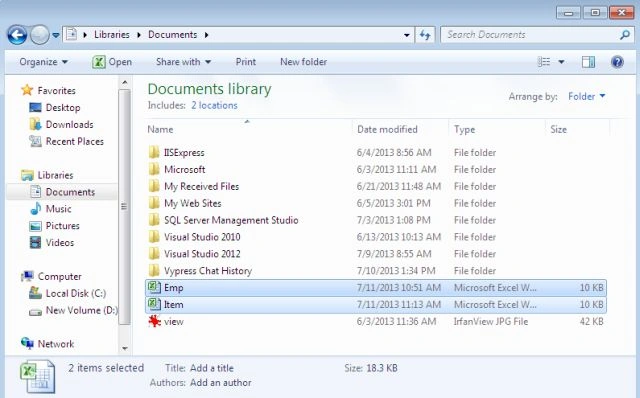

Document Directory

Step 2

In the LightSwitch Application, open the Solution Explorer.

sol ex.jpg

Step 3

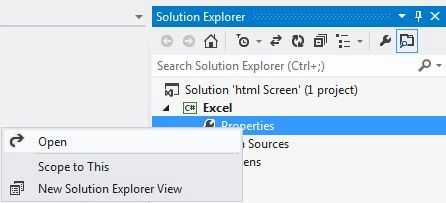

Right-click or double click on the properties window.

prop open.jpg

Step 4

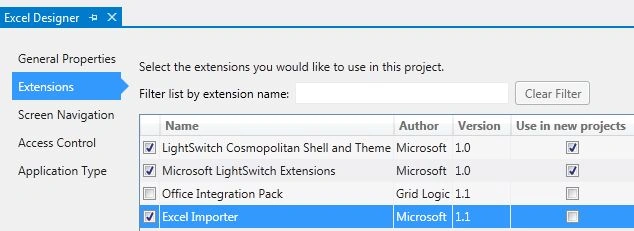

Choose the Extension tab. Mark the "Excel Importer" checkbox as checked in order to use it in the project.

Step 5

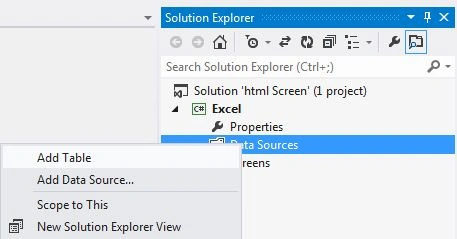

Go to the Solution Explorer and right-click on the data source and choose "Add table".

add table.jpg

In this way we are able to add two tables (Emp and Item).

Emp Table

emp tab.jpg

Item Table

table item.jpg

Step 6

Select the "Relationship" button from the menu bar.

add relationship.jpg

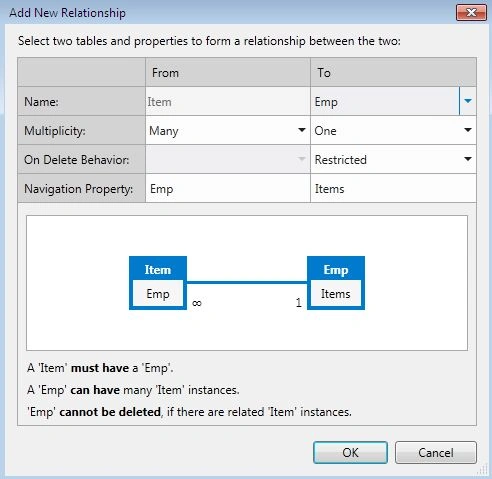

The Add New Relationship dialog box appears. Establish the relationship between the "Item" and "Emp" tables.

relation dialog.jpg

Step 7

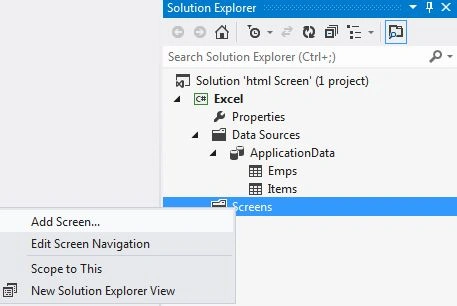

Go to the Solution Explorer, right-click on the screen and choose the "Add Screen" option.

add src.jpg

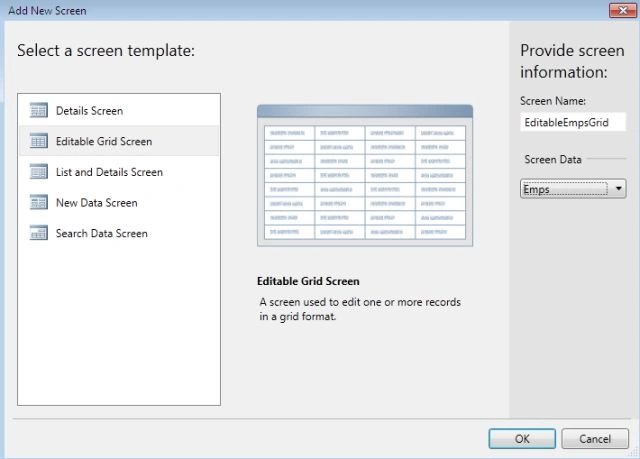

The New Screen Designer appears. Select an Editable Grid Screen template and under Screen Data choose "Emp".

editable src.jpg

Step 8

The Screen Designer appears. Under the Screen Designer, right-click on "Screen Command Bar" and choose "Add Button".

add but.jpg

The Add Button dialog box appears. Choose the "New Method" radio button and provide the name "Import From Excel" and click the "OK" button.

but dialog.jpg

Step 9

Double-click on the "Import From Excel" button and provide the following code:

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;

namespace LightSwitchApplication

{

public partial class EditableEmpsGrid

{

partial void ImportFromExcel_Execute()

{

// Write your code here.

ExcelImporter.Importer.ImportFromExcel(this.Emps);

}

Step 10

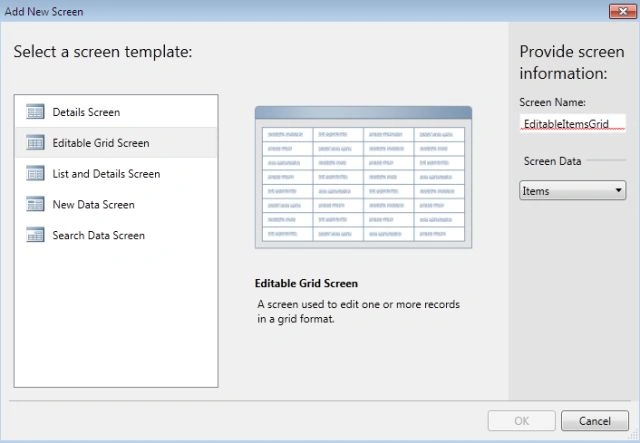

Add one more "Editable Data Grid" Screen and under Screen Data choose "Item".

item edit.jpg

Perform the similar task of adding a button and choose "New Method" and provide the name "Import From Excel" and click the "OK" button.

Once again double-click on the "Import From Excel" button and provide the following code:

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;

namespace LightSwitchApplication

{

public partial class EditableItemsGrid

{

partial void ImportFromExcel_Execute()

{

// Write your code here.

ExcelImporter.Importer.ImportFromExcel(this.Items);

}

Step 11

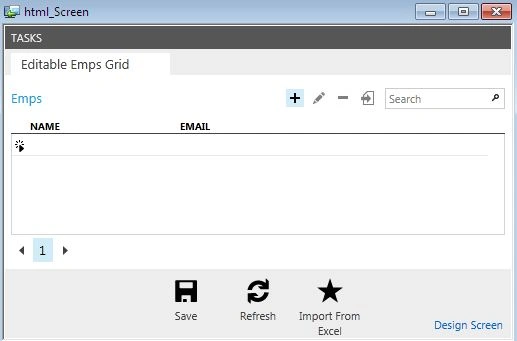

Press F5 to run the application. Notice that the "Editable Emp Grid" screen should appear.

output src.jpg

Click on the "Import to Excel" button.

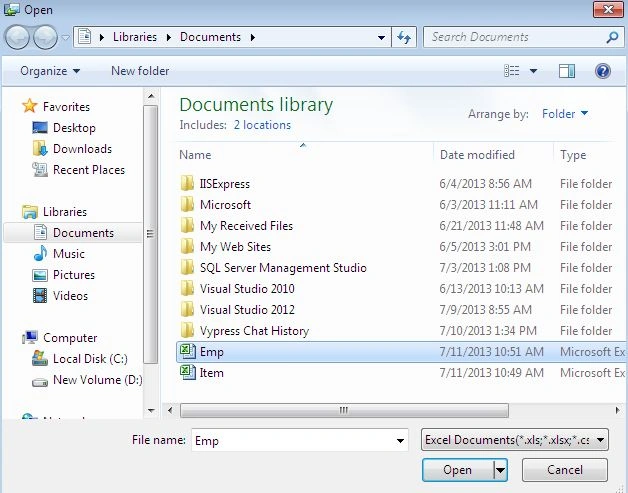

The Open Dialog Box will appear from which you can choose the file that you want to import. Select the "Emp" Excel document and click "OK".

Step 12

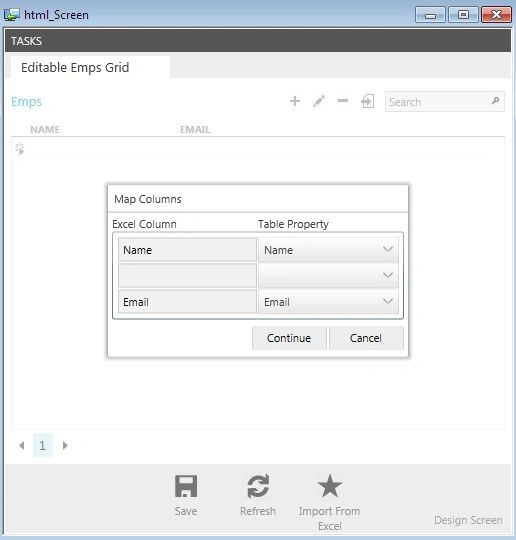

The Map Column dialog box will appear that allows you to map columns in the Excel document to fields on your LightSwitch table.

map column.jpg

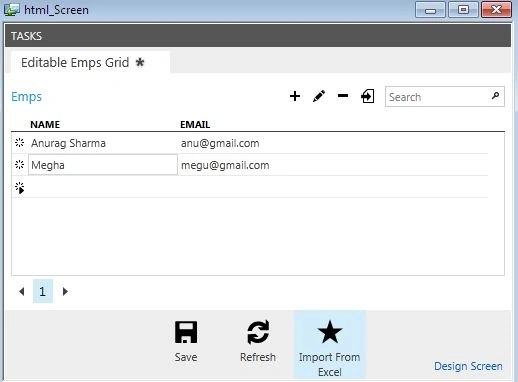

Click on the "Continue" button and the data appears in the "Editable Emp Grid" Screen. Click on the "Save" button and close the screen.

after click continue.jpg

Step 13

Now open the "Editable Item Grid" screen by clicking on the "Task" button.

item grid.jpg

Click on the "Import From Excel" button and select the Item Excel sheet from the document.

choose item.jpg

Step 14

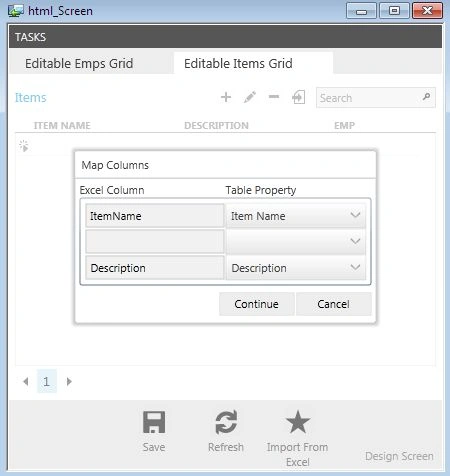

The Map Column dialog box will appear again.

item map.jpg

Click on the "Continue" button.
