Introduction

In this article we will see how we can integrate WPF User control into Winform application in Visual Studio 2010.

Creating Blank Solution

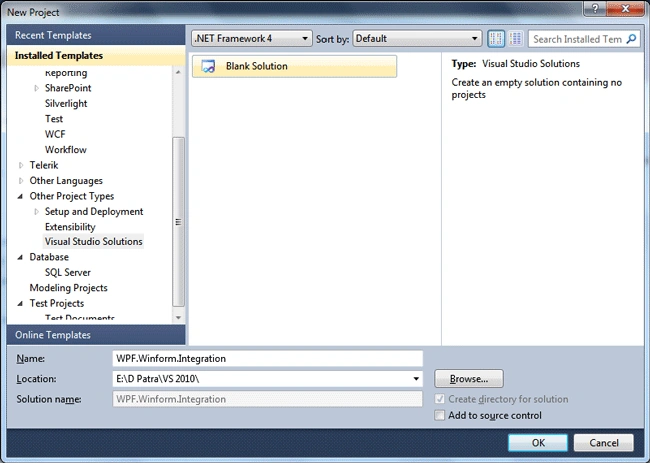

Fire up Visual Studio 2010 and create a Blank Solution, name the solution as WPF.Winform.Integration.

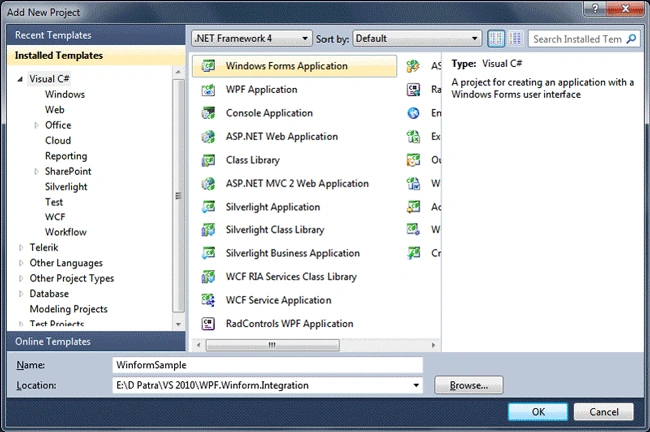

Let's add a Winform Application and give it a name "WinformSample". As we are integrating WPF into Winforms so make sure this is your start up Project for the solution.

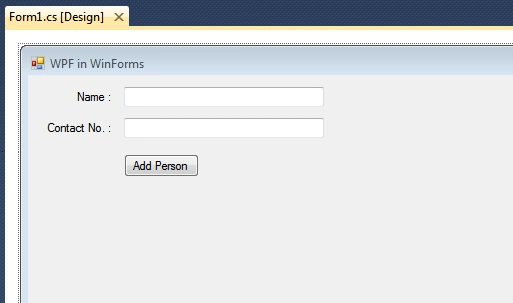

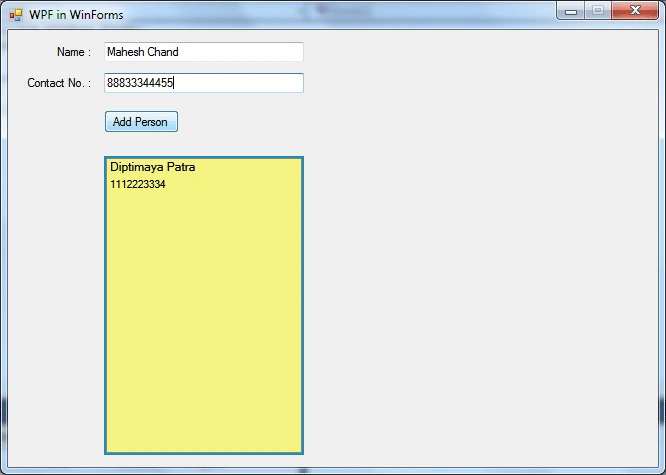

Let's see simplest thing what we can do. We can add two properties of an entity from the Winform to the WPF. So I have designed the following Winform with two text boxes (Name and Contact) and then a Button to add to the UserControl.

To host a WPF User Control, we need a control called "Element Host".

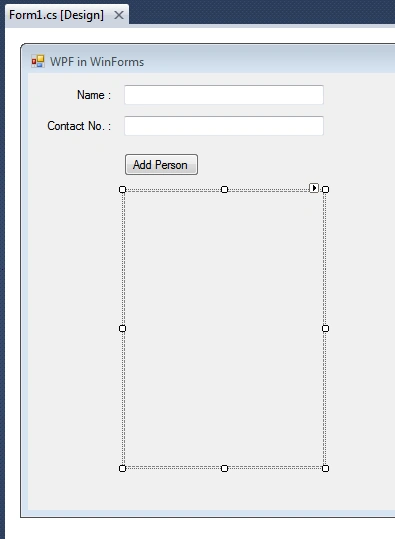

Add one instance of the Element Host into the application. Resize it accordingly.

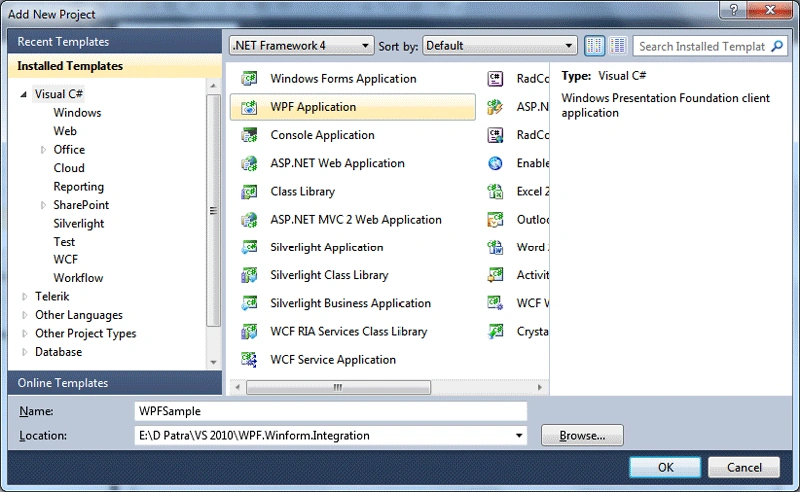

Now, let's add a WPF Application to the solution, name the project as WPFSample.

Now that we have added the the WPF Application, the following is the solution structure.

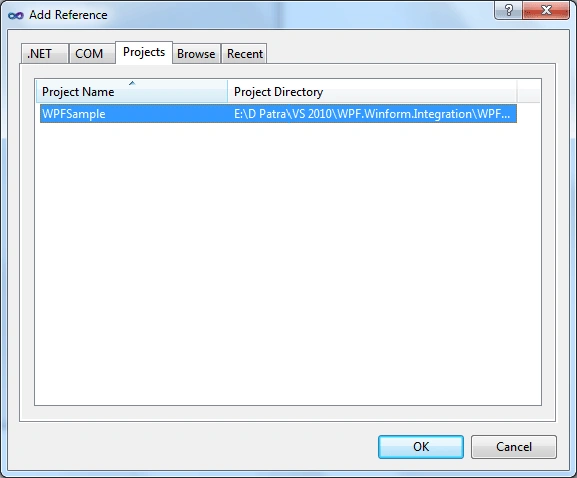

Now, the most important part, add the project reference of the WPF Application to the Winforms Application.

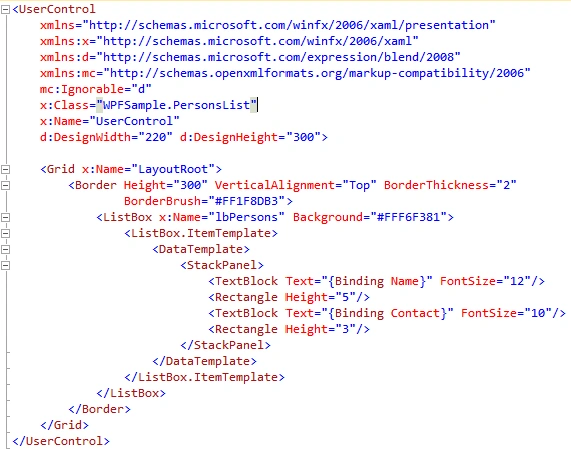

The following xaml represents the User Control.

In Winforms design page, if you see the Element Host control, you can find a option fly on the top right corner. Click on that to see the options.

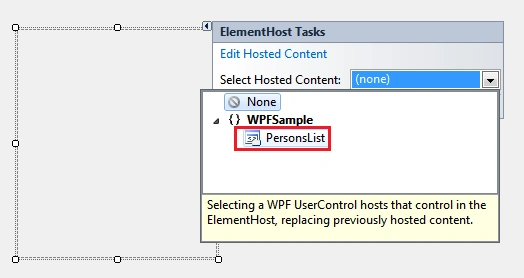

Click on the drop down, and you should see your user control. If you are unable to see the User Control, clean and rebuild your solution one more time.

Select the User Control and it would be added to the Element Host.

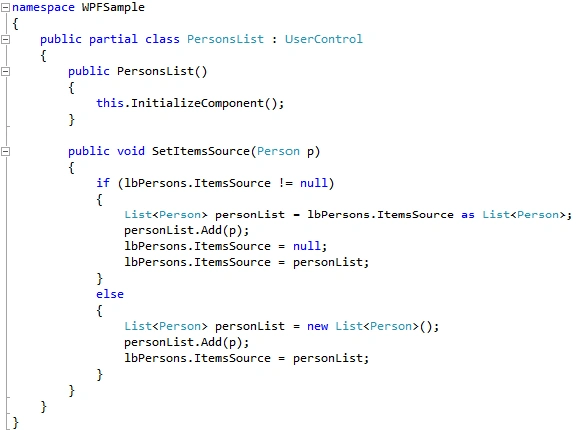

Now that we have added the User Control to the Winforms application. Let's write some code that would reflect from Winform application to WPF User Control.

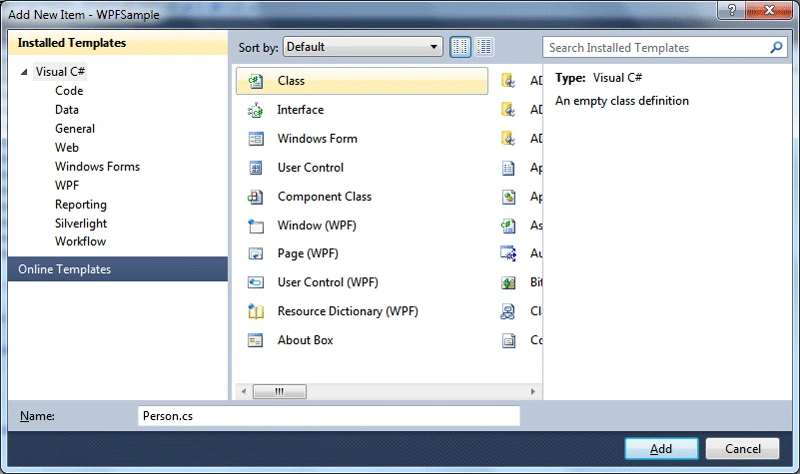

We have to define a class that would represent our Entity, so let's add a class and name it as Person.
