Inter App Communications in Windows 10 UWP

1. Create a Windows Universal “Black Application” from the New Project dialog (Ctrl + Shift + N).

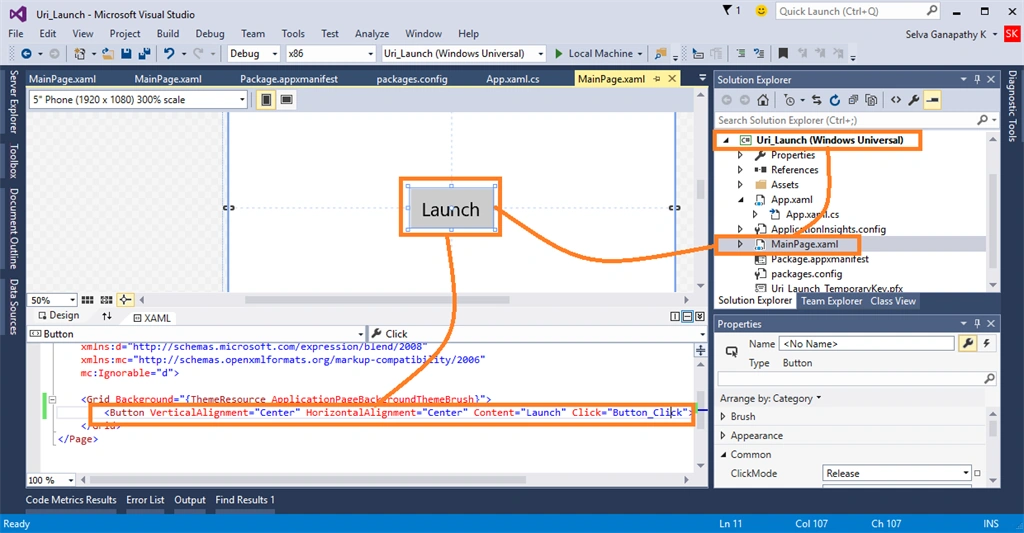

2. Add a Button to launch a button when clicking on it using the following XAML code and C# Code.
   1. <Button Content=”Launch” Click=”Button_Click”/>
   1. private async void Button_Click(object sender, RoutedEventArgs e)
   2. {
   3. await Windows.System.Launcher.LaunchUriAsync(new Uri("iamtamilanselva:?data=12345"));
   4. }

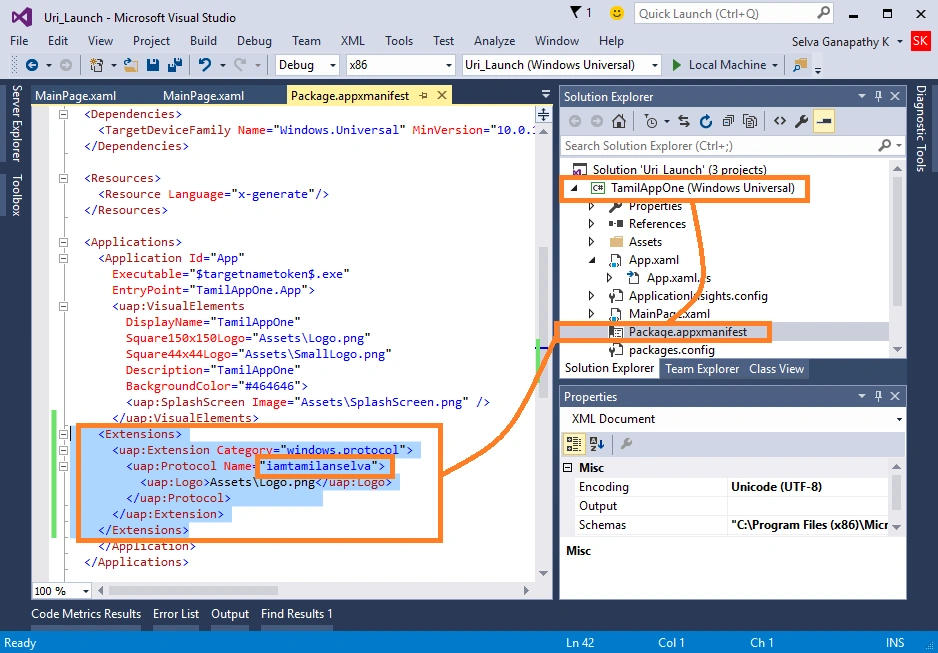

3. Create a dummy App to launch and add a protocol ID in the Package Manifest as in the following tags.
   1. <Extensions>
   2. <uap:Extension Catefory=”windows.protocol”>
   3. <uap:Protocol Name=”iamtamilanselva”>
   4. <uap:Logo>Assests\Logo.png</uap:Logo>
   5. </iap:Protocol>
   6. </uap:Extension>
   7. </Extensions>

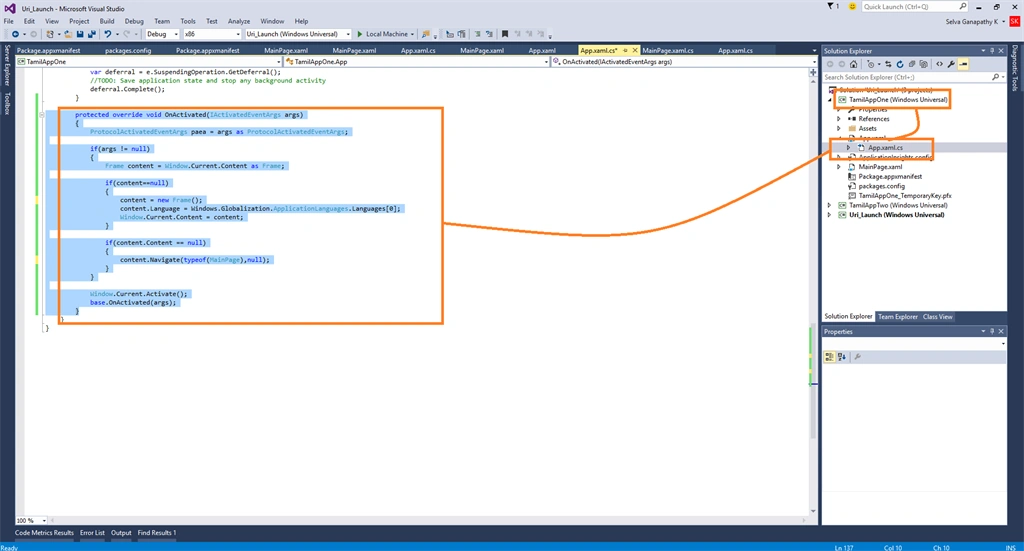

4. Add content to the mainframe using the OnActivated method in the App.xaml.cs file using the following code snippet.
   1. protected override void OnActivated(IActivatedEventArgs args) {
   2. ProtocolActivatedEventArgs paea = args as ProtocolActivatedEventArgs;
   4. if (args != null) {
   5. Frame content = Window.Current.Content as Frame;
   7. if (content == null) {
   8. content = new Frame();
   10. content.Language = Windows.Globalization.ApplicationLanguages.Languages[0];
   11. Window.Current.Content = content;
   12. }
   14. if (content.Content == null) {
   15. content.Navigate(typeof(MainPage), null);
   17. }
   18. }
   20. Window.Current.Activate();
   21. base.OnActivated(args);
   22. }

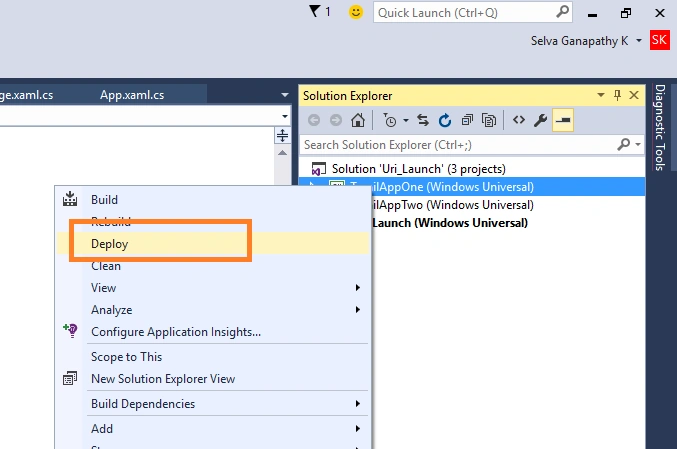

5. Now deploy the dummy app that is about to launch by our main app.

6. Now run our main app “Uri_Launch” and click the Launch button, It launches our Dummy App “TamilAppOne”. That is:


What happens if we have two apps in the same Protocol name?

In the store, there may be two apps with the same name (by coincidence). It will then allow you to choose among them. For example, I created another app named “TamilAppTwo” with the same protocol name as “iamtamilanselva” and deployed it in my local machine. Then now I run my Uri_Launch app and through that I click the launch button. It shows me as in the following screenshot that all me to choose apps.

How can I avoid manual choosing on the app, when more apps contain the same protocol name?

To avoid this kind of manual choosing an app you can use “LauncerOptions's PackageFamilyName” that provides a unique ID on an app. You can do this using the following code snippet.

Summary
