Introduction to MCP: Understanding How Clients, Servers, and LLMs Work Together

Introduction to MCP

As AI systems evolve from simple chatbots to autonomous agents, they must interact with real-world systems—databases, APIs, enterprise workflows, DevOps pipelines, financial systems, and more. Large Language Models (LLMs) excel at reasoning and text generation, but they cannot execute external actions on their own.

The Model Context Protocol (MCP) provides a standardized way for LLM-based agents to discover and execute tools safely and scalarly.

In simple terms:

MCP is a protocol that connects reasoning (LLM) with execution (tools).

The Core Problem MCP Solves

LLMs can:

• Understand instructions

• Perform reasoning

• Generate structured outputs

LLMs cannot:

• Query databases

• Trigger APIs

• Modify infrastructure

• Execute business logic

• Access secure systems directly

Without a structured tool integration layer, systems become:

• Tightly coupled

• Hard to scale

• Hard to secure

• Difficult to govern

• Model-dependent

MCP solves this by standardizing tool exposure and execution.

What Is MCP?

Model Context Protocol (MCP) is a structured interface between:

• An LLM (reasoning engine)

• A tool execution environment

It defines how:

• Tools are described (metadata/schema)

• Tools are discovered

• Tools are invoked

• Results are returned

Key Components:

Component	Responsibility
LLM	Decides which tool to call
MCP Client	Communicates tool metadata & calls
MCP Server	Hosts and executes tools
Tools	Perform actual business logic

This separation is fundamental.

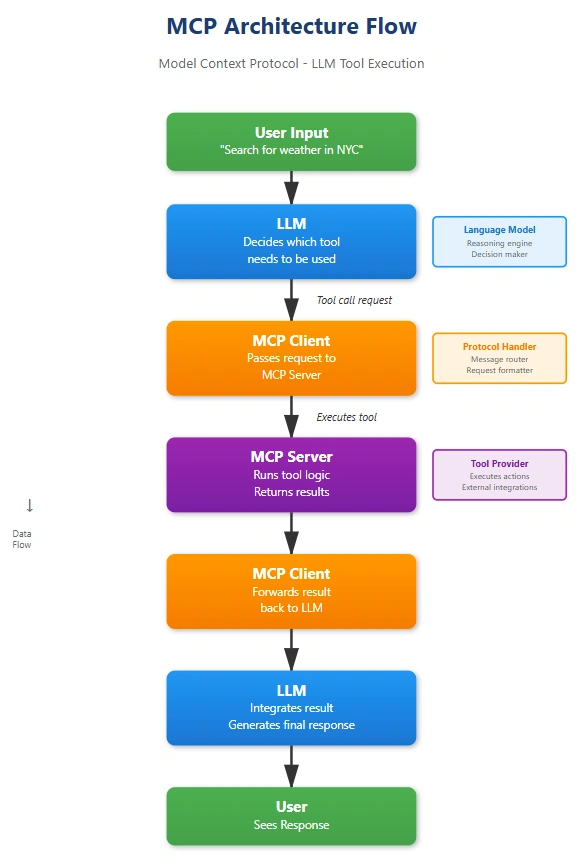

MCP Execution Flow

Let’s walk through a real flow.

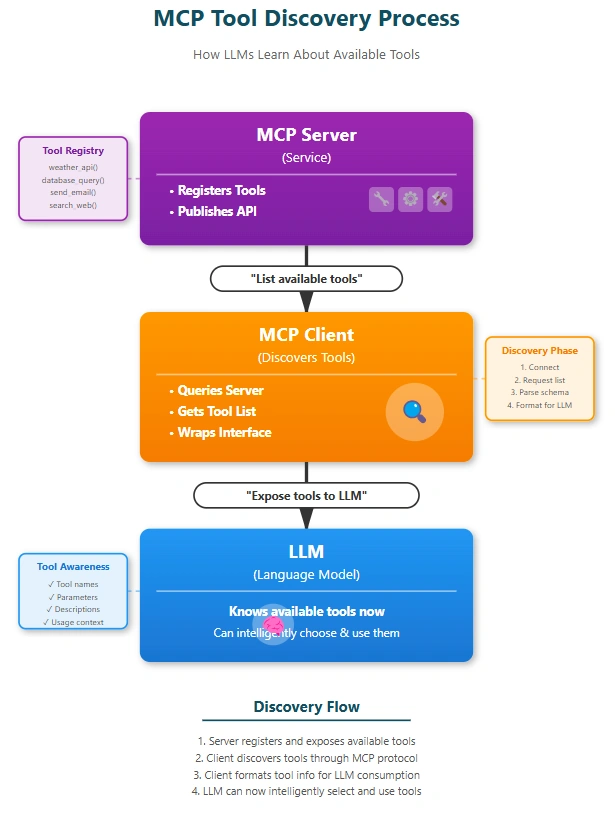

1. Tool Discovery Phase (Before User Input)

Before any user input is processed, the MCP client queries the MCP server to discover available tools. This ensures the LLM knows what capabilities exist.

When the Agent starts:

1. MCP Client connects to MCP Server.

2. MCP Server sends tool definitions.

3. MCP Client passes tool metadata to LLM.

Now LLM knows:

• What tools exist

• What parameters they accept

• What they do

Key Point: This discovery happens before user input, so the LLM already knows what tools it can call.

2. Execution Phase (After User Input)

Once the user provides input, the LLM decides which tool to call. The MCP client simply routes the request to the server, which executes the tool and returns results.

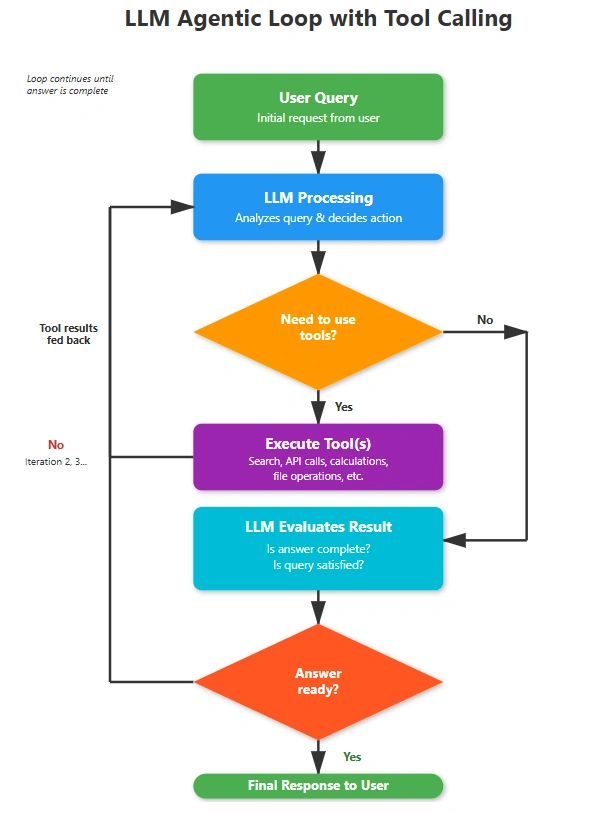

3. Agent Loop (Iterative Execution)

In agent-based systems, the LLM may not be satisfied after one tool call. It evaluates the result, decides if more information is needed, and repeats the process until it can confidently answer.

Key Point:

• The LLM controls the loop.

• The MCP client is a router.

• The MCP server executes tools.

• This repeats until the LLM is satisfied.

Example

let’s walk through Discovery, Execution, and Looping with a realistic example:
Plan a 5-day trip to Goa with a budget of ₹10,000.

Step 1 — Discovery Phase: What Tools Are Available?

Before planning anything, the LLM has to know what tools it can use.
Let’s say the available tools are:

Tool Name	Purpose
search_flights	Finds affordable flights
search_hotels	Finds budget hotels
get_weather	Gets weather forecast
get_local_transport_info	Info on local travel in Goa
estimate_trip_cost	Estimates total trip cost

The LLM now "discovers" these tools and what parameters they need.

Step 2 — Execution Phase: Start Planning

User Query

“Plan a 5-day trip to Goa with a budget of ₹10,000.”

The LLM needs information that it can’t just generate — it needs tool calls.

Looping Begins: Iteration 1

LLM Decision
To plan a trip, first I need to know the flight cost to Goa.

Tool Call

LLM generates

{"tool": "search_flights","arguments": {
    "from": "Bangalore",
    "to": "Goa",
    "sort_by": "price"}}

• MCP Client sends this to MCP Server.

• MCP Server returns flight options.

Example Response from Server:

{"cheapest_flight": {
    "airline": "IndiGo",
    "price": 3500,
    "departure": "Bangalore → Goa"}}

Looping Iteration 1 - Evaluate Answer

LLM evaluates

Flight cost found: ₹3,500
Still missing hotel cost, transport cost, total trip cost

So, we need another tool call.

Looping Iteration 2

LLM Decision
Next, we need hotel costs for 5 days.

Tool Call

{"tool": "search_hotels","arguments": {
    "city": "Goa",
    "nights": 5,
    "budget_per_night": 1000}}

Server returns:

{"hotel_option": {
    "name": "Budget Inn",
    "total_price": 3500}}

Looping Iteration 2 - Evaluate Answer

LLM now has:

Flight cost: ₹3,500
Hotel cost: ₹3,500
Still missing local transport, food cost

Budget left: ₹10,000 – ₹7,000 = ₹3,000

So, we keep going.

Looping Iteration 3

LLM Decision
We should find local transport and food estimates.

Tool Call

{"tool": "get_local_transport_info","arguments": {
    "city": "Goa",
    "days": 5}}

Server returns:

{"transport_cost_estimate": 1200,"food_cost_estimate": 1500}

Looping Iteration 3 - Evaluate Answer

Now the LLM has:

• Flights → ₹3,500

• Hotels → ₹3,500

• Transport → ₹1,200

• Food → ₹1,500

Total = ₹3,500 + ₹3,500 + ₹1,200 + ₹1,500 = ₹9,700
Budget: ₹10,000

Everything accounted for & within budget!

So LLM decides: Answer is ready.

Final Response to User

LLM formats everything into a natural answer:

Here’s your 5-day Goa trip within ₹10,000:

• Flight: IndiGo from Bangalore to Goa – ₹3,500

• Hotel: Budget Inn – ₹3,500 for 5 nights

• Transport: Estimated ₹1,200

• Food: ₹1,500

• Total Estimated Cost: ₹9,700

You’re within budget with ₹300 to spare!

Summary: How Discovery → Execution → Looping Worked

Phase	What Happened
Discovery	LLM learned what tools exist (flights, hotels, transport)
Execution	LLM called tools one by one
Looping	LLM checked after each call whether the plan was complete
Output	Final trip plan sent only when all components were covered

Core Principles to Remember

1. MCP Server executes tools

   • The server is the execution environment.

   • Tools (e.g., database queries, API calls, workflows) run only on the server side.

   • This ensures isolation, security, and governance.

2. LLM decides which tool to execute

   • The LLM is the reasoning engine.

   • It analyzes user intent, decomposes tasks, and selects the appropriate tool(s).

   • It does not run the tool itself — it only issues the decision.

3. LLM cannot execute tools directly

   • By design, LLMs are stateless reasoning models.

   • They cannot query databases, trigger APIs, or modify infrastructure on their own.

   • This prevents unsafe or uncontrolled execution.

4. Tools are running on the MCP Server

   • The MCP Server hosts the actual business logic.

   • It provides a registry of tools and executes them when requested by the MCP Client.

   • Results are returned back to the LLM through the client.

Responsibility Separation

Why This Separation Matters

• Security: LLMs never directly touch sensitive systems.

• Governance: MCP Server logs and controls tool execution.

• Scalability: Tools can be updated independently of the LLM.

• Reliability: Failures are contained at the server level, not the reasoning engine.

Conclusion

The MCP architecture cleanly separates responsibilities:

• Server = tool provider (service layer)

• Client = router and interface layer

• LLM = decision-maker and reasoning engine

In simple queries, this runs once. In agent setups, it loops until the LLM is satisfied. This design ensures flexibility, modularity, and scalability in AI tool usage.
