Introduction
Prism (Composite Application Guidance for WPF and Silverlight) is designed to build applications in WPF and Silverlight that have a single code base. It helps to develop the client application in a modular fashion so that complexity of a large application can be divided in to simpler modules.
Note: Please download Composite Application Library (CAL) from http://compositewpf.codeplex.com/releases
Architecture: Following diagram shows basic architecture that I am going to explain:
- App.XAML: Call BootStrapper on Application_Startup
- BootStrapper: This is a class file that calls Shell (Shell.XAML) and so creates catalogue of module.

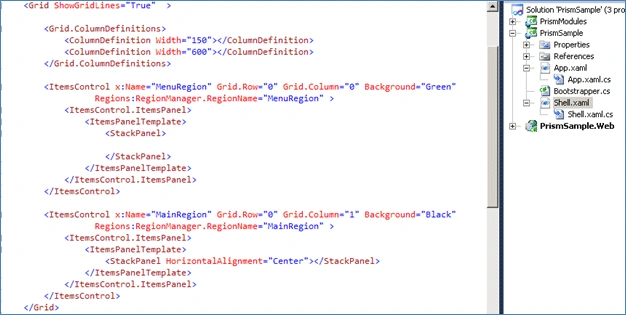

- Shell: This is like a Master Page having regions.
- Region: It is like placeholders to register views.

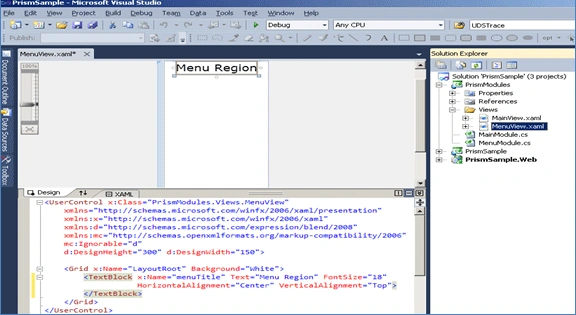

- View: This is XAML file having User Interface

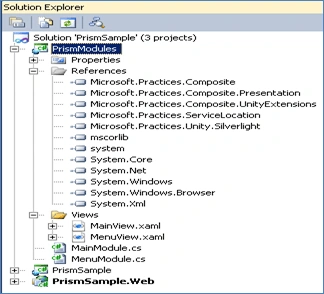

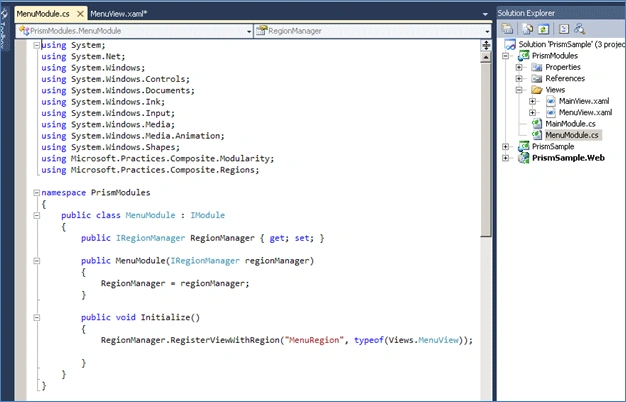

- Module: Each module can have one or more View(s) which are registered to Region (in the Shell) through RegionManager
Step 1: Create Silverlight Application
Create Silverlight application named "PrismSample" and rename MainPage.XAML to Shell.XAML

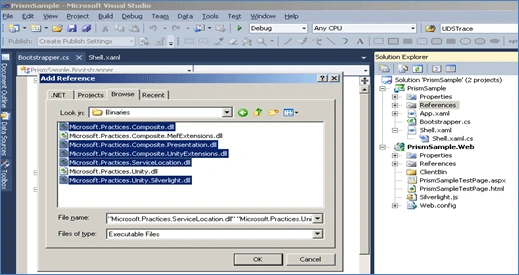

Step 2: Add CAL references to Silverlight Application
Add following References to PrismSample project
- Microsoft.Practices.Composite.dll
- Microsoft.Practices.Composite.Presentation.dll
- Microsoft.Practices.Composite.UnityExtensions.dll
- Microsoft.Practices.ServiceLocation.dll
- Microsoft.Practices.Unity.Silverlight.dll

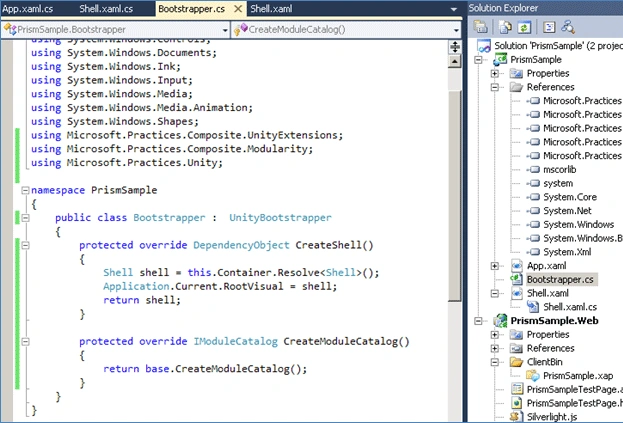

Step 3: Create Bootstrapper class
In this step we creating following scenario
- Add Bootstrapper.cs class file to PrismSample project.
- Implement UnityBootstrapper.
- Override CreateShell methods : Set startup object as Shell.XAML.

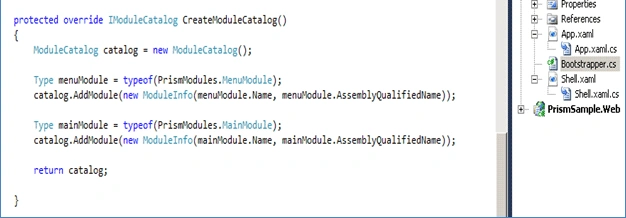

- Override CreateModuleCatalog methods. For now leave code as it is.

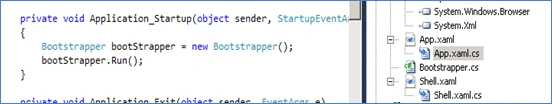

Step 4: Change App.xaml.cs
In this step we creating following scenario
