JOIN Operators Types In SQL Server

What are JOIN Operators

A join operator is a type of an algorithm that is used by the SQL Server Optimizer chooses in order to implement logical joins between two sets of data. Selection of algorithm different scenarios like the requested query, available indexes, statistics and number of estimated rows in each data set. Today, we read about available JOIN operator types in SQL Server (Nested Loops, Hash and Merge Joins), we also read about their complexity.

Firstly, we create two table and after that we applied join operator on both tables.

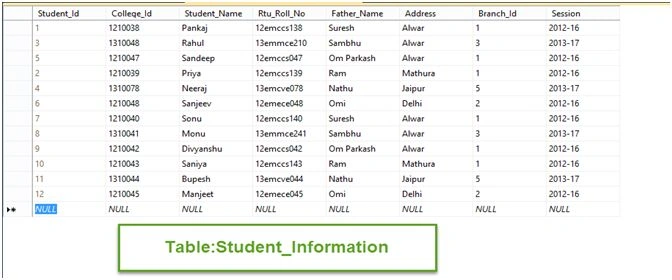

Student_Information Table

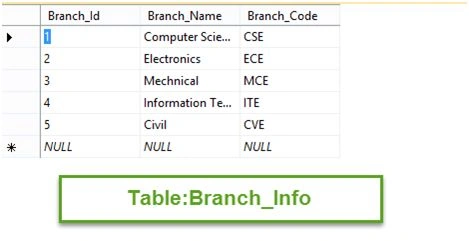

Branch_Info Table



Nested Loops

Nested loops is the simplest operator that works on bunch of data. The nested loops join, also called nested iteration, uses one join input as the outer input table (shown as the top input in the graphical execution plan) and one as the inner (bottom) input table. The outer loop consumes the outer input table row by row. The inner loop, executed for each outer row, searches for matching rows in the inner input table.

Example

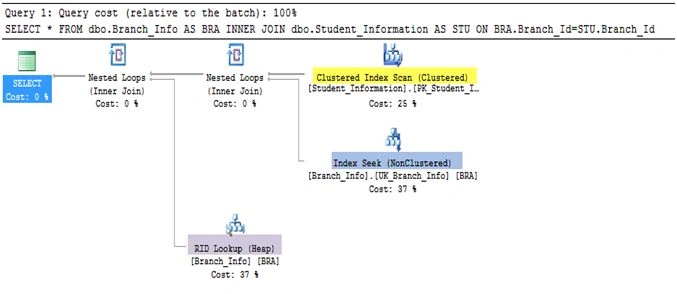

Resulting execution plan for above query:



In above execution plan the operator on the top right is called the outer input (Student_Information) and the one just below it is called the inner input (Branch_Info). The outer input maintained a “Index Scan” label and inner input maintained an “Index Seek”.

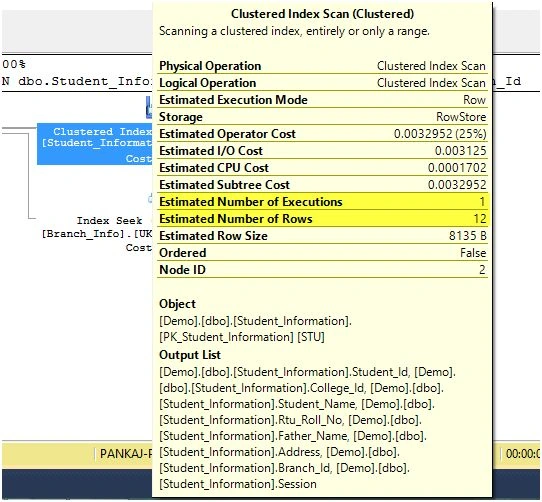

Index Scan

Since a scan touches every row in the table whether or not it qualifies, the cost is proportional to the total number of rows in the table. Thus, a scan is an efficient strategy if the table is small or if most of the rows qualify for the predicate.



In above index scan we can see that outer input only executed once and generated 12 rows.

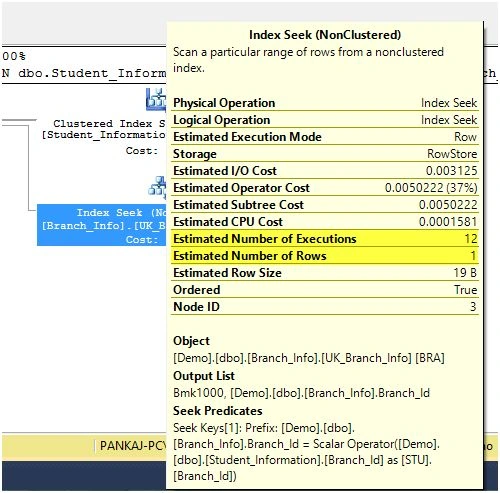

Index Seek

Since a seek only touches rows that qualify and pages that contain these qualifying rows, the cost is proportional to the number of qualifying rows and pages rather than to the total number of rows in the table.



In above index seek we can see that number of execution is 12 that verify the inner input executed for each row from outer input.

Conclusion is that clustered index scan we see as the outer input is executed once to get all the relevant records, and the Non-Clustered index seek we see below is executed for each record from the outer input. We can see that execution plan contain two nested loops one for outer and inner input. Second nested loop is maintained for RID Lookup.

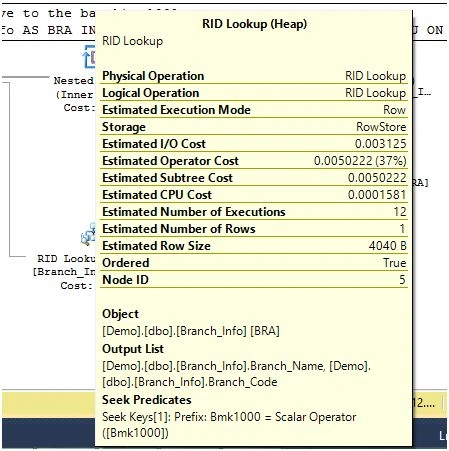

What is RID Lookup



RID Lookup is a bookmark lookup on a heap using a supplied row identifier (RID). The Argument column contains the bookmark label used to look up the row in the table and the name of the table in which the row is looked up. A RID Lookup is a lookup into a heap table using a Row ID. The Row ID is included in a non-clustered index in order to find the rest of a table's data in the heap table, since a heap table is a table without a clustered index and is sorted unordered a Row ID is required for the correlation.

Complexity of Nested Loop

Suppose “N” is number of rows from outer input and “M” is total number of rows in inner Input, then complexity will be O(Nlog(M)).

When to use

Used usually when one table is significantly small. If one join input is small (fewer than 10 rows) and the other join input is fairly large and indexed on its join columns, an index nested loops join is the fastest join operation because they require the least I/O and the fewest comparisons.

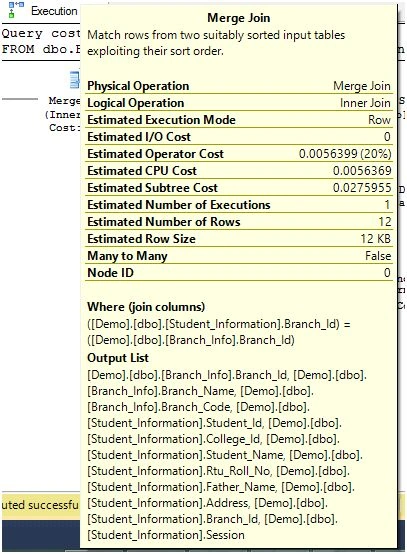

MERGE Join

The Merge Join provides an output that is generated by joining two sorted data sets using a FULL, LEFT, or INNER join. Merge Join requires that both inputs be sorted and that the joined columns have matching meta-data. It means we can’t join a column that has a numeric data type with a column that has character data type. We both column are string type then length of the column in the second input must be less than or equal to the length of the column in the first input with which it is merged. The merge join operation may be either a regular or a many-to-many operation. A many-to-many merge join uses a temporary table to store rows. If there are duplicate values from each input, one of the inputs will have to rewind to the start of the duplicates as each duplicate from the other input is processed.

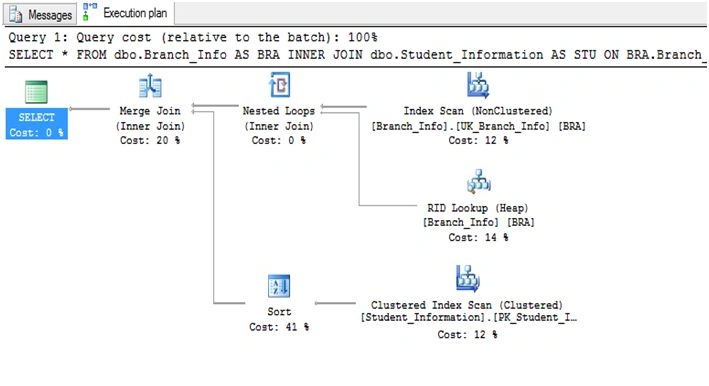

Example:
