Learn Tab Control Using C#

tbPatient.Font = new Font("Georgia", 16);

Background and Foreground

The BackColor and ForeColor properties are used to set the background and foreground color of a TabControl respectively. If you click on these properties in the Properties window then the Color Dialog pops up.

Alternatively, you can set the background and foreground colors at run-time. The following code snippet sets the BackColor and ForeColor properties.

C# Code:

tbPatient.BackColor = Color.White;
tbPatient.ForeColor = Color.Black;

Alignment and Appearance

The Alignment property gets or sets the area of the control where the tabs are aligned. A TabAlignment enumeration is used to set the Alignment property and has one of the values Top, Bottom, Left, or Right.

The Appearance property gets or sets the visual appearance of the control's tabs. A TabAppearance enumeration is used to set the Appearance property and has one of the values Normal, Buttons, or FlatButtons.

C# Code:

tbPatient.Alignment=TabAlignment.Left;
tbPatient.Appearance = TabAppearance.FlatButtons;

Tab Pages

The TabPages property is a type of a TabPageColleciton object and is the gateway to accessing and adding tab pages to a TabControl. Like any other collection, the TabPageCollection has all collection functionality including add, remove, and find.

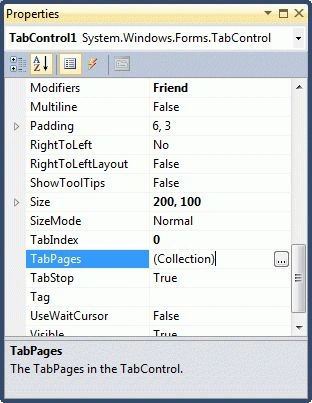

We can add and access tab pages of a TabControl at design-time from the Properties Window by clicking on the TabPages Collection as you can see in Figure 4.

Figure 4

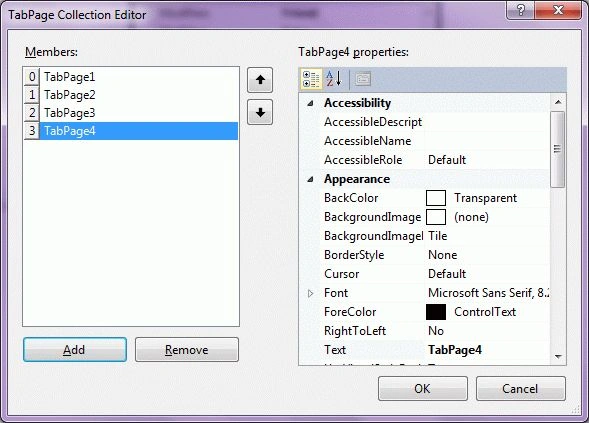

When you click on the Collections, the Tab Pages Collection Editor window will pop-up where you can add and remove tab pages and you can also set these tab pages properties and events. I add four tab pages as you can see from Figure 5.

Figure 5

As we have seen earlier in this tutorial, we can also add and remove tab pages to a TabControl using TabPage class.

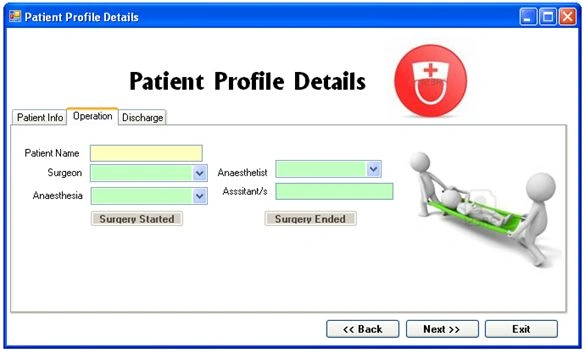

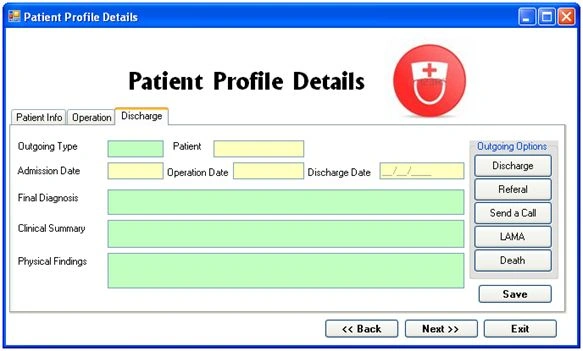

Step 3: Now you need to design the form as shown in the picture.

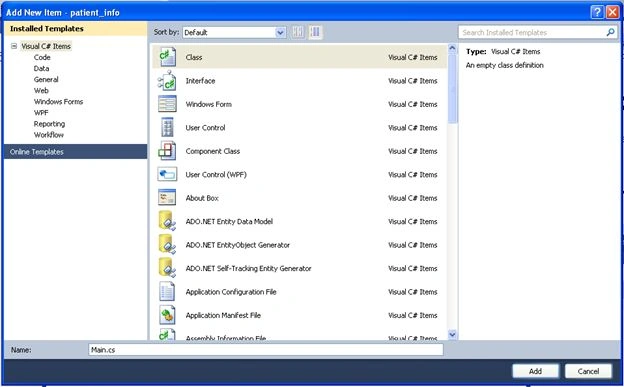

Step 4: Now we need to create four classes.

• Main class
• Patient _Profile class
• surgery class
• Discahrge class

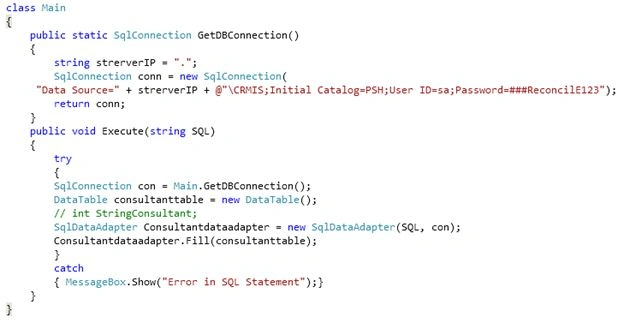

Now create two methods in the main class as given below. You can change the SQL Server setting according to your system.

Now add the second class Patient_Profile.

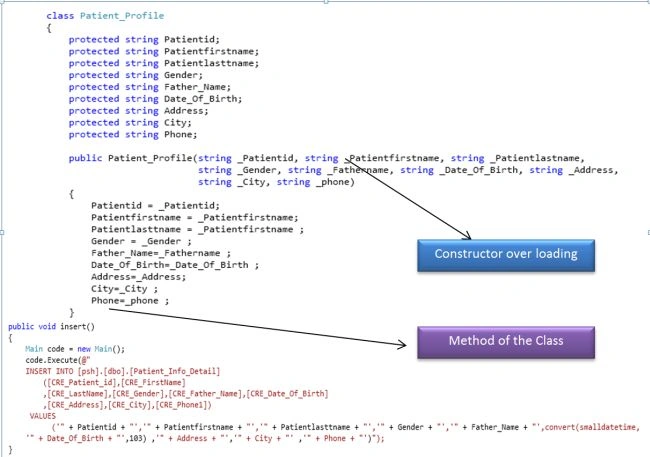

Now create the constructor of a class, one method in the patient_profile class as given below.



Now add the surgery class.

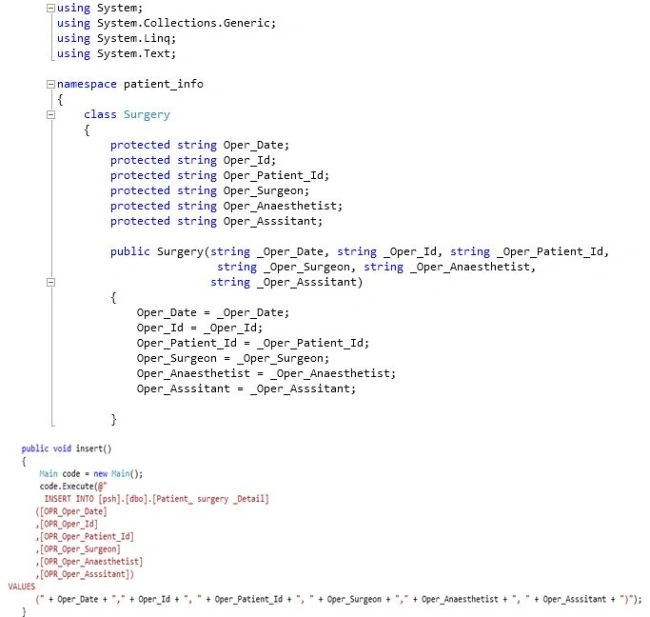

Now add the following code in class surgery.

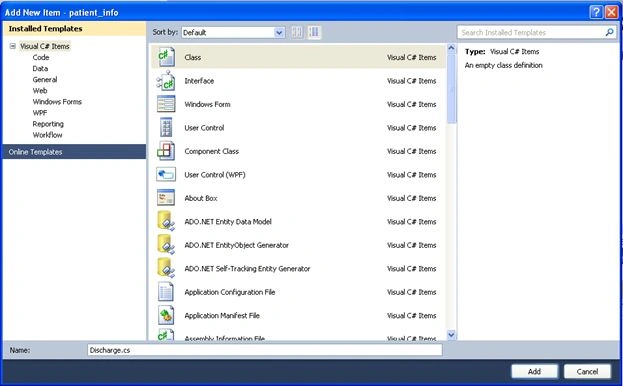

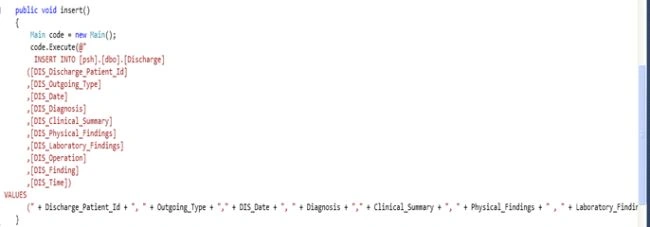

Now we create our fourth class.

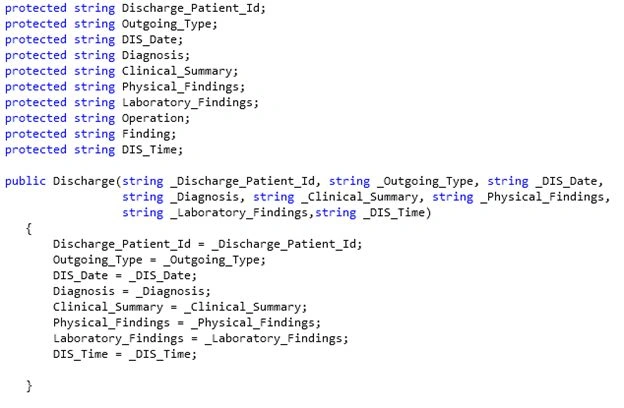

Now add the following code:

 

Step 5: Dear readers, finaly we will add the code in the btnnext click event.

private void btnnext_Click(object sender, EventArgs e)

{

if (tabControl1.SelectedTab.Text == "Patient Info")

{

tabControl1.SelectedTab = tbOperation;

}

else if (tabControl1.SelectedTab.Text == "Operation")

{

tabControl1.SelectedTab = tbDischarge;

}

}

Step 6: Now add the following code in the btnback button.

private void btnBack_Click(object sender, EventArgs e)

{

if (tabControl1.SelectedTab.Text == "Discharge")

{

tabControl1.SelectedTab = tbOperation;

}

else if (tabControl1.SelectedTab.Text == "Operation")

{

tabControl1.SelectedTab = tbPatient;

}

}

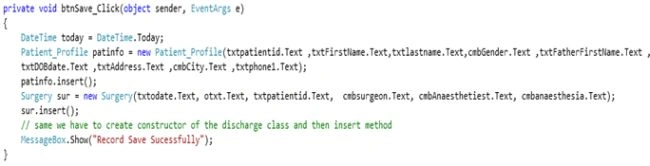

Step 7: Now add the following code in the "Save" Button.

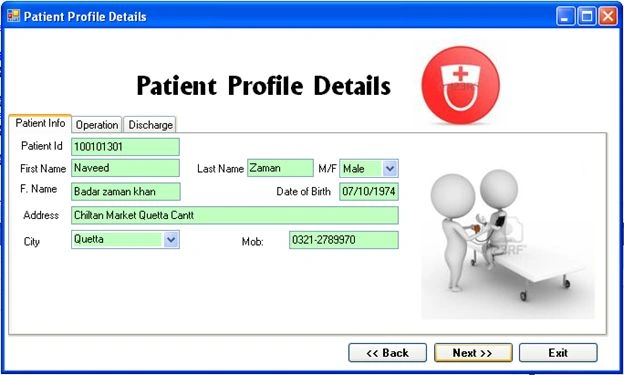

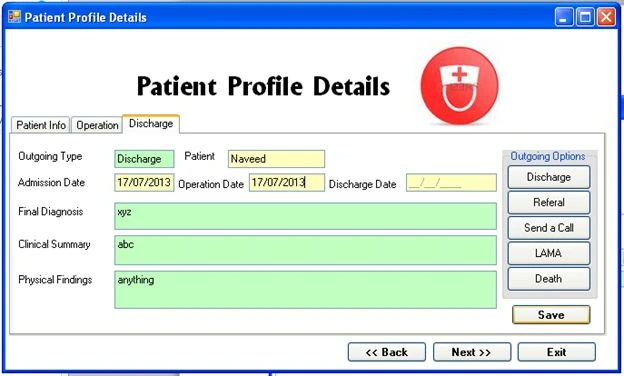

Step 8: Now run the application and insert the record in the text boxes.

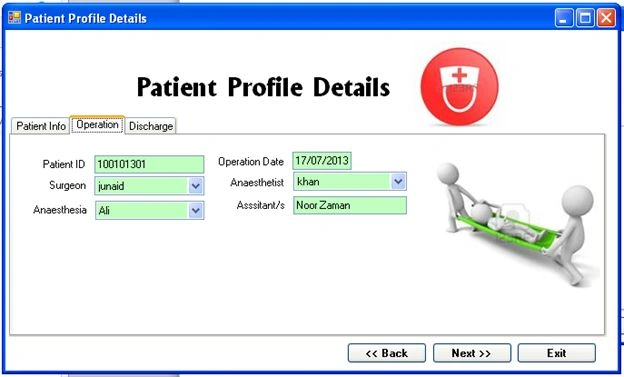

Now click the "Next" button.



Now click the "Next" button.

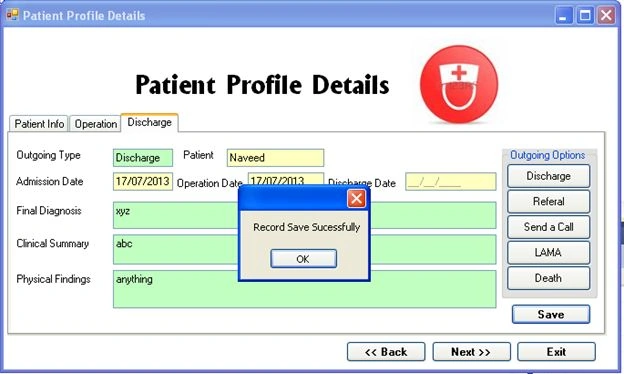

Now click the "Save" button.



Now you will see the results in the SQL Server tables.
