Learn To Create The Compute Resources In The Azure Machine Learning Workspace

This article continues from the last article, "How to create an Azure Machine Learning Workspace Easily."

After that, create an Azure Machine Learning workspace, then use it to manage the varied assets and resources. You would like to make machine learning solutions. At its core, Azure Machine Learning may be a platform for training and managing machine learning models.

In Azure Machine Learning Studio Dashboard view,

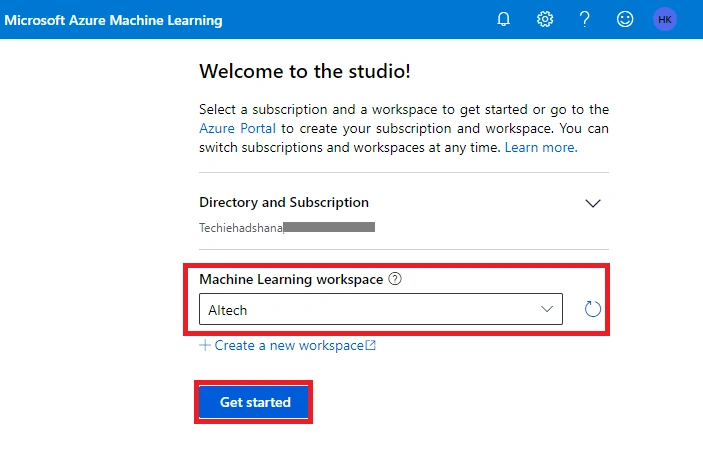

Login with Created Machine Learning workspace.

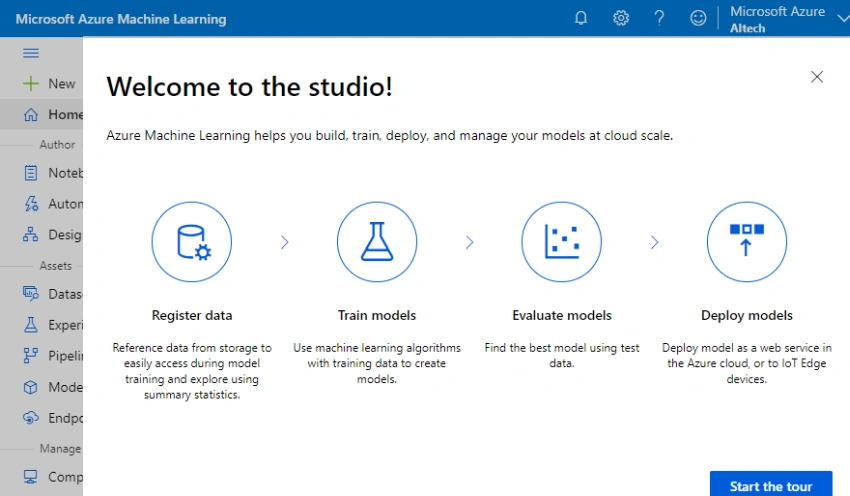

When you open it for the first time, it displays a welcome view and explains the menus.

Learn to create the compute resources in the Azure Machine Learning workspace

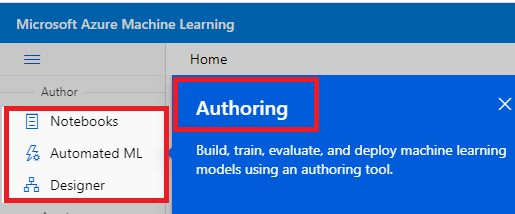

Authoring

This tool is used to build, evaluate, and deploy models.

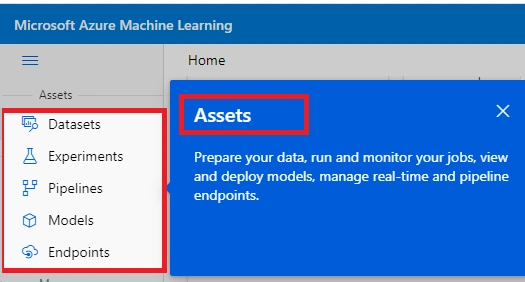

Assets

This tool is used to prepare your data, monitor your jobs, and deploy models. Manage real-time and pipeline endpoints.

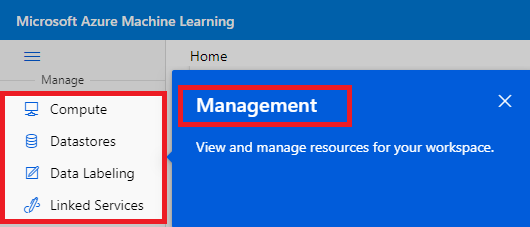

Management

This tool is used to view and manage resources for your workspace.

Compute targets

After that, already opened the Microsoft Azure Machine Learning Studio,

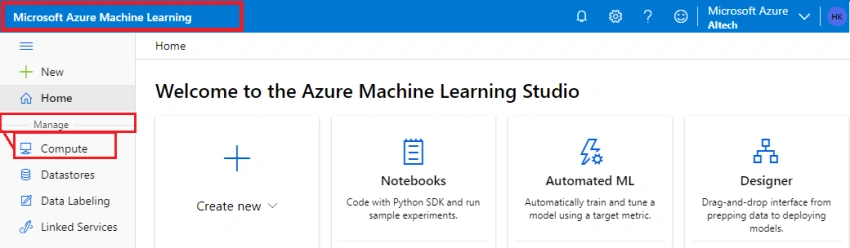

Then, Select and Open the Manage >> Compute.

Learn to create the compute resources in the Azure Machine Learning workspace

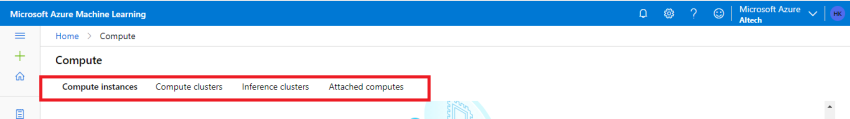

There is four variety of compute resources you can create,

  • Compute Instances- Use to work with data and models.
  • Compute Clusters- Scalable clusters of the virtual machines and checkup code.
  • Inference Clusters - Deployment of models.
  • Attached Compute - Used to Azure compute resources (links to existing)

Learn to create the compute resources in the Azure Machine Learning workspace

Create the Compute Instances

It may be a fully managed cloud-based workstation. And optimize the machine learning development environment.

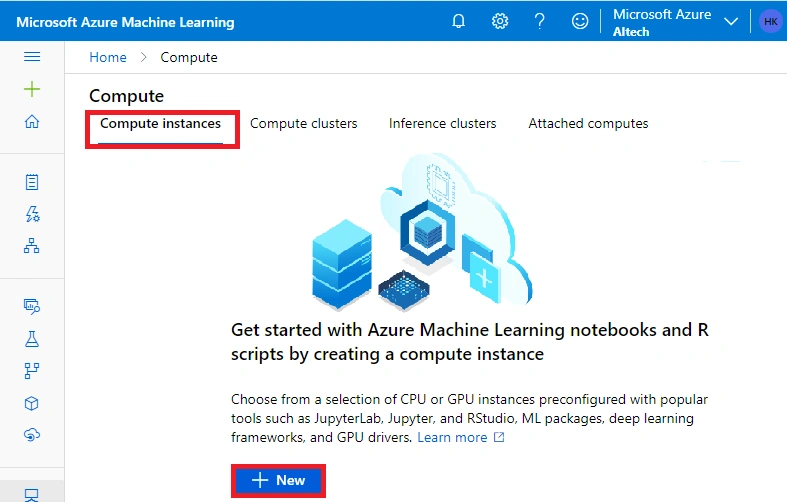

Click on the Compute Instances tab, then click the New for creating.

Steps

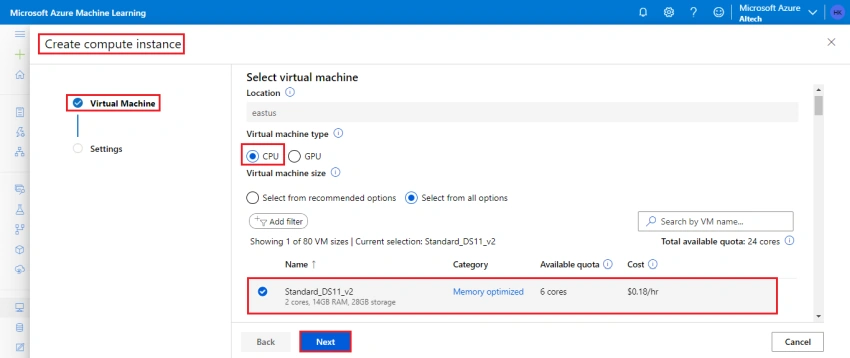

Select the CPU option into the Virtual Machine type.

Select the Virtual Machine size

Choose Select from all options.

Search for and select Virtual machine size value.

Learn to create the compute resources in the Azure Machine Learning workspace

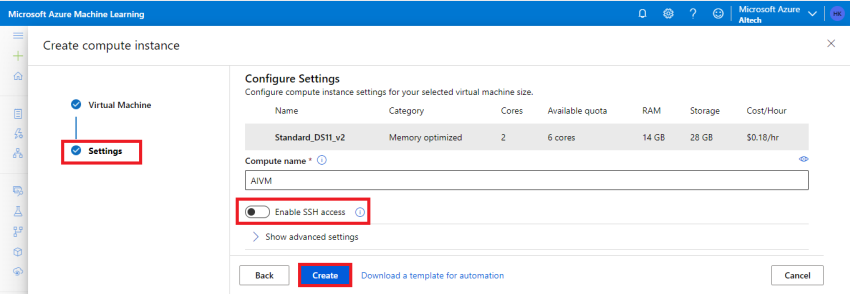

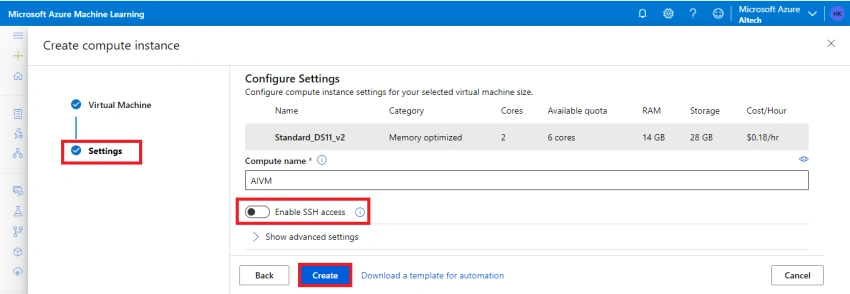

Then, in the settings,

Enter a unique Compute name.

Select Unselected option into the Enable SSH access.

Click the Create option.

Learn to create the compute resources in the Azure Machine Learning workspace

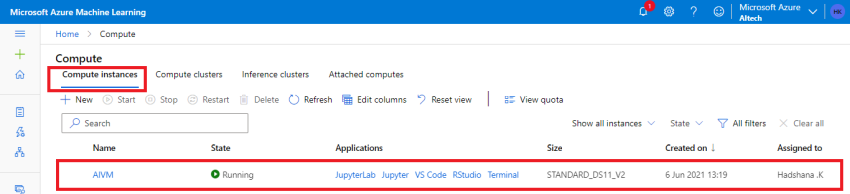

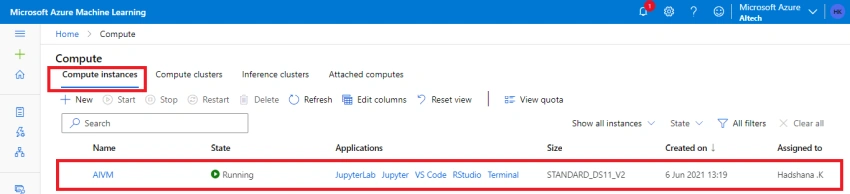

After that, you can see the created compute instance details.

Learn to create the compute resources in the Azure Machine Learning workspace

Create the Compute Clusters

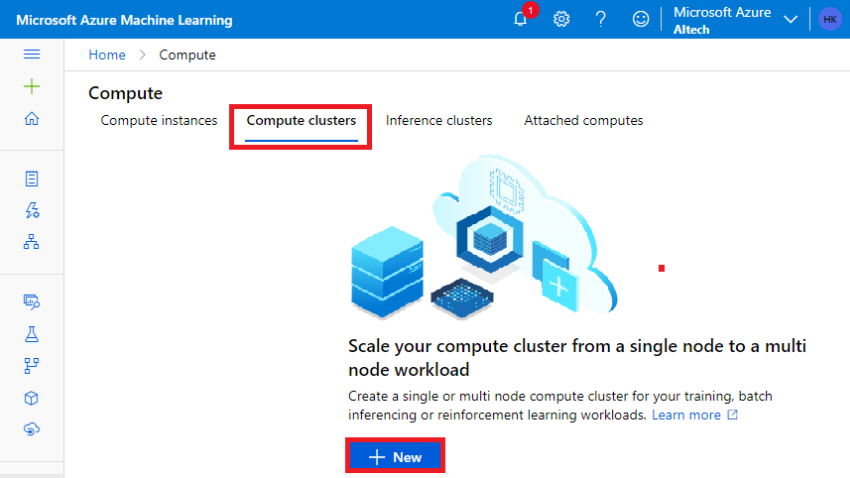

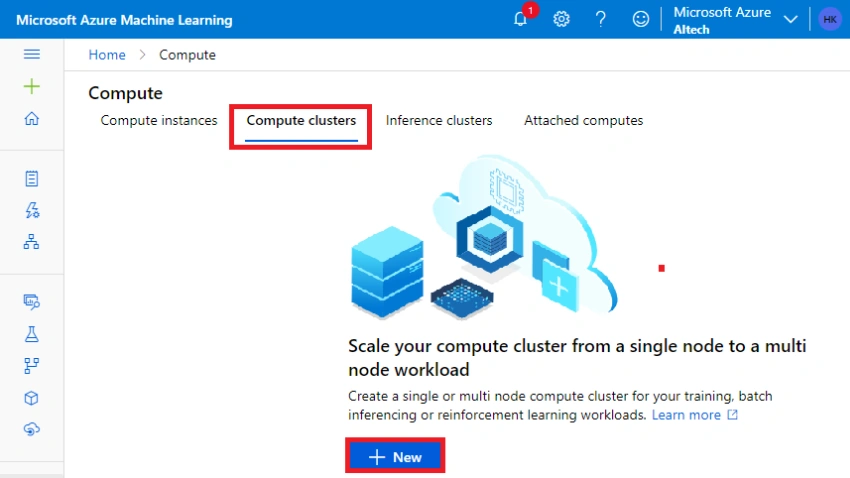

Click on the Compute Clusters tab, then click the New for creating.

Learn to create the compute resources in the Azure Machine Learning workspace

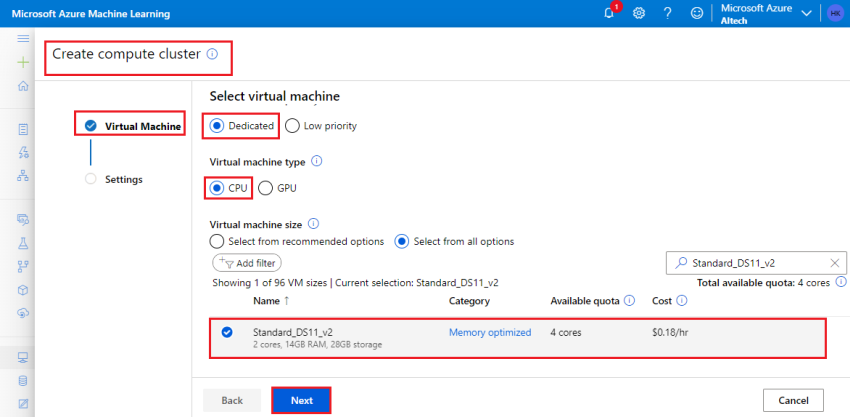

Steps

Select the Dedicated into the Virtual Machine priority.

Select the CPU option into the Virtual Machine type.

Choose Select from all options.

Search for and select Virtual machine size value.

Learn to create the compute resources in the Azure Machine Learning workspace

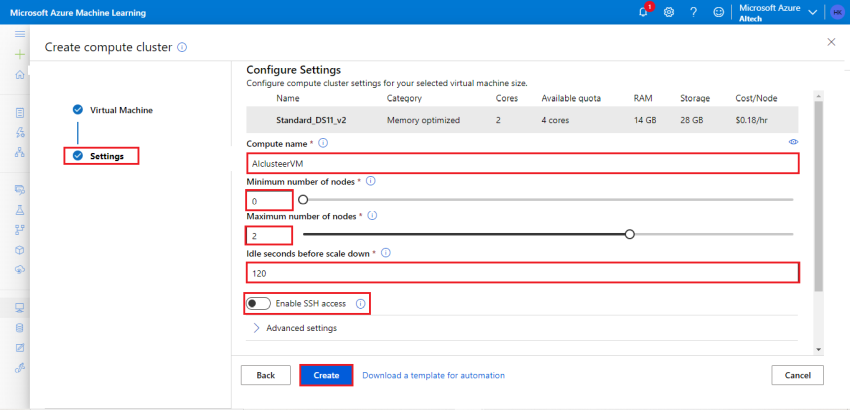

Then, in the settings

Enter a unique Compute name.

Enter the Minimum number of nodes - 0

Enter the Maximum number of nodes - 2

Enter the Idle seconds before scaling down - 120

Select the Unselected option into the Enable SSH access

Click the Create option.

Learn to create the compute resources in the Azure Machine Learning workspace

After that, you can see the created compute clusters details.

Learn to create the compute resources in the Azure Machine Learning workspace

Summary

During this article, I covered how to create the compute resources in the Azure Machine Learning workspace. In my next article, I will cover how to create a dataset of this series.
