Introduction

In the high-stakes world of real-time payments, a single unauthorized API call can trigger irreversible fund transfers. As a senior cloud architect who’s designed core banking integrations for global payment processors, I’ve seen how network-layer controls—like IP restrictions—serve as the first line of defense against credential leaks, misconfigured clients, or automated bot attacks. This article explores how to restrict access to Azure Function endpoints using IP-based access control, using a live scenario from the real-time payment processing domain—a space where milliseconds and security are equally critical.

Why IP Restrictions Matter in Financial Services

Banks and payment gateways operate under strict regulatory frameworks (e.g., PCI DSS, PSD2). They often only allow traffic from known, trusted sources—such as:

Even if an attacker steals an API key or OAuth token, IP restrictions block them unless they originate from an approved network. This is zero-trust in action: verify identity and context.

Azure Functions, while powerful for event-driven payment validation or webhook handling, must be hardened accordingly.

Real-World Scenario: Real-Time Payment Gateway

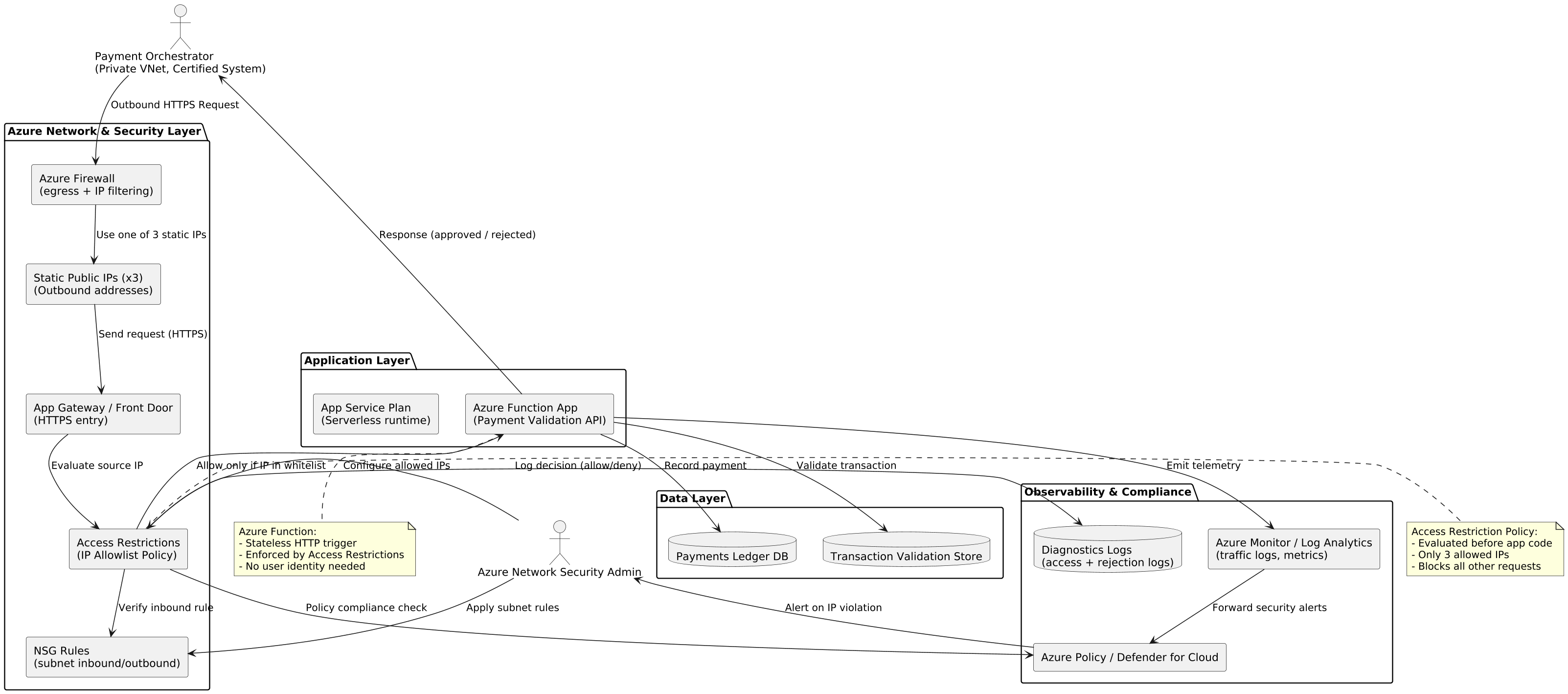

Imagine a fintech company processing instant SEPA or FedNow payments. Their Azure Function validates transaction requests from a certified payment orchestrator hosted in a private Azure VNet with static outbound IPs.

PlantUML Diagram

The requirement?

“Only accept payment validation requests from the orchestrator’s three static public IPs. Block all other traffic—even from authenticated users.”

This isn’t about user identity—it’s about source integrity. And Azure’s built-in access restrictions deliver exactly that.

How Azure Function IP Restrictions Work

Azure App Service (which hosts Azure Functions) provides network access restrictions at the platform layer. You can:

These rules are enforced before your function code runs, saving compute and preventing abuse.

IP restrictions operate at the network edge, not in your code—making them faster and more secure than manual IP checks.

Step-by-Step Implementation

1. Identify Trusted IPs

Get the static outbound IPs of your payment orchestrator. Example:

2. Configure Access Restrictions via Azure CLI (Idempotent & Scriptable)

# Deny all traffic by default (create a deny-all rule with low priority)
az webapp config access-restriction add \
  --resource-group payment-rg \
  --name payment-validation-func \
  --rule-name "DenyAll" \
  --action Deny \
  --ip-address 0.0.0.0/0 \
  --priority 300

# Allow trusted orchestrator IPs (higher priority = evaluated first)
az webapp config access-restriction add \
  --resource-group payment-rg \
  --name payment-validation-func \
  --rule-name "PaymentOrchestrator-IP1" \
  --action Allow \
  --ip-address 203.0.113.10/32 \
  --priority 100

az webapp config access-restriction add \
  --resource-group payment-rg \
  --name payment-validation-func \
  --rule-name "PaymentOrchestrator-IP2" \
  --action Allow \
  --ip-address 203.0.113.11/32 \
  --priority 110

az webapp config access-restriction add \
  --resource-group payment-rg \
  --name payment-validation-func \
  --rule-name "InternalMonitoring" \
  --action Allow \
  --ip-address 198.51.100.0/24 \
  --priority 120

Lower numbers = higher precedence. Allow rules should have priority < 300 if you use a deny-all at 300.

3. (Optional) Add Code-Level Fallback (Defense in Depth)

While not required, you can log or double-check the source IP in your function:

import azure.functions as func
import logging

def main(req: func.HttpRequest) -> func.HttpResponse:
    client_ip = req.headers.get("X-Forwarded-For", "").split(",")[0].strip()
    logging.info(f"Incoming request from IP: {client_ip}")

    # Your business logic here
    return func.HttpResponse("Transaction validated", status_code=200)

Never rely solely on X-Forwarded-For for security—it can be spoofed. Use it only for logging. Platform-level IP rules are authoritative.

Validation and Testing Strategy

  1. Test from allowed IP:

curl -H "Content-Type: application/json" https://payment-validation-func.azurewebsites.net/api/validate
# → Should return 200

Test from blocked IP (e.g., your laptop):

curl -v https://payment-validation-func.azurewebsites.net/api/validate
# → Should return 403 Forbidden (without invoking your function)

Verify in logs

Use Azure Monitor → AppServiceHTTPLogs to confirm blocked requests never reach your code.

Operational Best Practices for Enterprises

Conclusion

In mission-critical domains like real-time payments, network-level access control isn’t optional—it’s foundational. By enforcing IP restrictions on Azure Functions, you create an impenetrable perimeter that complements identity-based security. This approach scales, complies, and—most importantly—stops threats before they consume a single millisecond of your function’s execution time. As cloud architects, our duty isn’t just to build systems that work, but to build systems that fail securely. IP restrictions on Azure Functions are a simple, powerful step toward that goal.
